Overview

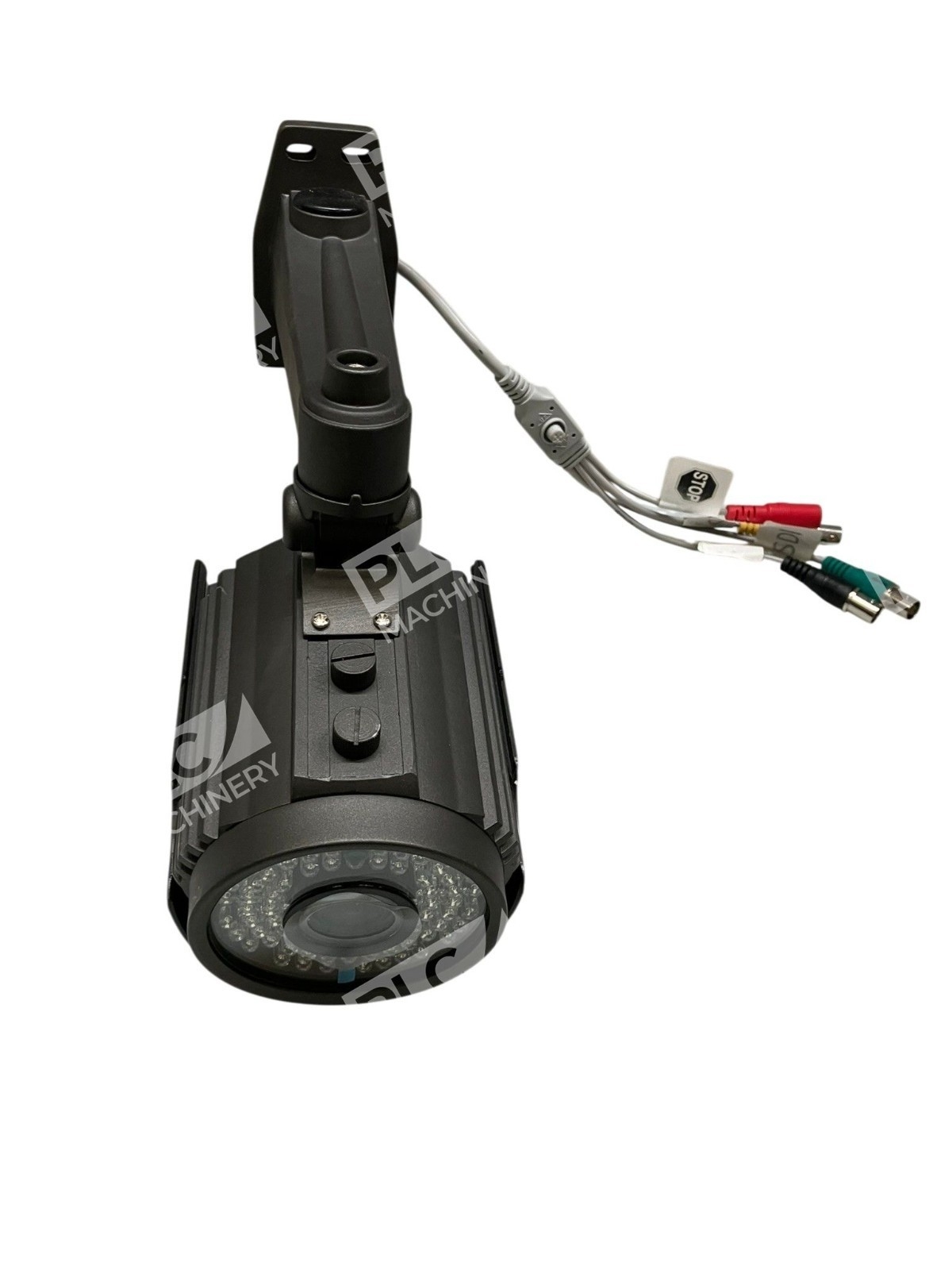

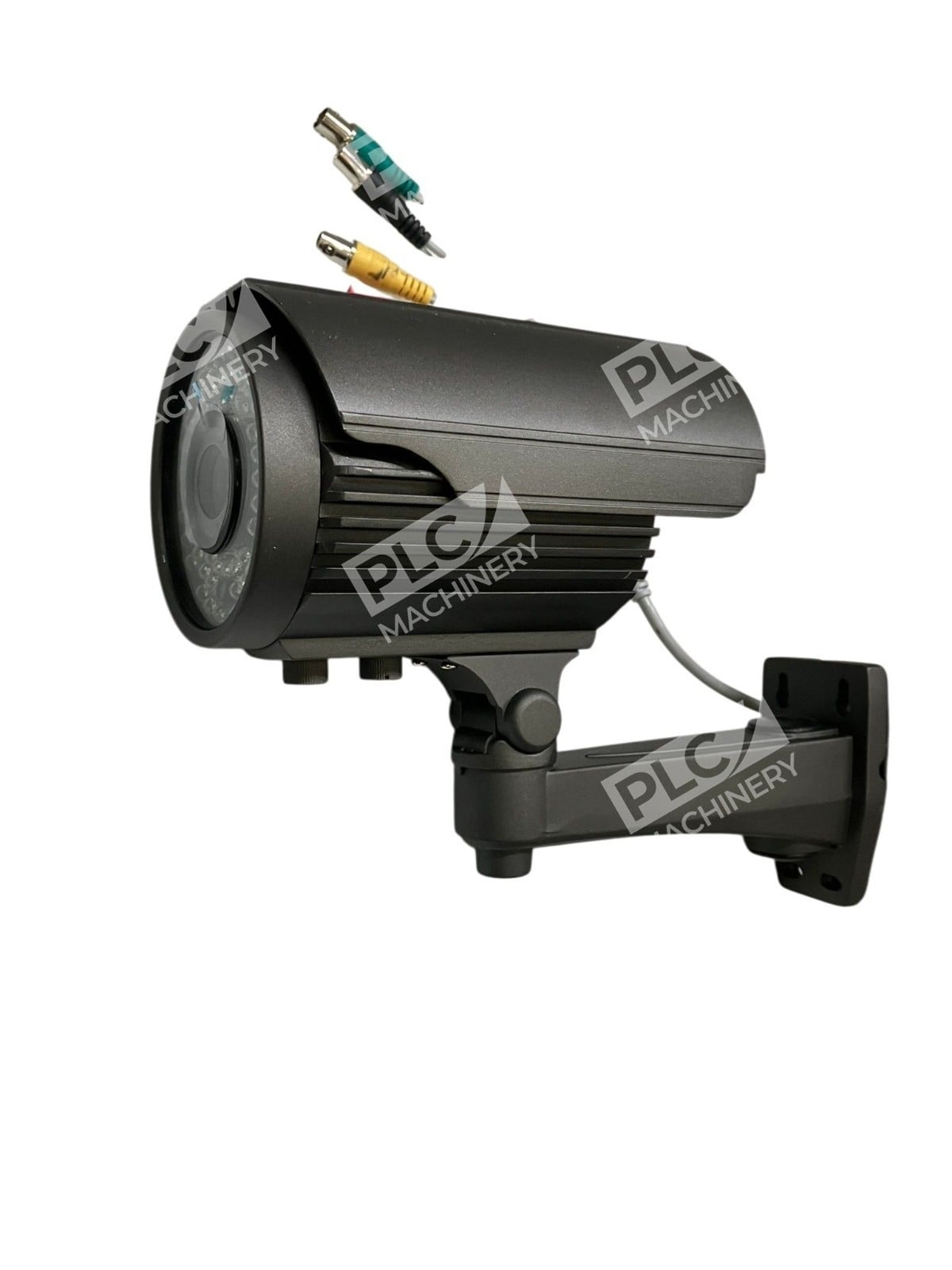

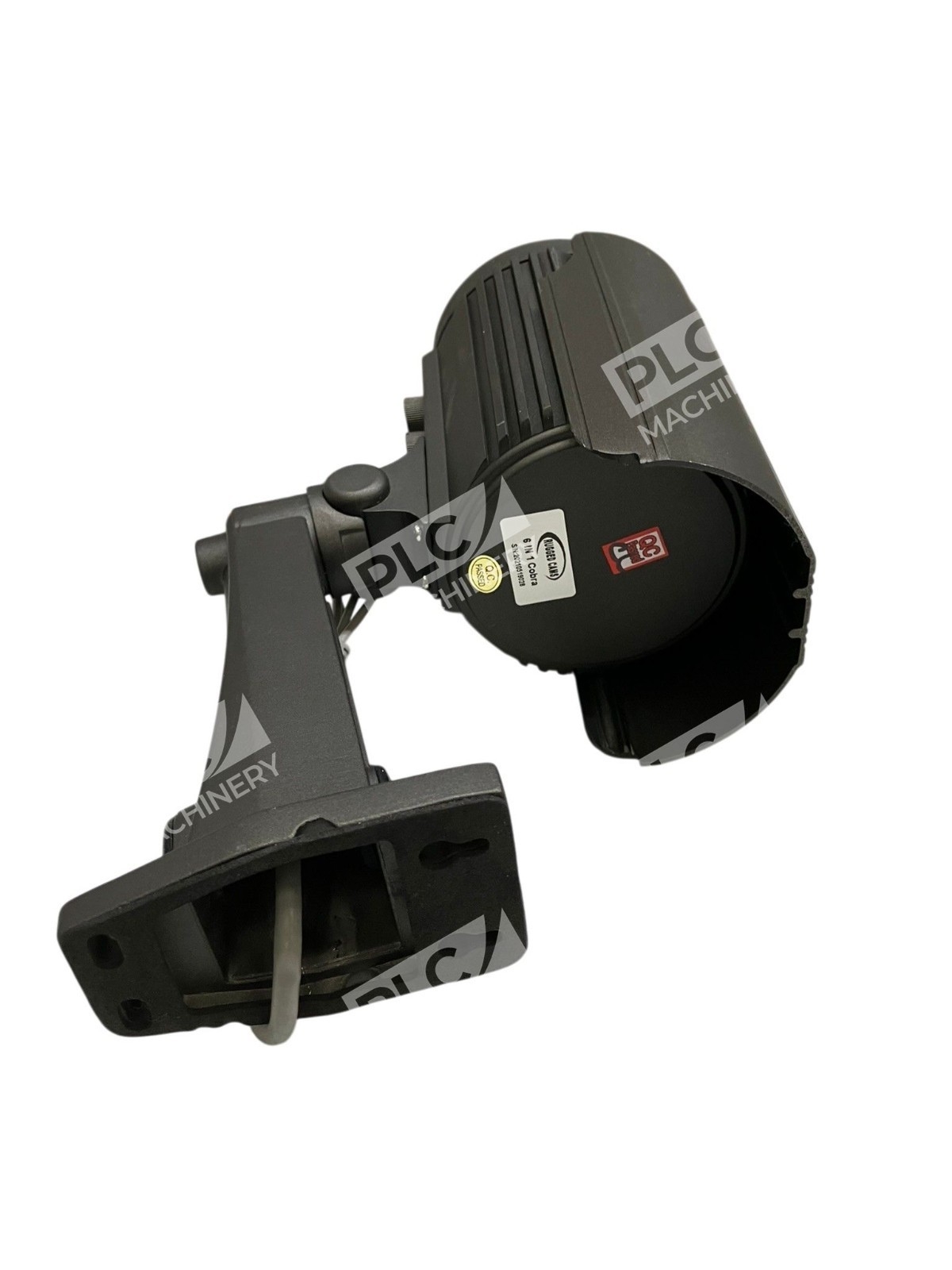

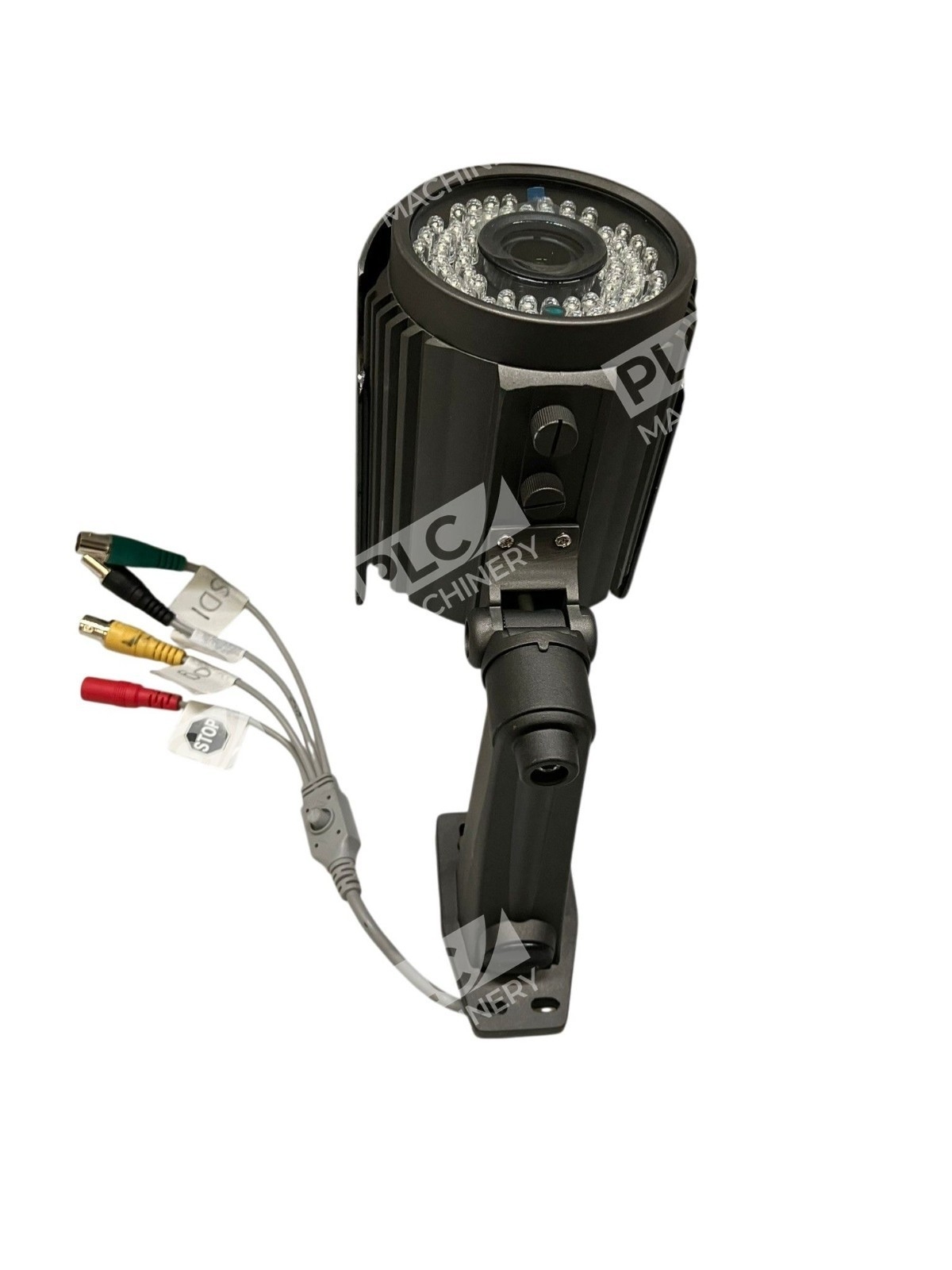

The Cobra-90 varifocal TVI camera from Rugged Cams is a multi-format bullet security camera engineered for demanding surveillance applications. This model combines flexibility with rugged field performance, supporting six different video formats to integrate into diverse CCTV systems. The external lens adjustment knobs allow technicians to modify focus and zoom without disassembly, streamlining installation and maintenance workflows.
Key Features
- 6-in-1 Video Format Support: Three video options changeable instantly by selecting the correct connector (TVI, HD-SDI, and Analog-960H), with three additional options accessible through menu settings (EX-SDI 1.0, EX-SDI 2.0, SDI off)
- Varifocal Lens Design: 2.8–12mm varifocal lens with external adjustment knobs for easy lens modification without camera disassembly
- Long-Range Infrared: 42 IR LEDs capable of illuminating areas up to 90 feet away with Smart IR function that provides clear images in complete darkness by intelligently controlling IR sensitivity
- Weatherproof Construction: IP66 rated and able to withstand spray or hose-down with no damage or water incursion
- Cable Management: Integrated mounting bracket designed to conceal cables
Technical Specifications
| Lens Type | Varifocal 2.8–12mm |
| Video Formats | TVI, HD-SDI, Analog-960H, EX-SDI 1.0, EX-SDI 2.0, SDI Off |
| Infrared LEDs | 42 IR LEDs |
| IR Range | Up to 90 feet |
| IP Rating | IP66 (dust and water resistant) |
| Lens Adjustment | External manual knobs (no disassembly required) |
| Special Features | Smart IR, integrated cable management bracket |
| Manufacturer | Rugged Cams |
| Model | Cobra-90 |
Typical Applications
- Outdoor industrial facility perimeter monitoring
- Parking lot and vehicle access surveillance
- Building entrance and exit point coverage
- Low-light environments requiring extended IR range
- Multi-format CCTV system integration where video format flexibility is critical
- Facilities requiring weatherproof, washdown-rated equipment
Compatibility & Replacements
Compatible With
- HD-TVI DVR systems (Rugged Vault and equivalent platforms)
- HD-SDI recording equipment
- Analog 960H CCTV infrastructure
- EX-SDI 1.0 and 2.0 compatible recorders
- Systems supporting coax-based video transmission
- BNC connector-based CCTV installations
Replaces / Drop-In Replacement For
The Cobra-90 is a standalone model. Verify compatibility with your existing system’s video format and connector type before ordering. Contact Rugged Cams directly or your system integrator to confirm interchangeability with legacy equipment.
Works With
- Rugged Cams DVR systems (Rugged Vault series)
- Standard CCTV coaxial cable infrastructure (RG59, RG6)
- BNC-terminated monitoring and recording equipment
- Multi-format DVR platforms supporting TVI, HD-SDI, and analog video inputs
- OSD menu configuration via compatible DVR control interfaces
