Overview

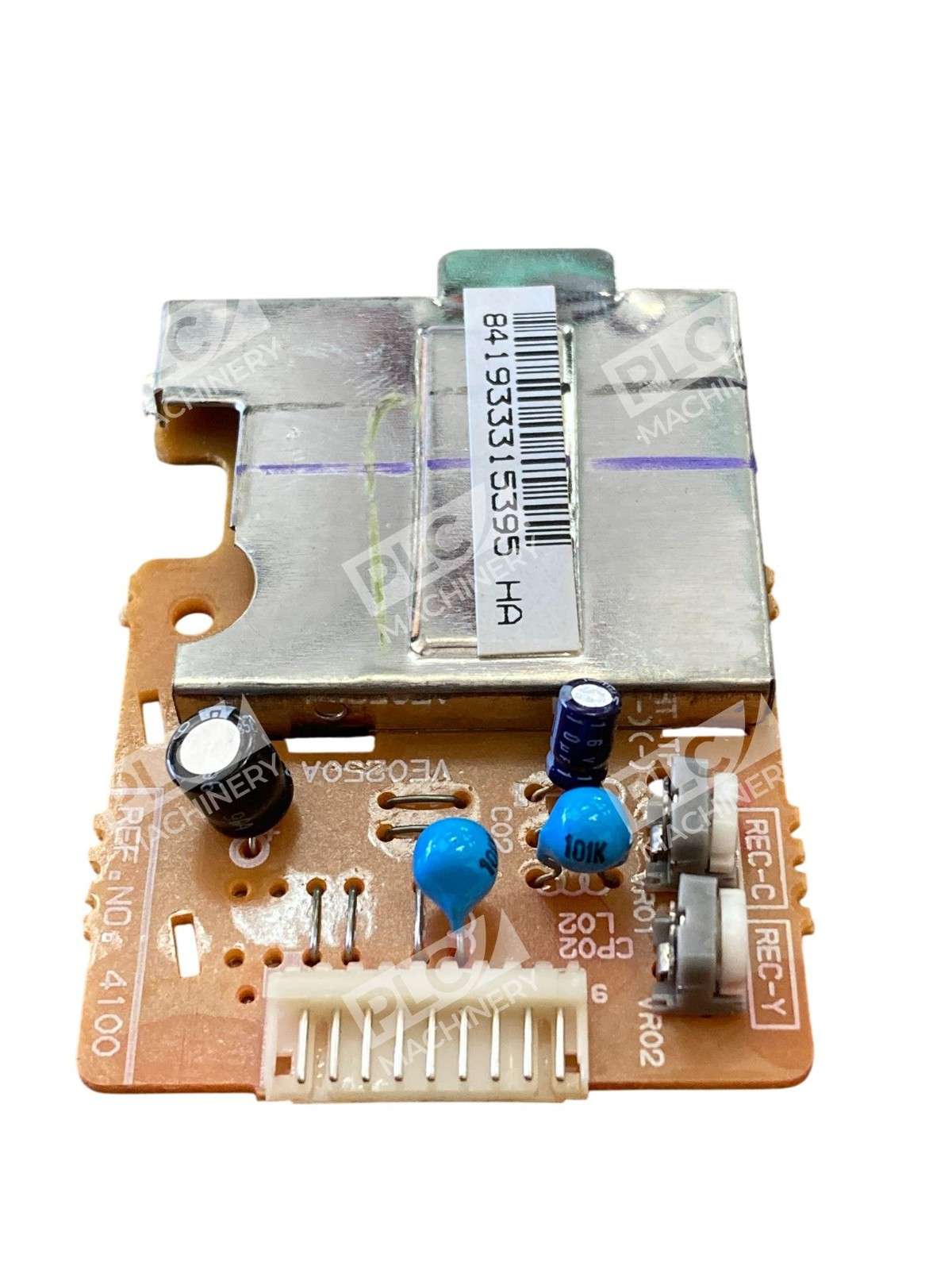

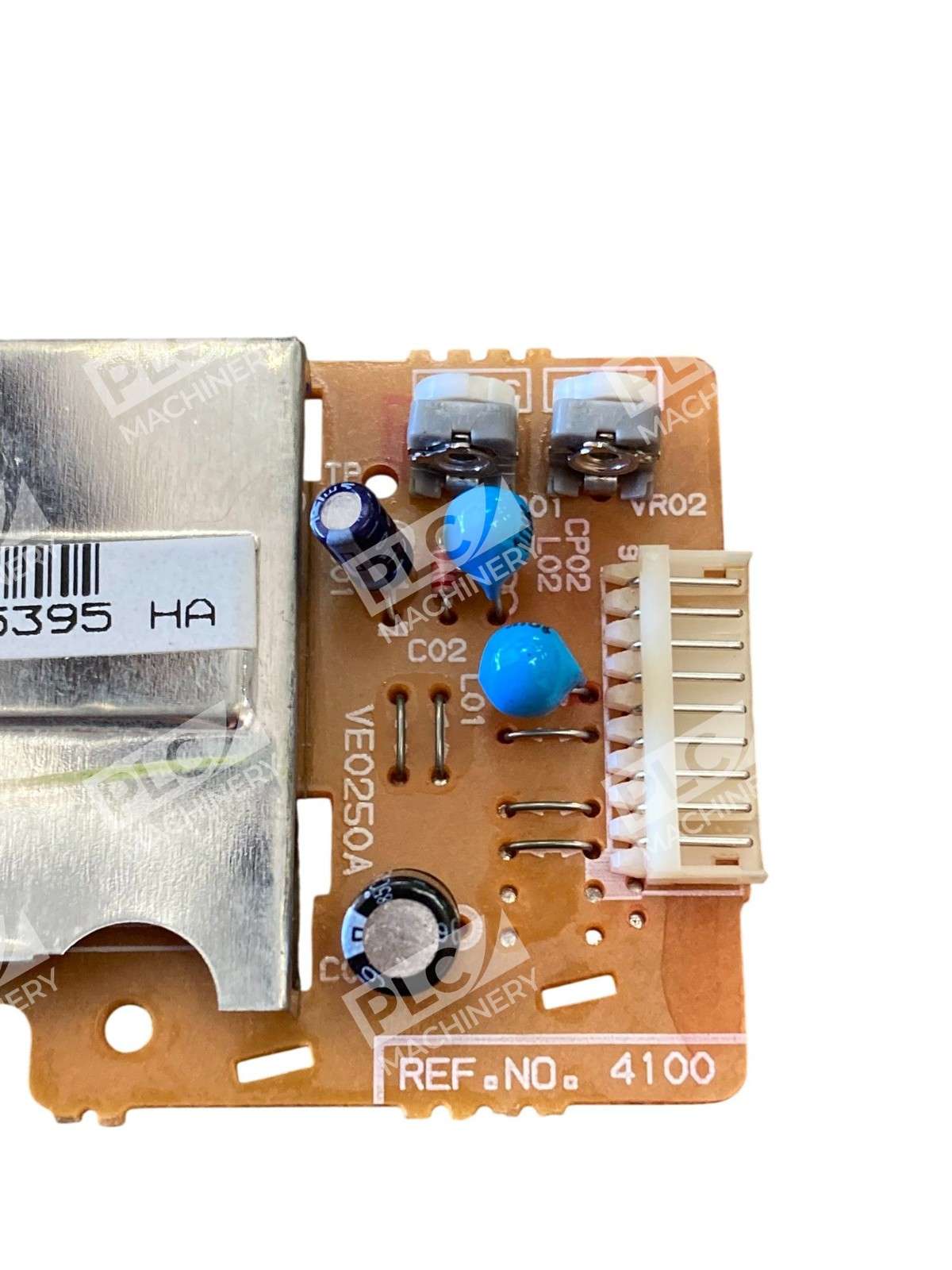

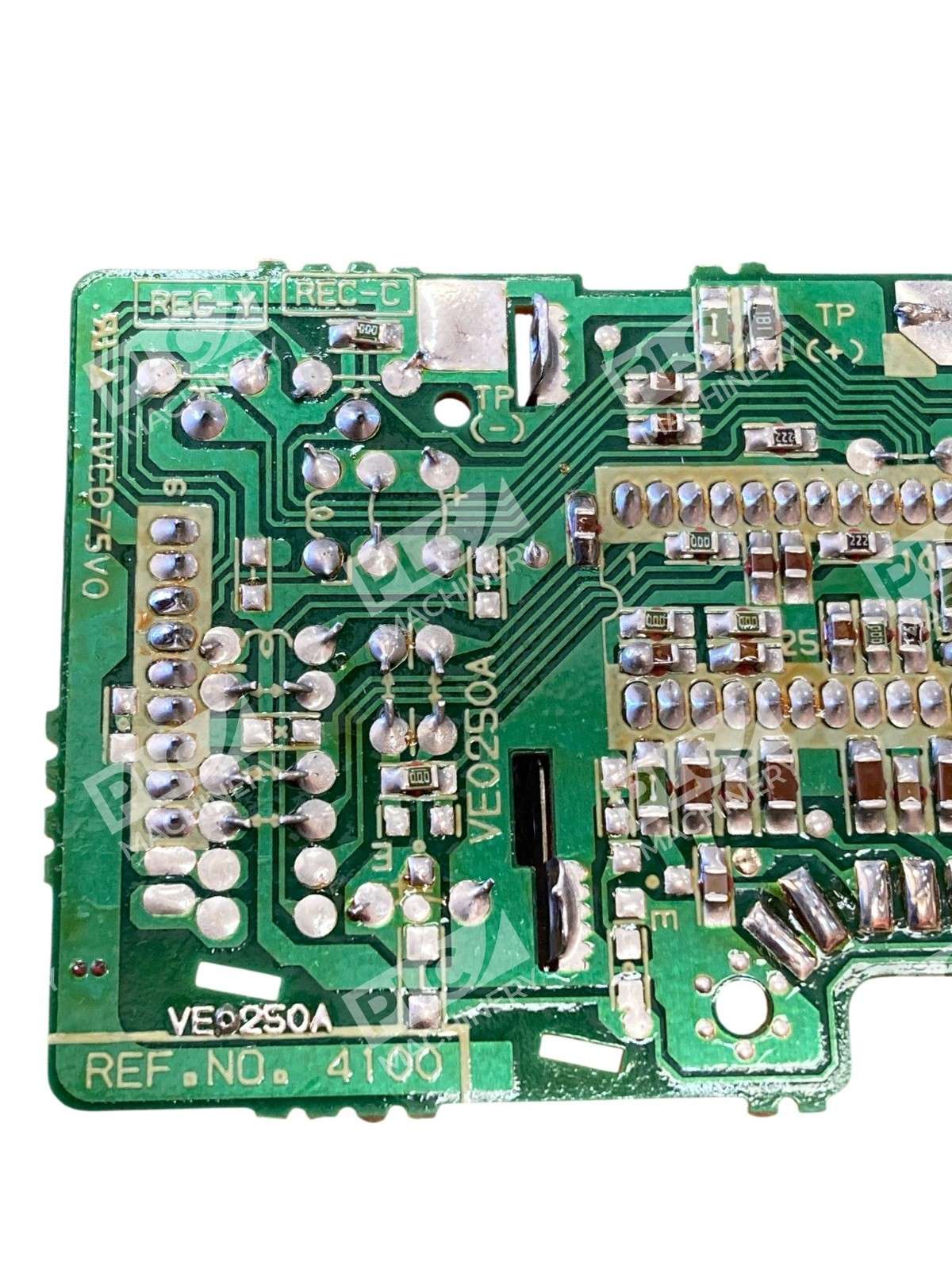

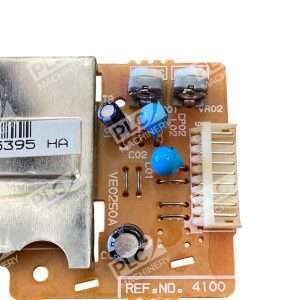

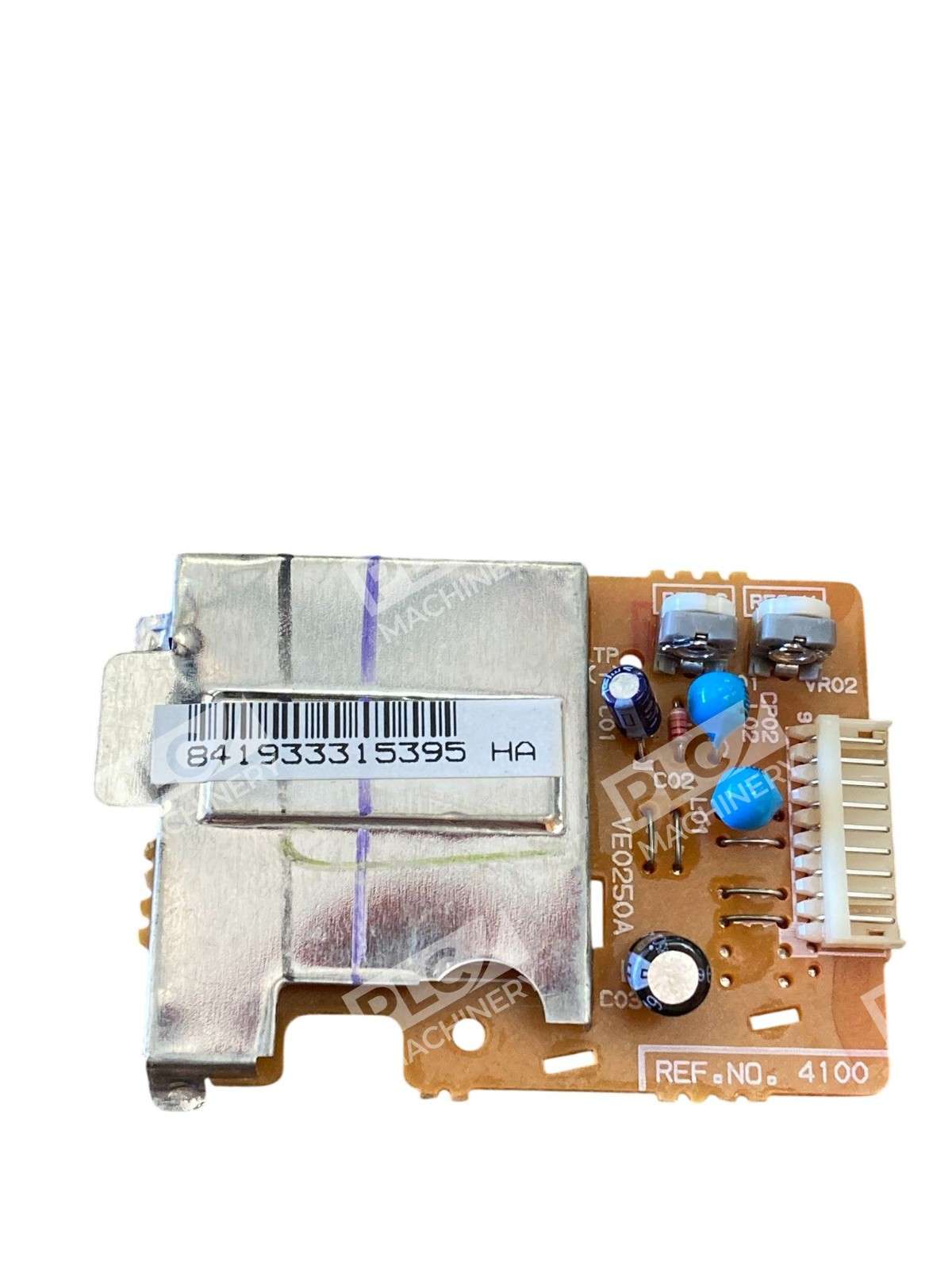

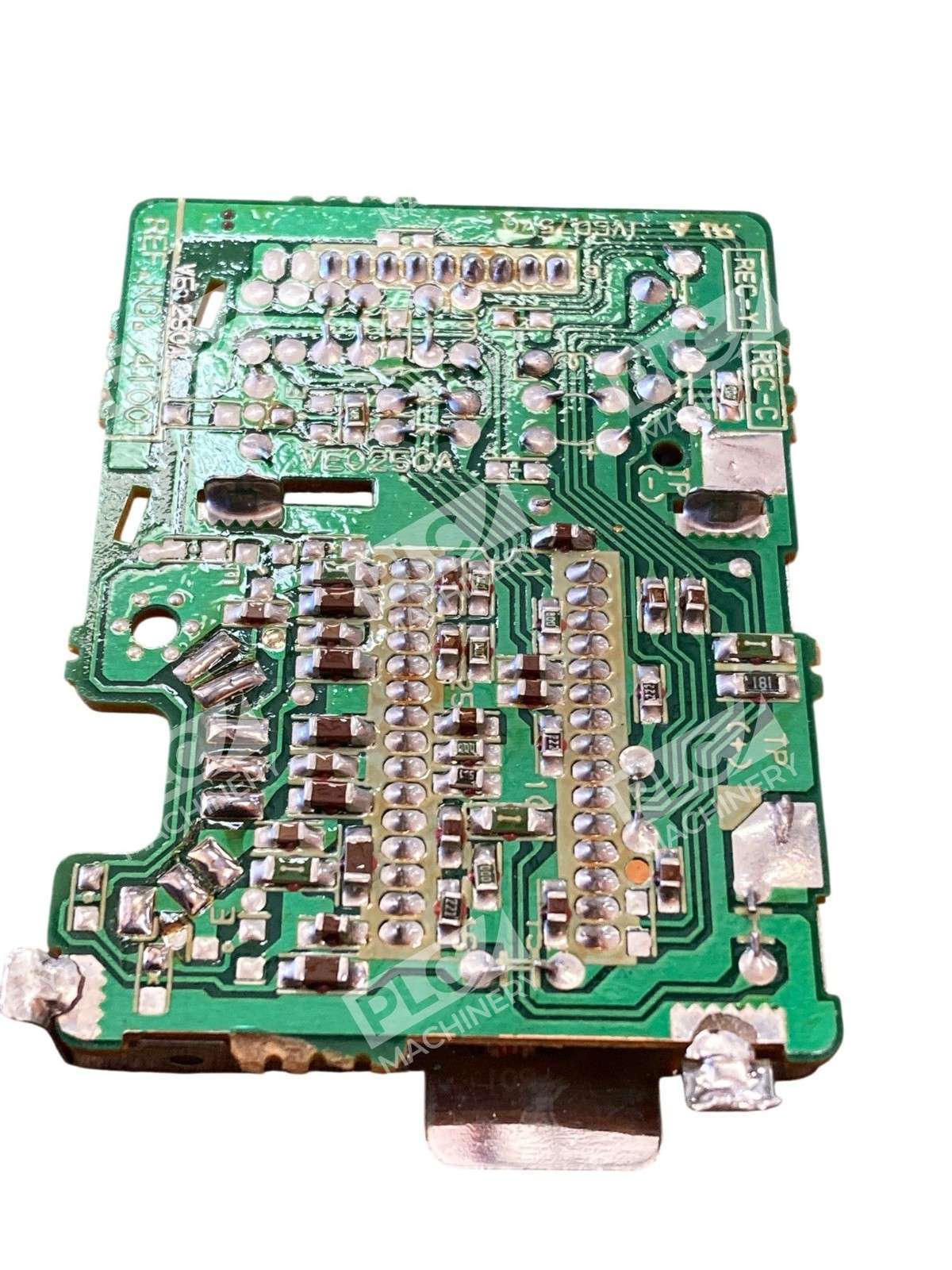

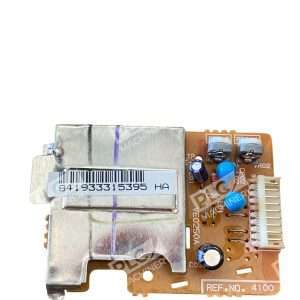

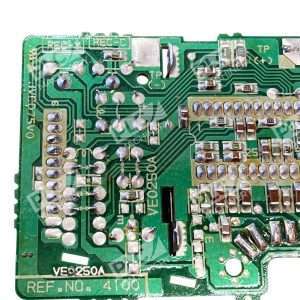

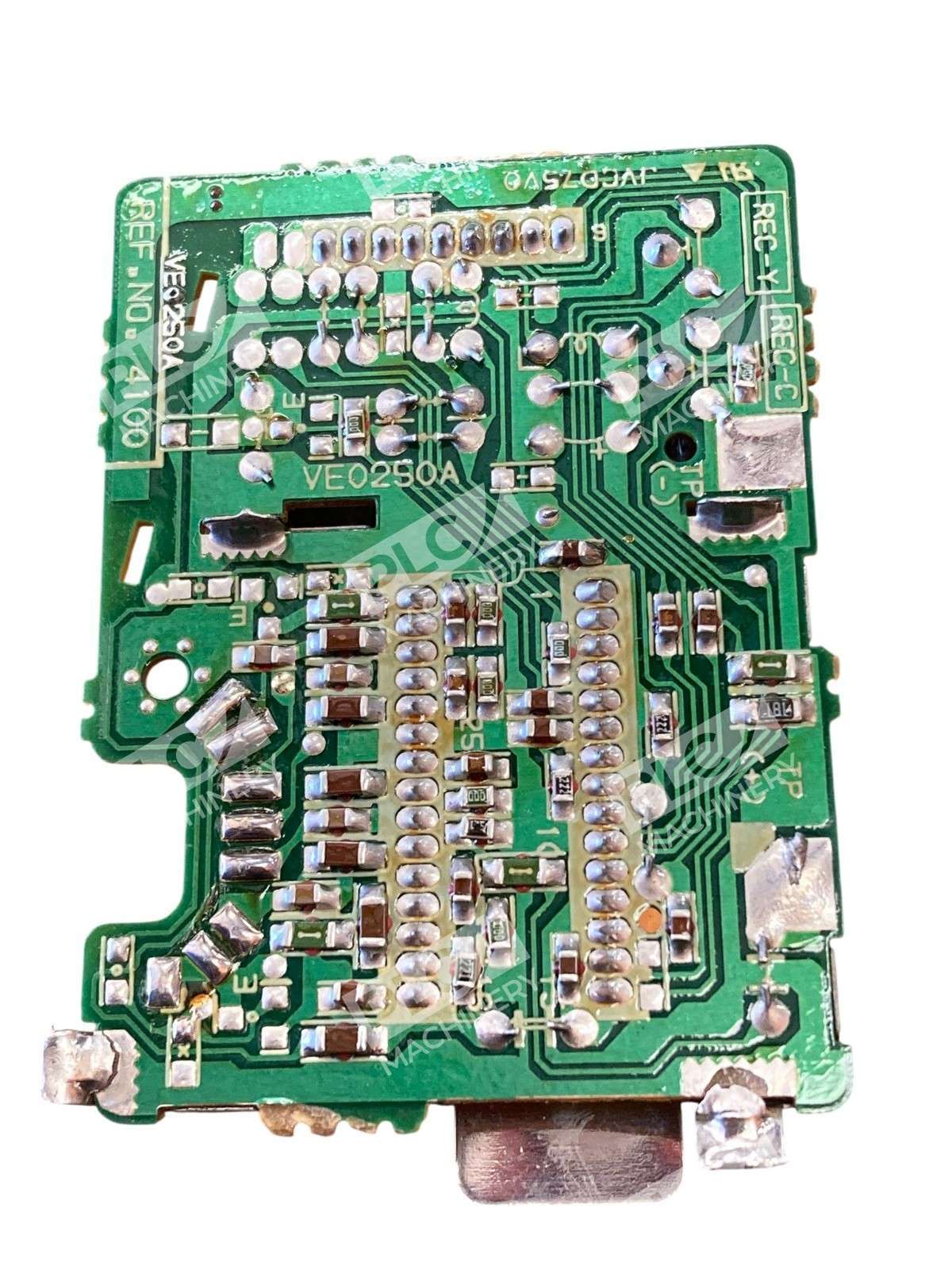

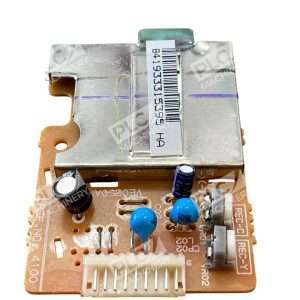

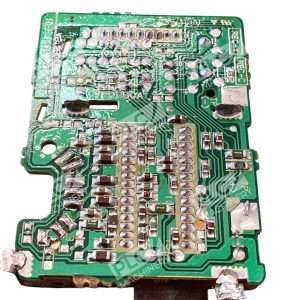

The 4100 receiver control board PCB serves as the control center for indoor air-handling units in HVAC and refrigeration systems. This printed circuit board is responsible for managing critical functions including temperature regulation, compressor operation, and fan speed control. The board processes signals from thermostats and sensors to ensure optimal climate control performance in residential and light commercial applications.
Key Features
- Central control logic for indoor AC unit operation
- Temperature regulation and sensor interface capabilities
- Designed for integration into standard HVAC air handlers
- Manages compressor and fan motor control signals
- Printed circuit board construction for reliable performance
Technical Specifications
Standard PCB specifications for receiver control boards in HVAC systems. This unit is designed for indoor AC applications with typical operating requirements for climate control systems. Verify exact voltage, current, and control signal specifications with your equipment manufacturer before installation.
Typical Applications
- Indoor air handler units in split-system air conditioning
- Residential and light commercial HVAC systems
- Temperature control and thermostat integration
- Refrigeration system receiver control
- Climate control system diagnostics and repair
Compatibility & Replacements
Compatible With
- Standard thermostat wiring and control circuits
- Indoor air handler units requiring receiver control
- 24V AC control signal systems
- Compressor and fan motor control applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or HVAC technician before ordering. The 4100 board may serve as a replacement for specific OEM models; consult your equipment documentation or contact the original equipment manufacturer for confirmed cross-references.
Works With
- Standard HVAC thermostat control systems
- Indoor air handler electrical harnesses
- Receiver and compressor control circuits
- Temperature sensor inputs
