Overview

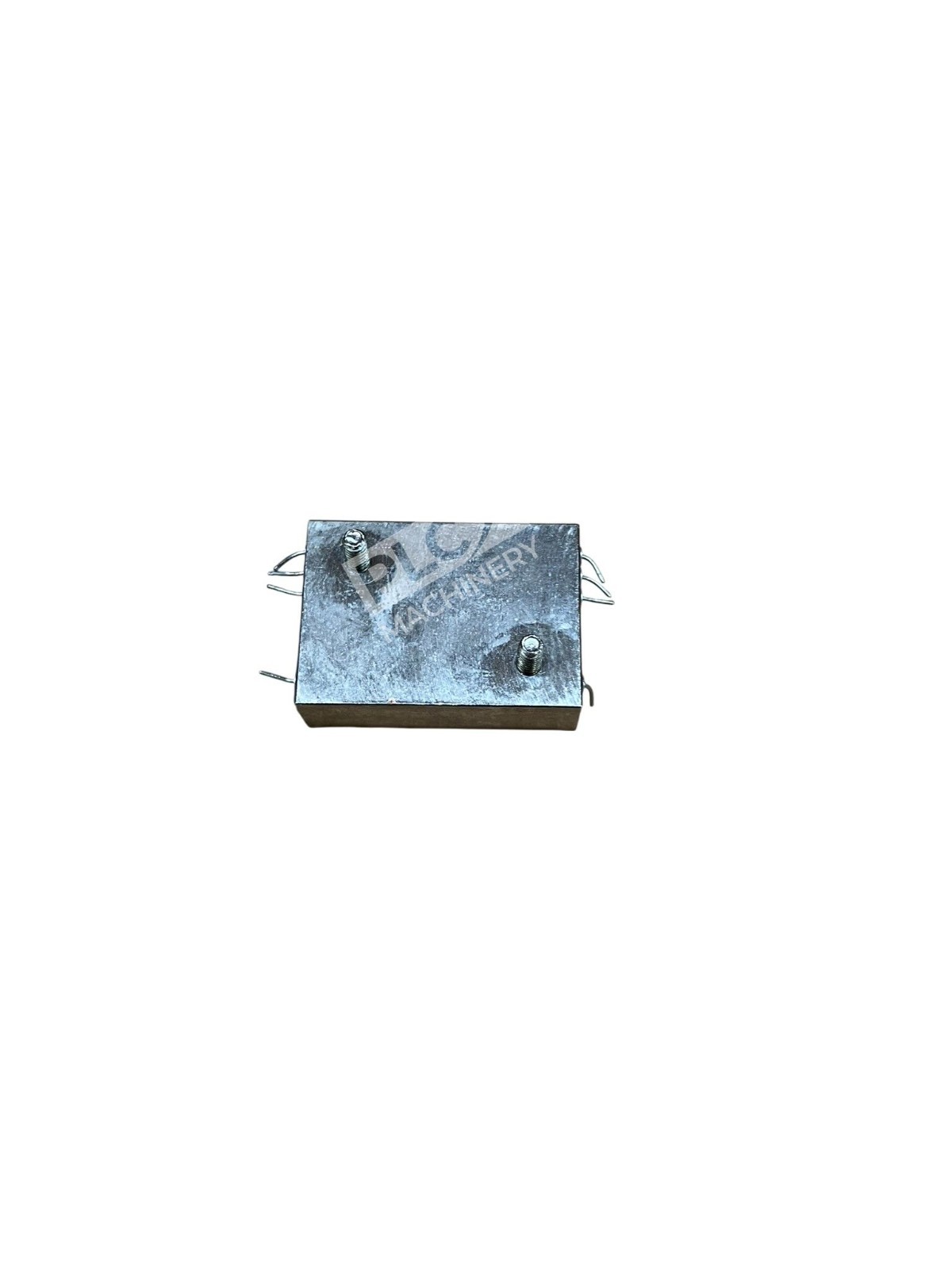

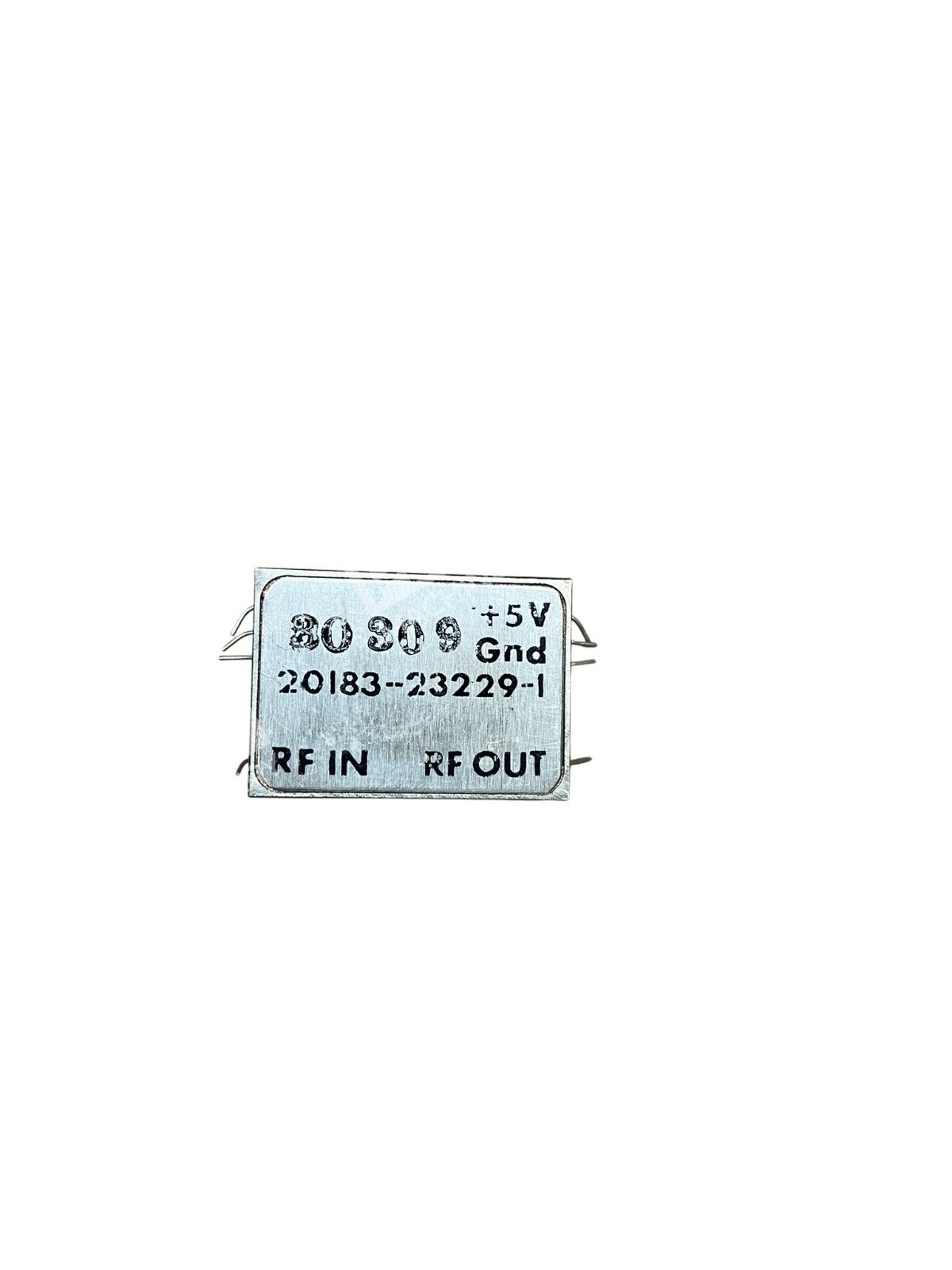

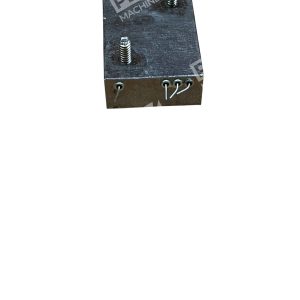

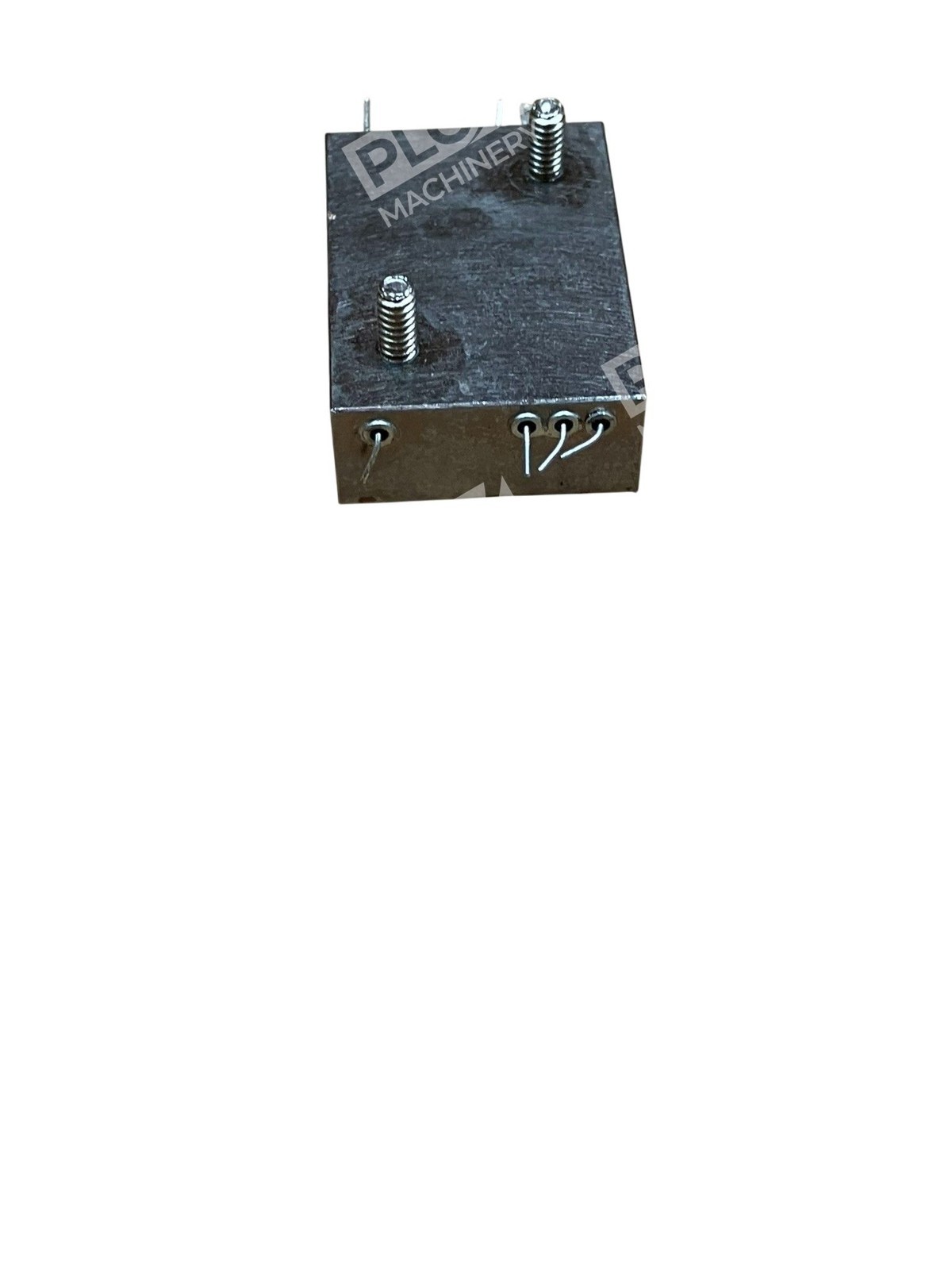

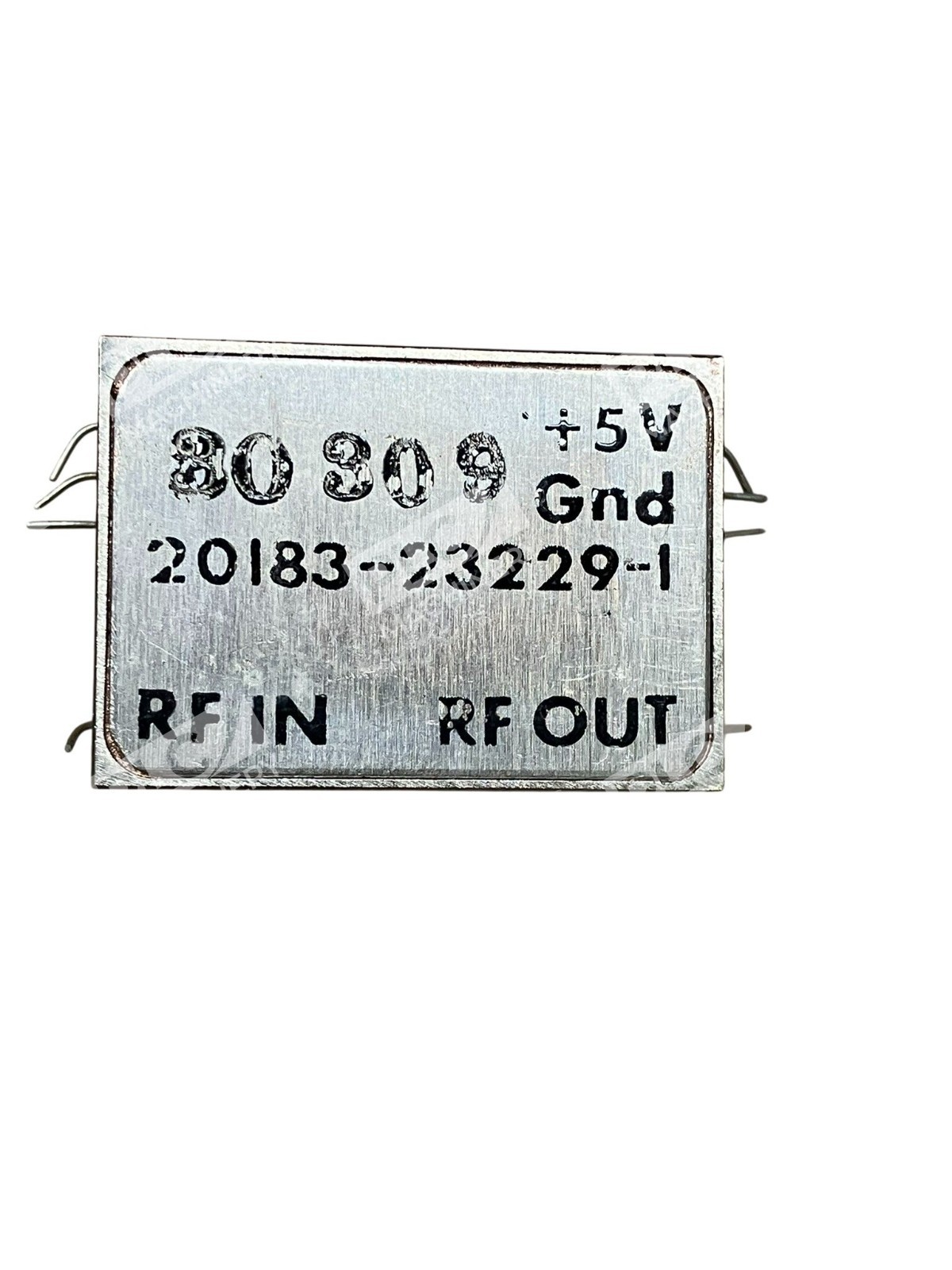

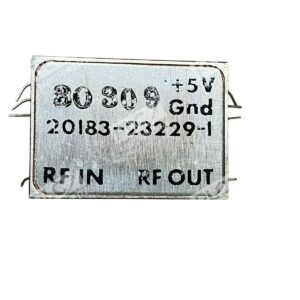

The NDK 20183-23229-1 is a 50 MHz RF radio frequency crystal oscillator module designed for precision frequency generation in radio frequency and electronic systems. This RF crystal oscillator module provides stable, accurate oscillation output suitable for industrial communications, test equipment, and commercial RF applications requiring reliable frequency reference.
Key Features
- 50 MHz center frequency for RF circuit applications
- Maximum rated voltage of 12V DC operation
- Compact crystal oscillator module design
- Stable frequency output for precision RF applications
- Used, fully functional condition
Technical Specifications
The following specifications define the NDK 20183-23229-1 module performance parameters:
- Frequency: 50 MHz
- Maximum Voltage: 12V DC
- Product Type: Crystal Oscillator Module
- Manufacturer: NDK (Nihon Dempa Kogyo)
- Part Number: 20183-23229-1
- Condition: Used, tested and functional
Typical Applications
- RF test and measurement equipment frequency reference
- Industrial communications systems requiring stable 50 MHz source
- Radio frequency circuit prototyping and development
- Precision timing circuits in commercial electronics
- Replacement oscillator modules in legacy RF systems
Compatibility & Replacements
Compatible With
- RF receiver and transmitter circuits operating at 50 MHz
- Frequency counter and signal generator applications
- Industrial test equipment requiring external frequency reference
- Communications systems with 50 MHz frequency band operation
Replaces / Drop-In Replacement For
This NDK 20183-23229-1 module may serve as a replacement for legacy RF crystal oscillator modules in systems designed for 50 MHz operation. Verify mechanical fit, connector type, and electrical interface compatibility with your equipment before ordering.
Works With
- Standard RF circuit designs using 50 MHz frequency reference
- Systems requiring stable crystal oscillator signal conditioning
- Analog and mixed-signal RF circuitry
- Frequency synthesis and phase-locked loop (PLL) applications
