Overview

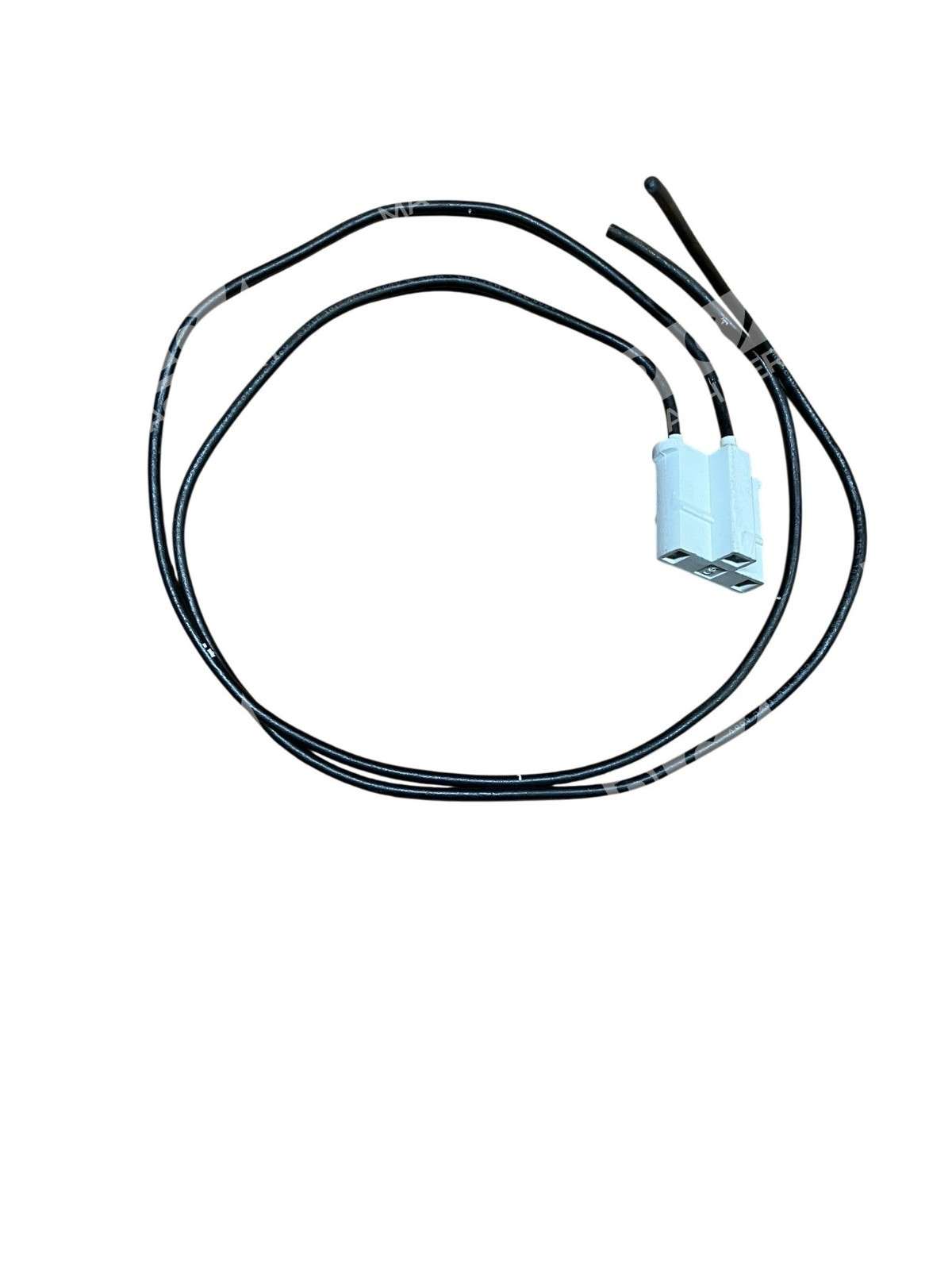

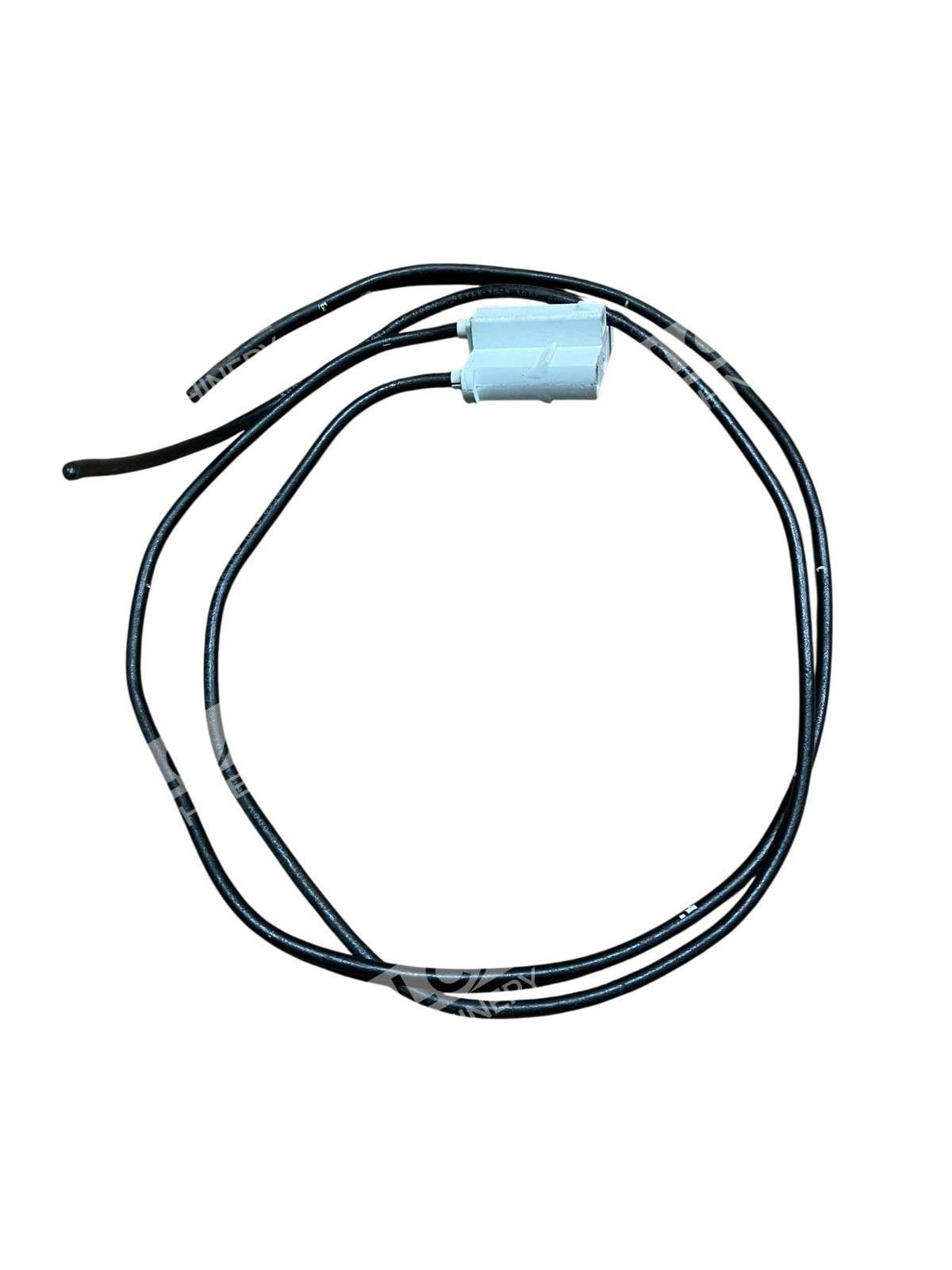

The CSA TEW 2-wire temperature sensor is a thermoplastic equipment wire-based temperature sensing device designed for industrial and commercial temperature monitoring applications. Rated for -40°C to +105°C operation and certified for 600V, this sensor features a white connector for straightforward integration into control systems and monitoring equipment.
Key Features
- 2-Wire Connection — Simplified installation and wiring harness design
- White Connector — Standard interface for panel and sensor integration
- 105°C Temperature Rating — Suitable for high-temperature process environments
- 600V Certification — Meets industrial voltage safety standards
- CSA & UL Certified — Canadian Standards Association and UL approved for equipment use
- Industrial Grade — Reliable operation in manufacturing, HVAC, and process control applications
Technical Specifications
- Connection Type: 2-Wire
- Connector Color: White
- Temperature Range: -40°C to +105°C (-40°F to +221°F)
- Voltage Rating: 600V
- Certification Standards: CSA Type TEW, UL 1015 (MTW)
- Insulation Type: Thermoplastic PVC
- Conductor: Tinned Copper
- Quantity: 3 units per SKU
- Condition: Used, tested and functional
Typical Applications
- Industrial process temperature monitoring and control systems
- HVAC equipment temperature sensing for thermal management
- Manufacturing equipment temperature protection and shutdown logic
- Motor winding and bearing temperature monitoring
- Thermal protection circuits for motor starters and PLCs
- Machine tool spindle and coolant temperature sensing
Compatibility & Replacements
Compatible With
- Industrial PLC systems and programmable controllers
- Temperature monitoring modules and input cards
- Analog input modules rated for 2-wire sensor input
- Thermal control relays and motor protection devices
- Building automation and HVAC control systems
- Industrial machine tools and equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is listed as a used surplus item; original manufacturer specifications may differ from current production models. Cross-reference the white connector pinout and 2-wire interface with your existing sensor documentation.
Works With
- Studio 5000 Logix Designer (temperature input modules)
- TIA Portal temperature monitoring functions
- Analog input modules accepting 4-20mA or RTD signals
- PROFIBUS and EtherNet/IP networks via appropriate gateway modules
- Standard industrial terminal blocks and connector systems
