Overview

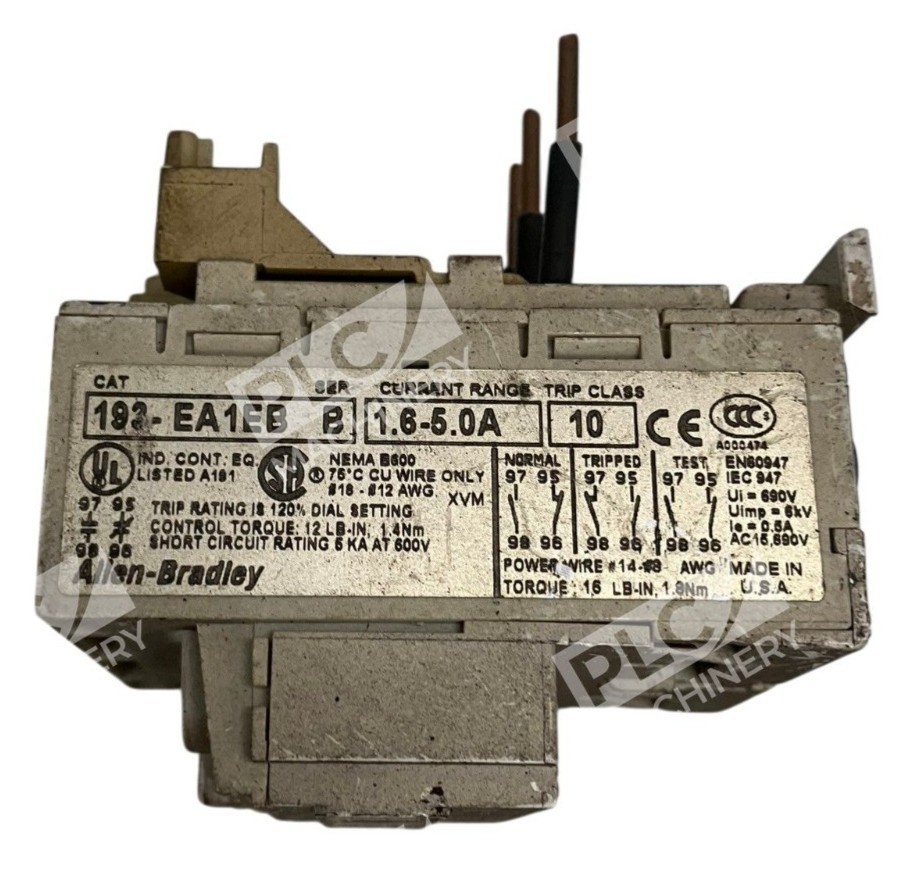

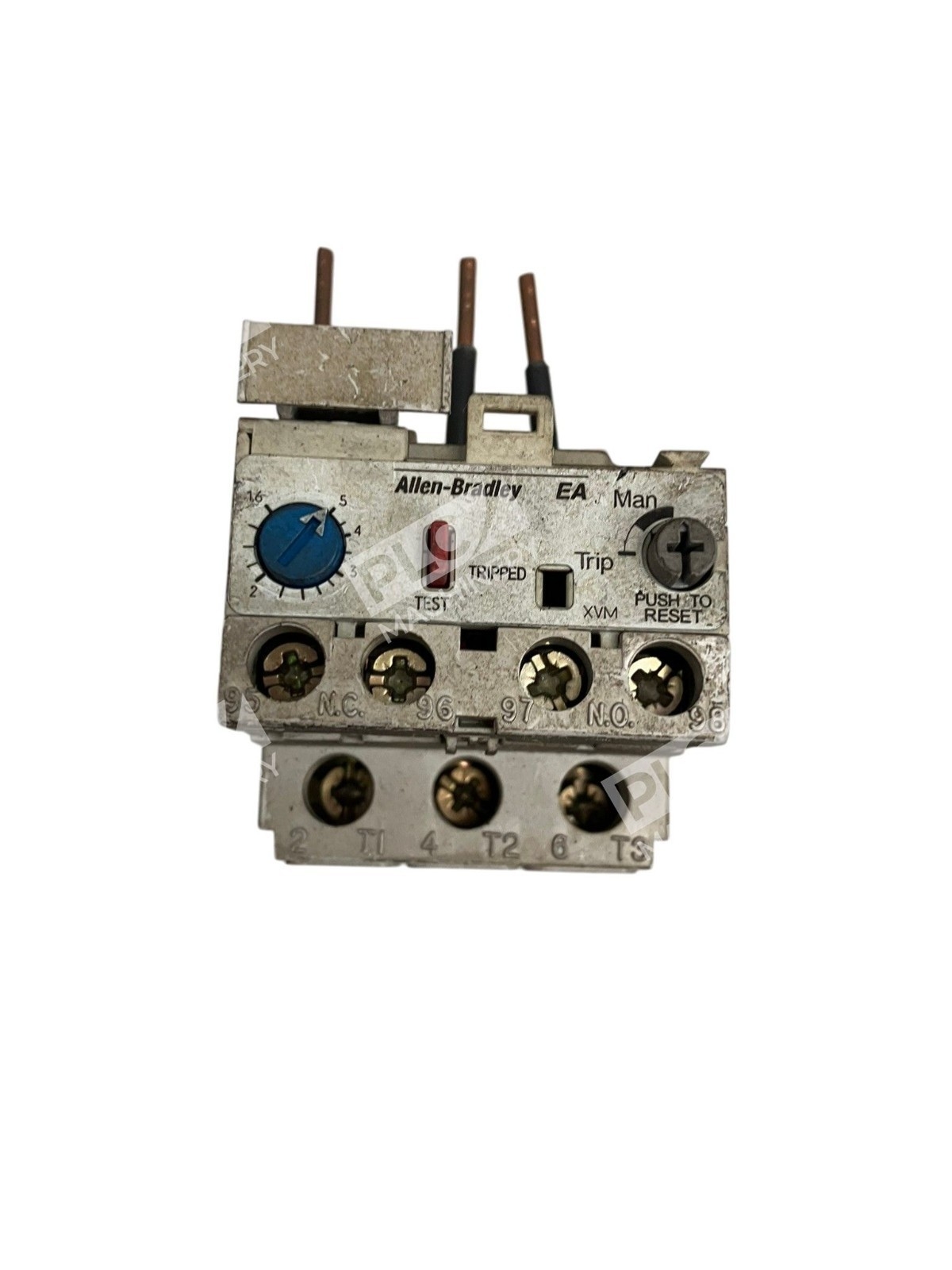

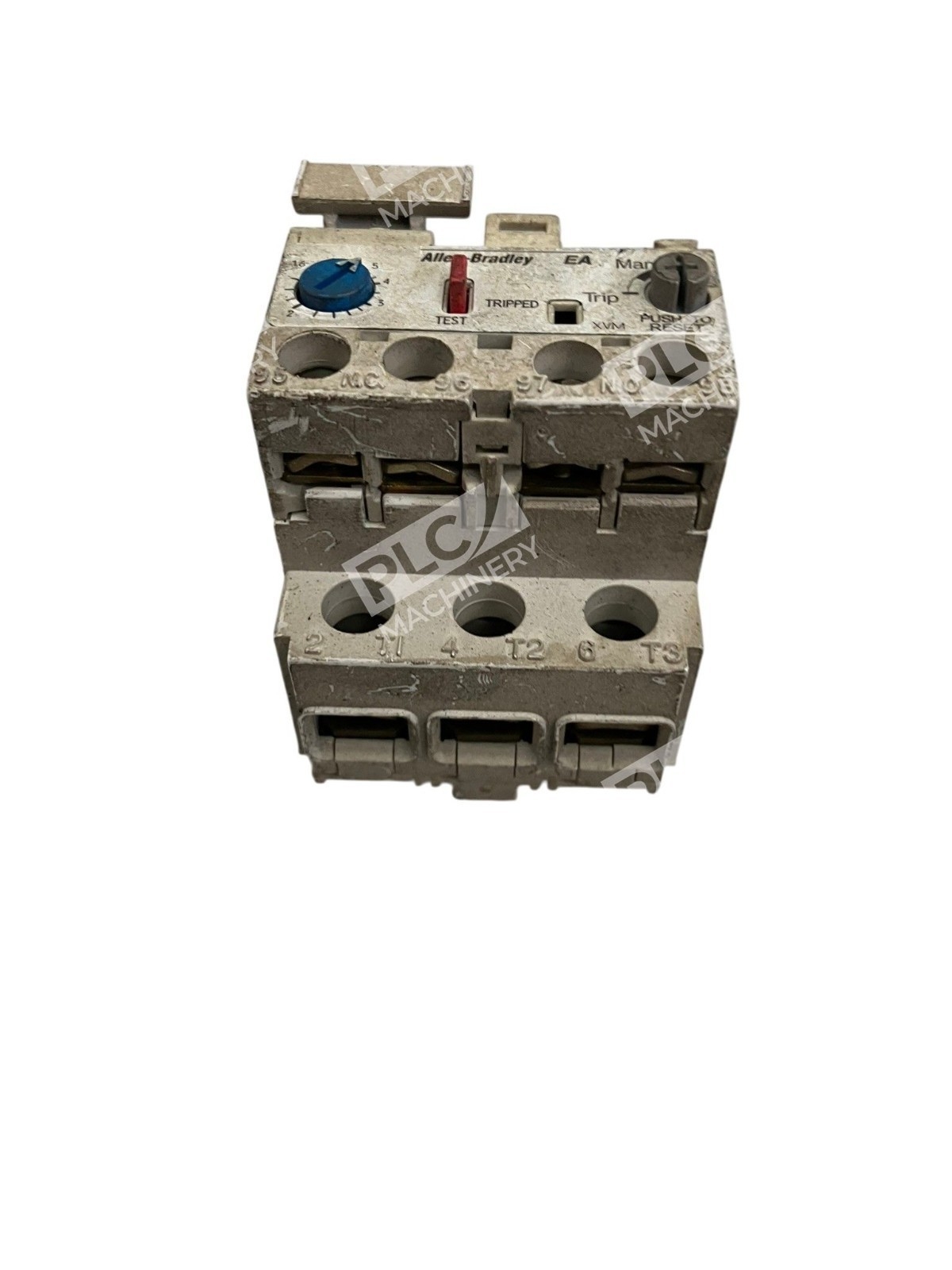

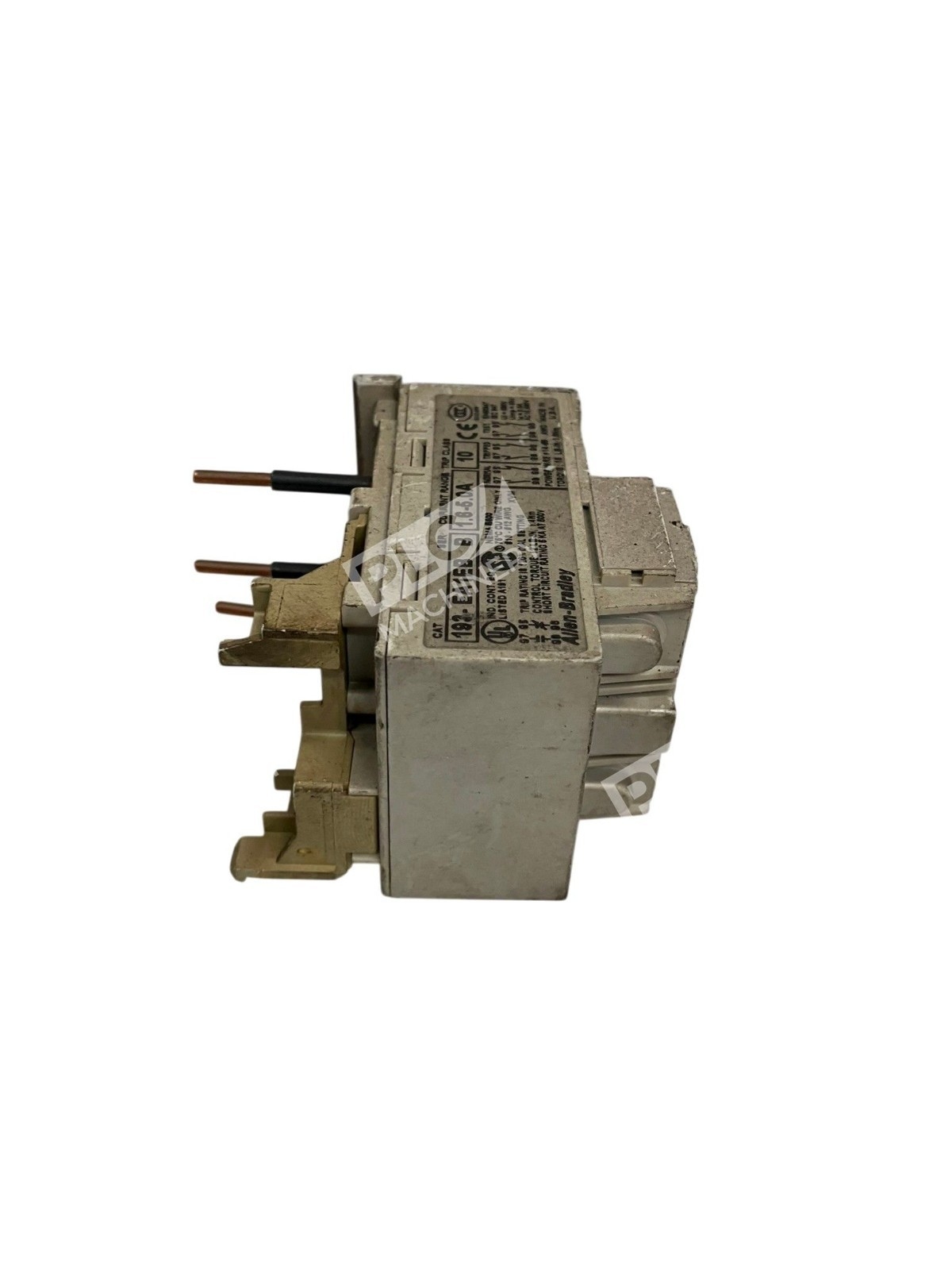

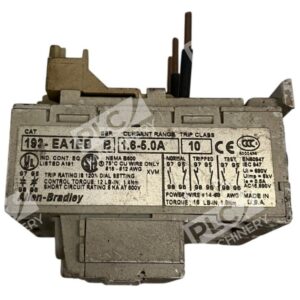

The Allen-Bradley 193-EA1EB is a solid state overload relay designed for motor protection in industrial control systems. This Class 10 relay provides reliable overload detection and trip response, with manual reset capability. The 193-EA1EB operates at 690 VAC and handles motor full-load amperage from 1.6 to 5.0 amps, making it suitable for small to medium motor circuits. Though discontinued by the manufacturer, the 193-EA1EB remains a dependable component for legacy equipment maintenance and retrofit applications.
Key Features
- Solid state electronic protection—no moving thermal elements
- Class 10 trip response for precise overload detection
- Manual reset design prevents nuisance restarts
- Adjustable current range: 1.6–5.0 amp full load
- 690 VAC rated voltage, compatible with standard motor control circuits
- Auxiliary contacts (1NO/1NC) for status signaling and alarm integration
Technical Specifications
The following specifications define the Allen-Bradley 193-EA1EB performance envelope:
- Relay Type: Solid State (Electronic)
- Trip Class: Class 10 (trip time 5–20 seconds at 600% current)
- Current Rating: 1.6–5.0 A adjustable
- Voltage Rating: 690 VAC
- Reset: Manual
- Poles: 3
- Auxiliary Contacts: 1NO, 1NC
- Mounting: Contactor mount (NEMA Size 00)
- Weight: 0.31 lbs
- Product Family: Bulletin 193 (SMP-1 series)
Typical Applications
The Allen-Bradley 193-EA1EB is used in:
- Small fractional and integral horsepower motor protection circuits
- Pump and fan motor starters with automatic overload shutdown
- Legacy three-phase motor control panels and machine tool drive circuits
- Industrial automation systems requiring Class 10 response time
- OEM equipment repair and retrofit projects
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 193 motor starter family
- NEMA Size 00 contactors (100-M05, 100-C25 series)
- Standard three-phase motor control systems 690 VAC
- Manual and automatic motor starter circuits
Replaces / Drop-In Replacement For
The Allen-Bradley 193-EA1EB directly replaces earlier versions of the same part number in legacy motor control systems. Verify equipment compatibility with your system integrator before ordering.
Works With
- Allen-Bradley contactors and starters (NEMA 00 frame)
- Three-phase motor circuits rated up to 690 VAC
- Manual and electromagnetic starter control logic
- Status alarm circuits via auxiliary NO/NC contacts
