Overview

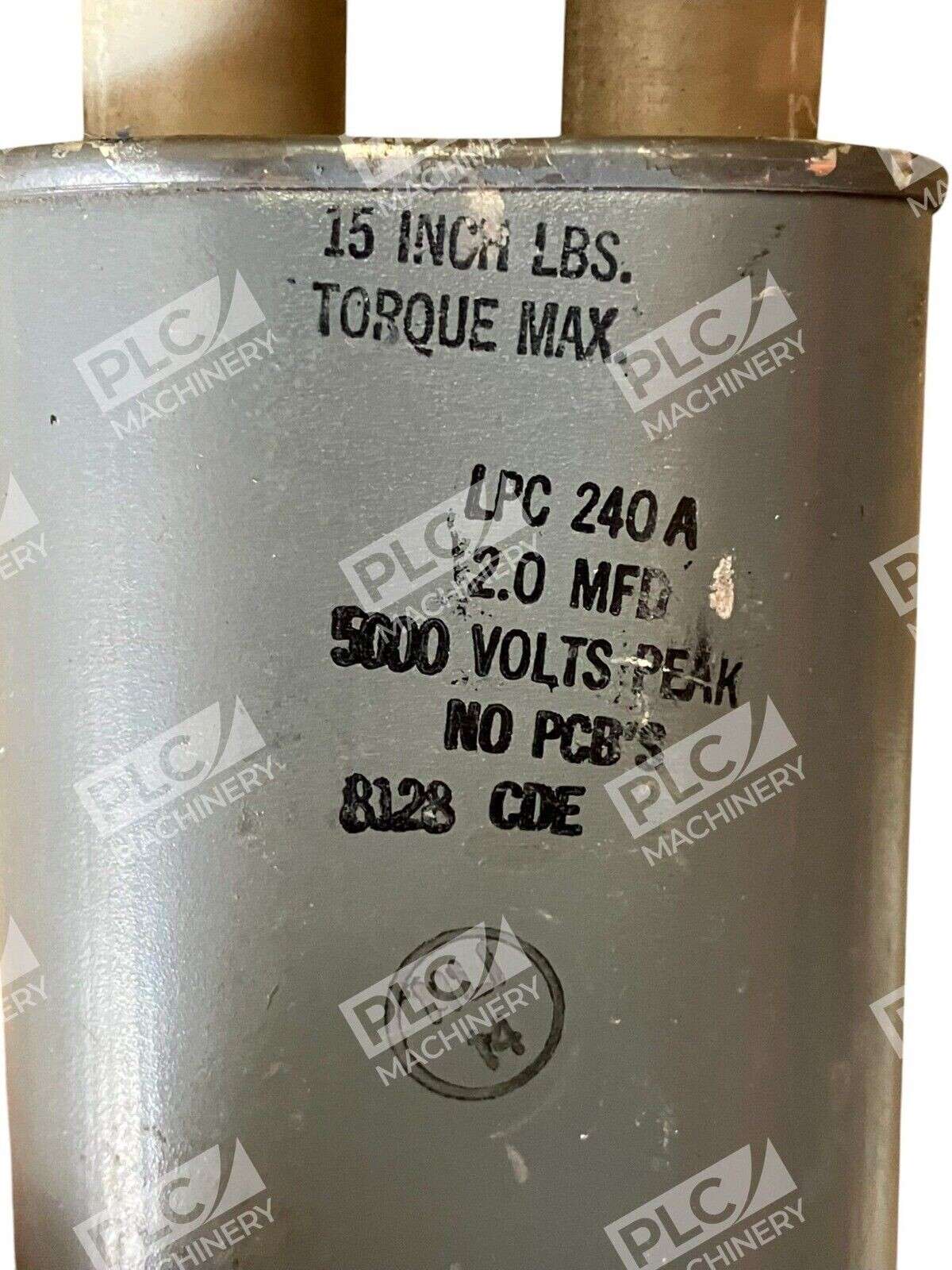

The CDE 14L114 8128 is a Cornell Dubilier high-voltage capacitor designed for industrial and power electronics applications. This unit delivers 2.0 MFD capacitance at a maximum operating voltage of 5000V with a 240A LPC (Lightning Protection Circuit) rating, making it suitable for legacy and retrofit installations where no PCBs are integrated into the capacitor assembly.
Key Features
- 2.0 MFD capacitance value
- 5000V maximum operating voltage
- 240A LPC rating for surge protection
- ±1% tolerance for precision applications
- No internal PCB design for direct integration
Technical Specifications
- Capacitance: 2.0 MFD
- Voltage Rating: 5000V DC
- Tolerance: ±1%
- LPC Rating: 240A
- PCB Assembly: None
- Manufacturer: Cornell Dubilier (CDE)
- Condition: Used, fully functional
Typical Applications
This capacitor is commonly found in:
- High-voltage power supply circuits
- RF and microwave equipment
- Industrial test and measurement instruments
- Legacy aerospace and defense electronics
- Retrofit and restoration projects requiring direct replacement
Compatibility & Replacements
Compatible With
- High-voltage DC power systems rated up to 5000V
- Industrial and test equipment designed for Cornell Dubilier capacitors
- Legacy equipment requiring 2.0 MFD, 5000V rated components
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manual before ordering. This part may serve as a direct replacement for equivalent CDE high-voltage capacitors with identical voltage and capacitance ratings.
Works With
- High-voltage DC power supply circuits
- Industrial electronics requiring precision capacitors
- Equipment designed for non-PCB integrated capacitor designs
