Overview

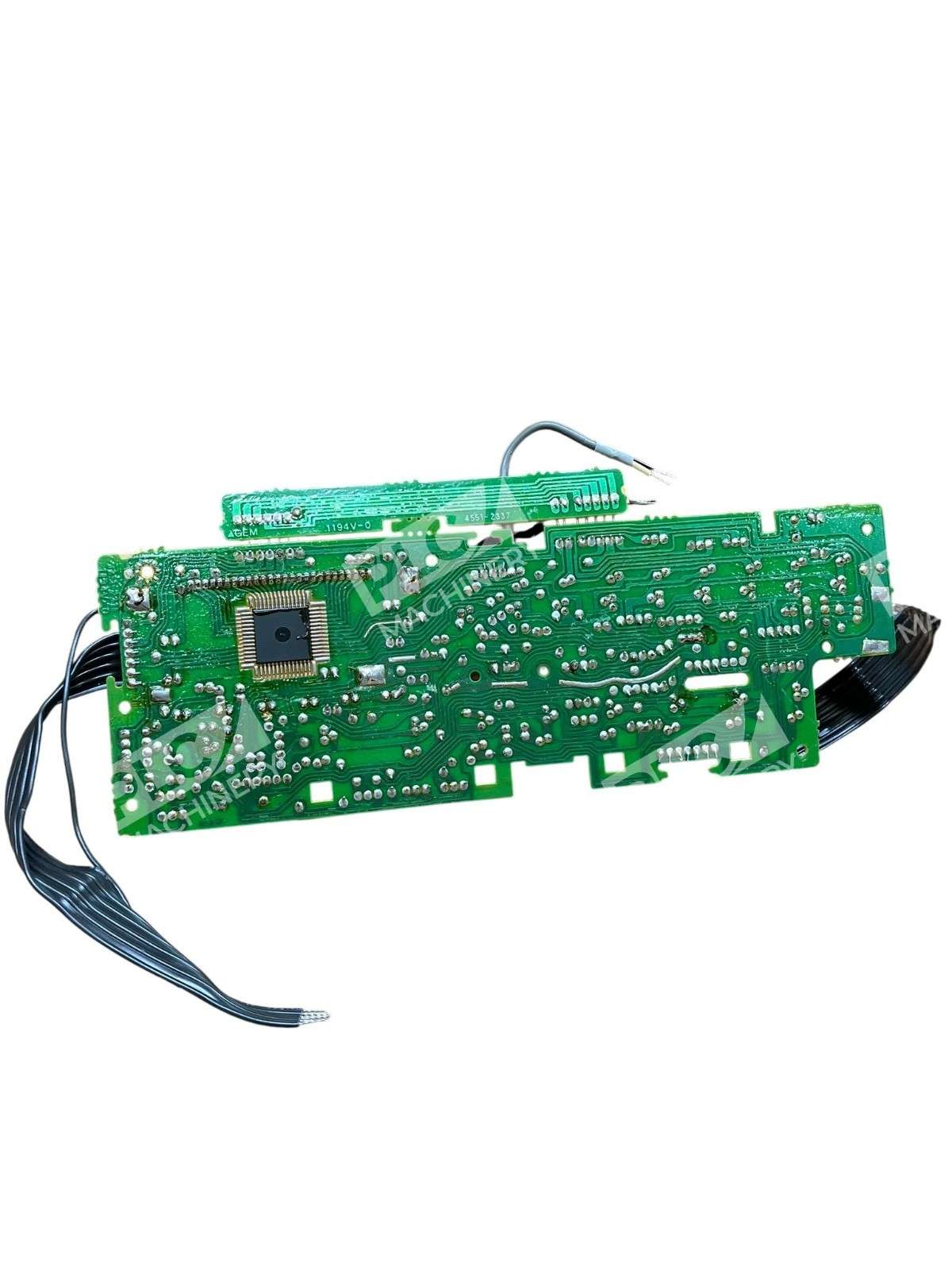

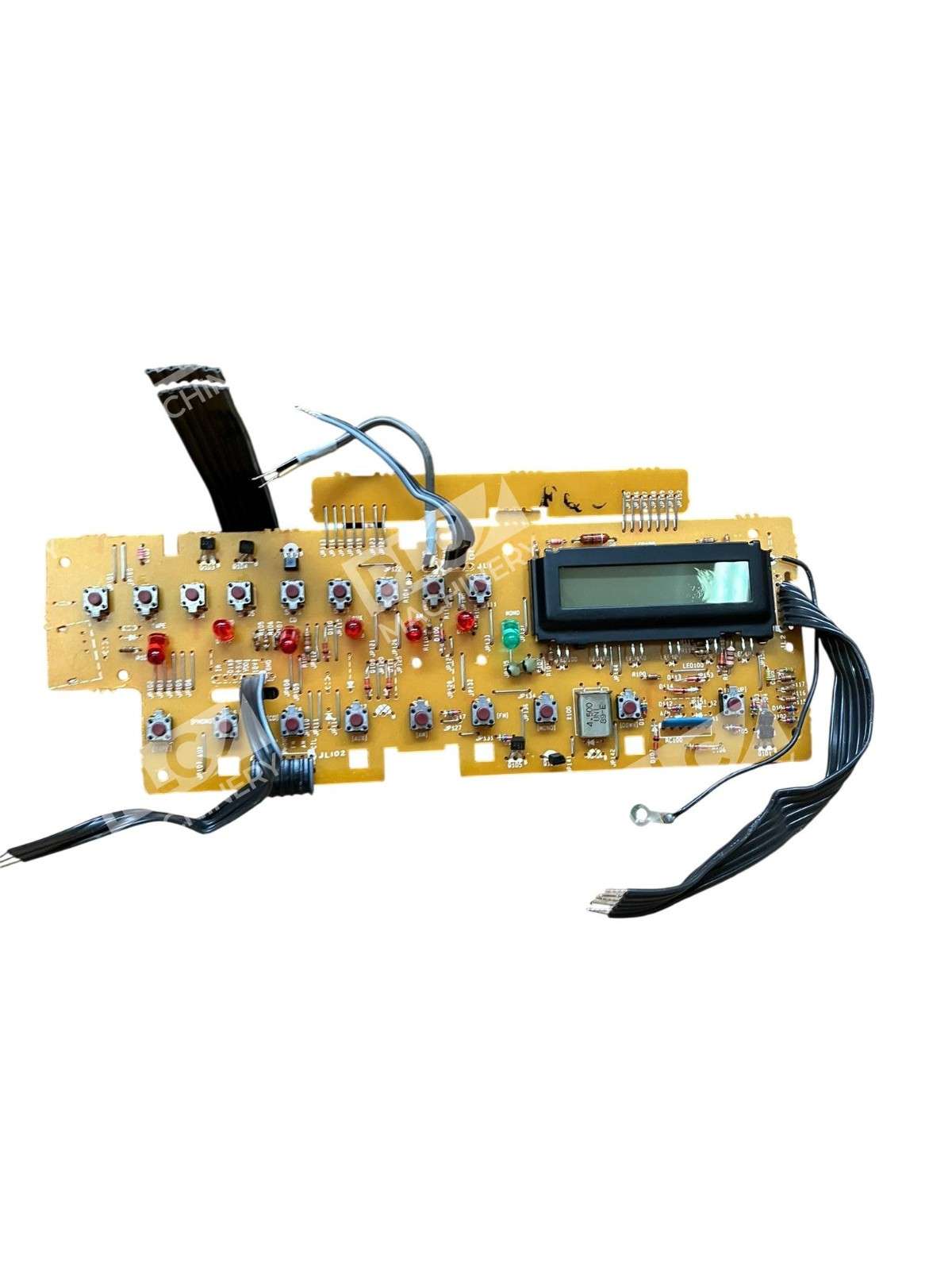

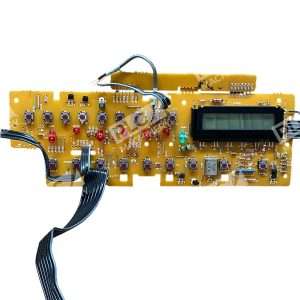

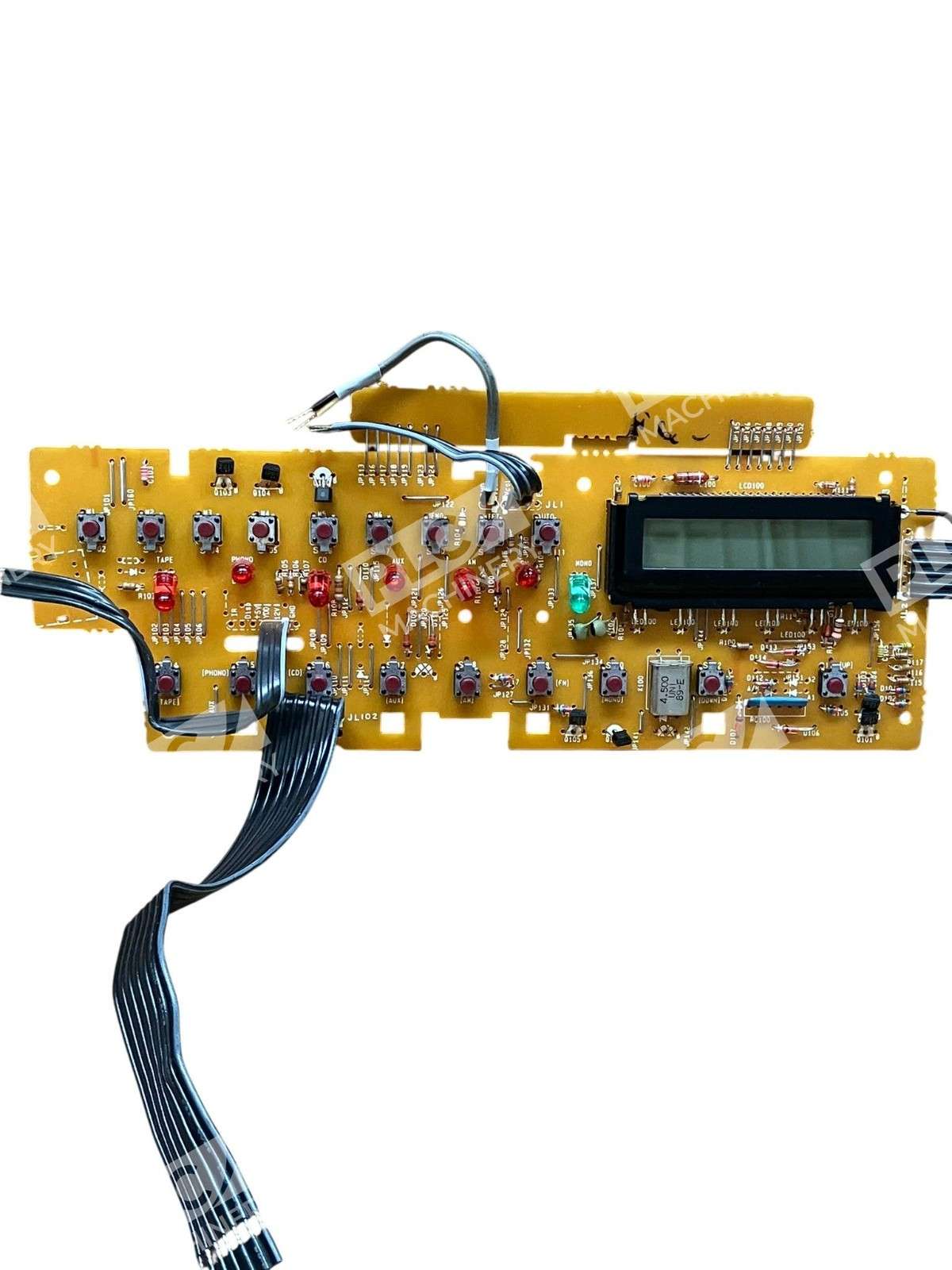

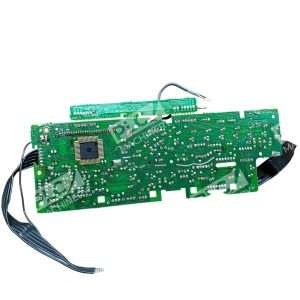

The 1194V-0 control panel PCB with model 4551-2337 is a printed circuit board assembly designed to serve as the primary control interface for printer and scanner devices. This module integrates an LCD display for status information and visual feedback, combined with push button inputs for user operation and navigation. The compact design makes it suitable for OEM integration in office equipment and industrial printing systems.
Key Features
- Integrated LCD display for status and menu display
- Multiple push button inputs for user control and navigation
- Compact PCB form factor for space-constrained applications
- Designed for printer and scanner control applications
- Standard 94V-0 flame-rated circuit board construction
Technical Specifications
- Part Number: 4551-2337

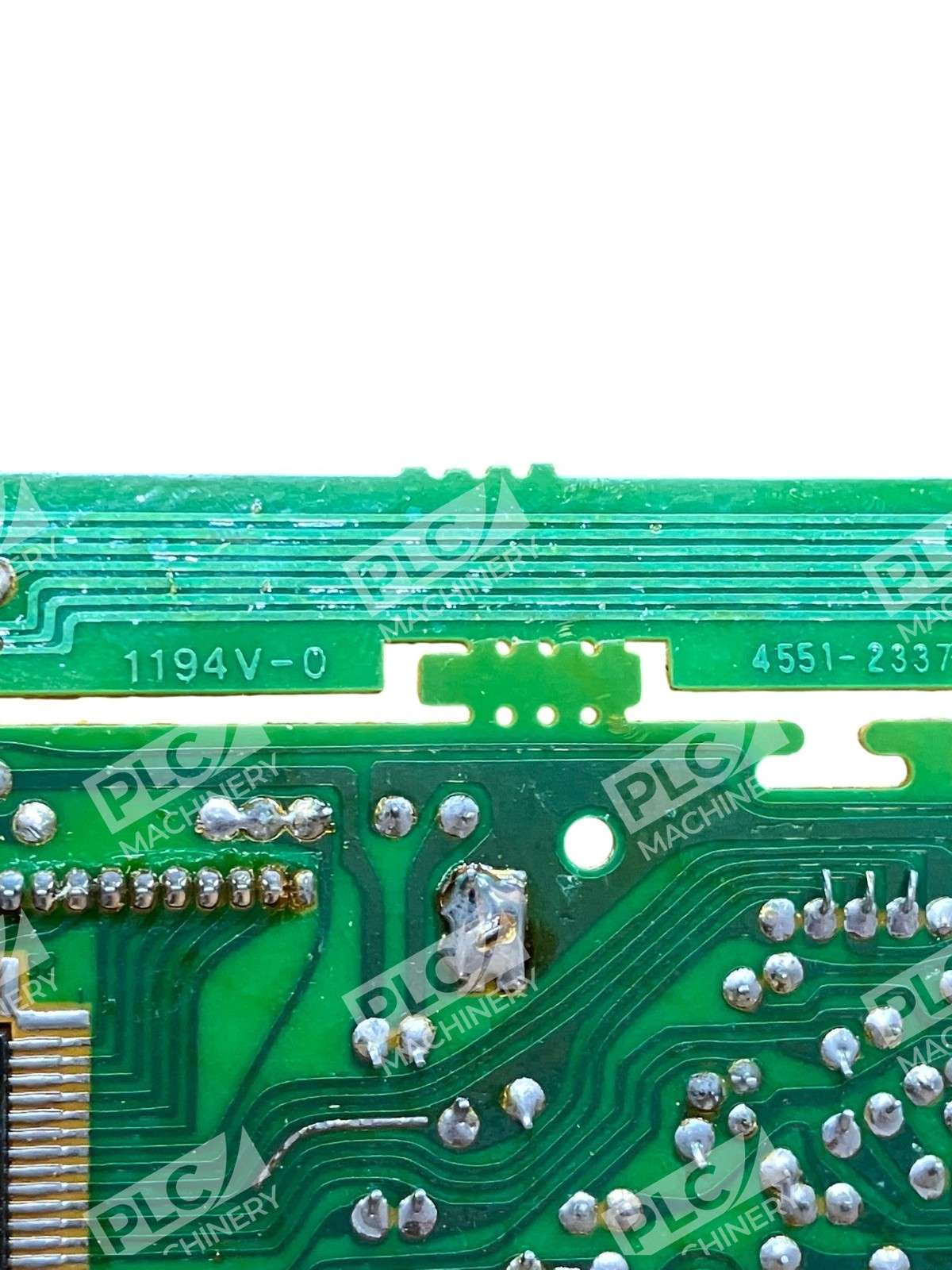

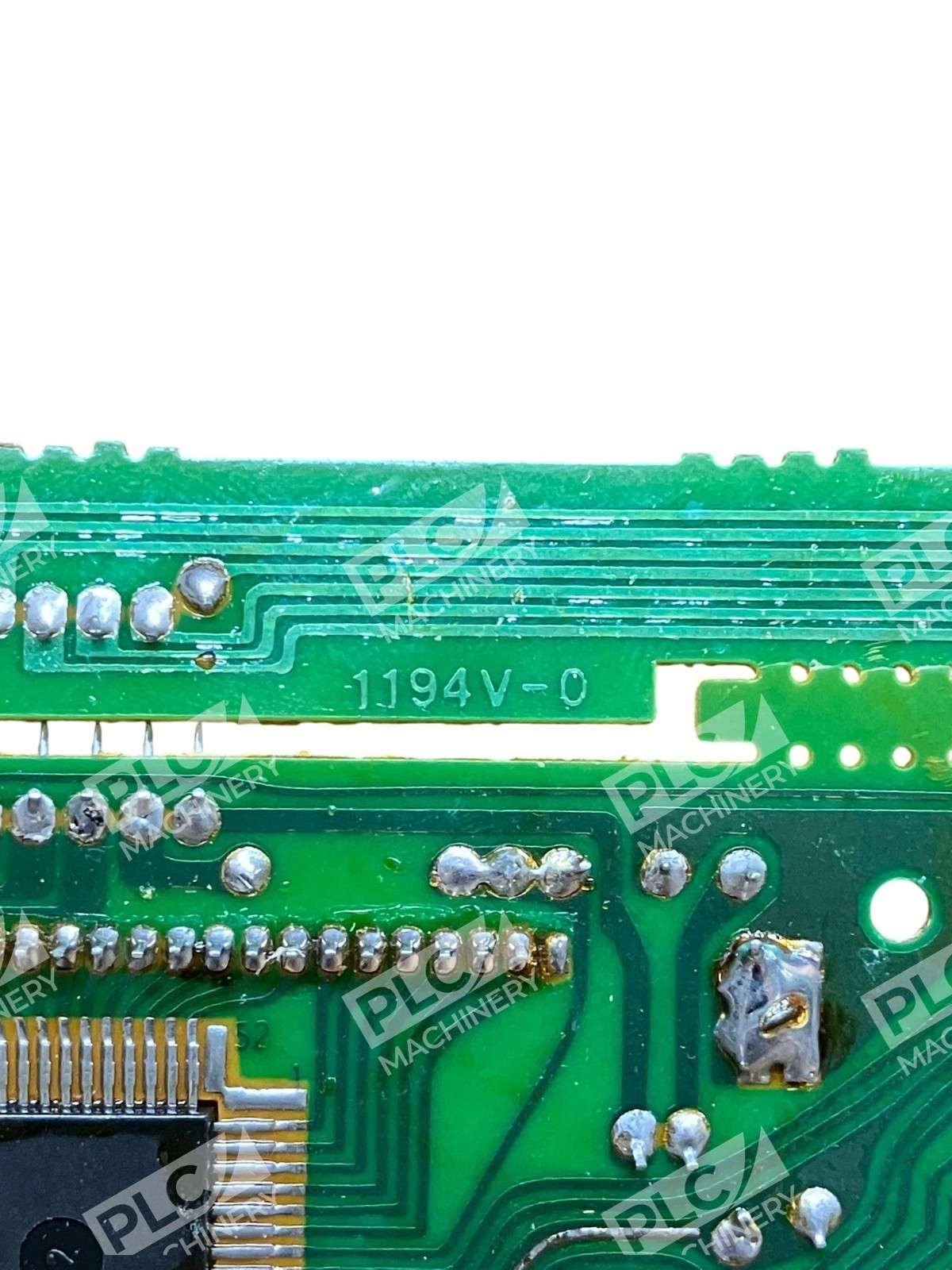

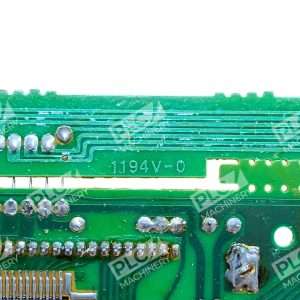

- Board Designation: 1194V-0
- Application: Printer/Scanner control panel
- Display Type: LCD
- Input Interface: Push buttons
- Flame Rating: 94V-0
Typical Applications
- Printer control panels and user interfaces
- Scanner device operation and status monitoring
- Multifunction copier/printer/scanner systems
- Office equipment operator interface
- Industrial printing system control
Compatibility & Replacements
Compatible With
- Printer devices requiring 1194V-0 control panel assembly
- Scanner systems with compatible connector interfaces
- Multifunction office equipment platforms
Replaces / Drop-In Replacement For
- Original part number 4551-2337
- Verify compatibility with your specific printer or scanner model before ordering
Works With
- Standard printer/scanner control electronics
- LCD display drivers and button input circuits
- Typical 94V-0 PCB-compatible mounting systems
