Overview

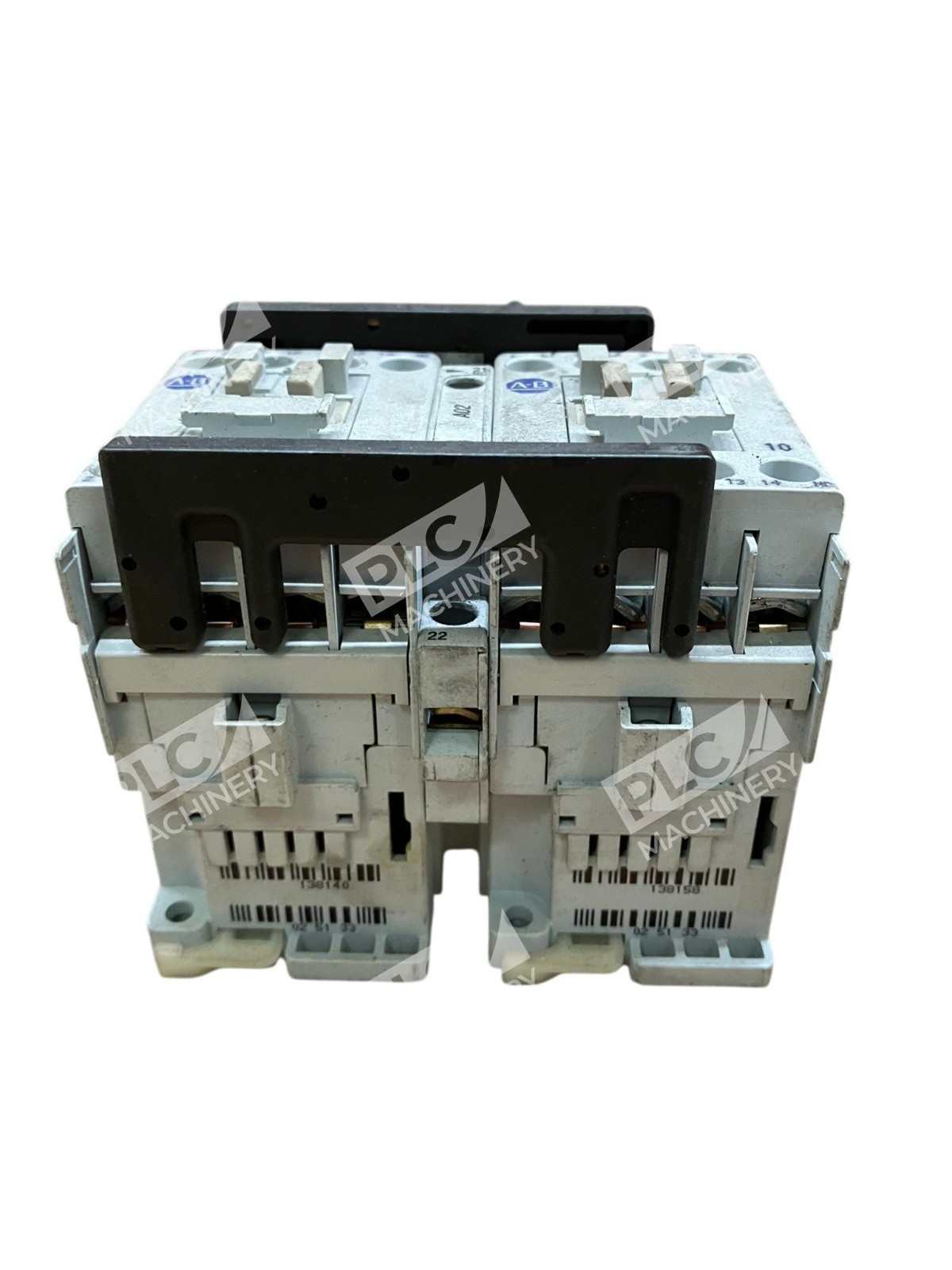

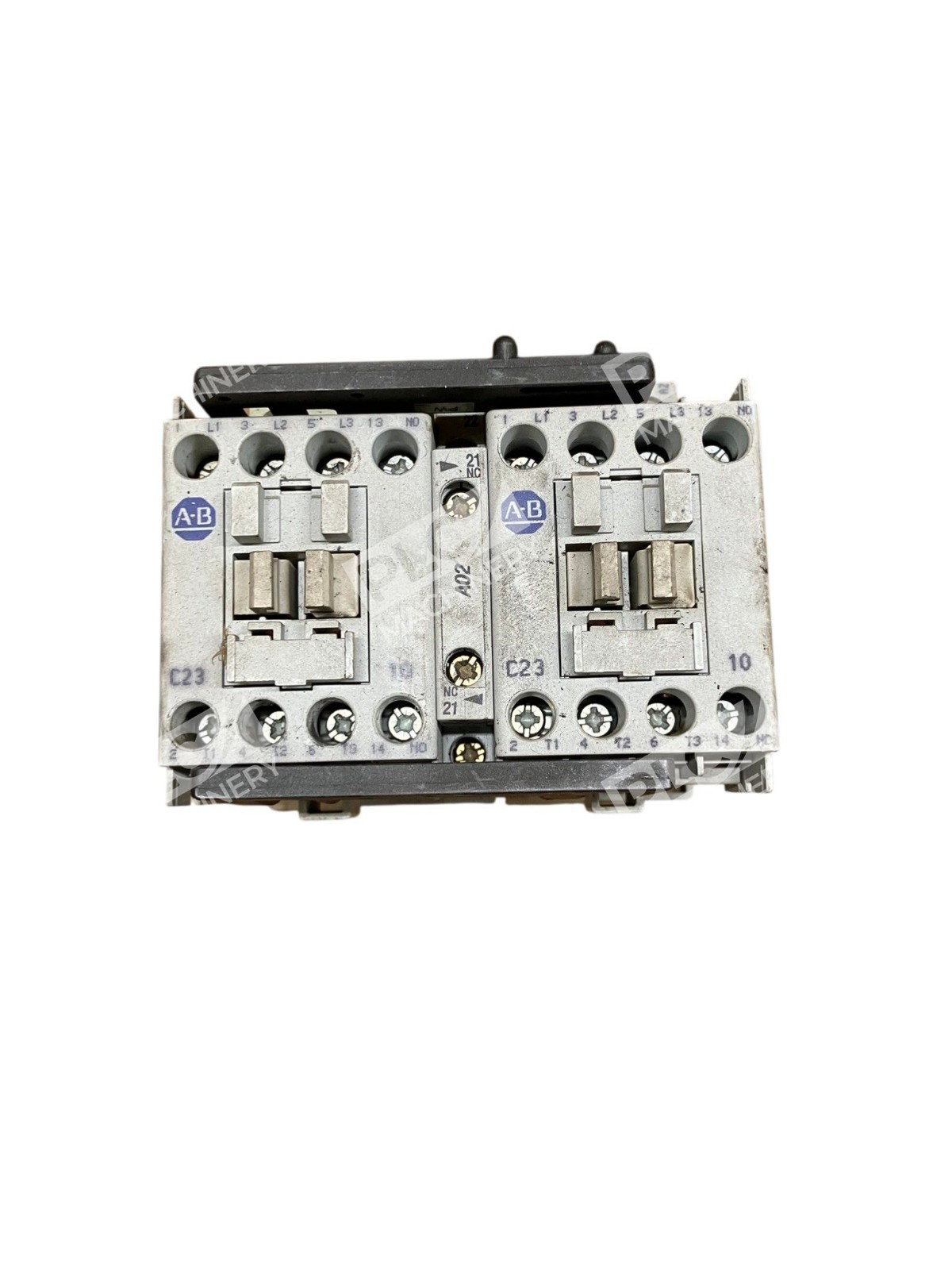

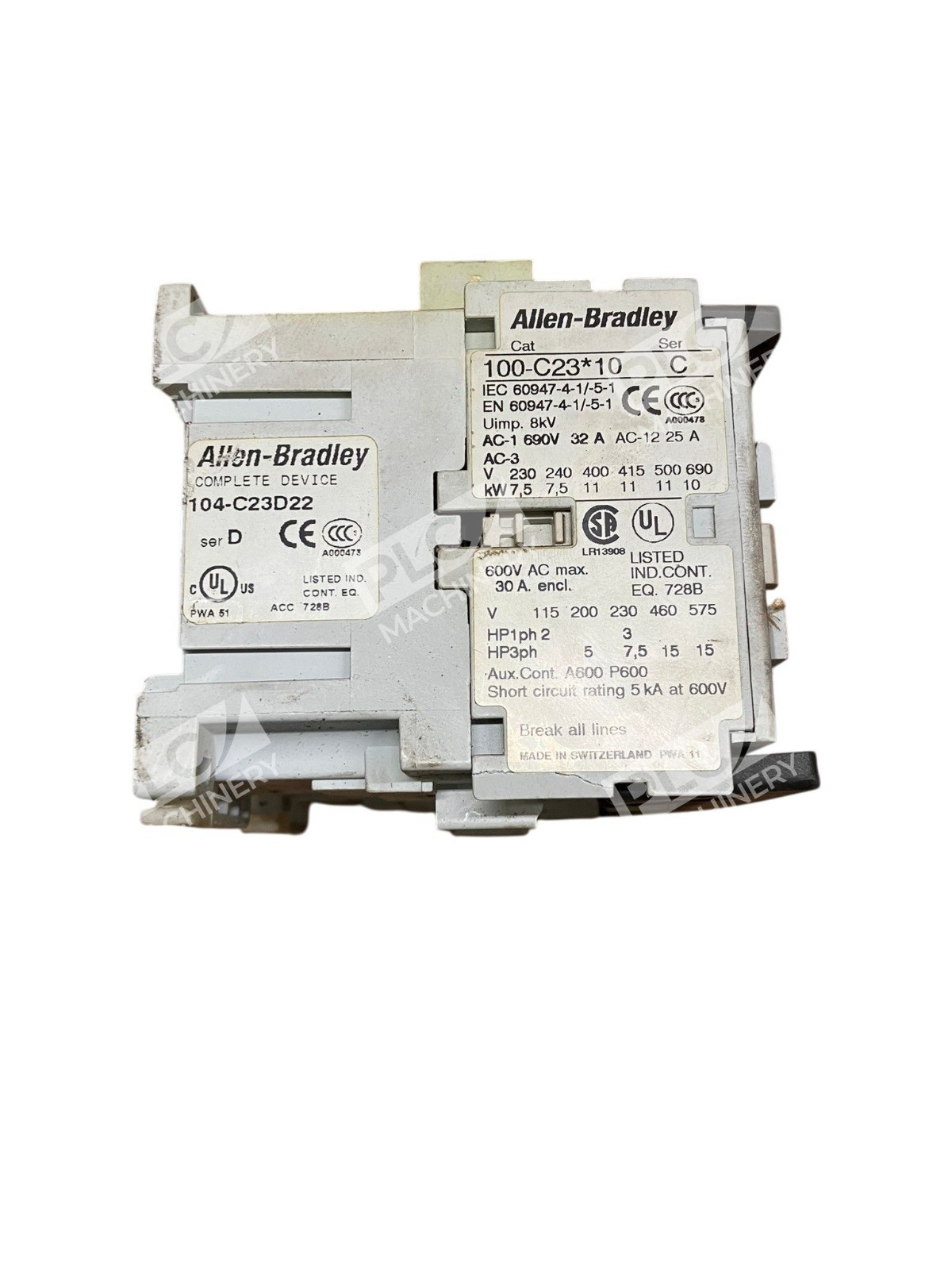

The Allen-Bradley 104-C23D22 is a compact, space-saving IEC reversing contactor designed for three-phase motor control and industrial automation systems. Allen-Bradley® Bulletin 104-C is a low power consumption contactor designed to control motors and other loads. Catalog item 104-C23D22 from Rockwell Automation® is a 23 A, 110 V 50 Hz / 120 V 60 Hz IEC reversing contactor. The unit incorporates one normally open and three normally closed contacts with line side coil termination, screw terminals, and motor load.
Key Features
- Reversing capability — enables forward/reverse motor control without external logic
- Auxiliary contact configuration — 1 NOC & 3 NCC for signaling and interlocking
- Screw-type terminals — secure, field-serviceable connections
- DIN rail mounting — compact footprint fits standard 35mm rail installations
- Multi-standard certification — C-TICK, CCC, CE, CSA, CUL, GOST, KC, UL
- Low power consumption design — reduces coil duty and thermal load
Technical Specifications
The following specifications are derived from manufacturer and authorized distributor documentation:
| Contact Current (3-phase) | 23 Amp at 400 VAC-3, 32 Amp at 400 VAC-1 |
| Coil Voltage | 110 V 50 Hz / 120 V 60 Hz |
| Poles | 3-pole |
| Auxiliary Contacts | 1 Normally Open, 1 Normally Closed |
| Connection Type | Screw terminals |
| Motor Load Ratings | 5HP @ 200V, 7.5HP @ 230V, 15HP @ 460V, 15HP @ 575V |
| Power Handling | 11 kW |
| Weight | 1.90 lbs |
| Standards Compliance | IEC, NEMA compatible |
| Coil Termination | Line side |
Typical Applications
- Three-phase induction motor starting and reversing
- Pump, fan, and compressor control systems
- Machine tool automation and manual control panels
- Industrial process equipment requiring forward/reverse operation
- HVAC system motor switching
- Conveyor and material handling equipment control
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 104-C series motor starters
- IEC-standard three-phase 400/415/440V industrial control systems
- NEMA motor control centers and manual starters
- DIN rail enclosures and industrial automation cabinets
- Standard overload relays and protection devices
Replaces / Drop-In Replacement For
- 100-C23*10 (alternate part designation)
- Earlier Bulletin 104-C series units with similar specifications
Works With
- Mechanical interlocking systems and manual push-button stations
- Thermal and electronic overload relays
- Soft starters and variable frequency drives (in parallel motor control schemes)
- IEC standard protection and signaling devices
