Overview

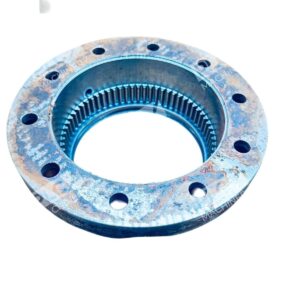

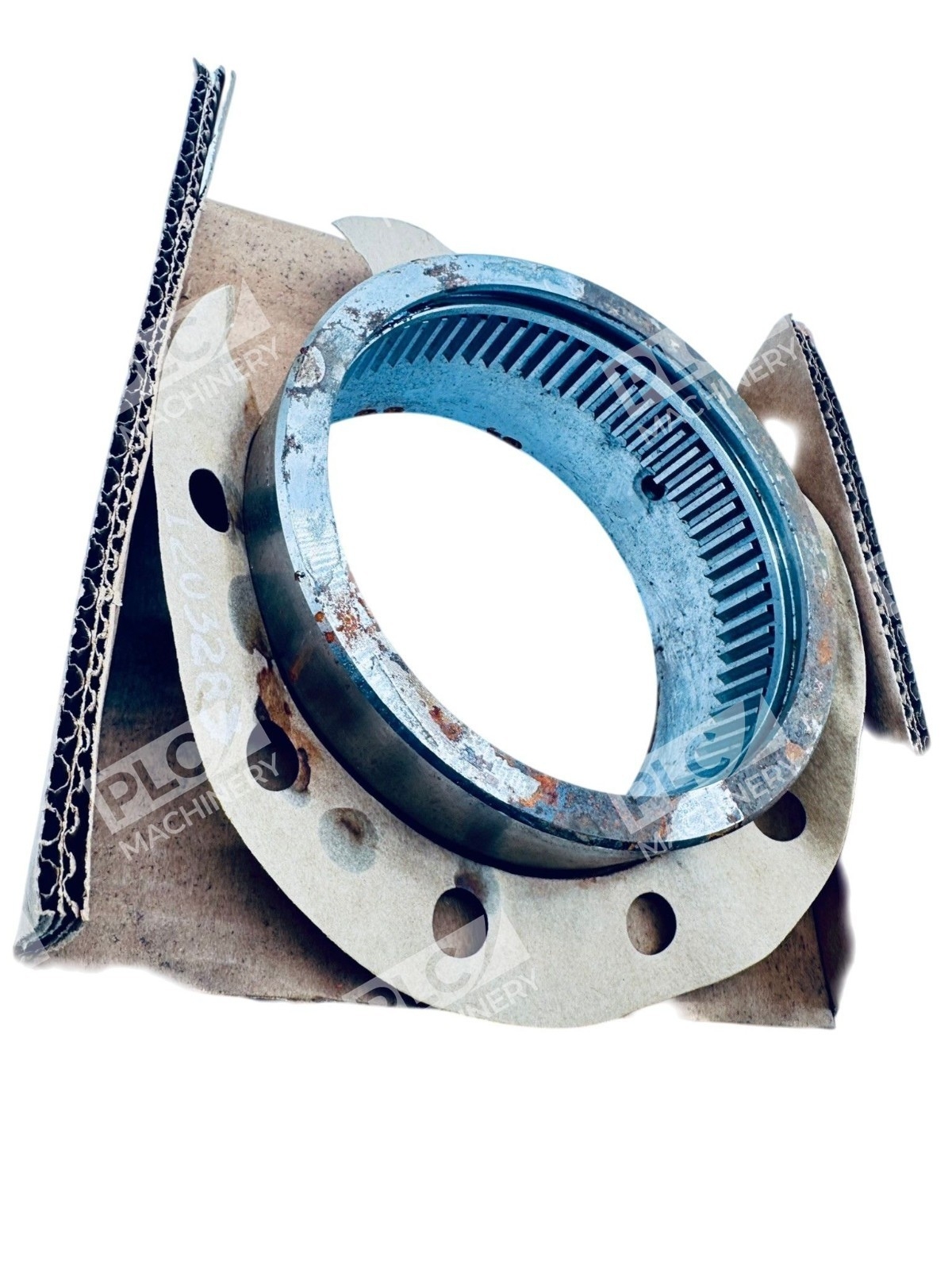

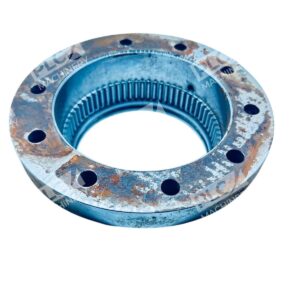

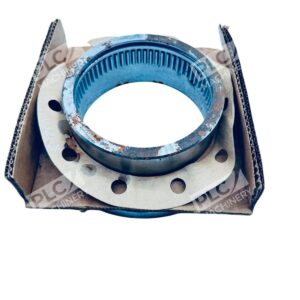

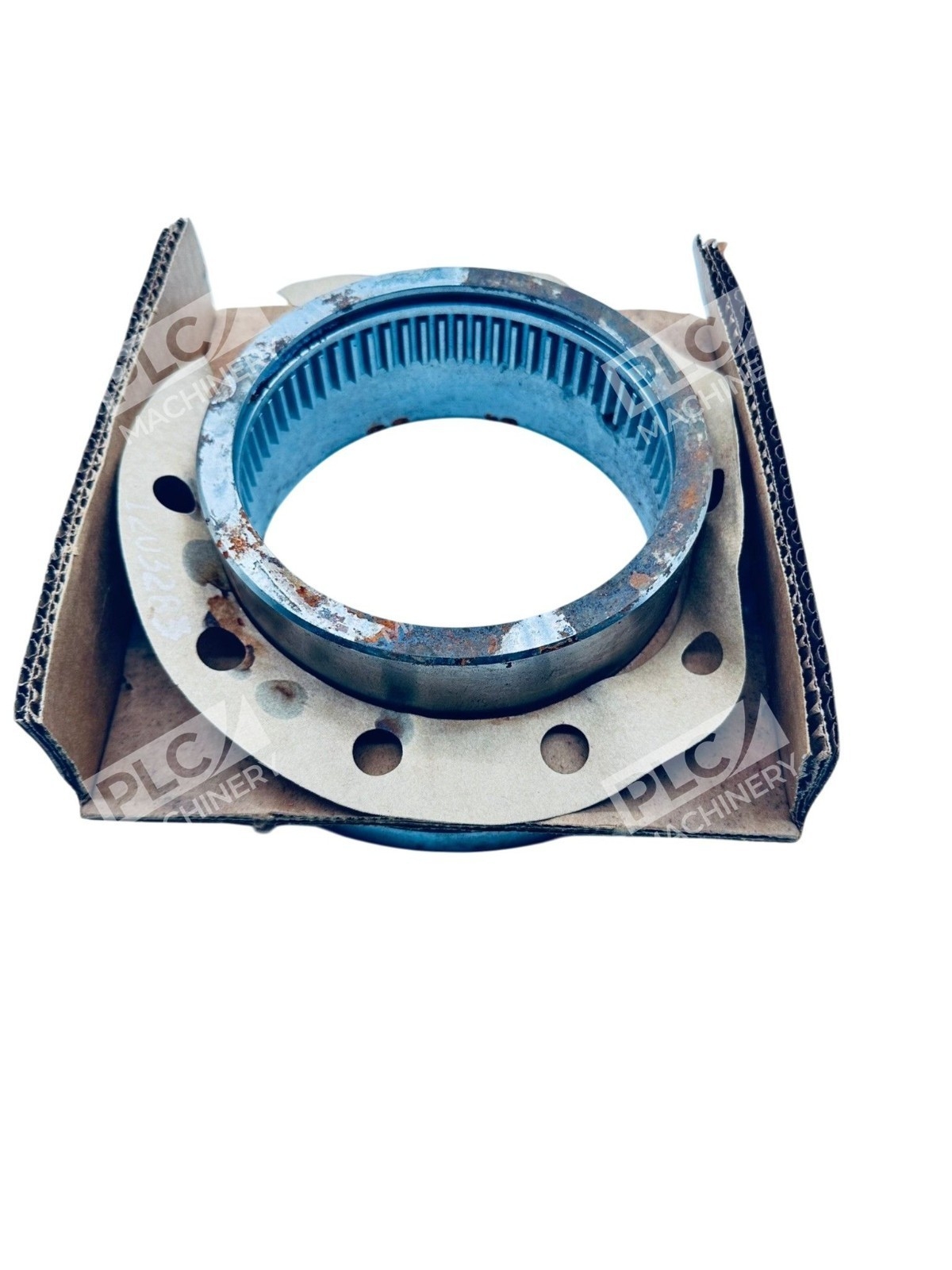

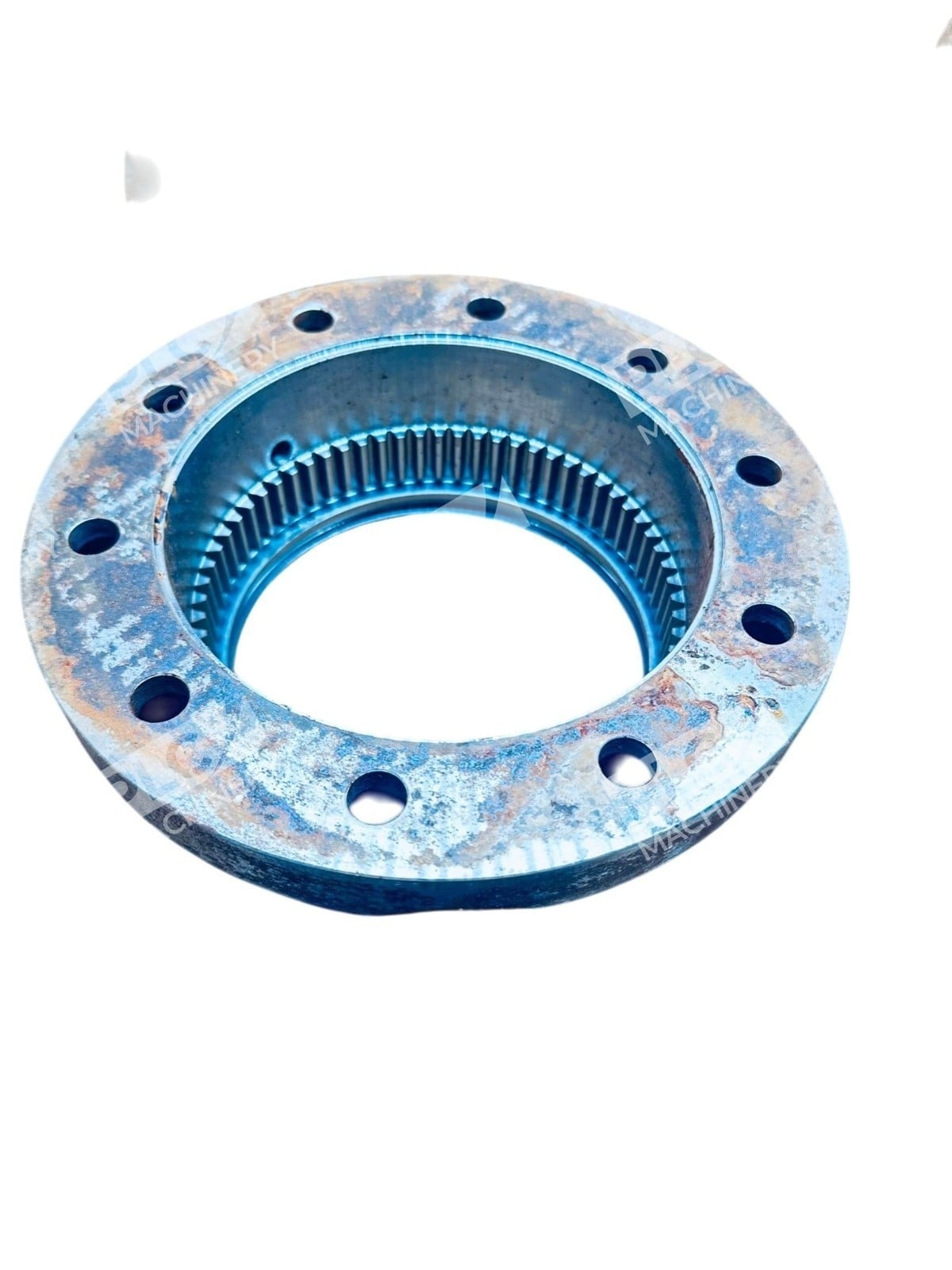

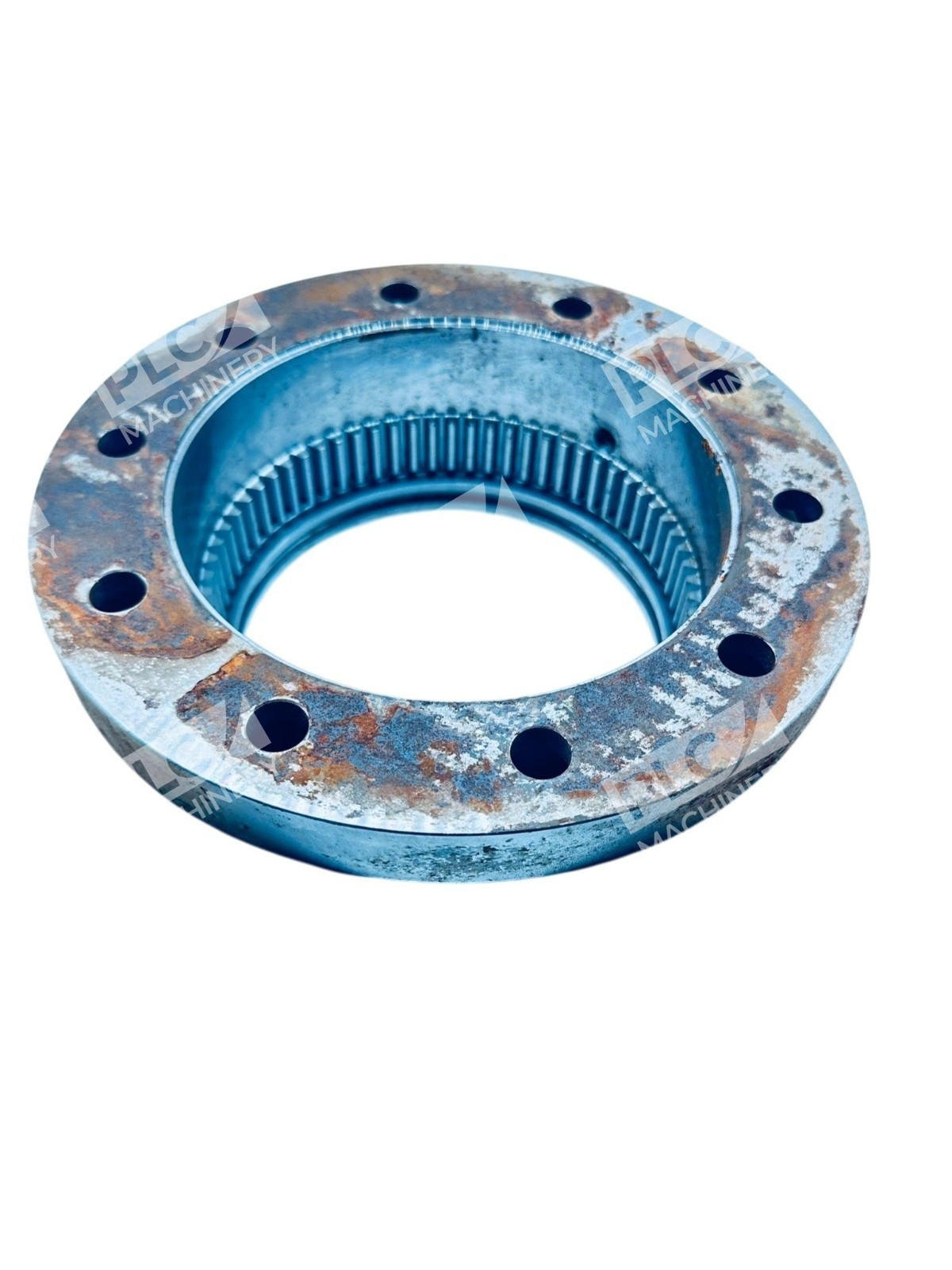

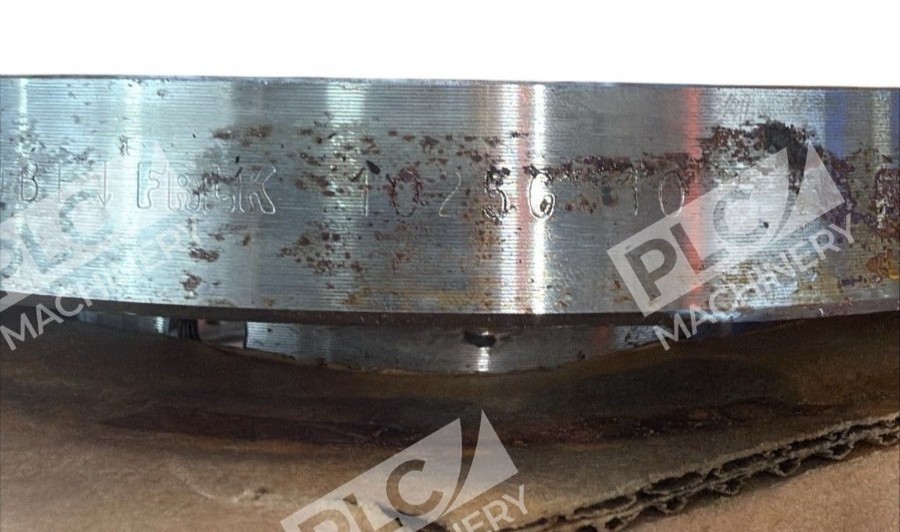

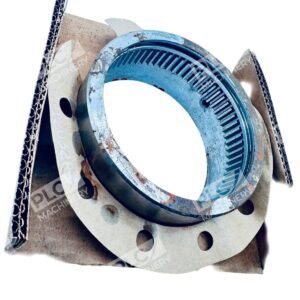

The Falk 1025G10 coupling sleeve is a precision-engineered gear coupling component manufactured by Rexnord for industrial automation and mechanical power transmission. This steel sleeve assembly is designed to connect rotating shafts while accommodating minor misalignment and transmitting high torque loads with minimal backlash.
Key Features
- Steel construction for durability and long service life
- Lubrication ports for easy maintenance with Falk Long Term Grease (LTG)
- Triple-crowned gear teeth for superior load distribution and extended wear life
- Interchangeable with other standard AGMA gear coupling brands
- Accommodates angular and parallel shaft misalignment
- No periodic maintenance required when lubricated with Falk LTG at installation
Technical Specifications
- Coupling Type: Gear coupling sleeve assembly
- Series: Series 1000 (1025G)
- Material: Steel
- Outside Diameter: 8-3/8 inches
- Width: 2.82 inches
- Maximum Torque Rating: 66,150 in-lbs
- Maximum Speed: 5000 RPM
- Lubrication Fittings: 1/8″ NPT lube holes
- Bore Size (Typical): Verify with coupling hub for application
- Operating Temperature Range: –20°F to 250°F (–29°C to 121°C) with Falk LTG
- Weight: Approximately 11.1 lbs
- Recommended Lubricant: Falk Long Term Grease (LTG) NLGI Grade 1/2
Typical Applications
The Falk 1025G10 sleeve is widely used in heavy-duty industrial equipment including:
- Mixers and crushers
- Sugar mills and bulk handling systems
- Paper machines and fan drives
- Pump and compressor installations
- Crane and conveyor systems
- General industrial power transmission where torque capacity and reliability are critical
Compatibility & Replacements
Compatible With
- Falk 1025G Series gear coupling systems
- 1025G10/51 coupling hubs and flanges
- Standard AGMA gear coupling components
- All industrial motors and gearbox output shafts with compatible bore sizes
- Machines requiring 66,150 in-lbs torque transmission up to 5000 RPM
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Falk 1025G10 sleeve is a specific component of Series 1025G coupling assemblies and serves as a direct replacement only for identical model designations from factory parts lists. Coupling compatibility depends on bore size, facing type, and hub configuration.
Works With
- Falk Long Term Grease (LTG) lubrication system for extended service intervals
- Standard grease gun fittings (1/8″ NPT)
- All flexible gear coupling installation and maintenance procedures per Rexnord factory manuals
- General-purpose industrial alignment and installation tools
- AGMA Specification 9005-E02 (Lubricated Flexible Couplings)
