Overview

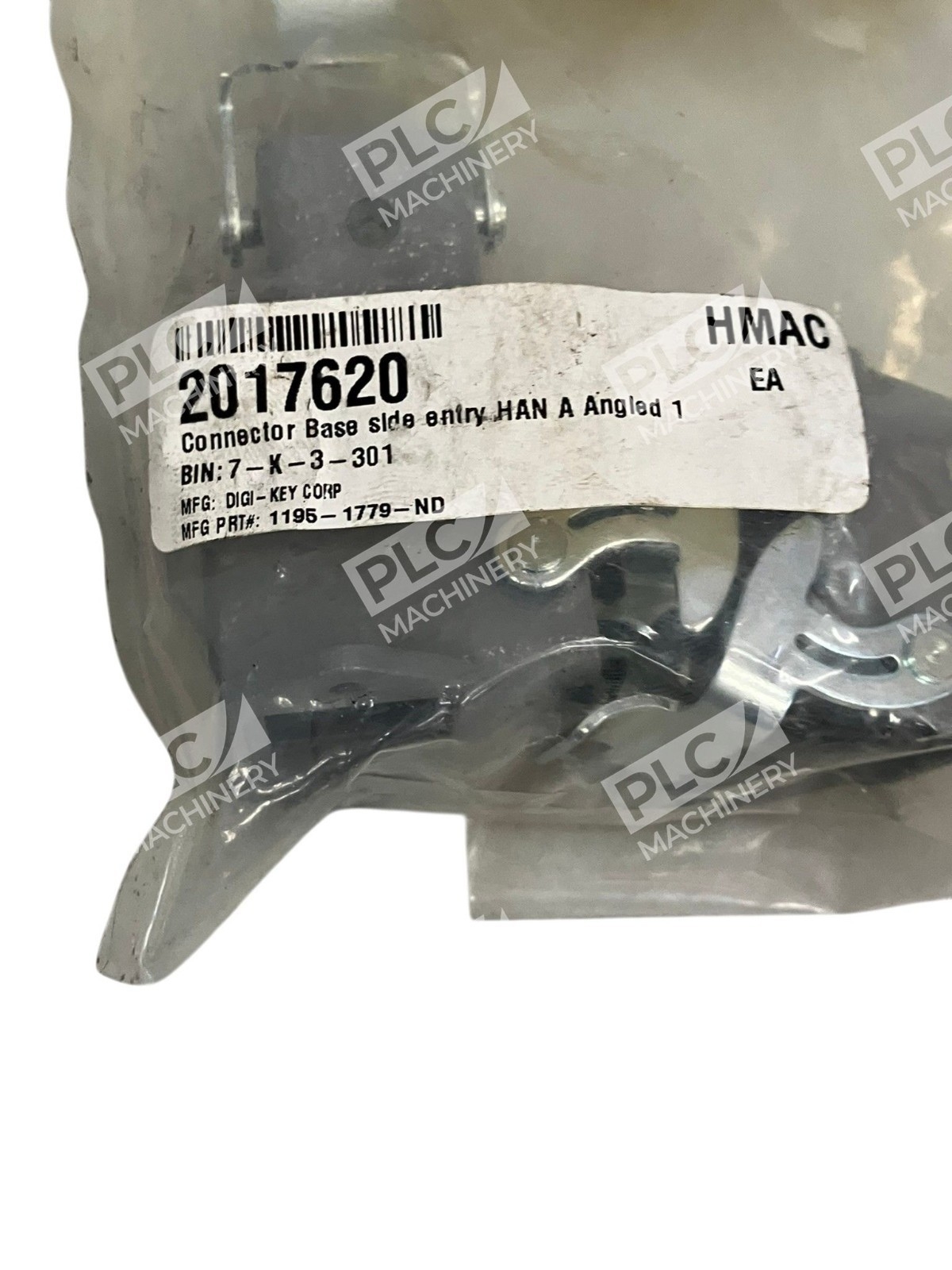

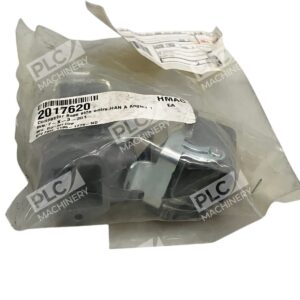

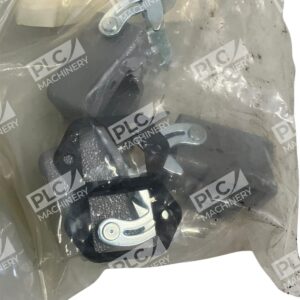

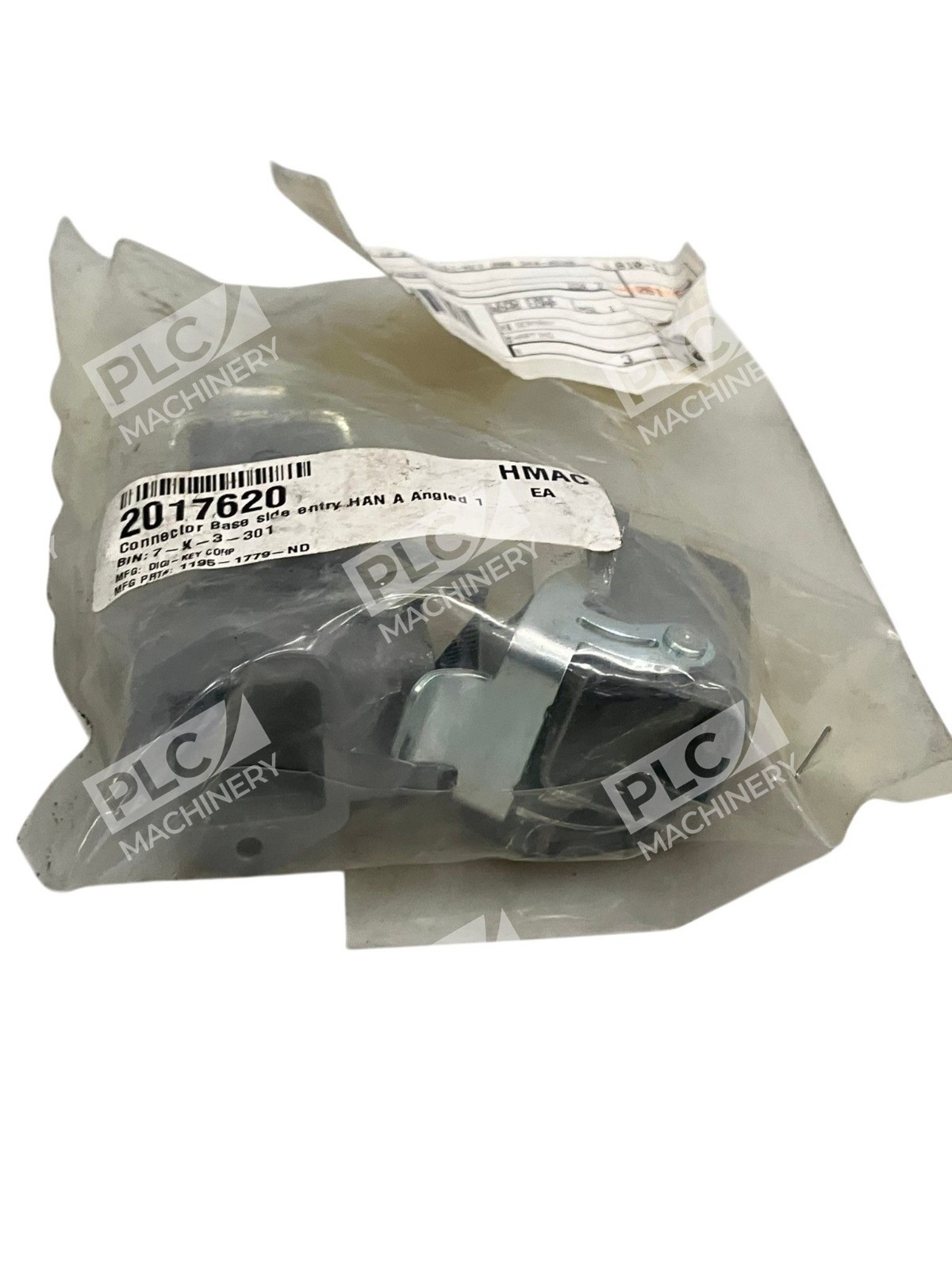

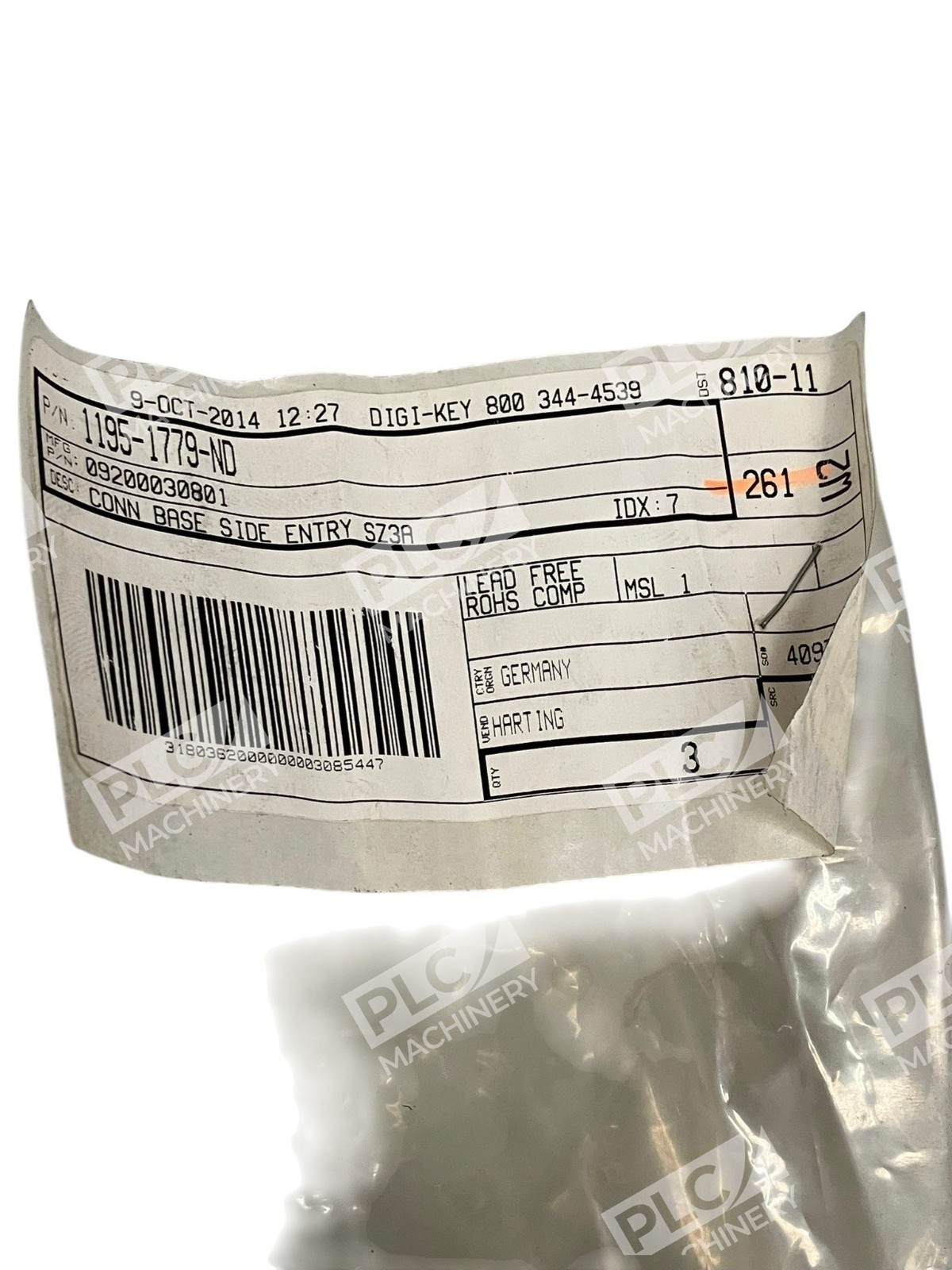

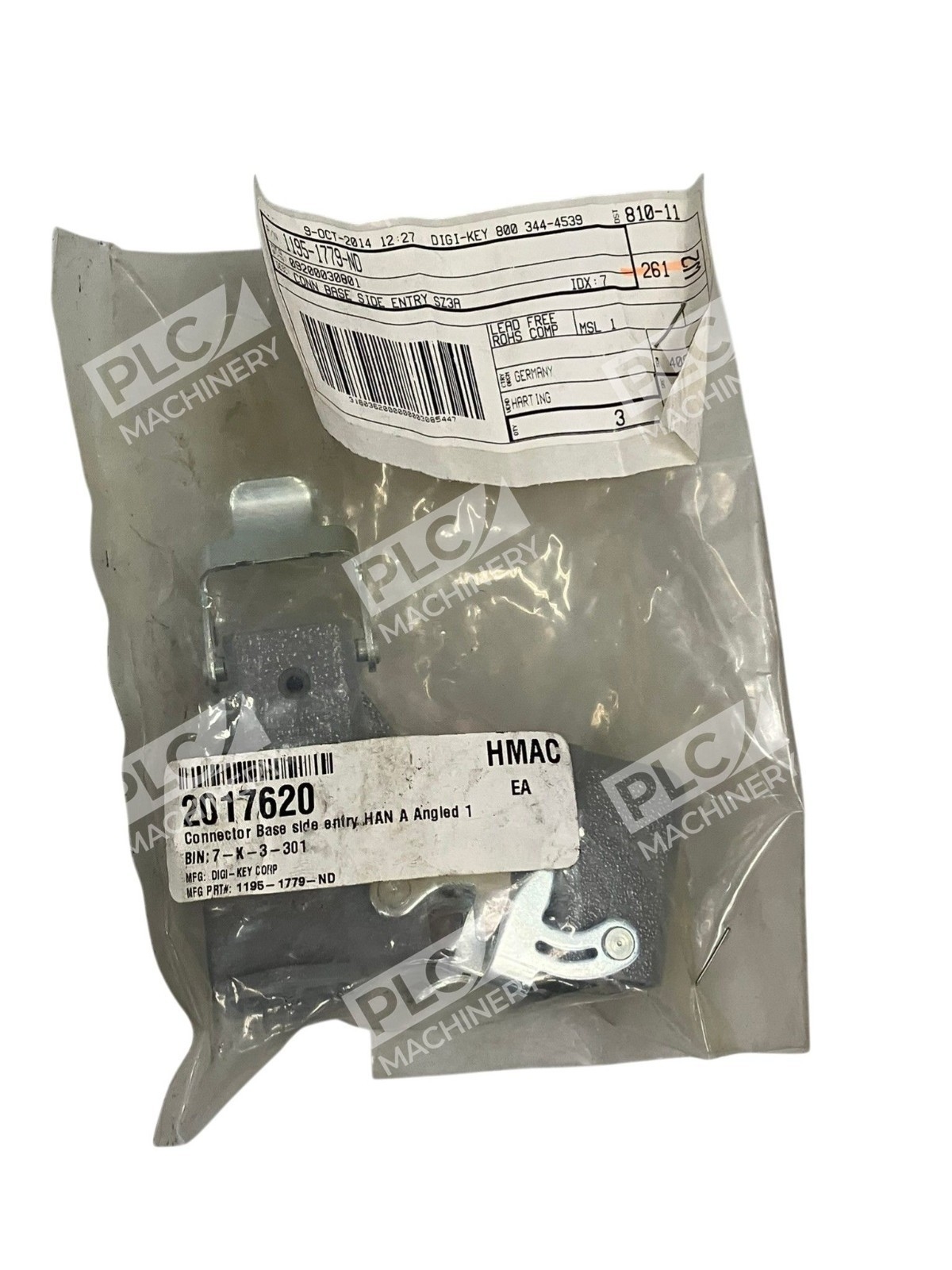

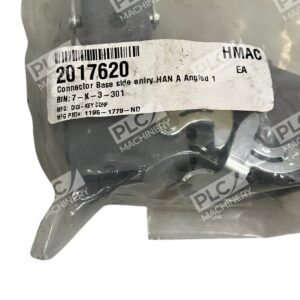

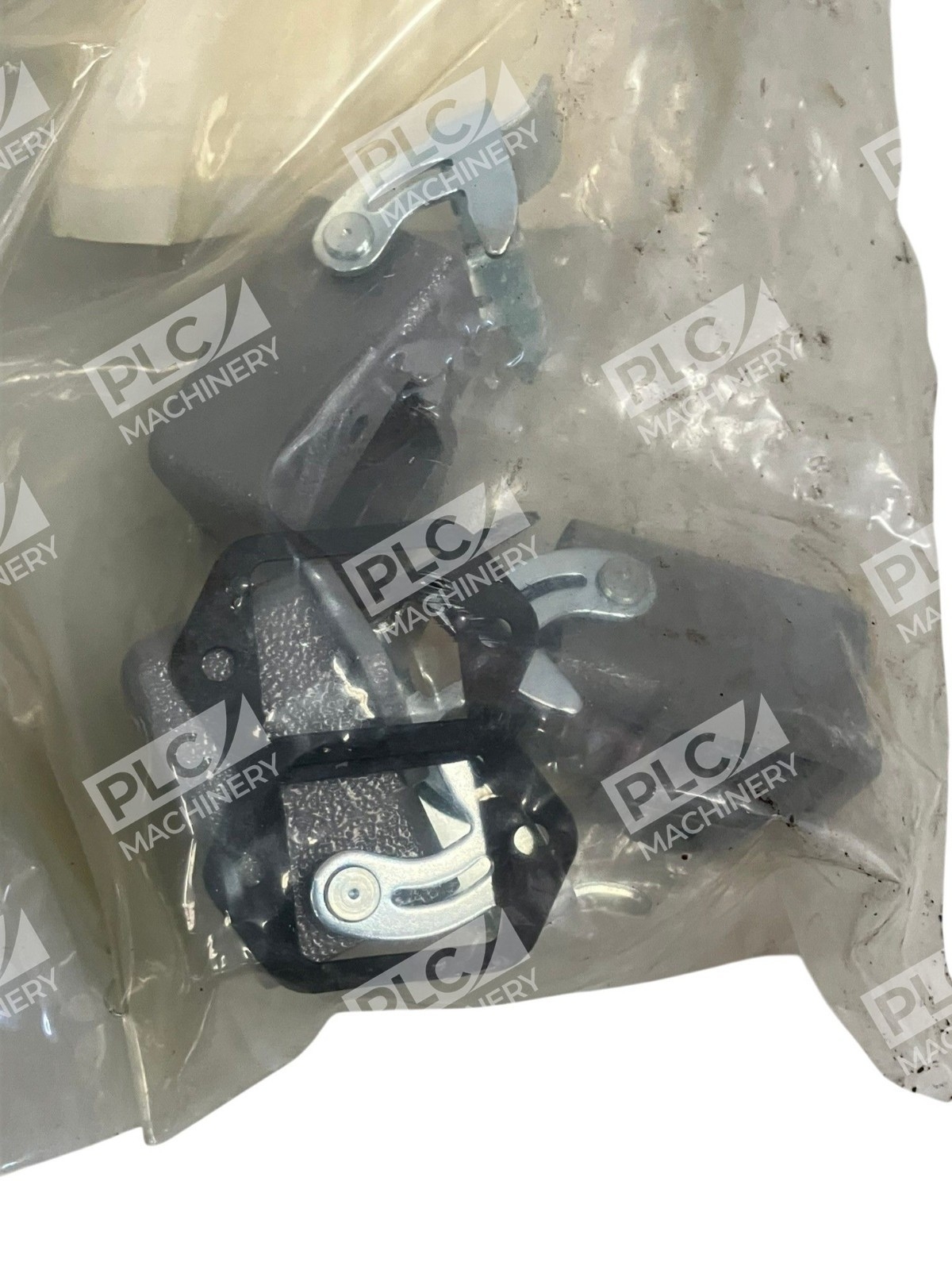

The Harting 09200030801 is a Han A Series 3A bulkhead-mount connector housing designed for side entry cable applications. This Han A bulkhead mounted housing for 3A series connectors features bulkhead mount, rectangular shell size 3A, single lever locking type, and zinc body construction with RoHS compliance. The right-angle base configuration allows for efficient space-saving installation in panel-mount applications while maintaining secure electrical connections.
Key Features
- Zinc die cast construction with powder coated surface and zinc-plated steel locking lever with NBR seal
- Single locking lever angled base for secure connection
- IP67 protection to IEC 50529 when used with seal screw (part 313-6540)
- Compatible with Han A, D, Han 8D(U), and Q series inserts
- Slim, space-saving design suitable for industrial cabinet mounting
- RoHS compliant and highly reliable for critical industrial applications
Technical Specifications
- Series: Han A Series
- Connector Size: 3A
- Mounting Type: Bulkhead Mount (90° right angle base)
- Cable Entry: Side Entry
- Body Material: Diecast Zinc
- Finish: RAL 7037 Powder Coated Surface
- Locking Mechanism: Single Lever
- Lever Material: Zinc-Plated Steel
- Seal: NBR (Nitrile Rubber)
- IP Protection: IP44 standard (IP67 with optional seal screw)
- RoHS Compliant: Yes
Typical Applications
The Harting 09200030801 connector housing is ideal for industrial applications requiring heavy-duty, panel-mounted power connections. Common uses include:
- Industrial machinery and automation equipment
- Control cabinets and electrical enclosures
- Power distribution systems
- Heavy-duty electrical interconnect systems
- Mobile equipment and transportation applications
Compatibility & Replacements
Compatible With
- Han A Series inserts (power and signal)
- Han D Series inserts
- Han 8D(U) Series inserts
- Han Q Series inserts
- Han 3A hoods and housings
- IEC 60512 standard connector systems
Replaces / Drop-In Replacement For
- Verify compatibility with your specific system integrator before ordering, as similar-function alternatives vary by application requirements
Works With
- Han A Series connector ecosystem
- Standard heavy-duty power connector inserts (3A rating)
- Industrial panel-mount cabling systems
- IEC 50529 protected systems (with optional seal screw 313-6540)
