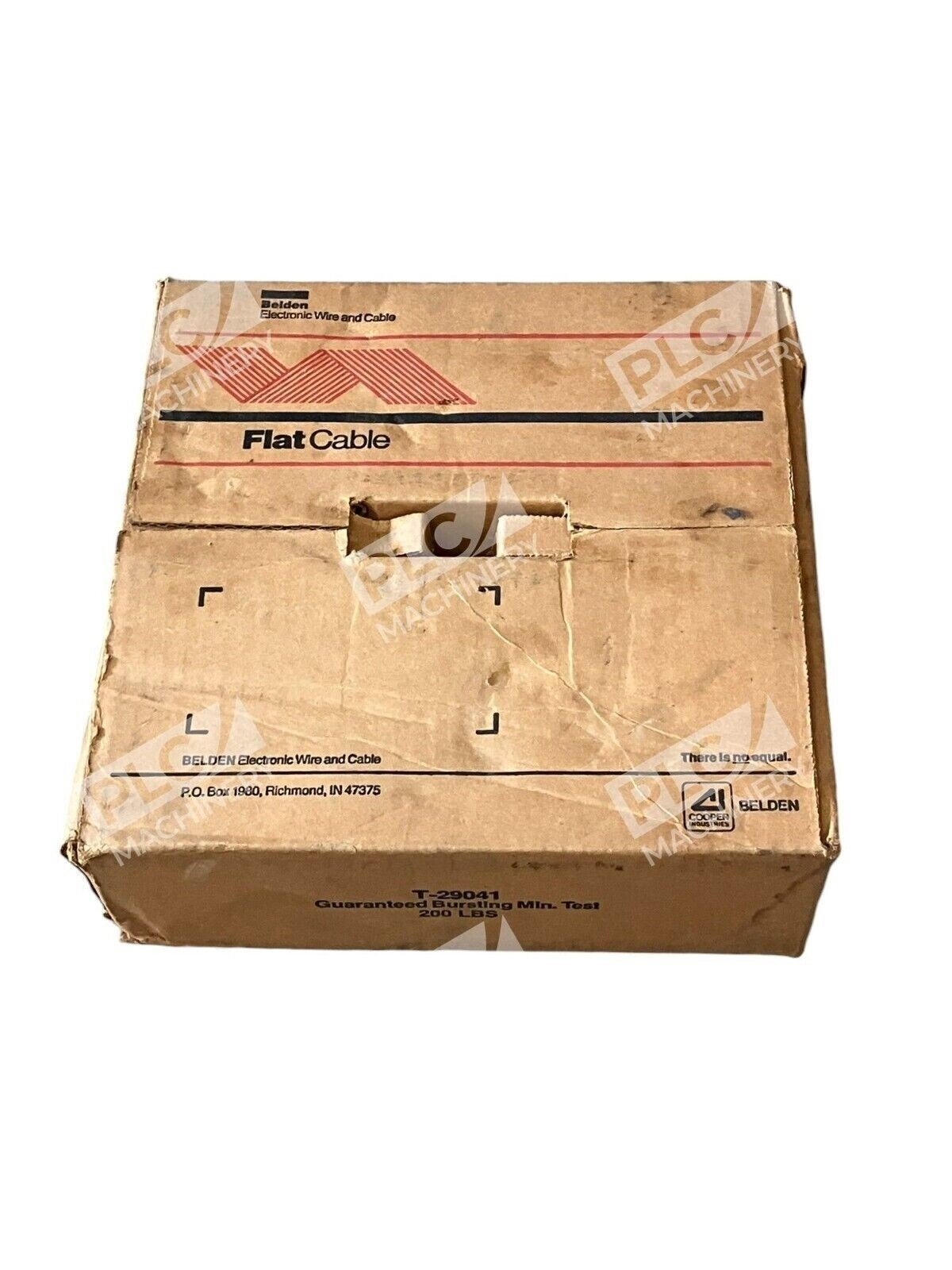

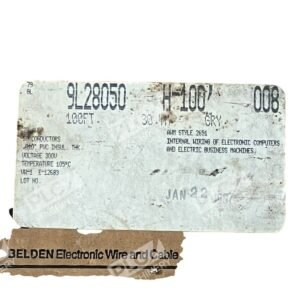

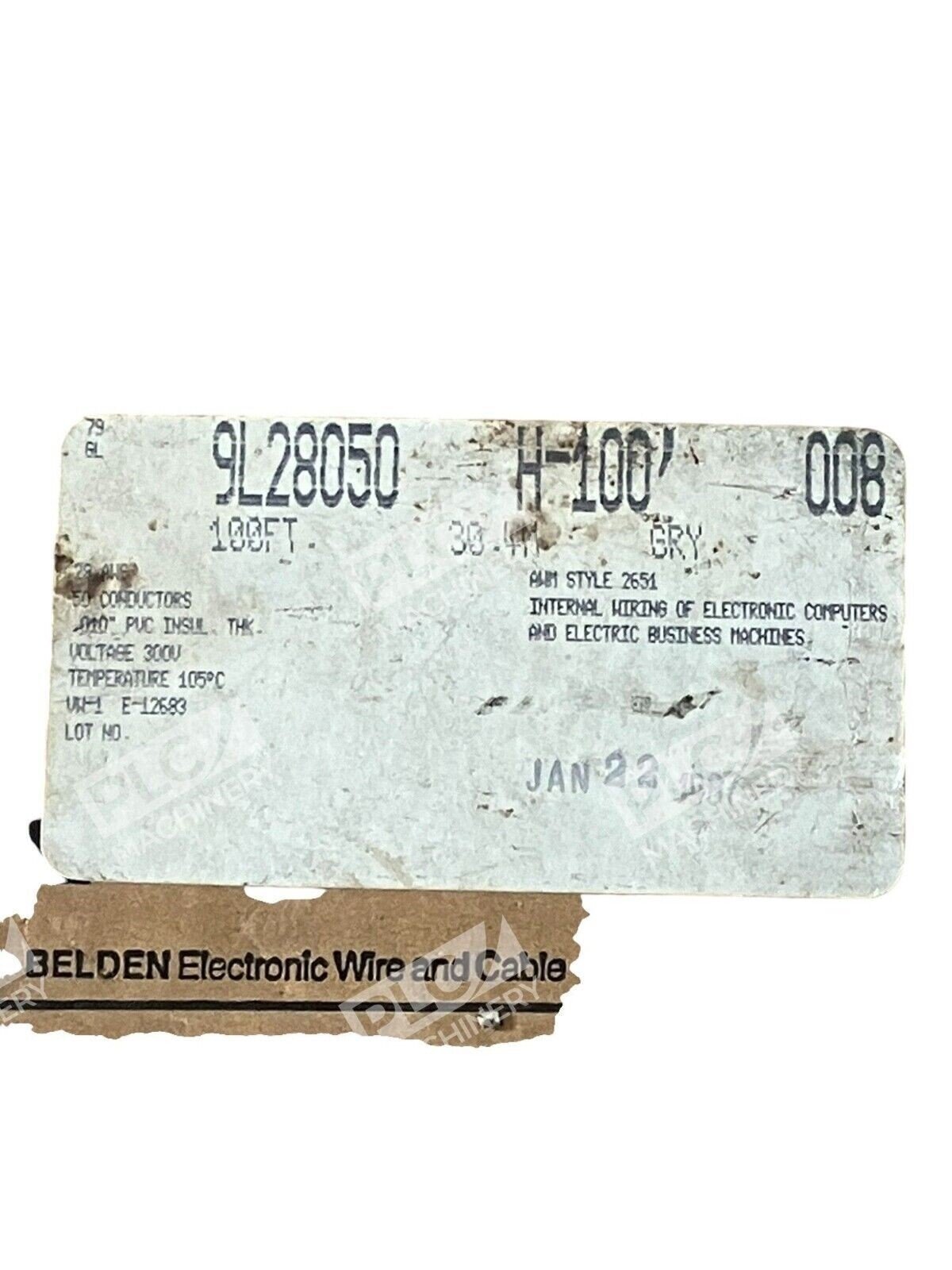

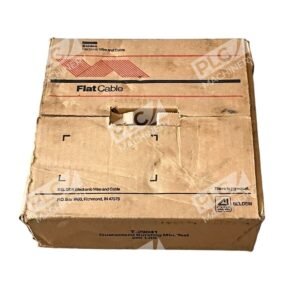

Belden Flat Cable 100Ft Grey 9L28050 H-100 008

The Belden Flat Cable 100Ft Grey 9L28050 H-100 008 is a high-quality flat ribbon cable designed for efficient internal wiring and interconnections in electronic equipment.

Key Features

• Conductor Configuration: 50 conductors of 28 AWG (7×36) stranded tinned copper, ensuring reliable signal transmission.
• Insulation Material: Durable polyvinyl chloride (PVC) insulation with a nominal thickness of 0.010 inches, providing robust protection.
• Color Coding: Gray insulation with a red stripe on the first conductor for easy identification.
• Conductor Spacing: Precise 0.050-inch pitch with a tolerance of ±0.002 inches, facilitating mass termination to standard IDC connectors.
• Electrical Performance: Nominal conductor DC resistance of 68.2 Ohm/1000ft and capacitance of 18 pF/ft at 1 kHz, ensuring minimal signal loss.
• Temperature and Voltage Ratings: Operating temperature range from -40°C to +105°C and a UL voltage rating of 300V, suitable for various environments.
• Compliance: Meets UL AWM Style 2651 and CSA AWM I A standards, and complies with EU directives including RoHS and WEEE.

Applications

Ideal for internal interconnections and wiring within electronic devices, the Belden 9L28050 H-100 008 flat ribbon cable is engineered for reliable mass termination to standard IDC connectors, making it a versatile choice for various electronic applications.
