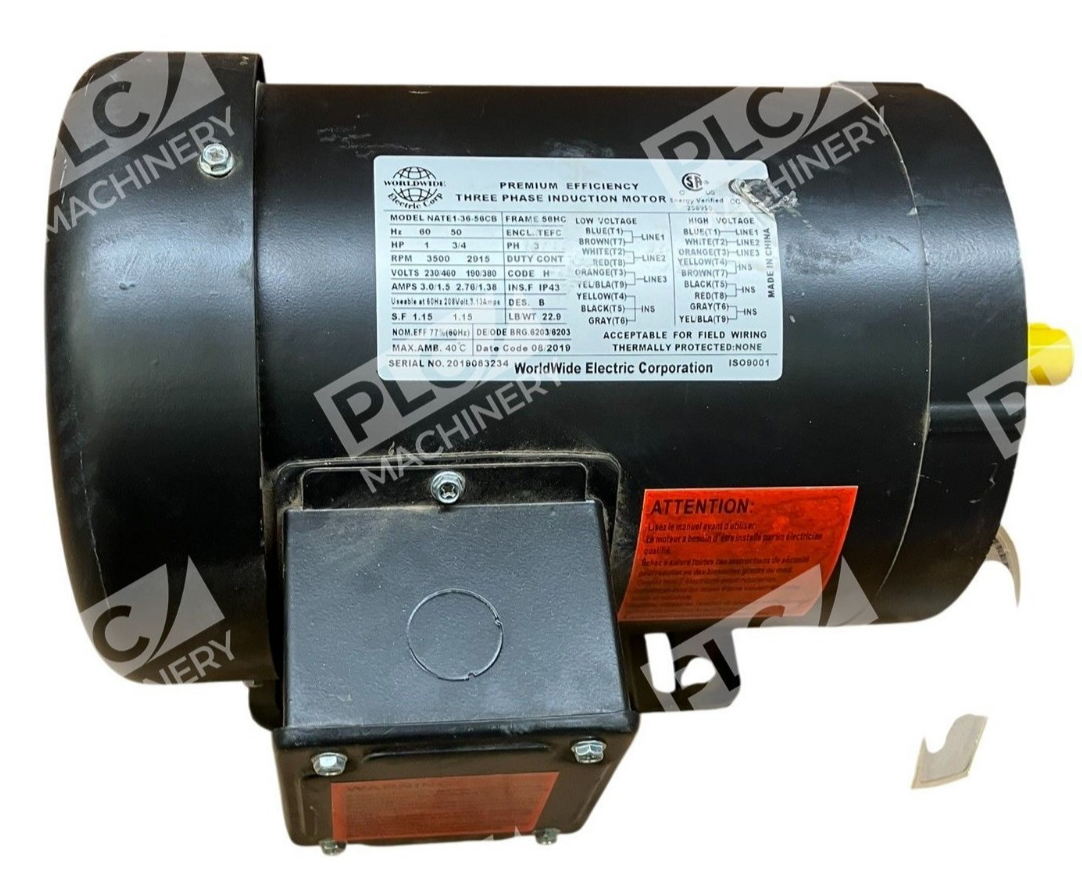

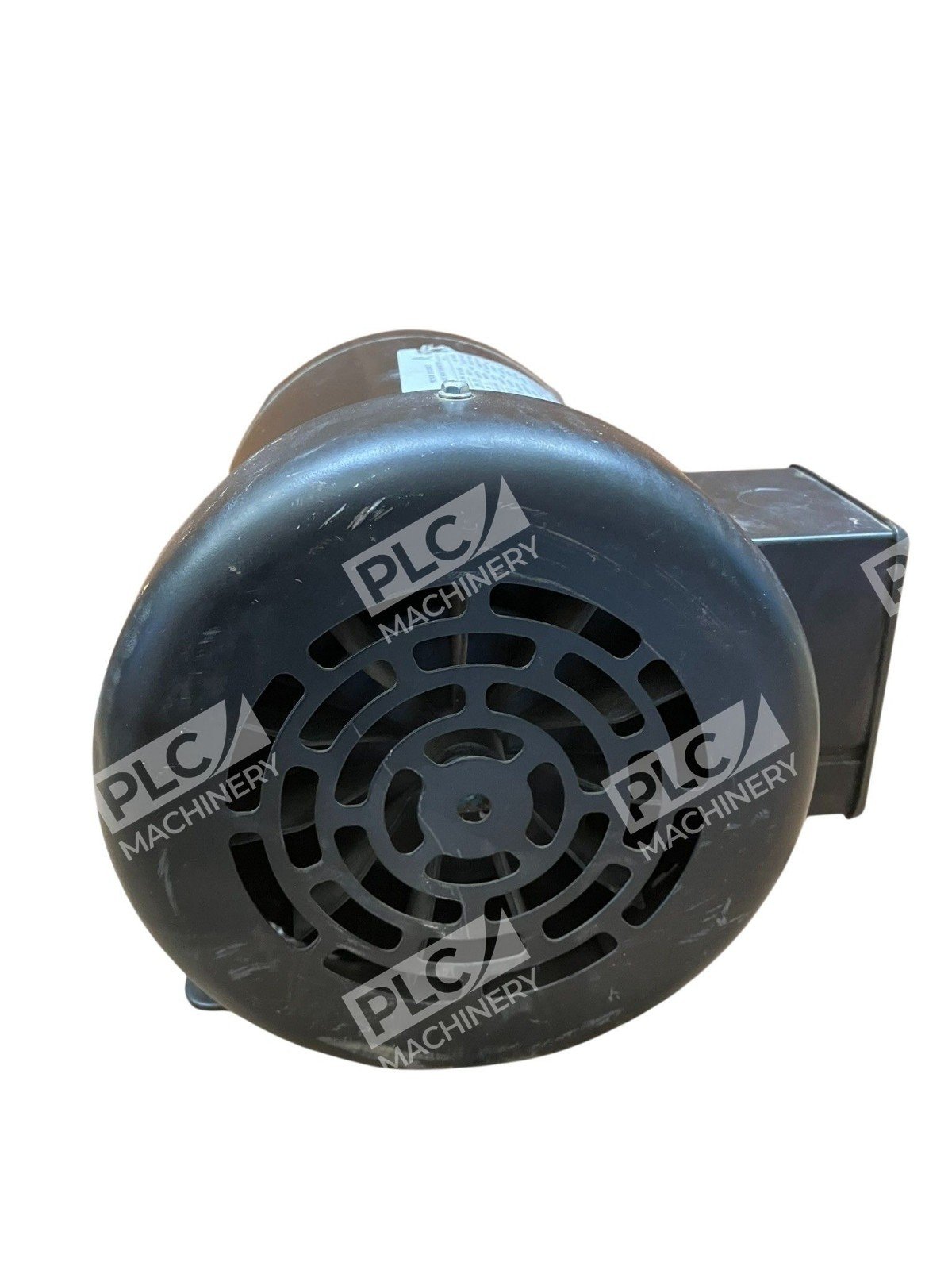

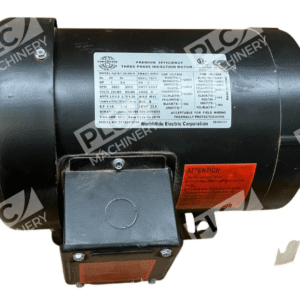

WorldWide Electric Corp Three Phase Induction Motor NATE1-38-56CB

WorldWide Electric Corp Three Phase Induction Motor NATE1-38-56CB

The WorldWide Electric Corp NATE1-38-56CB is a robust and efficient three-phase induction motor, engineered to meet the demands of various industrial applications. This motor is part of the NATE Series, renowned for its premium efficiency and reliable performance.

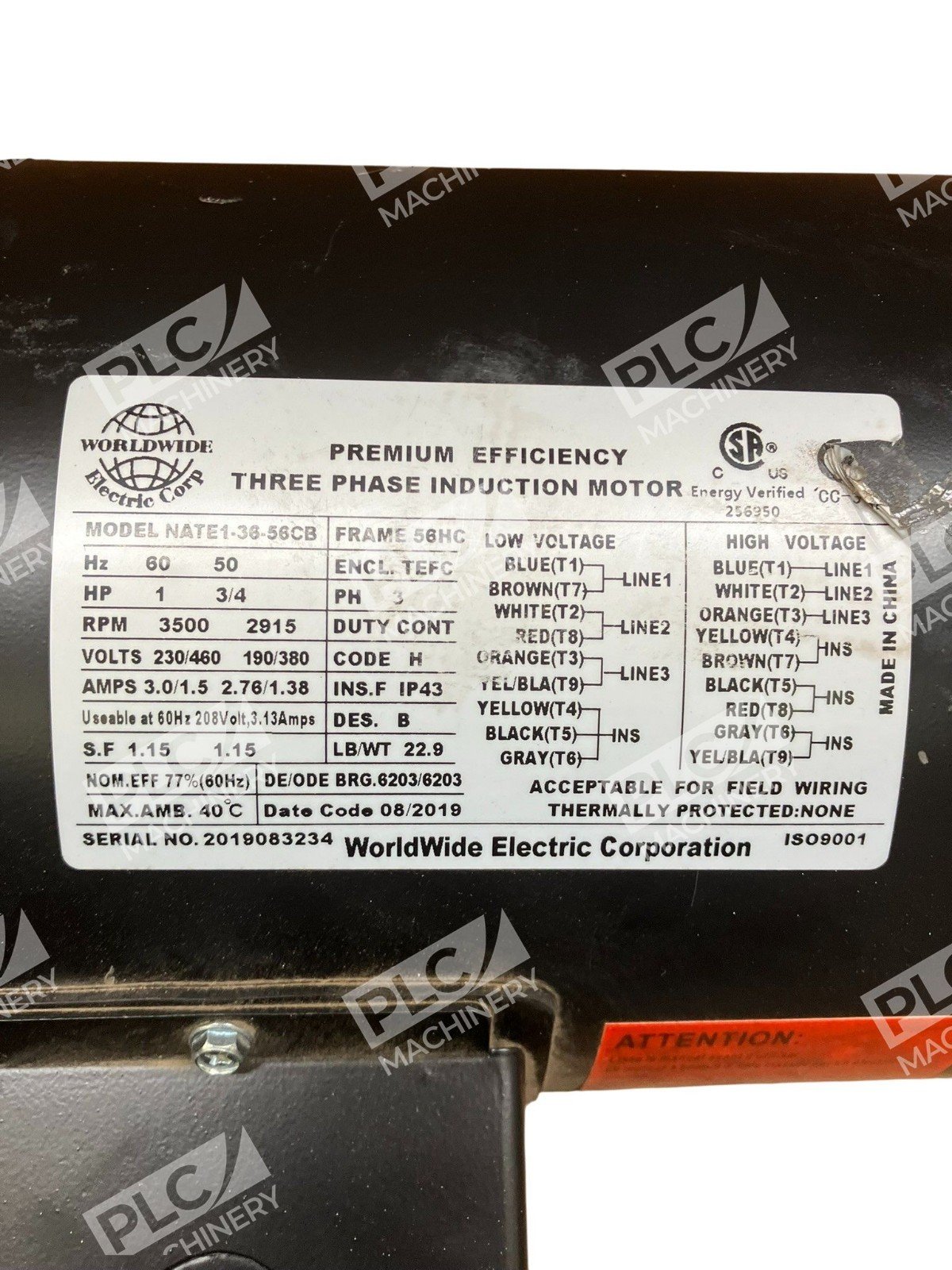

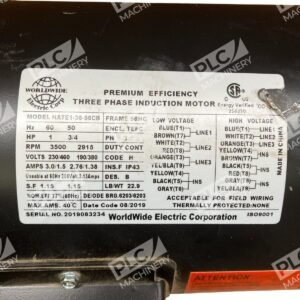

Key Features

• Power Output: 1 HP
• Speed: 3600 RPM
• Voltage: 230/460V
• Frame Size: 56C
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Service Factor: 1.15
• Insulation Class: Class F

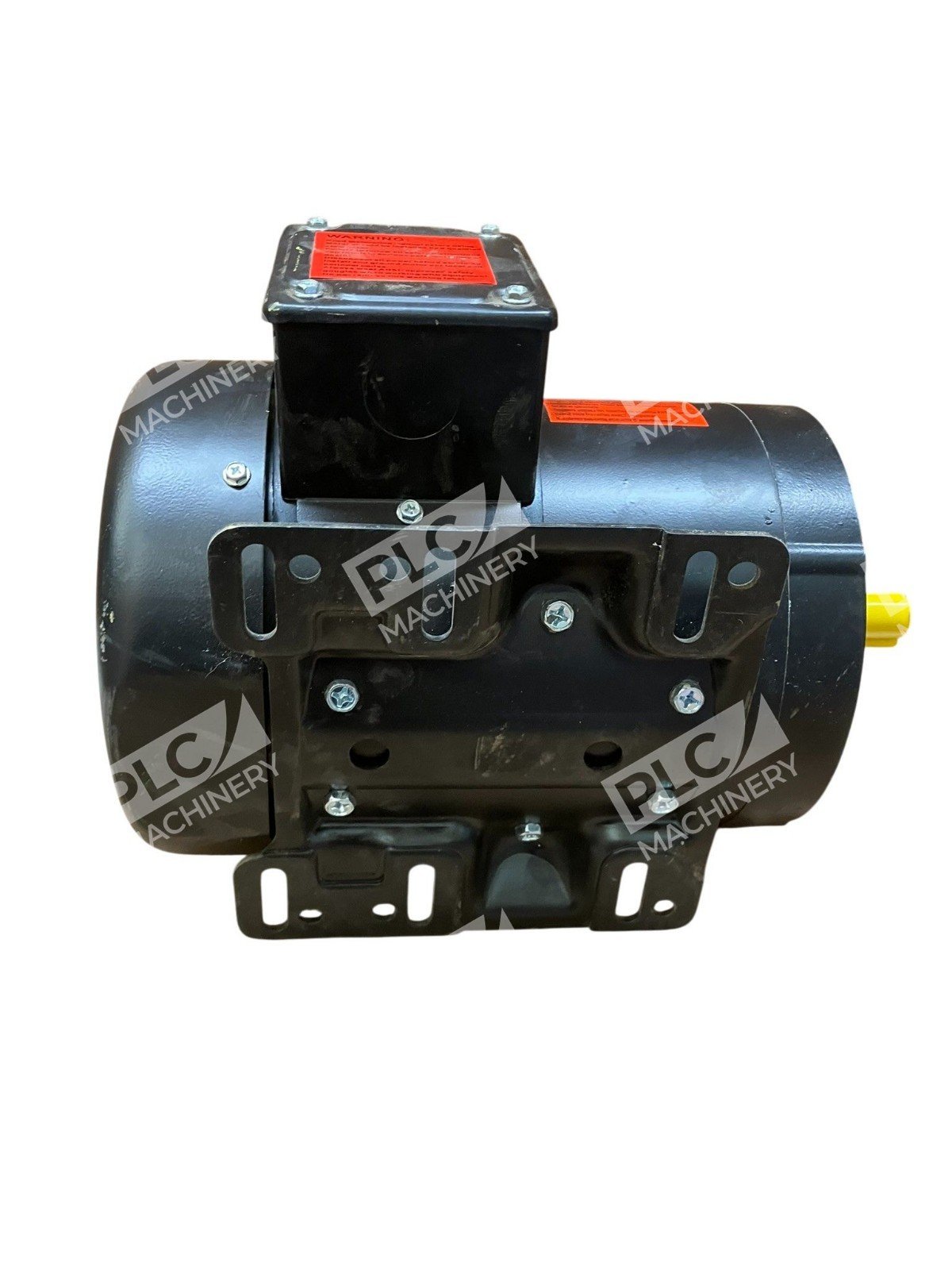

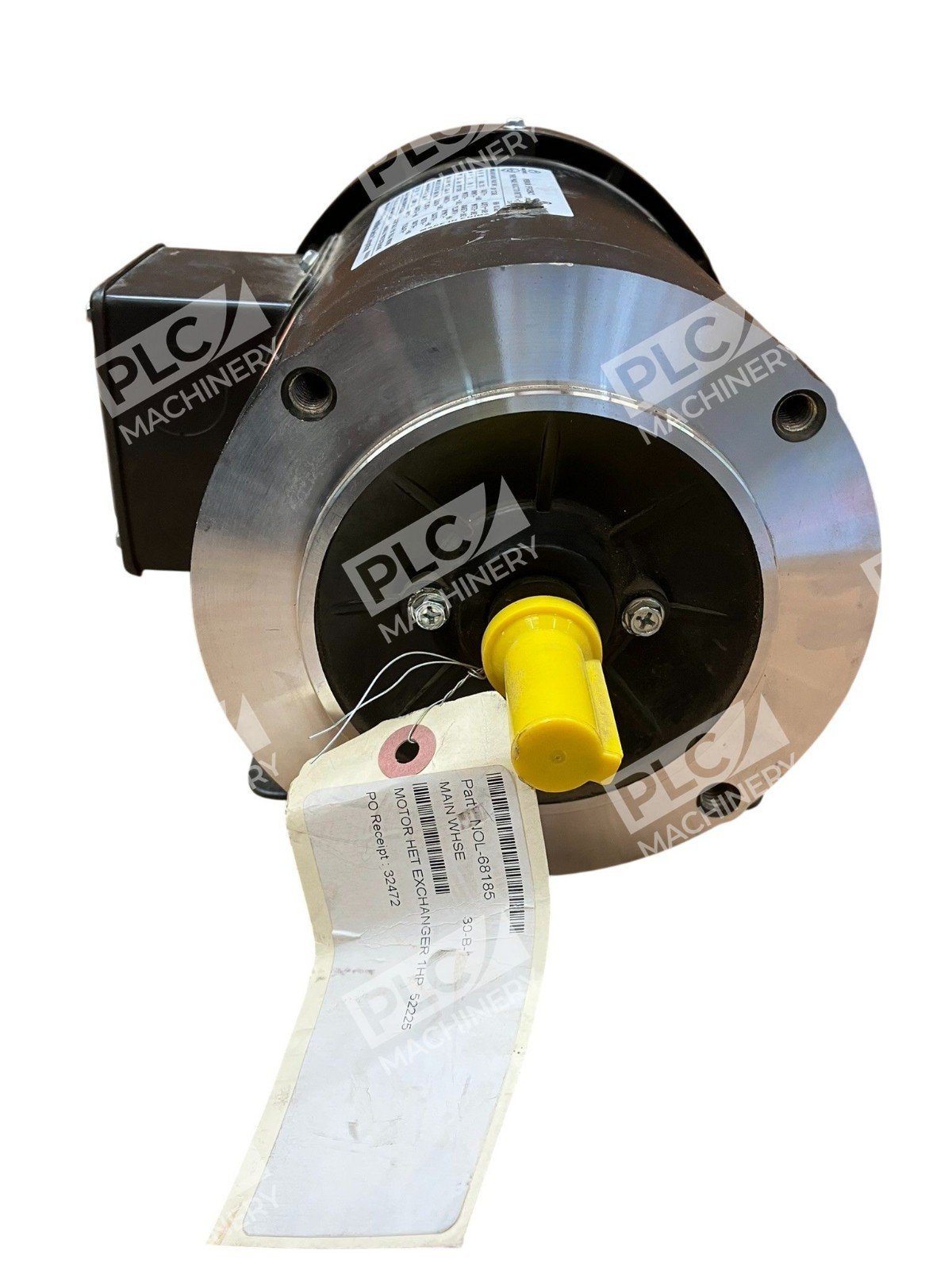

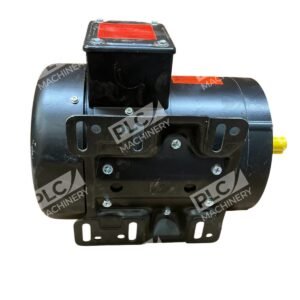

• Mounting: C-Face with Removable Base
• Protection Degree: IP43
• Inverter Duty: Rated 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)

Design and Construction

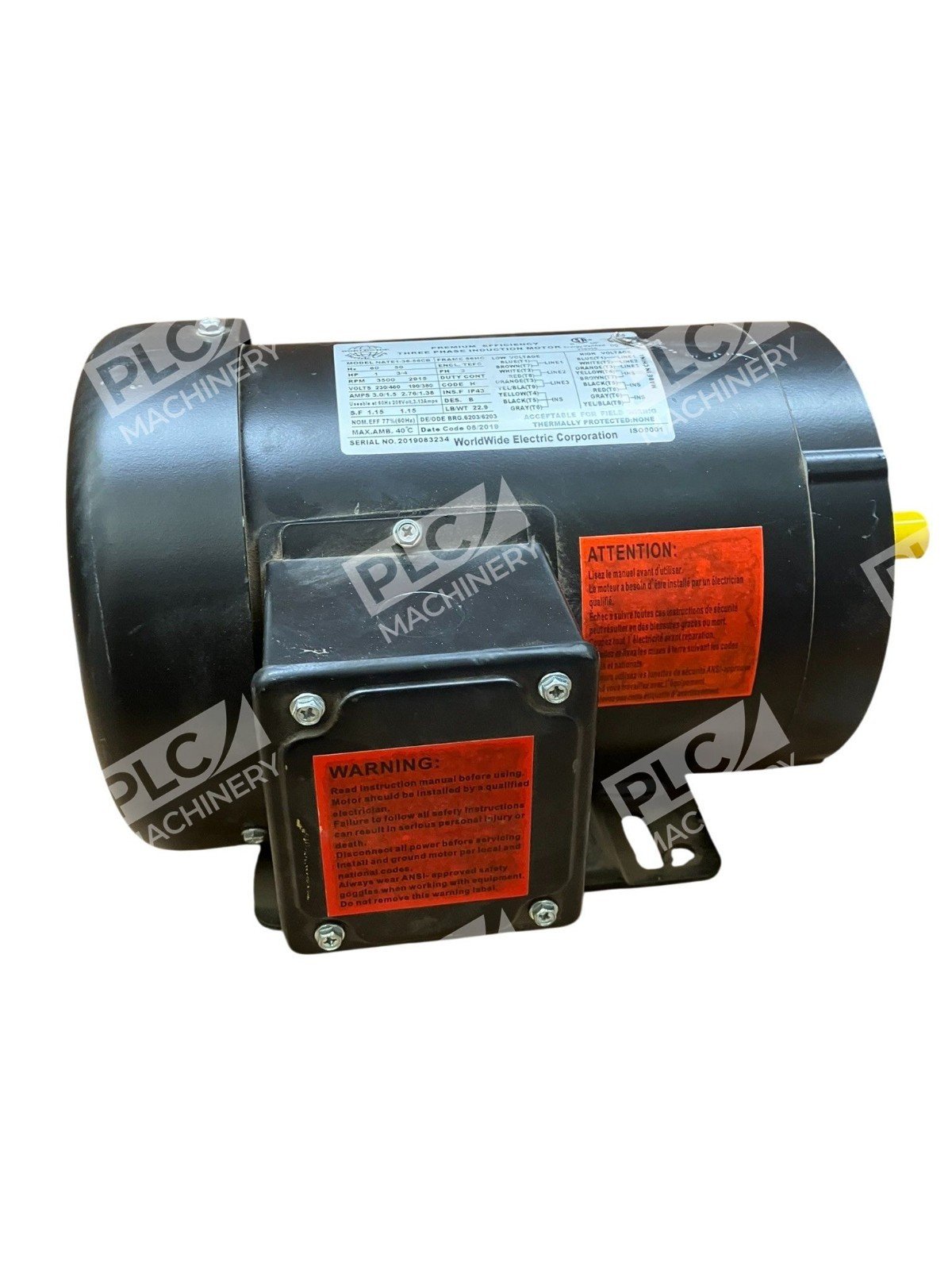

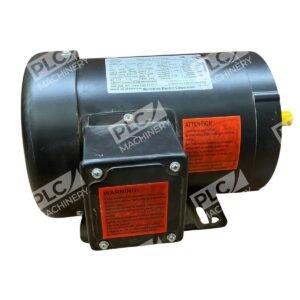

Constructed with a rolled steel body and heavy-duty aluminum end bells, the NATE1-38-56CB ensures durability and longevity. The motor features a vacuum pressure impregnation (VPI) system and an anti-rust film applied to the rotor, enhancing its resistance to environmental factors. An improved shaft seal on the drive-end protects the bearing from moisture and contaminants, contributing to its reliable operation.

Performance and Efficiency

Designed for premium efficiency, this motor delivers consistent power output with reduced energy consumption. Its inverter-duty rating allows for flexible speed control, making it suitable for applications requiring variable speeds. The motor’s design also includes sealed ball bearings and a steel fan cover, further enhancing its performance and reliability.

Applications

The NATE1-38-56CB is ideal for powering pumps, compressors, conveyors, and HVAC systems, providing efficient and reliable performance across multiple industries.

Additional Information

For detailed specifications, installation guidelines, and operational manuals, please refer to the product documentation provided by WorldWide Electric Corporation.
