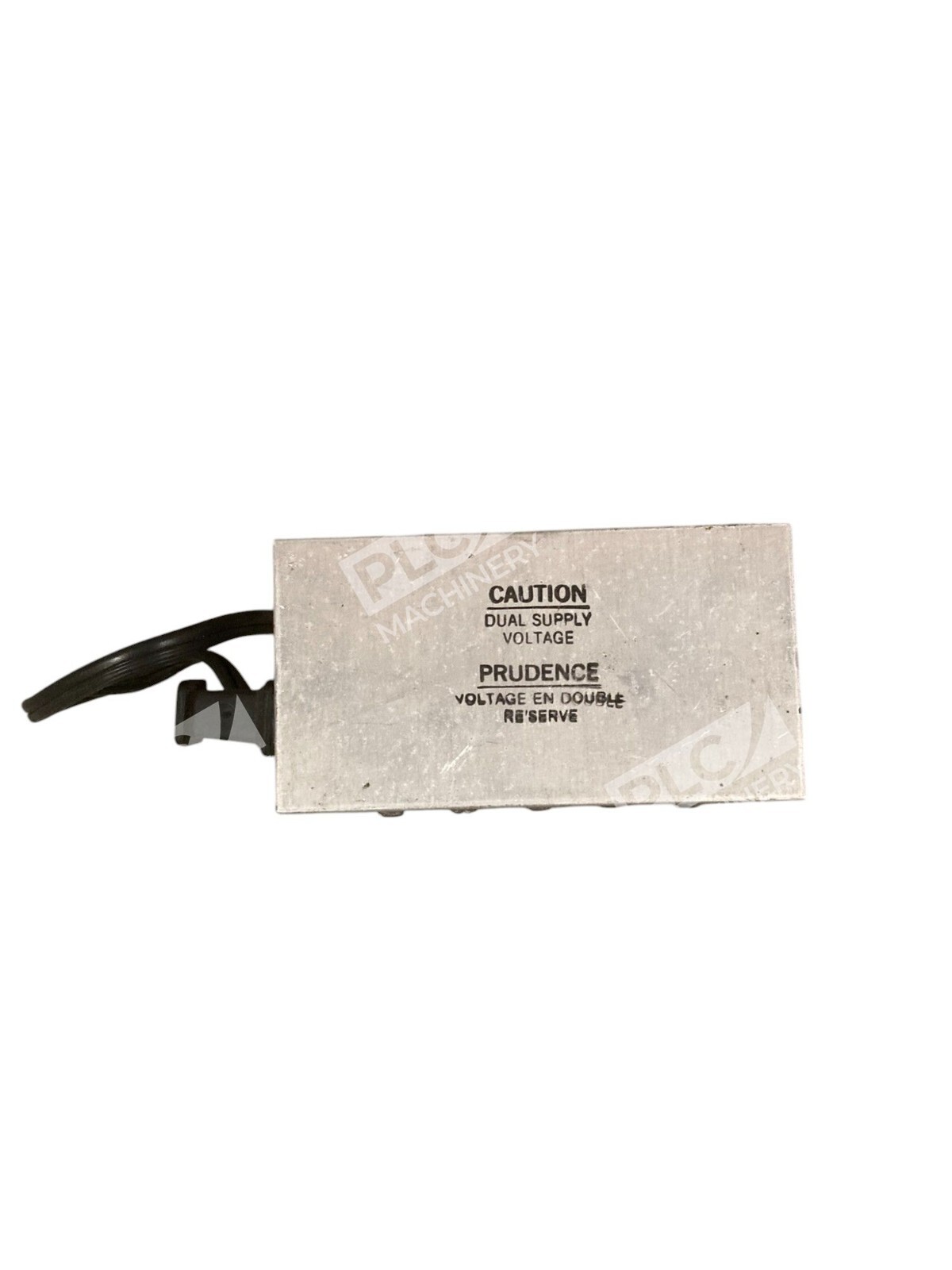

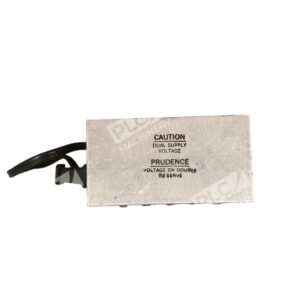

Wheelock Telephone Relay RX-1419
The Wheelock RX-1419 is a telephone relay designed to activate auxiliary signaling appliances upon detecting telephone ring voltage. This device is suitable for various applications, including fire alarm systems, security systems, and other emergency notification setups.
Key Features
- Versatile Activation: Responds to telephone ring voltages ranging from 39 to 150 VAC at 20-30 Hz, as well as DC voltages between 18 and 48 VDC.
- Flexible Contact Ratings: Supports multiple configurations:
- 5A at 115 VAC, 60 Hz
- 2A at 230 VAC, 60 Hz
- 0.5A at 115 VDC

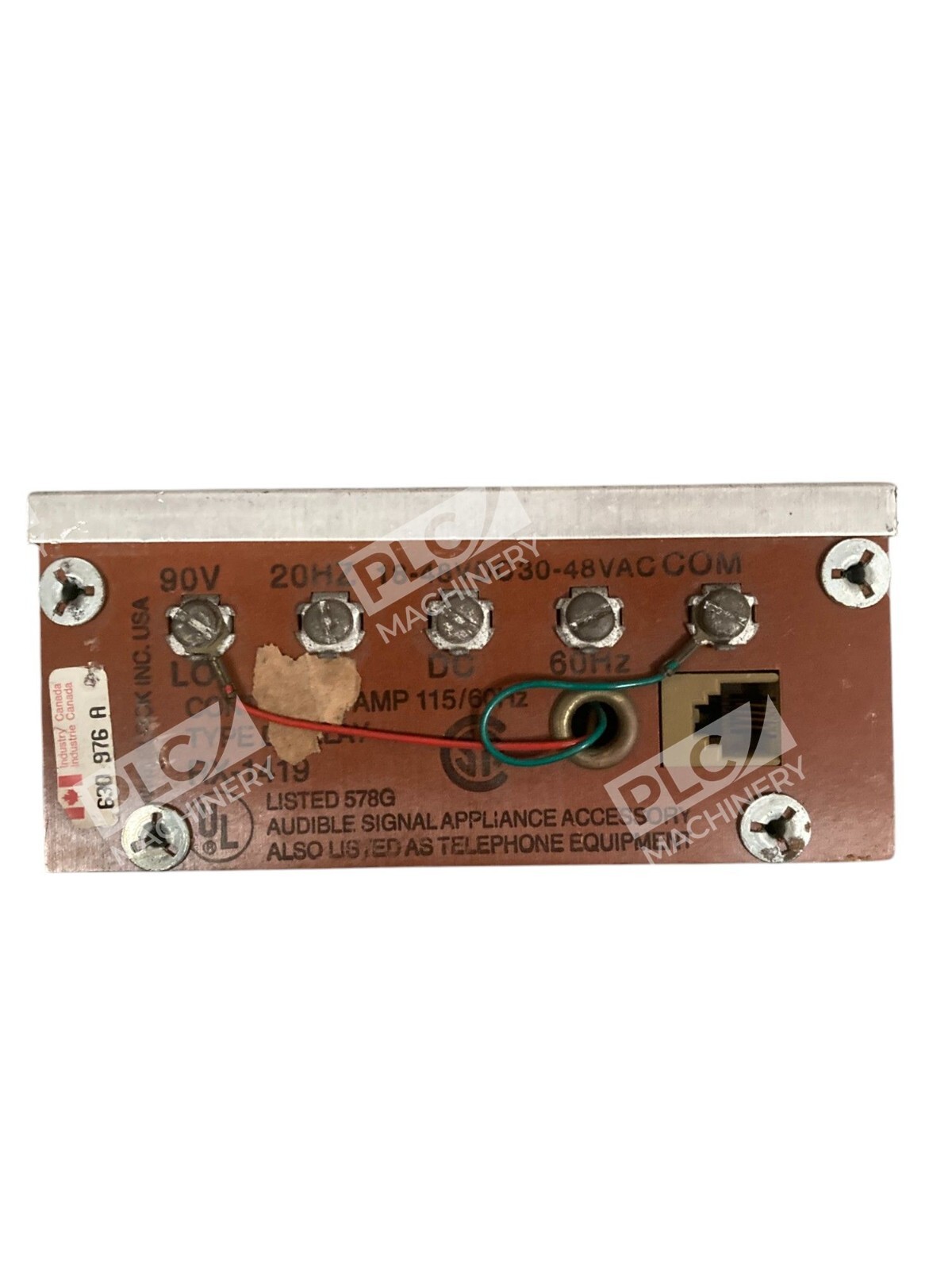

- Easy Installation: Equipped with screw terminal connections and an RJ-11 phone plug for straightforward setup.
- Power Supply: Includes an AC line cord for convenient power access.
- Compatibility: Serves as a replacement relay for the 163 package.
Specifications
| Operating Voltage | Current Draw | Ringer Equivalence Number (REN) |
|---|---|---|
| 39-150 VAC, 20-30 Hz | 9 mA | 0.6 |
| 18-48 VDC | 11 mA | — |
| 30-48 VAC | 20 mA | — |
Installation and Compliance
The RX-1419 is designed for indoor use and should be installed by qualified personnel to ensure proper operation. It complies with Part 68 of the FCC Rules, with a Load Number (LN) of 18, indicating the percentage of the total load to be connected to a telephone loop. The device is not intended for use in hazardous locations as defined by the National Electrical Code (NEC) and the National Fire Protection Association (NFPA).
For detailed installation instructions and safety precautions, refer to the official installation manual.
