Watlow G394271 0649 (9+7+16) Thermocouple Probe 20DJTGB036A

Watlow G394271 0649 (9+7+16) Thermocouple Probe 20DJTGB036A

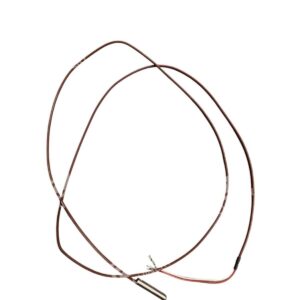

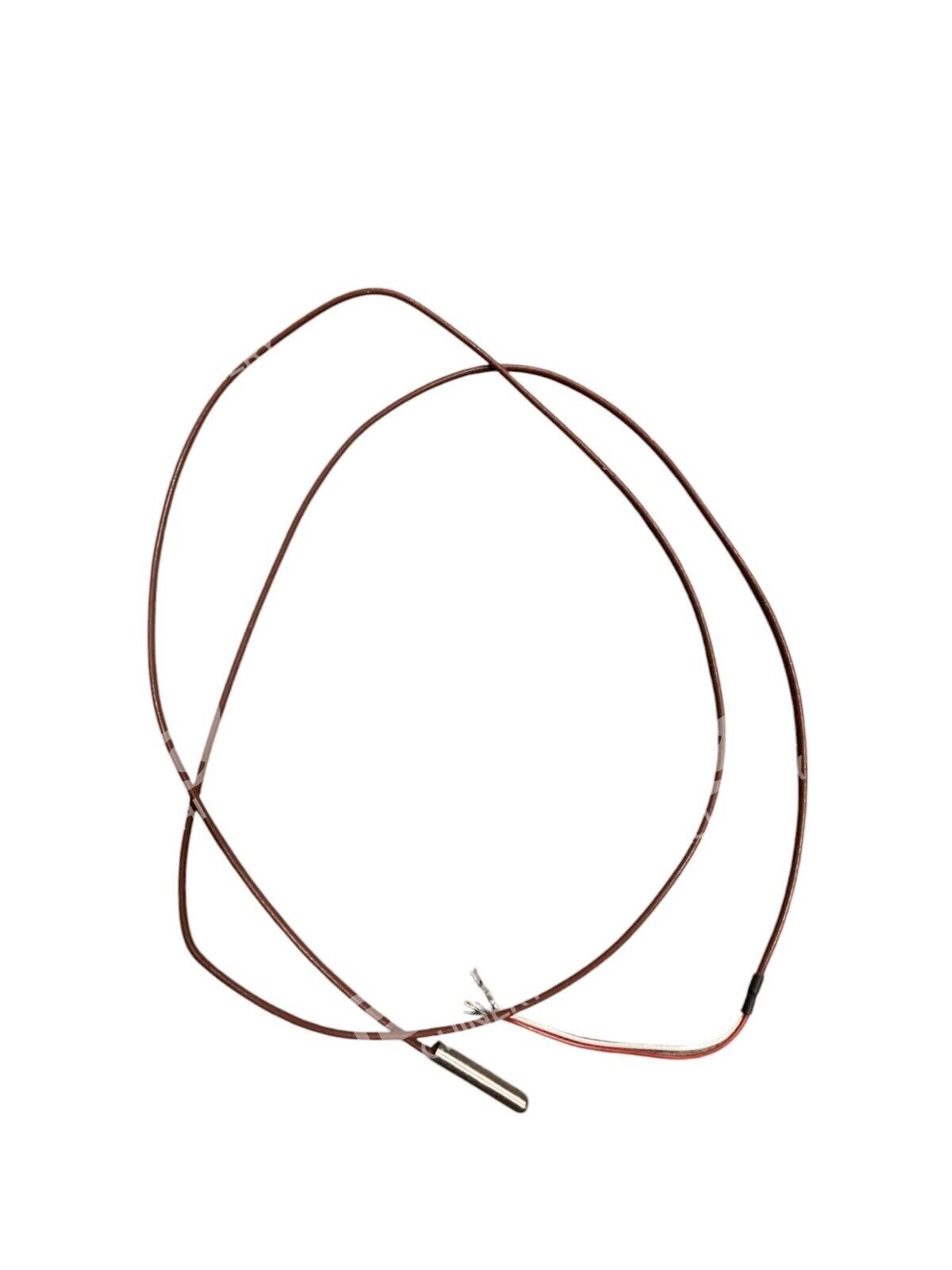

The Watlow G394271 0649 (9+7+16) Thermocouple Probe, model 20DJTGB036A, is a high-quality temperature sensor designed for precise and reliable temperature measurements in various industrial applications.

Key Features

• Type J Calibration: Ensures accurate temperature readings suitable for a wide range of processes.
• Rigid Sheath Construction: Provides protection and allows for accurate placement through bulkheads or platens.
• Sheath Diameter: 0.1875 inches (3/16 inch), offering a balance between strength and responsiveness.
• Sheath Length: 1 inch, facilitating easy integration into systems with limited space.
• Lead Length: 36 inches, providing flexibility for various installation requirements.
• Lead Protection: PFA (24 gauge stranded) insulation ensures durability and resistance to environmental factors.
• Grounded Junction: Enhances response time and accuracy by reducing electrical noise.
• Standard 2.5-inch Split Leads: Facilitates easy connection and installation.

Applications

This thermocouple probe is ideal for applications requiring precise temperature monitoring, such as:

• Industrial heating processes
• Plastics manufacturing
• Food processing
• Pharmaceutical production
• Chemical processing

Installation

For optimal performance, use the rigid sheath with a compression fitting to achieve a watertight immersion application. This setup ensures accurate placement and reliable temperature measurement in various process environments.

The Watlow G394271 0649 (9+7+16) Thermocouple Probe 20DJTGB036A combines durability, precision, and ease of installation, making it a valuable component for temperature monitoring in demanding industrial settings.
