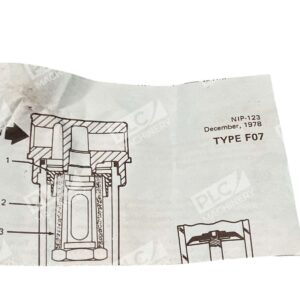

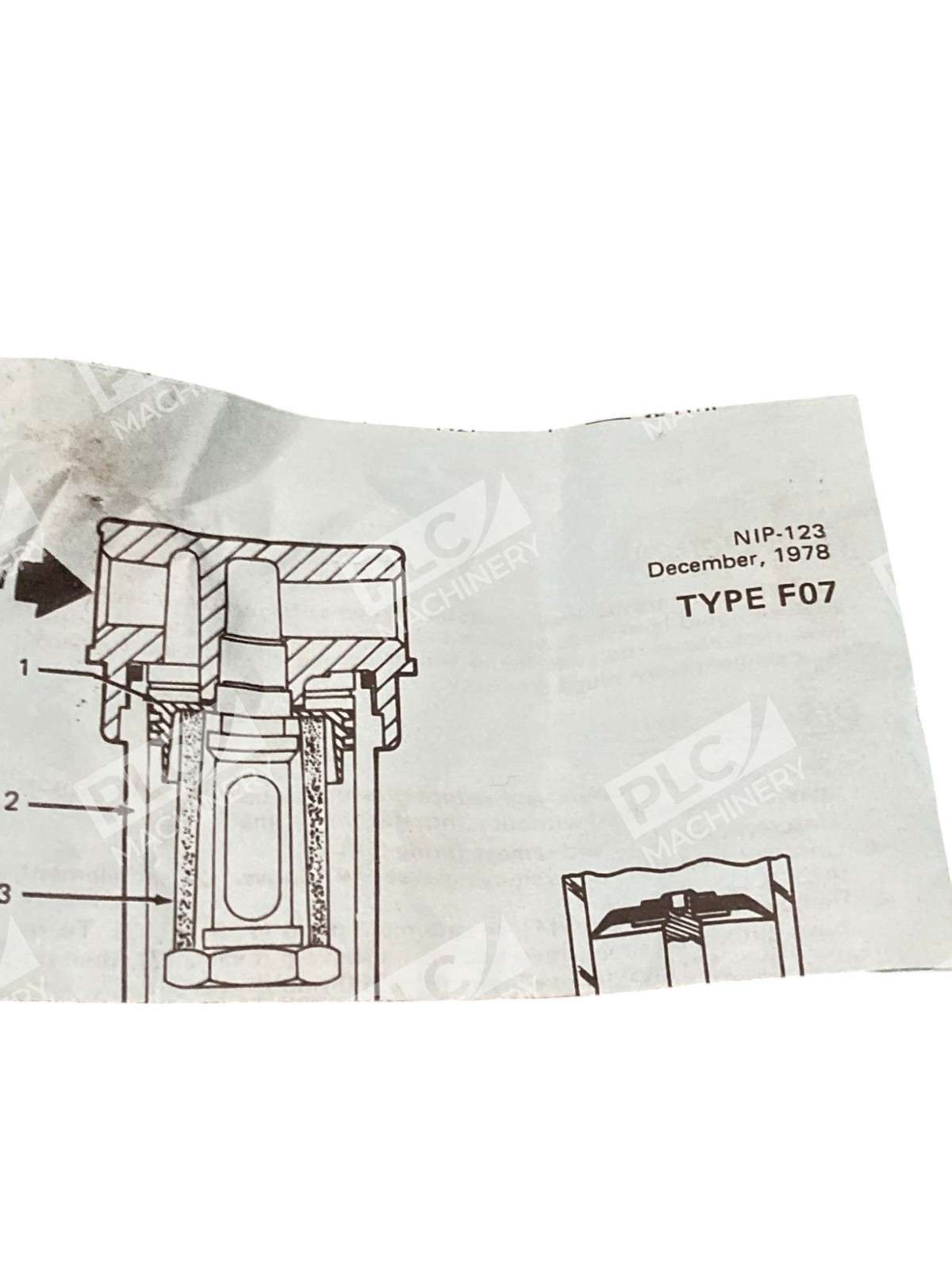

Type F07 Ace Controls Mini Shock Absorber

The Type F07 Ace Controls Mini Shock Absorber is a compact, self-compensating device engineered to provide efficient energy absorption in various industrial applications.

Key Features

• Hermetically Sealed Rolling Diaphragm: Ensures complete separation of the damping fluid from the surrounding air, allowing for direct installation in pressure chambers up to approximately 100 psi (7 bar).
• Maintenance-Free Operation: Designed for up to 25 million cycles, offering a long service life without the need for regular maintenance.
• Integrated Positive Stop: Provides a built-in stop mechanism, enhancing safety and reliability during operation.
• Progressive Energy Capacities: Accommodates a wide range of effective weights, making it versatile for different applications.
• Low Return Forces: The rolling diaphragm design delivers minimal return forces, contributing to smoother operation.
• Side Load Adaptability: Capable of handling impact angles up to 25° with the use of a side load adapter.
• Corrosion-Resistant Options: Stainless steel variants are available for enhanced environmental compatibility.

Technical Specifications

• Energy Capacity per Cycle: 175 in-lbs to 1,200 in-lbs
• Stroke Length: 0.50 inches to 1.00 inch
• Impact Velocity Range: 0.22 ft/sec to 19.7 ft/sec
• Operating Temperature Range: 32°F to 150°F
• Mounting Orientation: Suitable for installation in any position
• Materials:
  • Outer Body and Accessories: Steel with corrosion-resistant coating
  • Main Bearing: Plastic
  • Piston Rod: Hardened stainless steel (1.4125, AISI 440C)
  • Rolling Diaphragm: EPDM
• Damping Medium: Temperature-stable oil

Applications

The Type F07 Mini Shock Absorber is ideal for a variety of applications, including:

• Linear slides
• Pneumatic cylinders
• Swivel units
• Handling modules
• Machines and plants
• Finishing and processing centers
• Measuring tables
• Tool machines
• Locking systems

Its self-compensating design allows it to react to changing energy conditions without the need for manual adjustments, making it a reliable choice for dynamic industrial environments.
