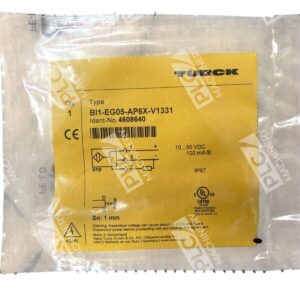

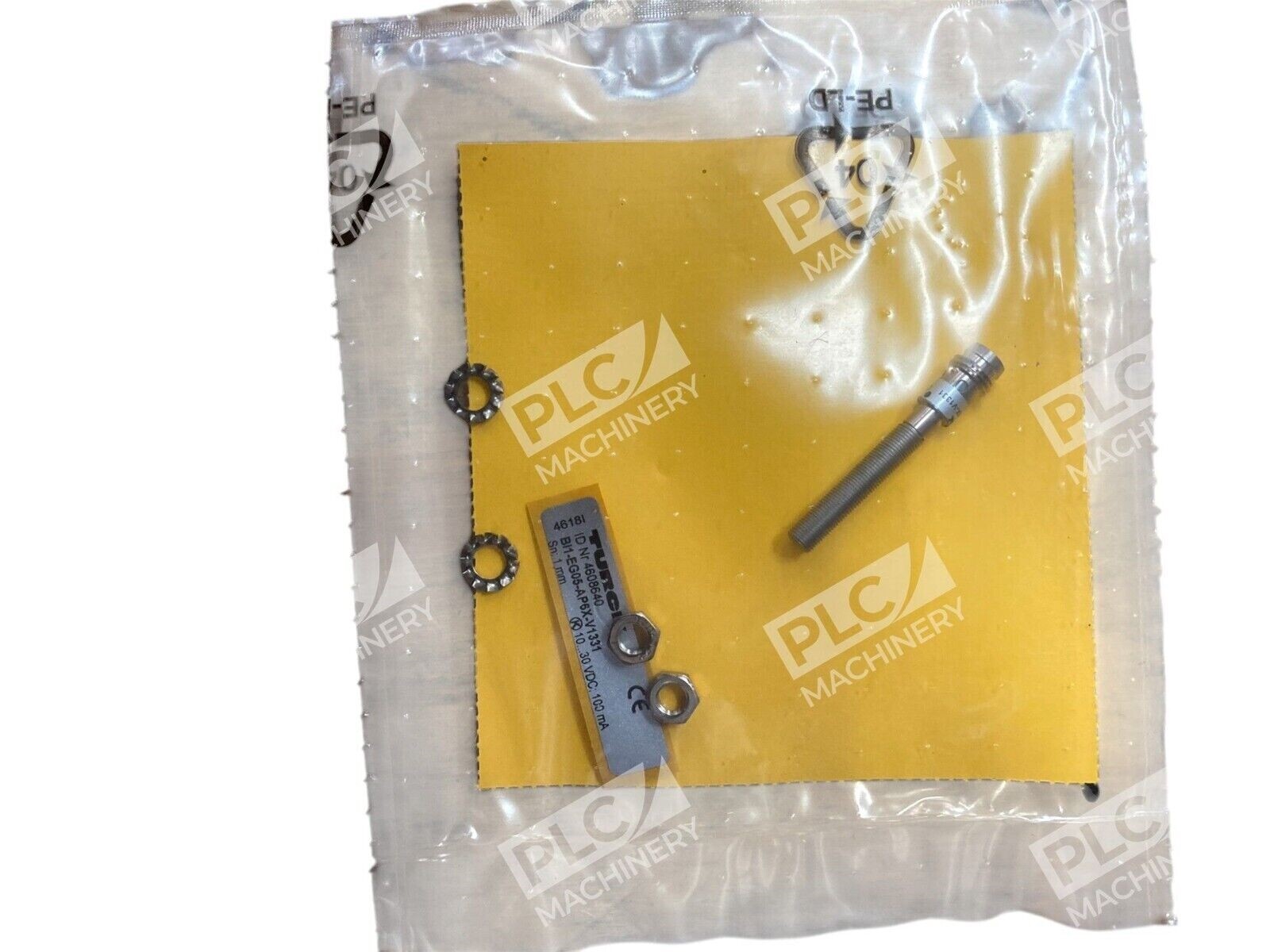

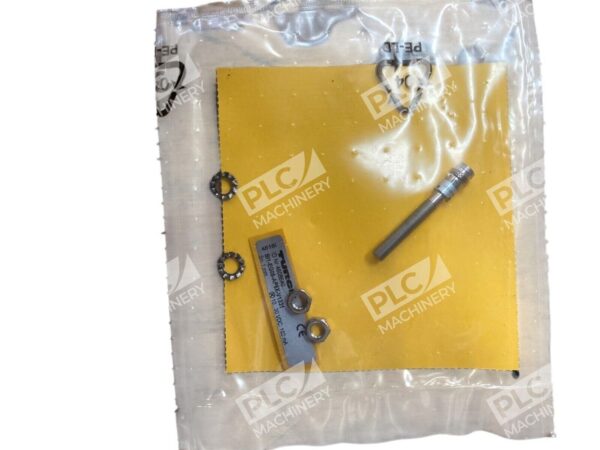

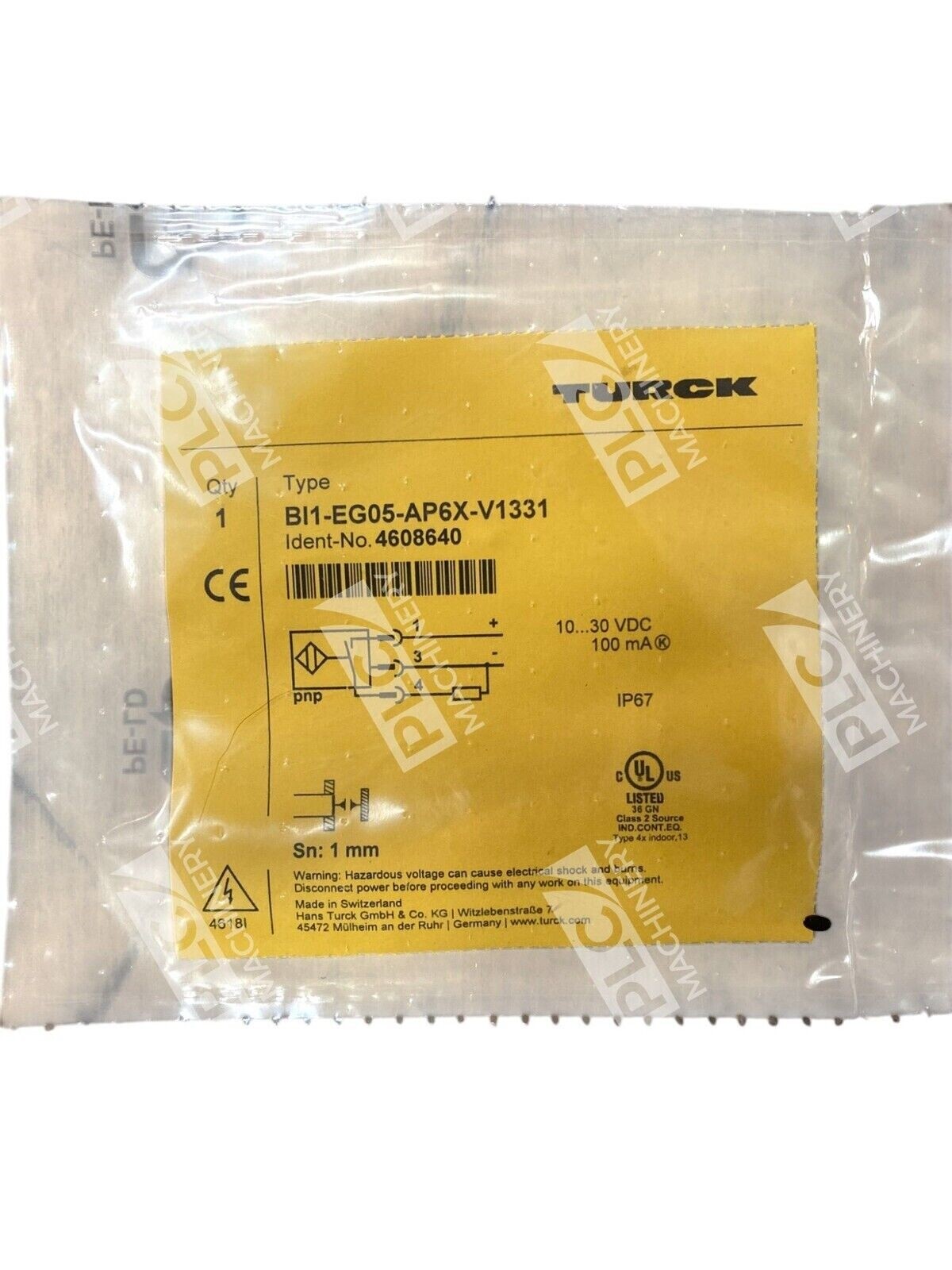

The Turck BI1-EG05-AP6X-V1331 is a high-performance inductive proximity sensor designed for precise and reliable object detection in industrial environments.
Key Features
- Compact Design: Features a threaded barrel with M5 × 0.5 dimensions, allowing for easy integration into tight spaces.
- Durable Construction: Constructed from stainless steel (1.4305/AISI 303), ensuring robustness and resistance to corrosion.
- Reliable Sensing: Offers a rated switching distance of 1 mm, suitable for precise detection tasks.
- Flush Mounting: Designed for flush mounting, providing seamless installation without protrusion.
- Electrical Specifications: Operates on a DC 3-wire system with a voltage range of 10 to 30 VDC and a maximum switching current of 100 mA.
- Output Configuration: Equipped with a normally open (NO) PNP output for straightforward integration with control systems.
- High Switching Frequency: Capable of handling switching frequencies up to 3.0 kHz, suitable for high-speed applications.
- Secure Connection: Features an M8 × 1 male connector for reliable electrical connections.
- Environmental Resilience: Operates effectively within ambient temperatures ranging from -25°C to +70°C and boasts an IP67 protection rating, ensuring resistance to dust and water ingress.
Applications
The BI1-EG05-AP6X-V1331 sensor is ideal for various industrial applications, including:
- Position detection in automated machinery.
- Monitoring of moving parts in conveyor systems.
- Presence detection in assembly lines.
- End-of-travel sensing in actuators.
Its compact size and durable construction make it particularly suitable for environments where space is limited, and reliability is critical.
Technical Specifications
- Design: Threaded barrel
- Construction Size: M5 × 0.5
- Rated Switching Distance: 1 mm
- Mounting: Flush
- Operating Voltage: 10 to 30 VDC
- Output Function: NO contact, PNP
- Switching Frequency: 3.0 kHz
- Electrical Connection: M8 × 1 male connector
- Housing Material: Stainless steel, 1.4305 (AISI 303)
- Ambient Temperature Range: -25°C to +70°C
- Protection Class: IP67
The Turck BI1-EG05-AP6X-V1331 sensor combines precision, durability, and ease of integration, making it a reliable choice for demanding industrial applications.
