Tri-Tronics F4-Fiber Optic Mark Eye Pro MEPWLC

Tri-Tronics F4-Fiber Optic Mark Eye Pro MEPWLC

The Tri-Tronics F4-Fiber Optic Mark Eye Pro MEPWLC is a high-performance photoelectric sensor designed for precise detection of registration marks in various industrial applications. This sensor combines advanced technology with user-friendly features to ensure reliable operation in demanding environments.

Key Features

• Rapid Response Time: With a light/dark response time of 45 microseconds and repeatability of 13 microseconds, the MEPWLC ensures swift and accurate detection of registration marks.
• White LED Light Source: The broadband color spectrum of the white LED is optimal for detecting all printed registration marks on packaging materials and is effective for sorting colored objects.

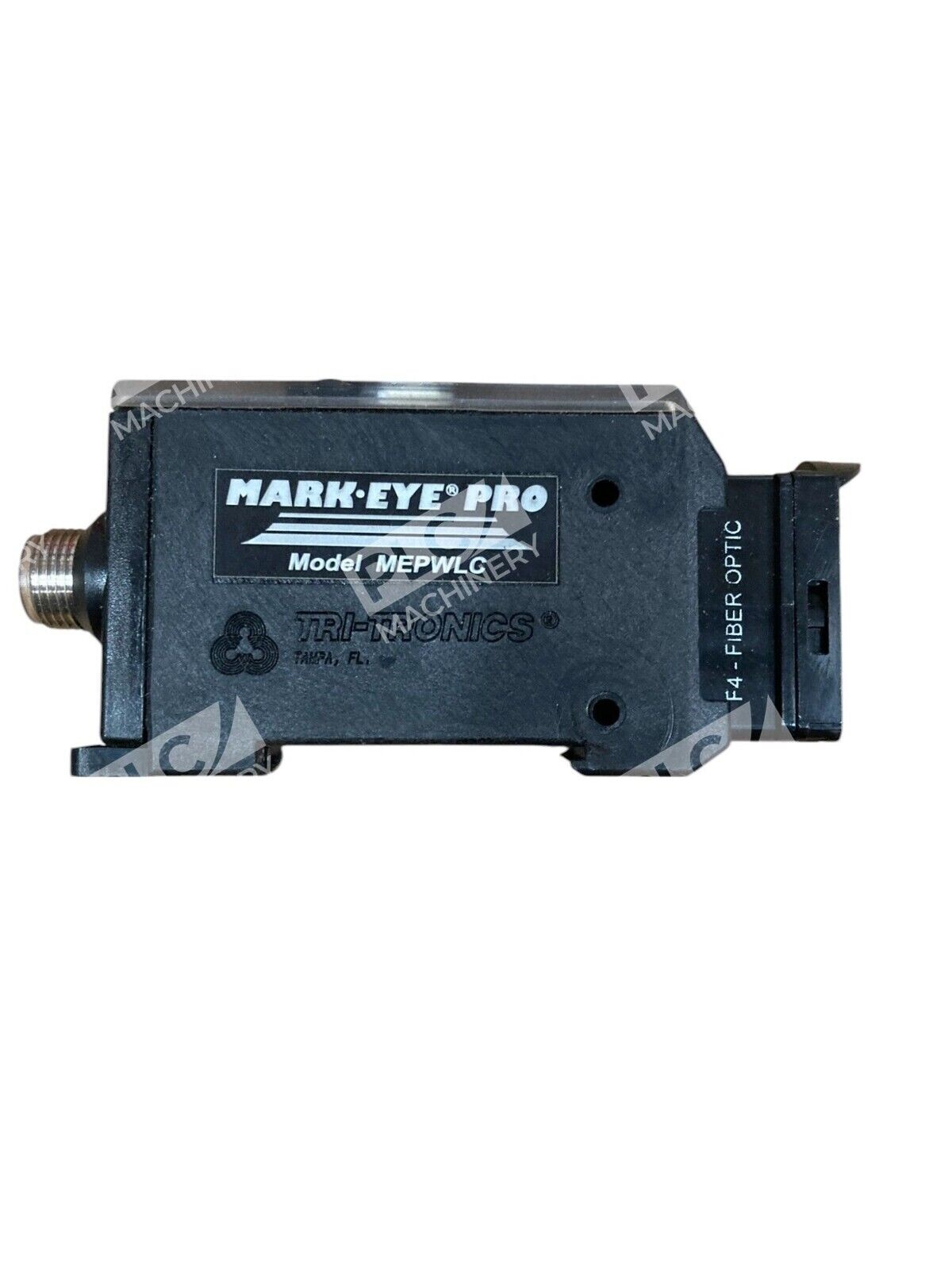

• Fiber Optic Compatibility: Equipped with the F4 Glass Fiberoptic Block, the sensor is adaptable to a wide range of glass fiberoptic light guides, supporting both proximity and opposed sensing modes.

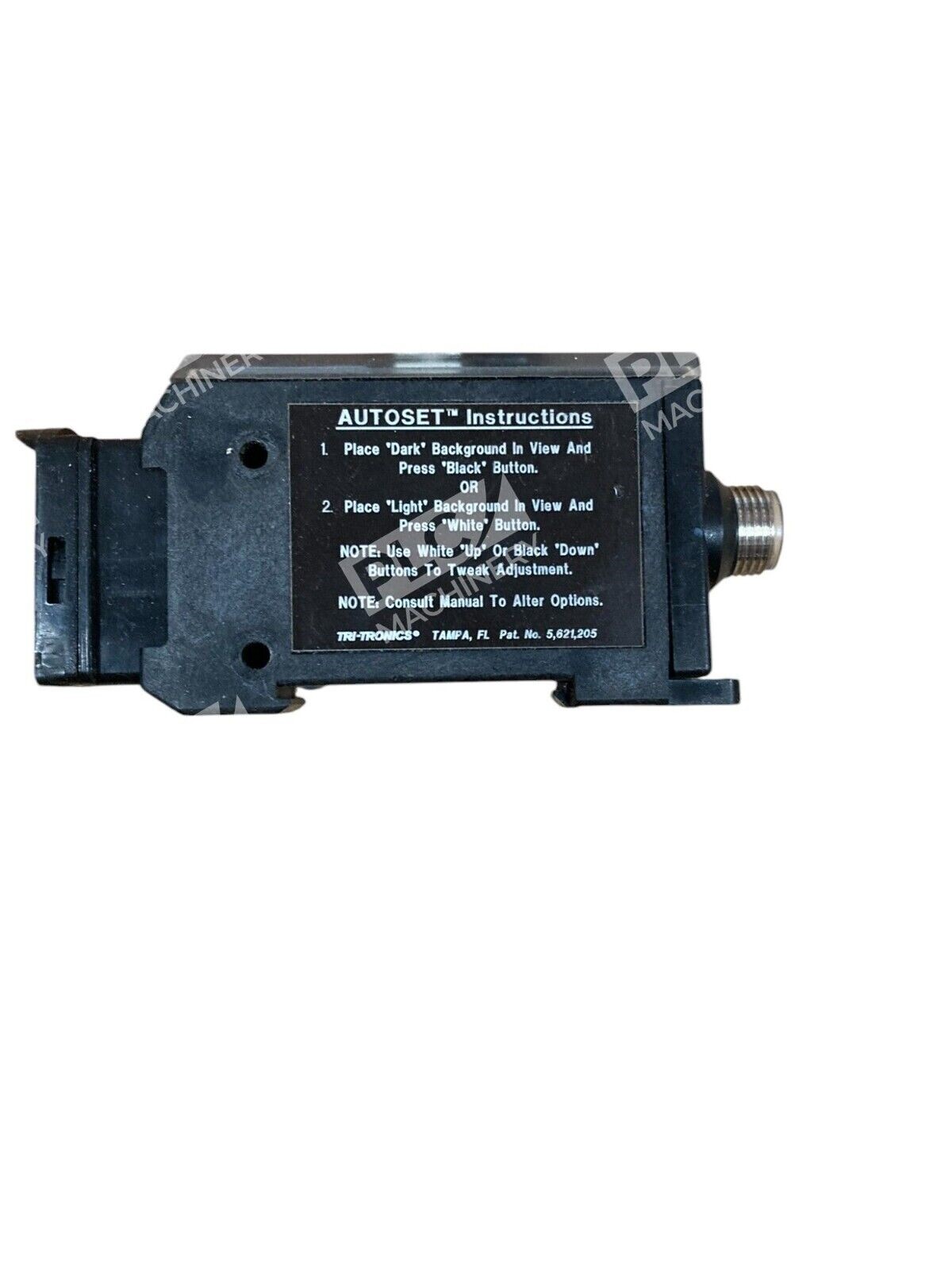

• Push-Button Control: The AUTOSET feature allows for easy, one-touch setup, with additional manual adjustments available for fine-tuning sensitivity and other parameters.

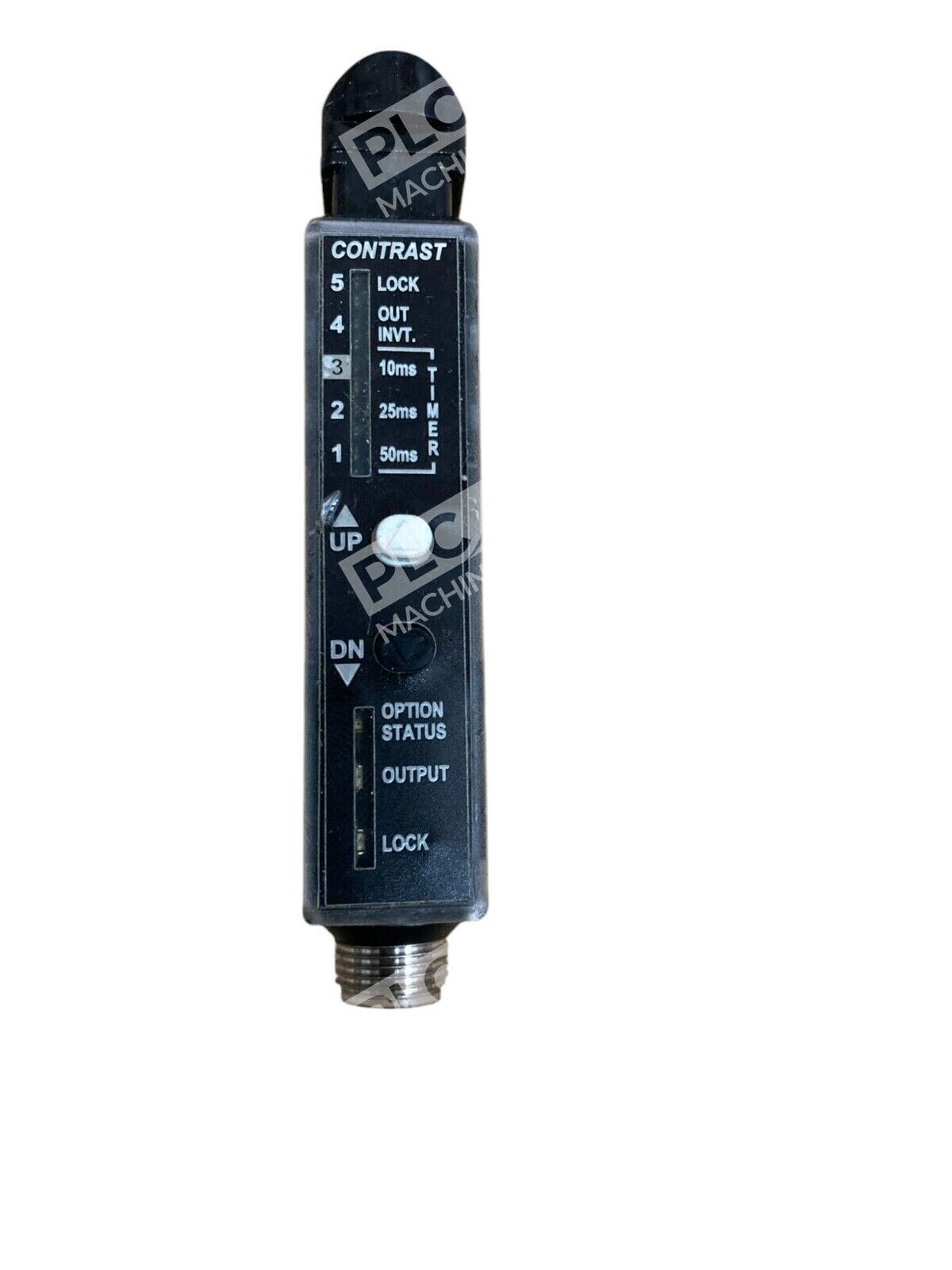

• Diagnostic Indicators: A 5-LED bar graph functions as both a contrast indicator and a status indicator, providing real-time feedback on sensor performance and settings.
• Rugged Construction: Housed in a chemical-resistant, high-impact polycarbonate casing, the MEPWLC boasts NEMA 4X, 6P, and IP67 enclosure ratings, ensuring durability in harsh industrial environments.

Technical Specifications

• Supply Voltage: 10 to 30 VDC, polarity protected.
• Current Requirements: 45mA (exclusive of load).
• Output Transistors: One NPN and one PNP sensor output transistor, each capable of sinking or sourcing up to 150 milliamps, with continuous short circuit protection.
• Remote AUTOSET Input: Opto-isolated momentary sinking input (10 milliamps).
• Ambient Temperature Range: -40°C to 70°C (-40°F to 158°F).

The Tri-Tronics F4-Fiber Optic Mark Eye Pro MEPWLC is engineered to deliver exceptional performance and reliability, making it an ideal choice for applications requiring precise registration mark detection.
