Thomson SPB32OPN Super Pillow Block

Thomson SPB32OPN Super Pillow Block

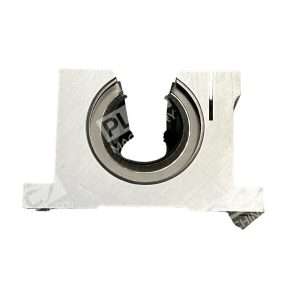

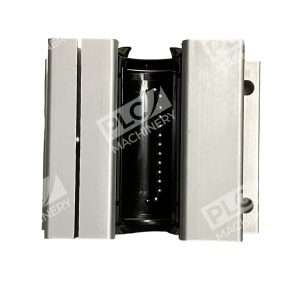

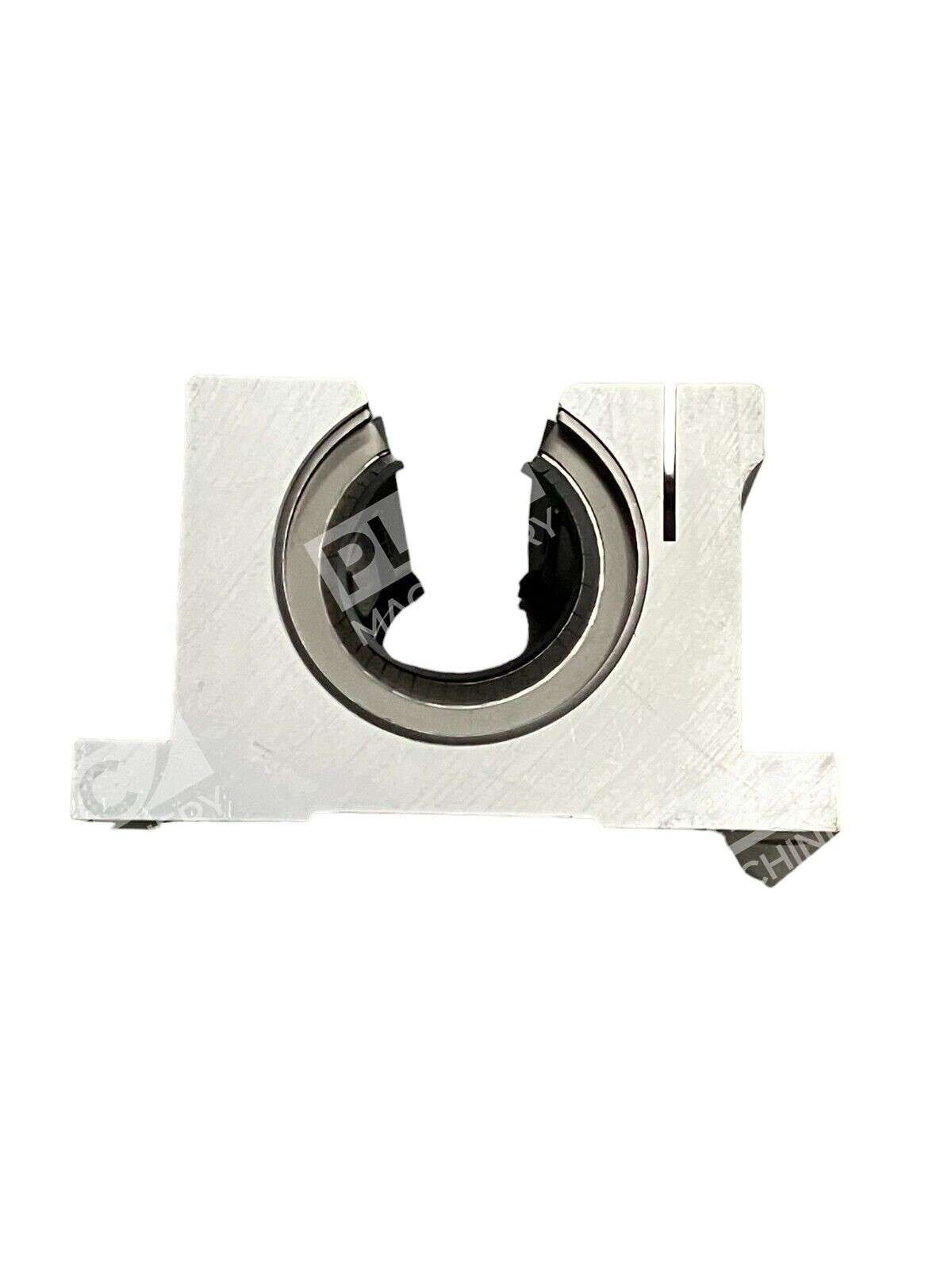

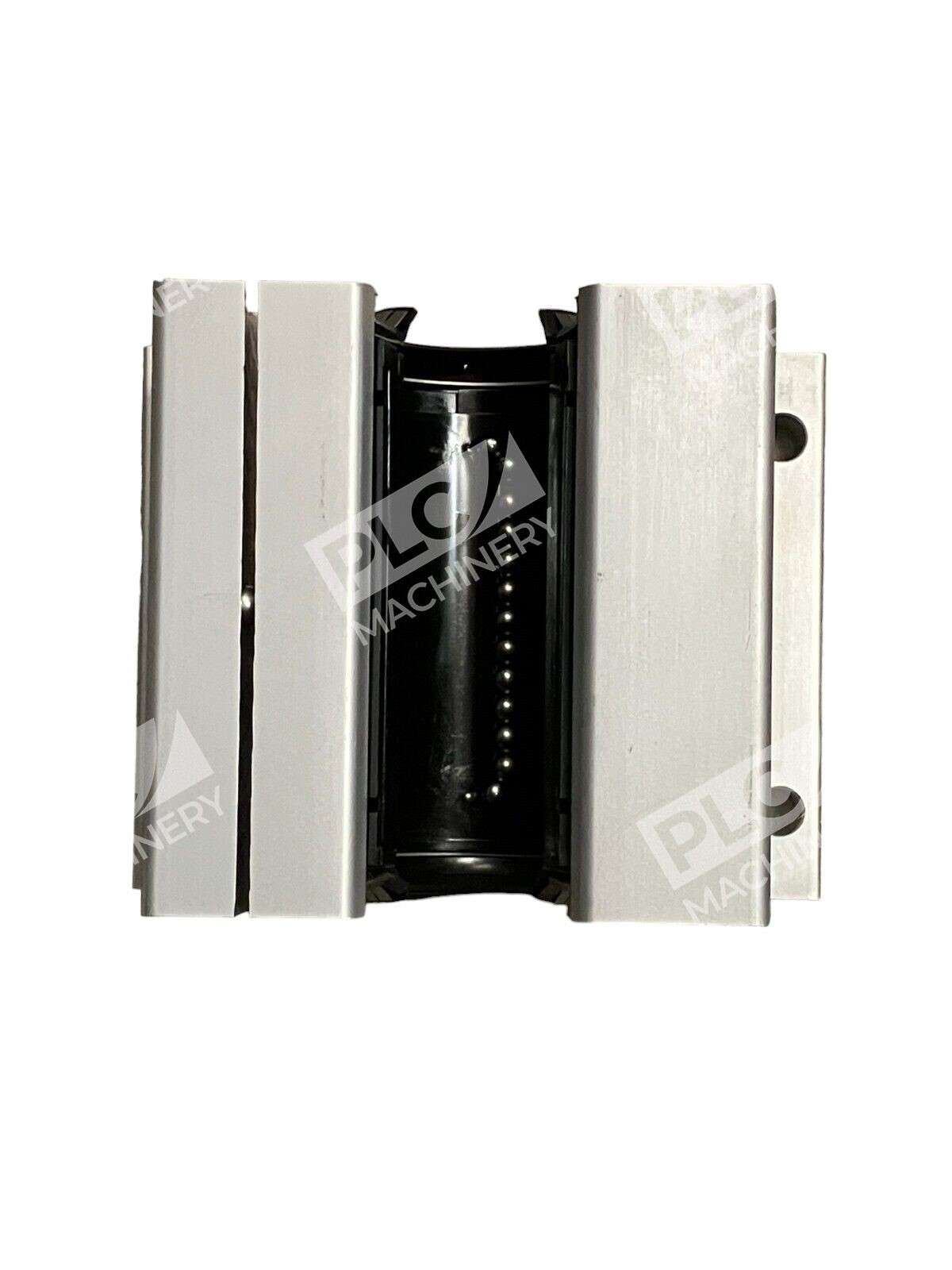

The Thomson SPB32OPN Super Pillow Block is a high-performance linear bearing solution designed for applications requiring precise and smooth linear motion. This open, self-aligning pillow block is engineered to accommodate 2-inch diameter shafts, making it ideal for continuously supported applications.

Key Features

• Self-Aligning Capability: Compensates for up to 0.5 degrees of misalignment, addressing inaccuracies in base flatness or carriage machining.
• High Load Capacity: Offers three times the load capacity or 27 times the travel life compared to conventional linear bearings.
• Low Friction: Maintains a constant coefficient of friction as low as 0.001, enabling the use of smaller, more cost-effective drive components.
• Lightweight and Durable Construction: Features wear-resistant, engineered-polymer retainers and outer sleeves that reduce inertia and noise, enhancing performance in high-speed applications.
• Adjustable Fit: Radially floating bearing plates allow for precise diametrical fit-up when installed in an adjustable housing, ensuring accurate and repeatable movement.
• High-Speed Operation: Supports travel speeds up to 10 feet per second without compromising load capacity.
• Integrated Seals: Equipped with double-acting seals and lubrication access, minimizing installation time and maintenance.

Specifications

• Shaft Diameter: 2 inches (50.8 mm)
• Overall Length: 4.75 inches (120.65 mm)
• Height: 3.63 inches (92.20 mm)
• Base to Center Height: 2.125 inches (53.98 mm)
• Dynamic Load Capacity: 2,350 lbf (10,453.321 N)
• Maximum Operating Temperature: 185°F (85°C)
• Housing Material: Aluminum
• Weight: 6 lbs (2.722 kg)

The Thomson SPB32OPN Super Pillow Block is an excellent choice for applications demanding high precision, durability, and efficient linear motion performance.
