Thermal Transfer Products TTP Heat Exchanger EKS-718-T

Thermal Transfer Products TTP Heat Exchanger EKS-718-T

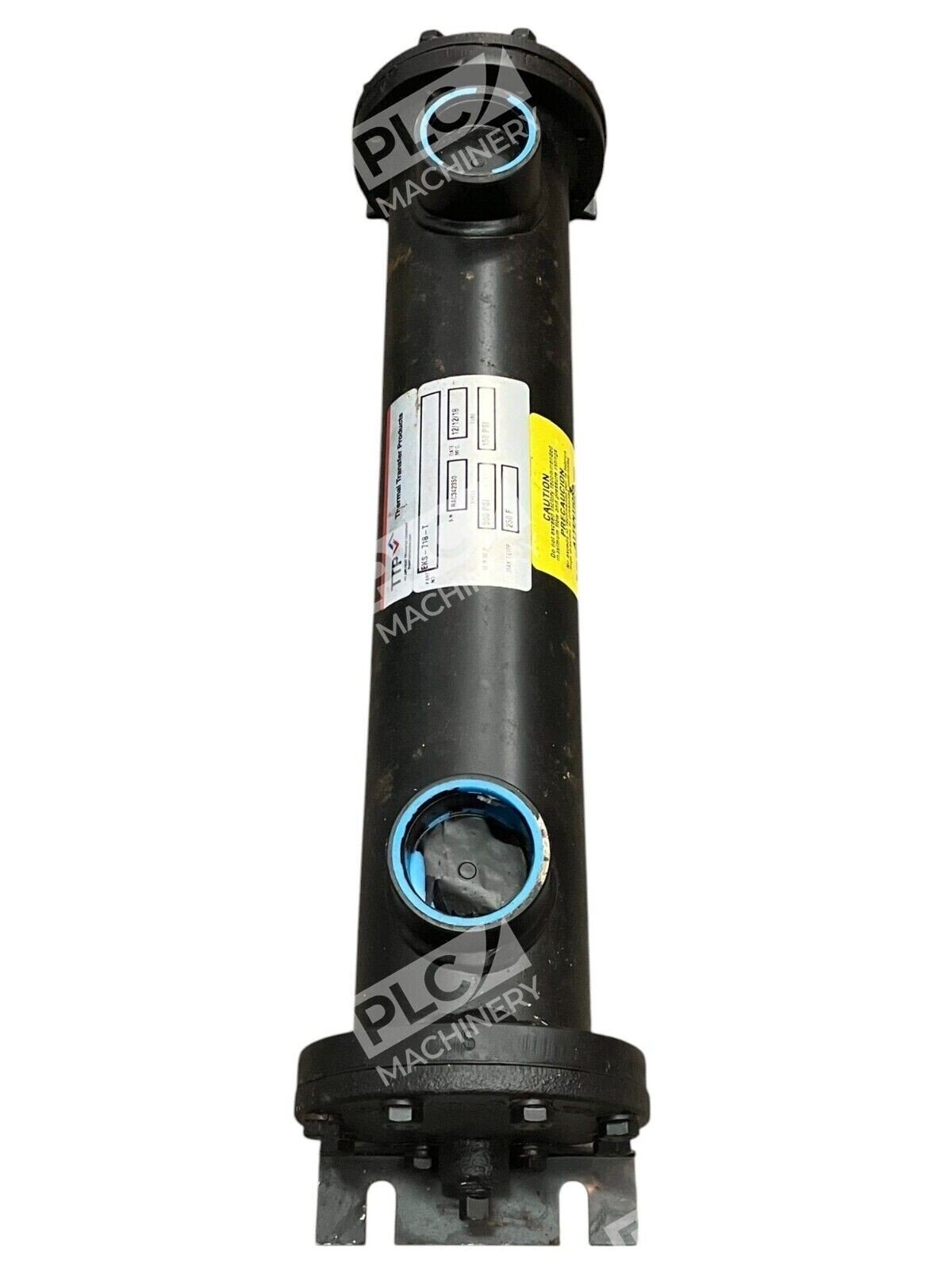

The Thermal Transfer Products (TTP) EKS-718-T Heat Exchanger is a high-efficiency, water-cooled shell and tube heat exchanger designed for industrial hydraulic oil cooling applications. Its compact design and advanced features make it an ideal solution for maintaining optimal operating temperatures in hydraulic systems.

Key Features

• Compact Size: The EKS-718-T’s streamlined design allows for easy integration into various industrial setups without occupying excessive space.
• High-Efficiency Finned Bundle Design: Equipped with an aluminum finned tube bundle, this heat exchanger offers increased surface area, ensuring optimal heat rejection with minimal water usage.
• 3/16″ Tube Size: The use of 3/16-inch tubes enhances heat transfer efficiency while maintaining structural integrity.
• Heat Removal Capacity: Capable of removing up to 400 horsepower (300 kW) of heat, making it suitable for demanding applications.
• Oil Flow Rates: Supports oil flow rates up to 80 U.S. gallons per minute (300 liters per minute), accommodating high-flow hydraulic systems.
• Large Oil Connections: Designed with sizable oil connections to minimize flow restrictions during entry and exit, promoting efficient operation.
• Removable End Bonnets: Features removable cast iron end bonnets, facilitating easy tube cleaning and maintenance.
• Flexible Mounting Options: Mounting brackets are designed to allow the cooler to be rotated in 90-degree increments, providing versatile installation options.
• High Pressure Ratings: Engineered to withstand high-pressure conditions, ensuring durability and reliability in various industrial environments.

Specifications

• Series: EKS
• Shell Material: Steel
• Tube Material: Copper
• Fin Material: Aluminum
• End Bonnet Material: Cast Iron
• Baffle Material: Steel
• Gasket Material: Nitrile rubber/cellulose fiber
• Mounting Bracket Material: Steel

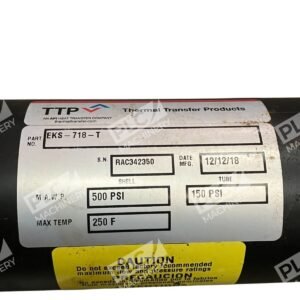

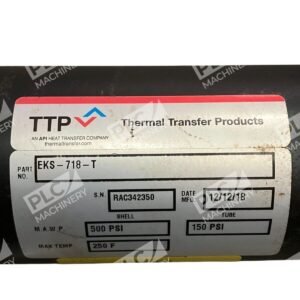

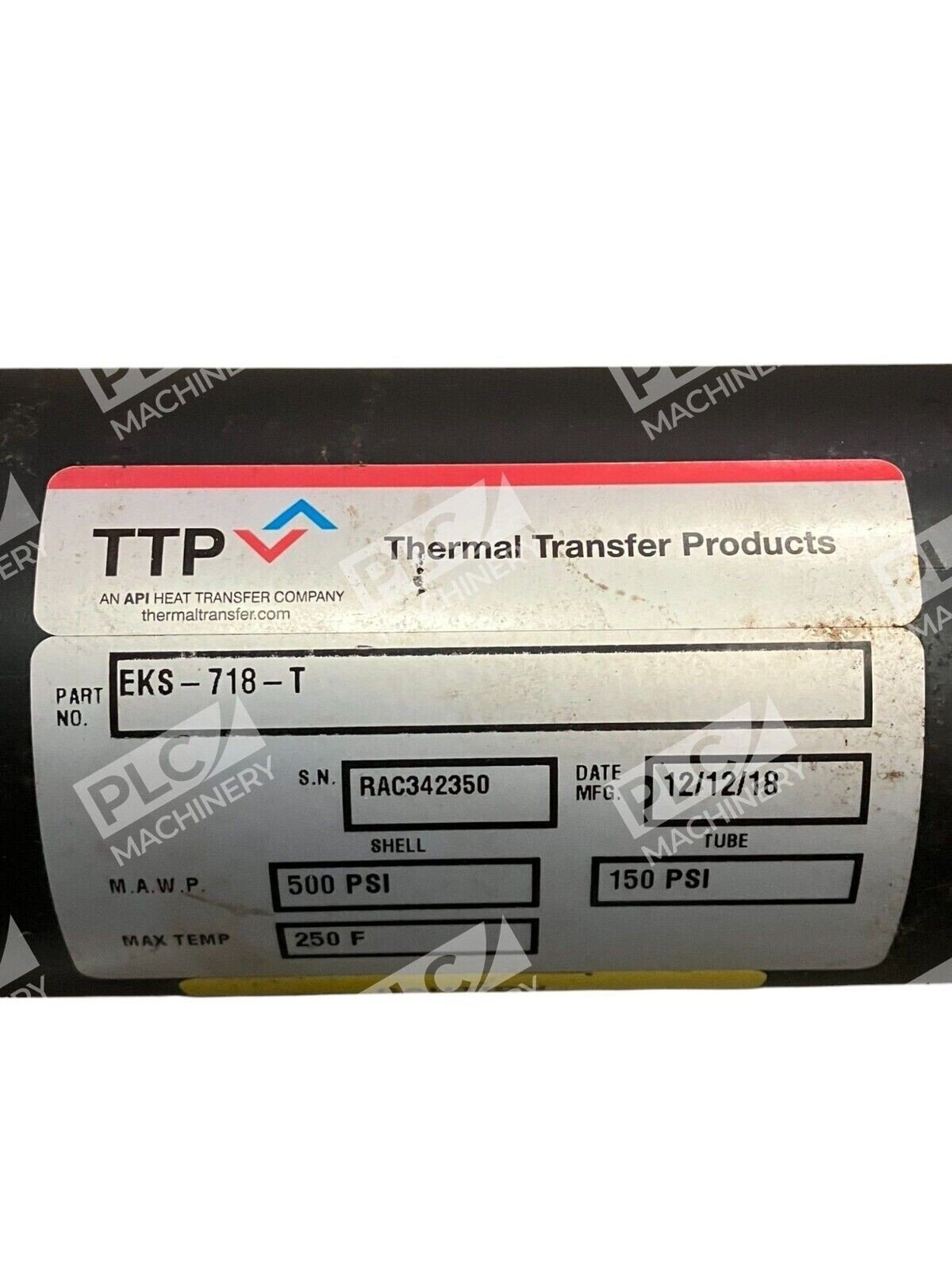

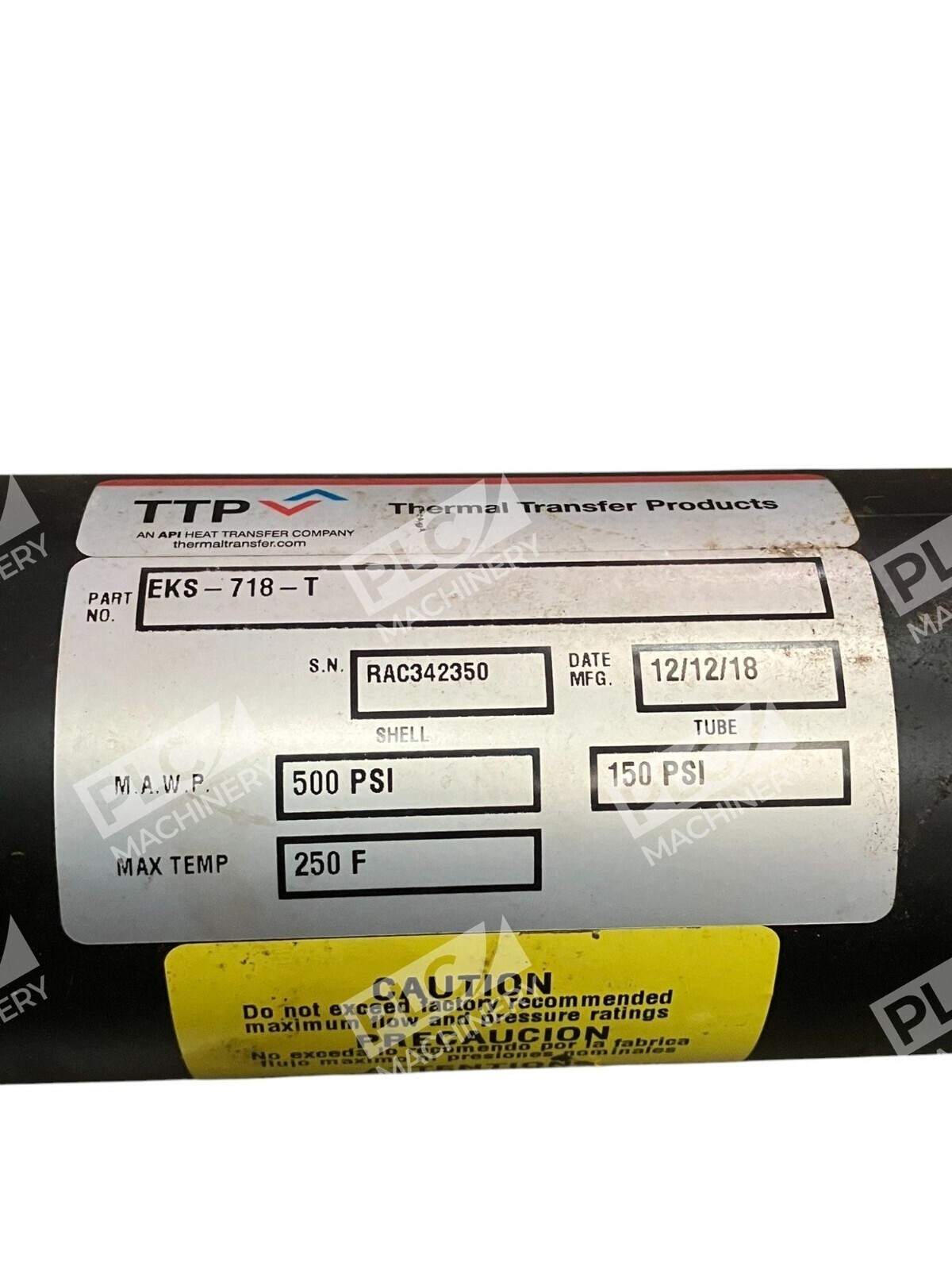

• Maximum Operating Pressure – Shell Side: 500 psi
• Maximum Operating Pressure – Tube Side: 150 psi
• Maximum Operating Temperature: 250°F (121°C)
• Dimensions: 20.19 inches (L) x 5 inches (W) x 5.47 inches (H)
• Oil Inlet/Outlet Port Size: #24, 1-7/8-12 O-Ring
• Water Inlet/Outlet Port Size: 3/4-inch NPT

The EKS-718-T is designed to handle various hydraulic fluids, including automatic transmission fluid, hydraulic motor oil, hydrostatic drive oil, and lube oil circuits. Its robust construction and efficient design make it a reliable choice for industrial applications requiring effective thermal management.
