Texas Instruments 505-6851

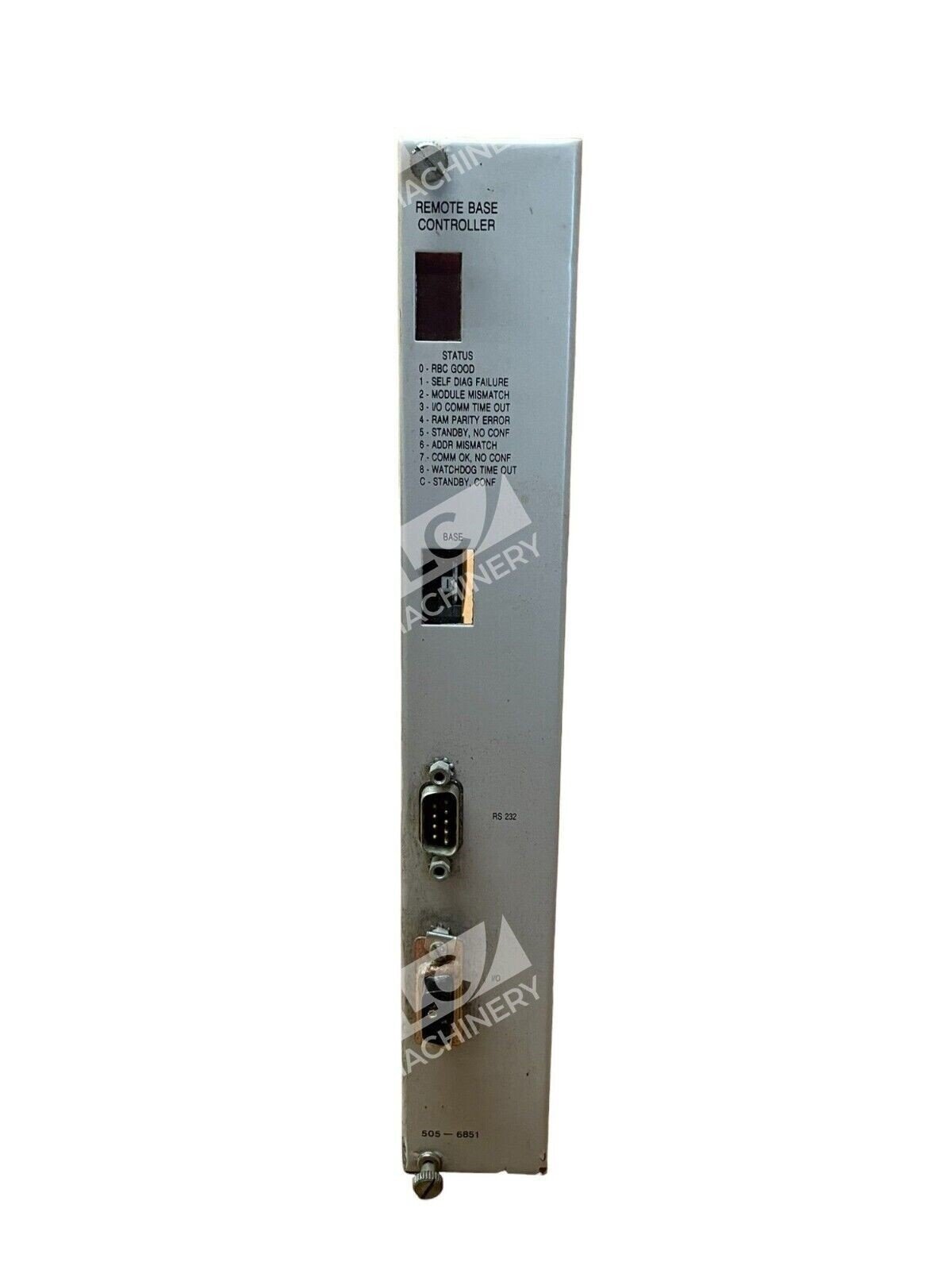

Texas Instruments 505-6851 Remote Base Controller

The Texas Instruments 505-6851 is a Remote Base Controller (RBC) designed for the SIMATIC TI 505 series of Programmable Logic Controllers (PLCs). This module facilitates the expansion of PLC systems by enabling communication between the central processor and remote I/O bases, thereby enhancing system flexibility and scalability.

Key Features

• Compatibility: Specifically engineered for integration with TI545, TI555, and TI575 PLC models, ensuring seamless operation within the TI 505 series ecosystem.
• Communication Interface: Utilizes RS-485 protocol for reliable and efficient data transmission over twisted-pair cabling, supporting communication distances up to 1,000 meters (approximately 3,300 feet).
• Installation: Designed for installation in SIMATIC TI 505 Remote I/O Bases, allowing for straightforward system expansion and modular configuration.

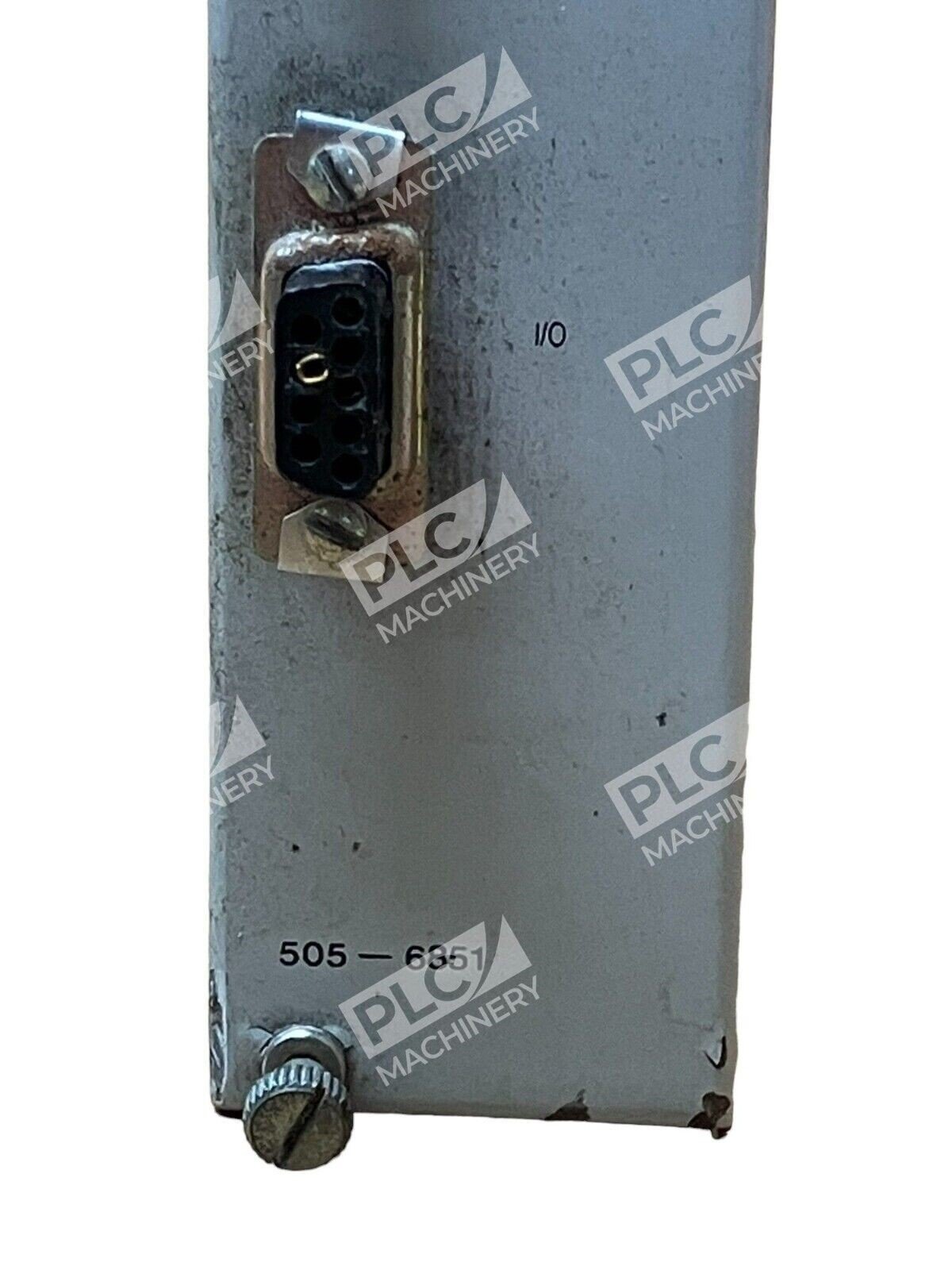

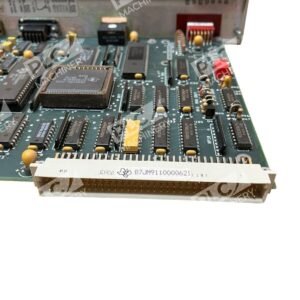

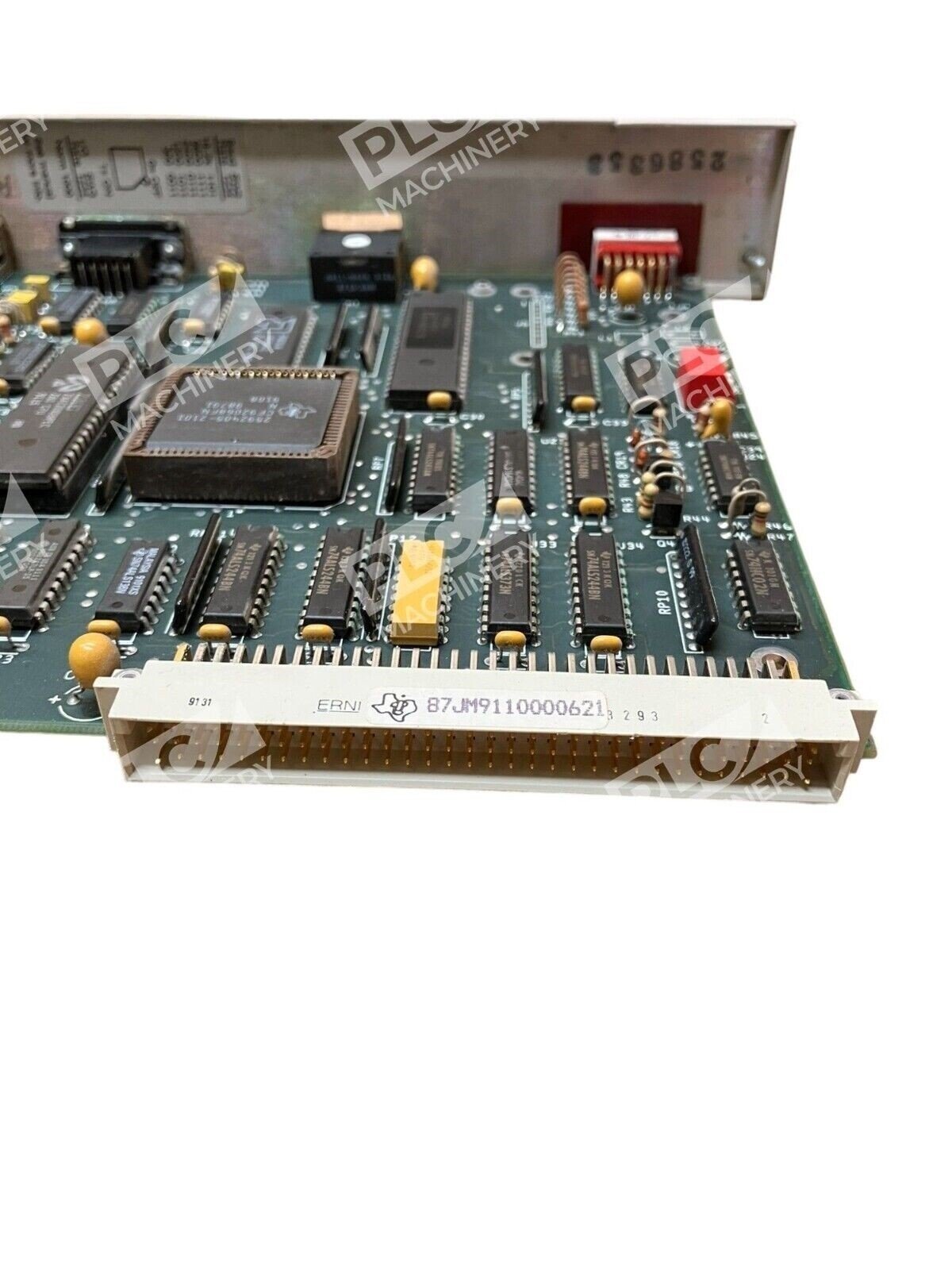

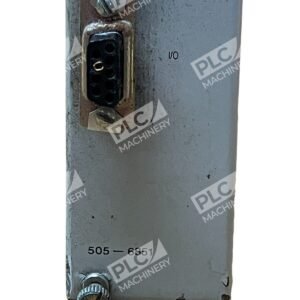

• Connectivity: Equipped with a 96-pin connector and dual 9-pin ports to accommodate various communication and configuration requirements.

Applications

The 505-6851 RBC is ideal for industrial automation environments where extending the reach of PLC systems is necessary. It enables centralized control of remote processes, making it suitable for applications such as manufacturing automation, process control, and large-scale industrial operations requiring distributed I/O configurations.

Availability and Support

While the 505-6851 module is a legacy product, it remains available through various industrial automation suppliers. Options include purchasing new, refurbished, or service-exchange units, often accompanied by warranties and support services to ensure continued operational reliability.

For organizations seeking to maintain or expand existing TI 505 series PLC systems, the 505-6851 Remote Base Controller offers a dependable solution for remote I/O management, contributing to efficient and scalable industrial automation architectures.
