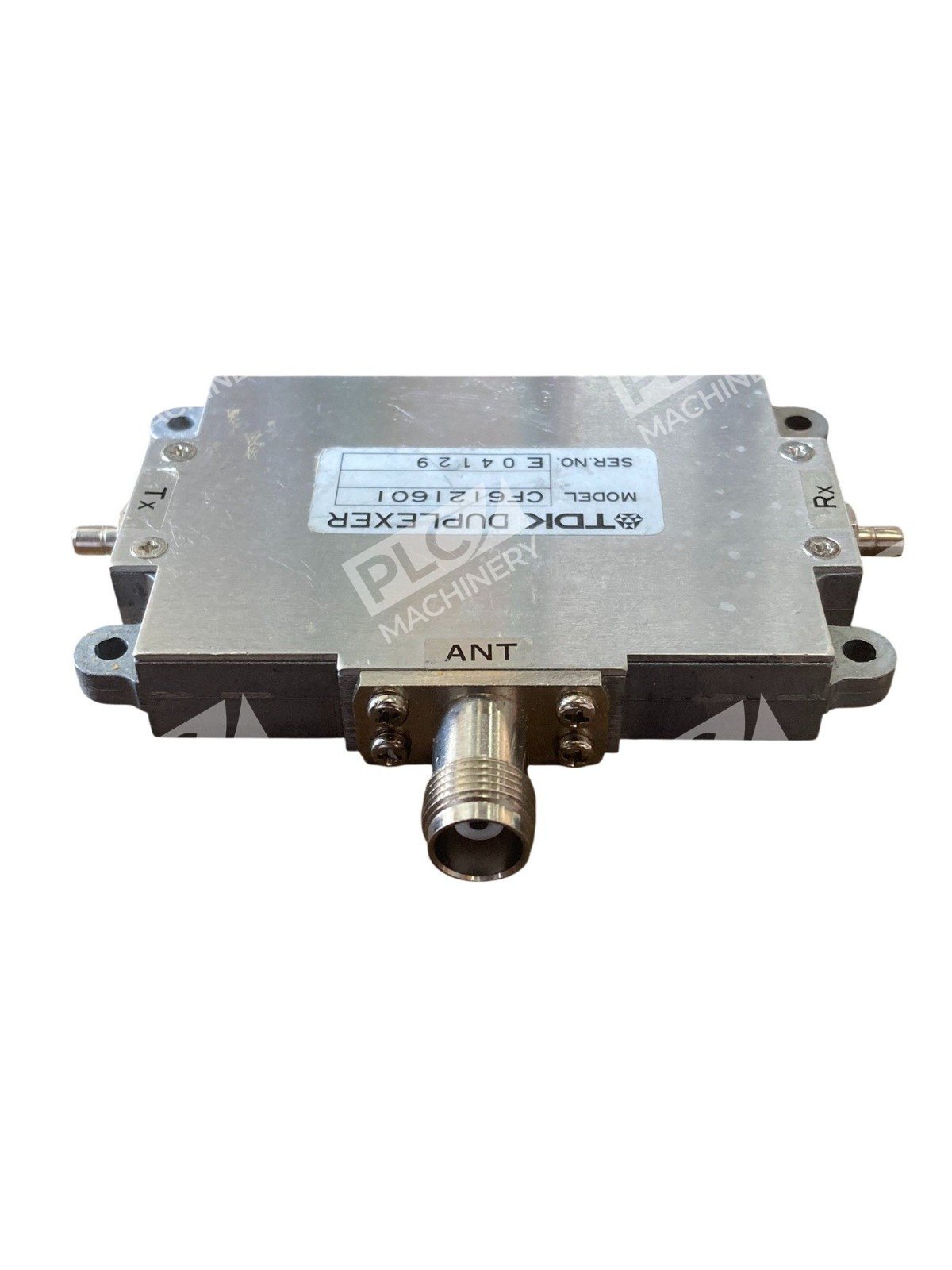

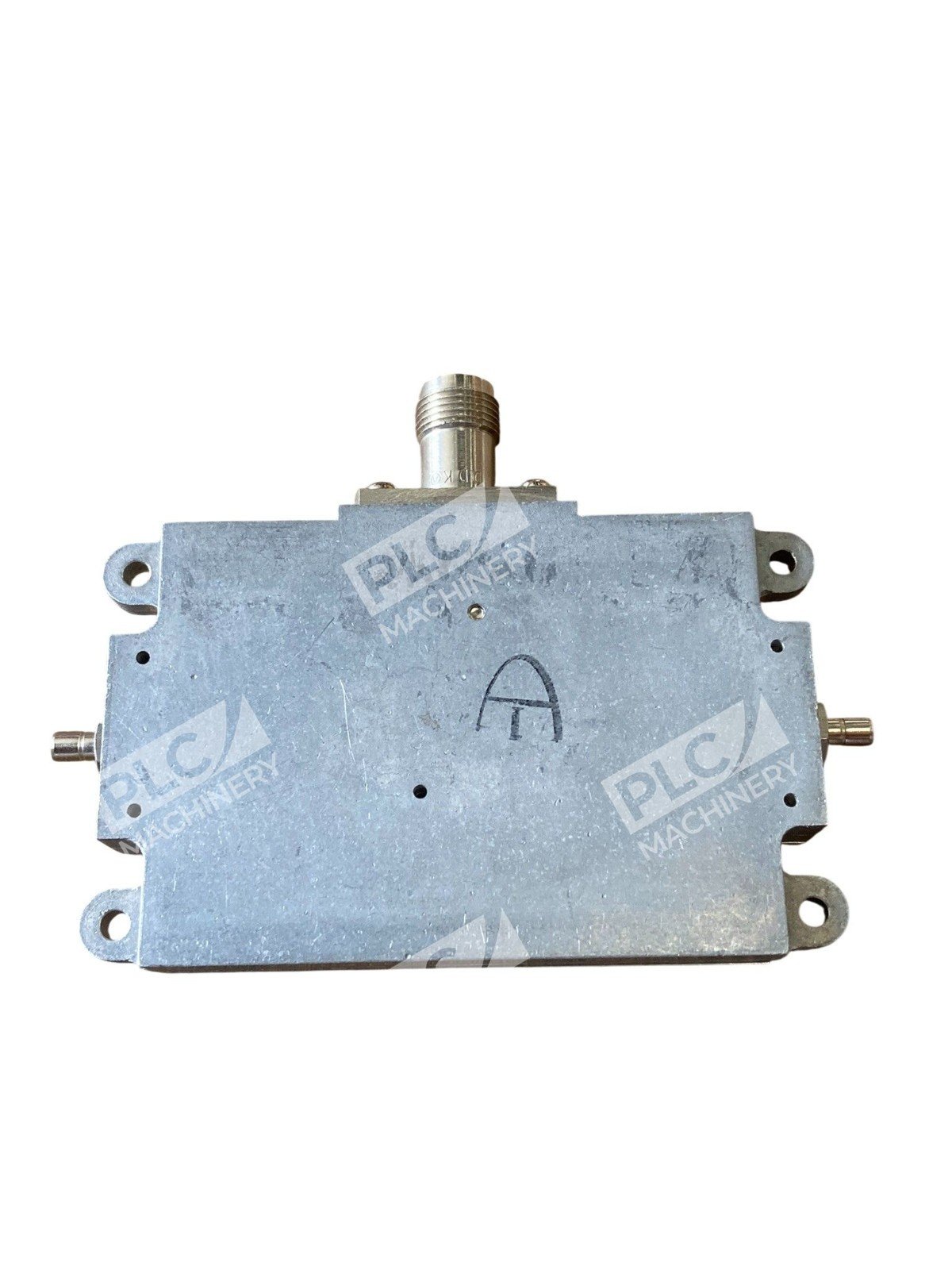

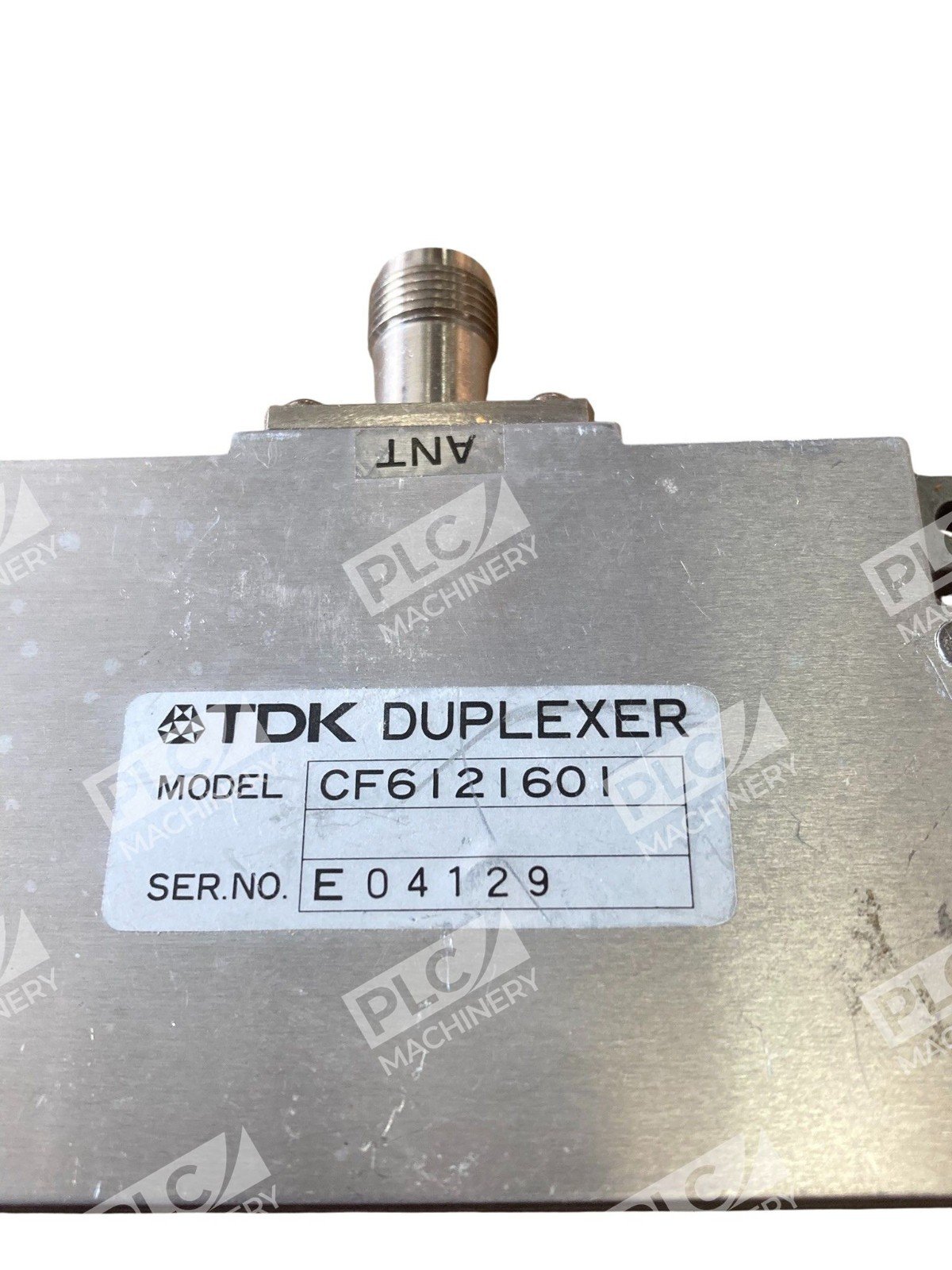

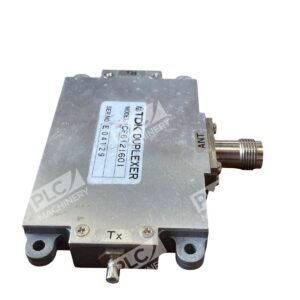

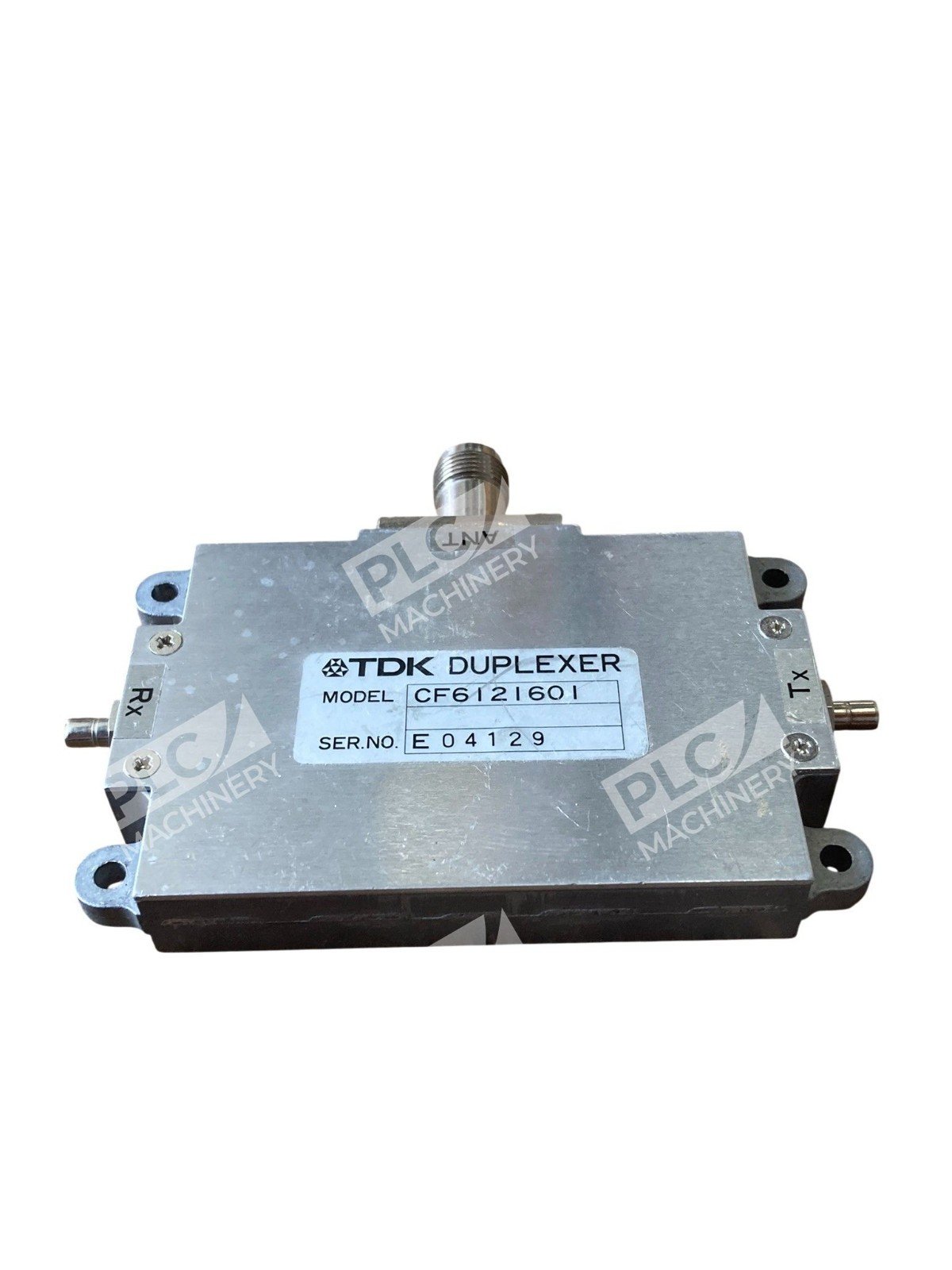

TDK Duplexer CF6121601 Transmitter / Receiver
The TDK Duplexer CF6121601 is a high-performance component designed to facilitate seamless transmission and reception in wireless communication systems. By enabling a single antenna to handle both transmitting and receiving functions, this duplexer optimizes system efficiency and reduces the need for multiple antennas.
Key Features
- Compact Design: The CF6121601 boasts a miniature form factor, making it ideal for integration into space-constrained applications such as mobile devices and wireless modules.
- Low Insertion Loss: Engineered to minimize signal loss during transmission and reception, ensuring robust and clear communication.
- High Isolation: Provides excellent isolation between transmit and receive paths, preventing interference and enhancing overall system performance.
- Broad Frequency Range: Supports a wide range of frequencies, accommodating various wireless communication standards and applications.
- Durable Construction: Built with high-quality materials to ensure reliability and longevity in diverse operating environments.
Applications
The TDK Duplexer CF6121601 is suitable for a variety of applications, including:
- Wireless communication devices such as smartphones and tablets.
- Bluetooth and WLAN modules.
- Automotive wireless systems.
- Base stations and other wireless infrastructure equipment.
Technical Specifications
While specific technical details for the CF6121601 model are not readily available, TDK’s duplexers typically feature:
- Operating temperature range: -40°C to +85°C.
- Insertion loss: As low as 0.5 dB in the low band and 0.8 dB in the high band.
- Attenuation: Minimum of 23 dB in specified frequency ranges.
For precise specifications and performance characteristics, it is recommended to consult the product datasheet or contact TDK directly.
Conclusion
The TDK Duplexer CF6121601 Transmitter / Receiver is a versatile and efficient solution for modern wireless communication systems. Its compact size, low insertion loss, and high isolation make it an excellent choice for applications requiring reliable and high-quality signal transmission and reception.
