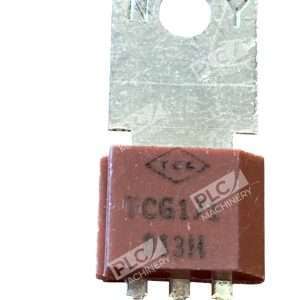

TCG TCG171 NPN Silicon Transistor for UHF/VHF Amplifier and Mixer Applications
The TCG TCG171 is a high-performance NPN silicon transistor engineered for ultra-high frequency (UHF) and very-high frequency (VHF) amplifier and mixer applications. Its design ensures optimal performance in RF circuits, making it a reliable choice for professionals in the field.
Key Features
- High Transition Frequency (fT): The TCG171 boasts a transition frequency of 1.4 GHz, facilitating efficient operation in UHF and VHF bands.
- Low Noise Figure: Designed to minimize signal degradation, the transistor offers a low noise figure, enhancing the clarity and quality of amplified signals.

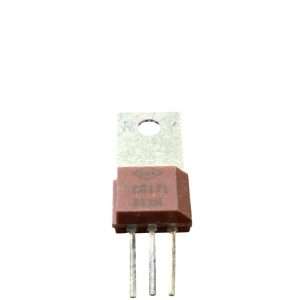

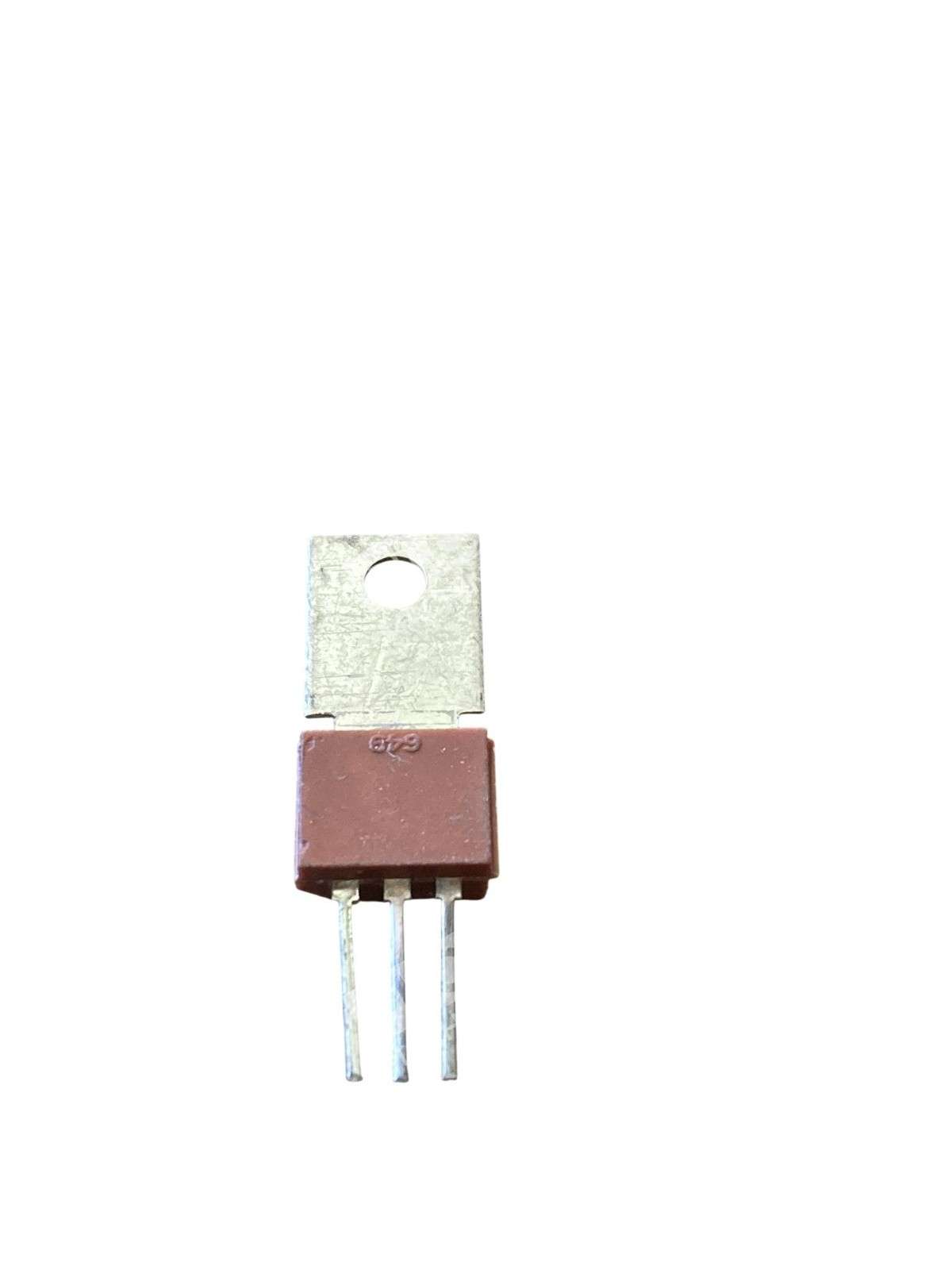

- Compact TO-72 Package: Housed in a TO-72 metal can package, the TCG171 ensures durability and effective heat dissipation, contributing to its longevity and consistent performance.
Technical Specifications
- Collector-Base Voltage (VCBO): 45V
- Collector-Emitter Voltage (VCEO): 45V
- Emitter-Base Voltage (VEBO): 4.5V
- Collector Current (IC): 50mA
- Power Dissipation (PD): 200mW
Applications
The TCG171 is ideally suited for:
- RF amplifiers in UHF and VHF communication systems
- Mixer circuits in radio frequency applications
- Oscillator circuits requiring high-frequency performance
Its robust construction and superior electrical characteristics make the TCG171 a preferred component for engineers and designers aiming to achieve high-quality signal amplification and mixing in their RF projects.
