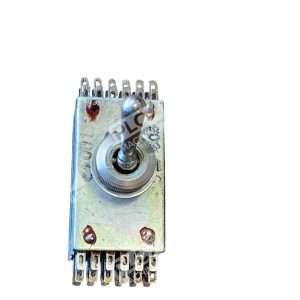

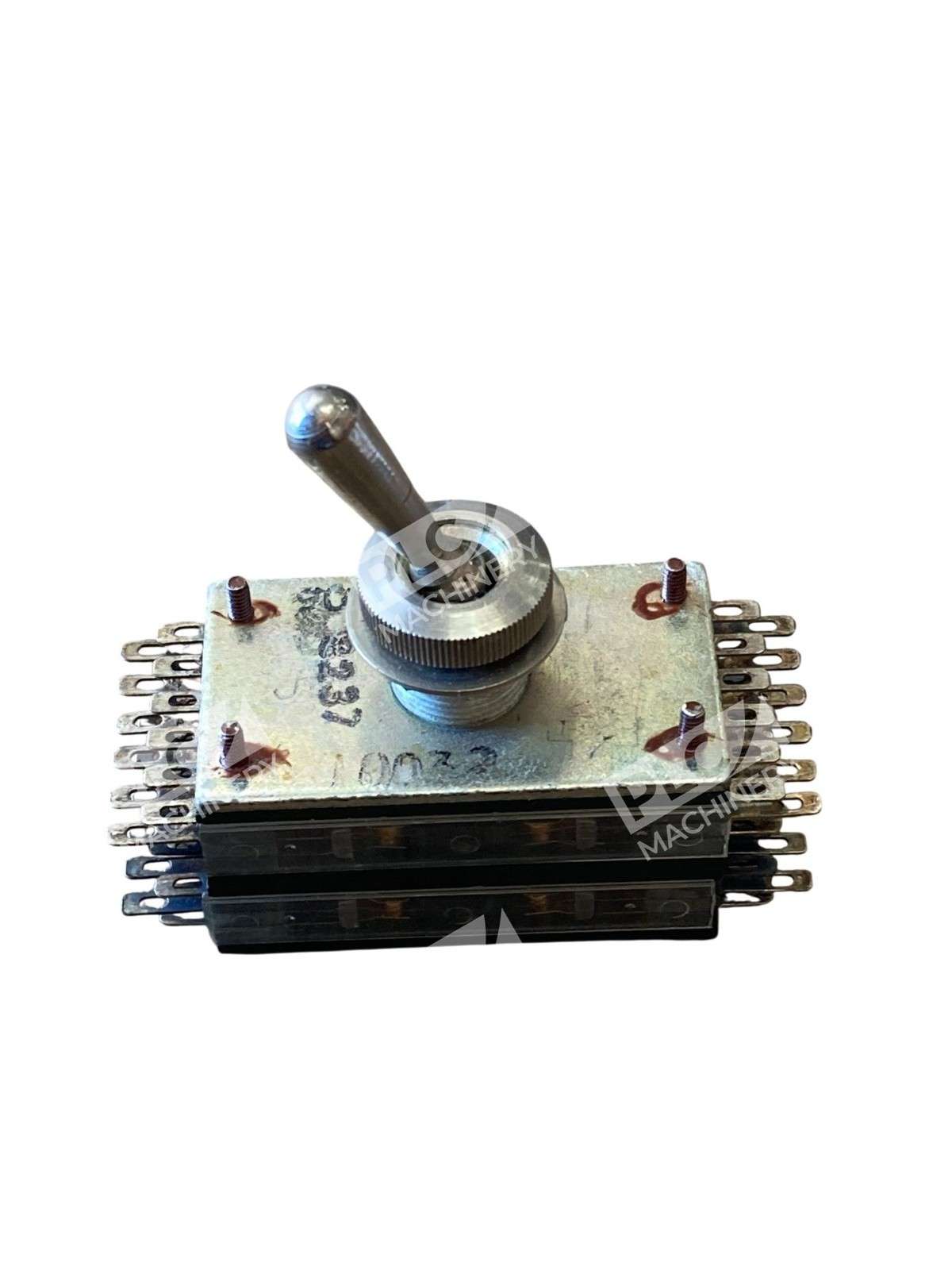

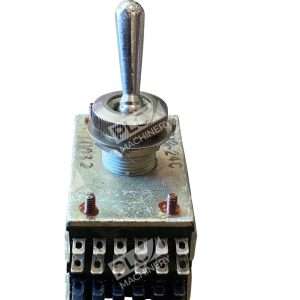

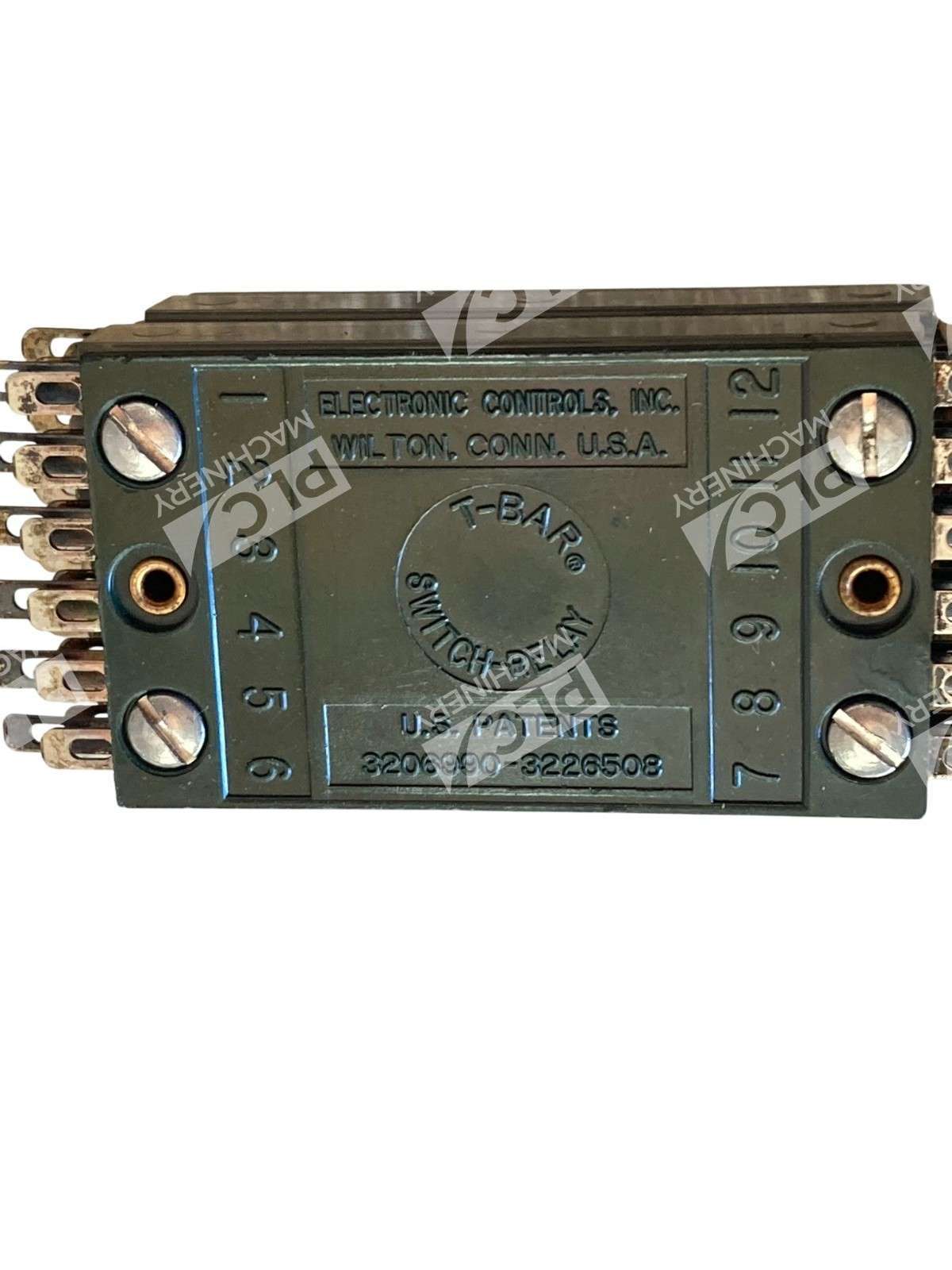

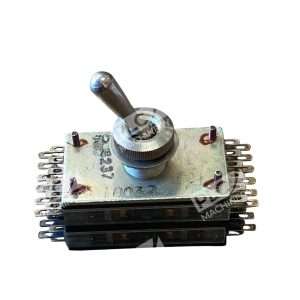

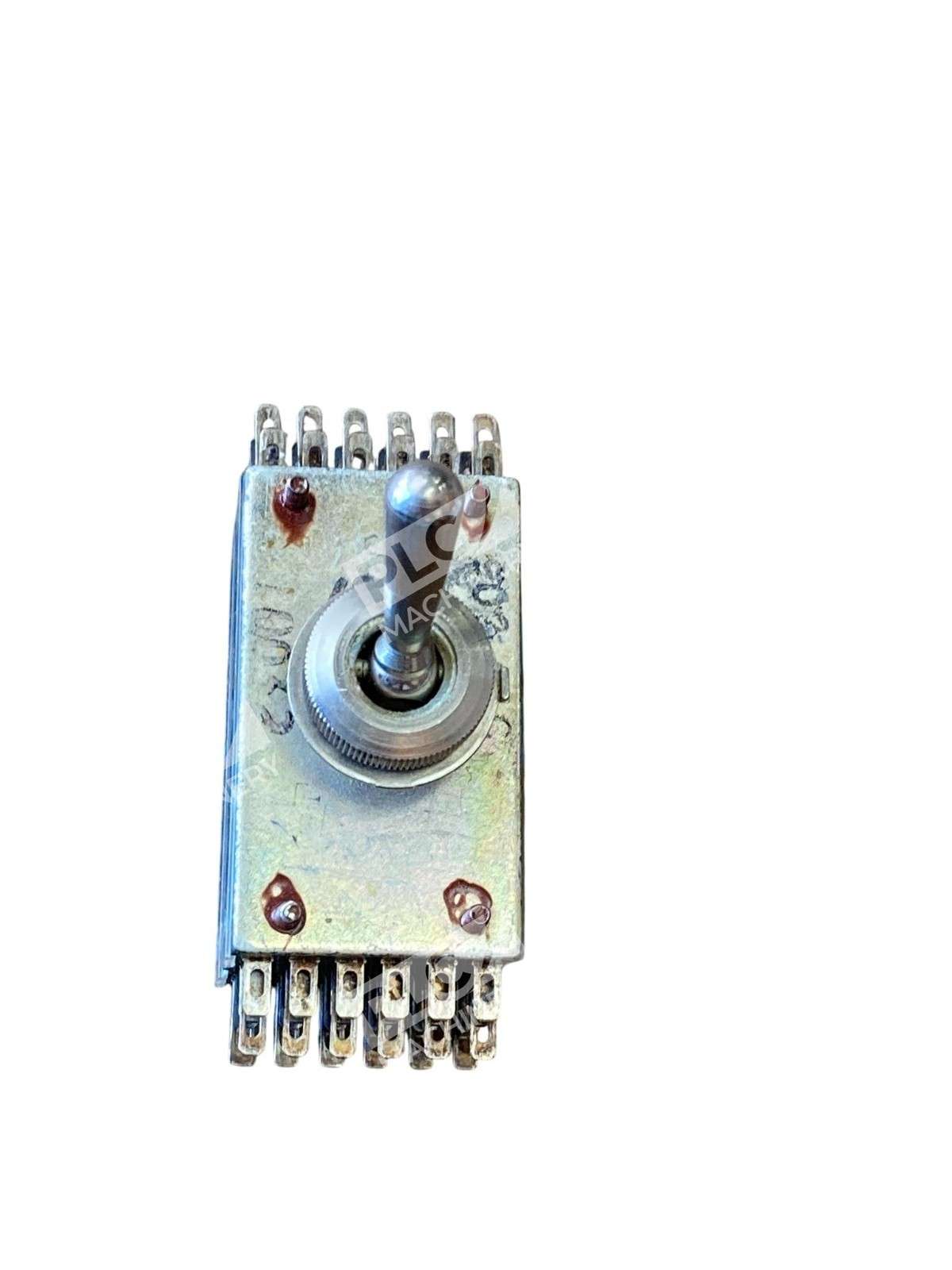

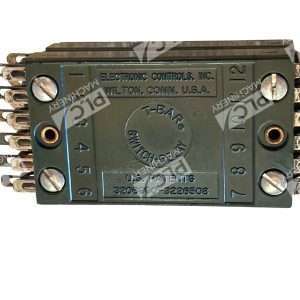

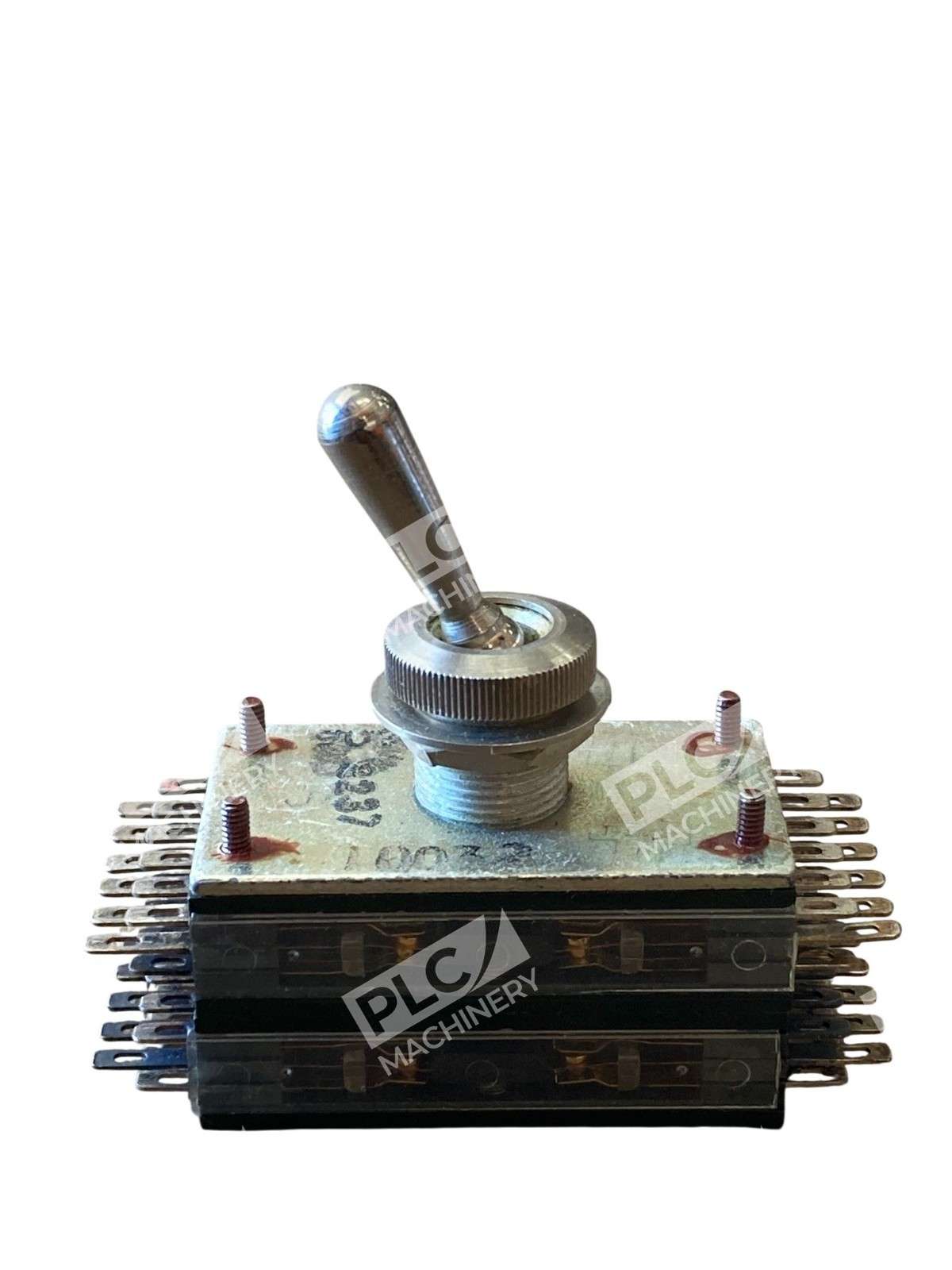

T-Bar Toggle Switch Relay 902-24C
The T-Bar Toggle Switch Relay 902-24C is a high-performance, dust-tight toggle switch designed to manage complex multi-circuit switching applications efficiently. This 24-pole double-throw (24PDT) switch is part of the esteemed 902 Series, renowned for its reliability and compact design.
Key Features
- Contact Configuration: 24PDT (24 poles, double throw)
- Switch Operation: On-(On) momentary action
- Contact Rating: Suitable for low-level switching up to 1A
- Environmental Protection: Dust-tight construction safeguards against normal ambient dust conditions
- Compact Design: Facilitates switching more circuits in less space
- Terminals: Quick-connect terminals designed to accept T-Bar connectors for streamlined wiring
Applications
The 902-24C is ideal for use in controlled environments such as test areas, computer control rooms, broadcast studios, and network management centers. Its design ensures reliable performance in data, thermocouple, and instrumentation circuits.
Technical Specifications
- Switch Operation: On-(On)
- Contact Configuration: 24PDT
- Contact Current Max: 1A
- Illumination: Non-illuminated
- Switch Terminals: Quick Connect
For detailed technical information and schematics, please refer to the product datasheet.
