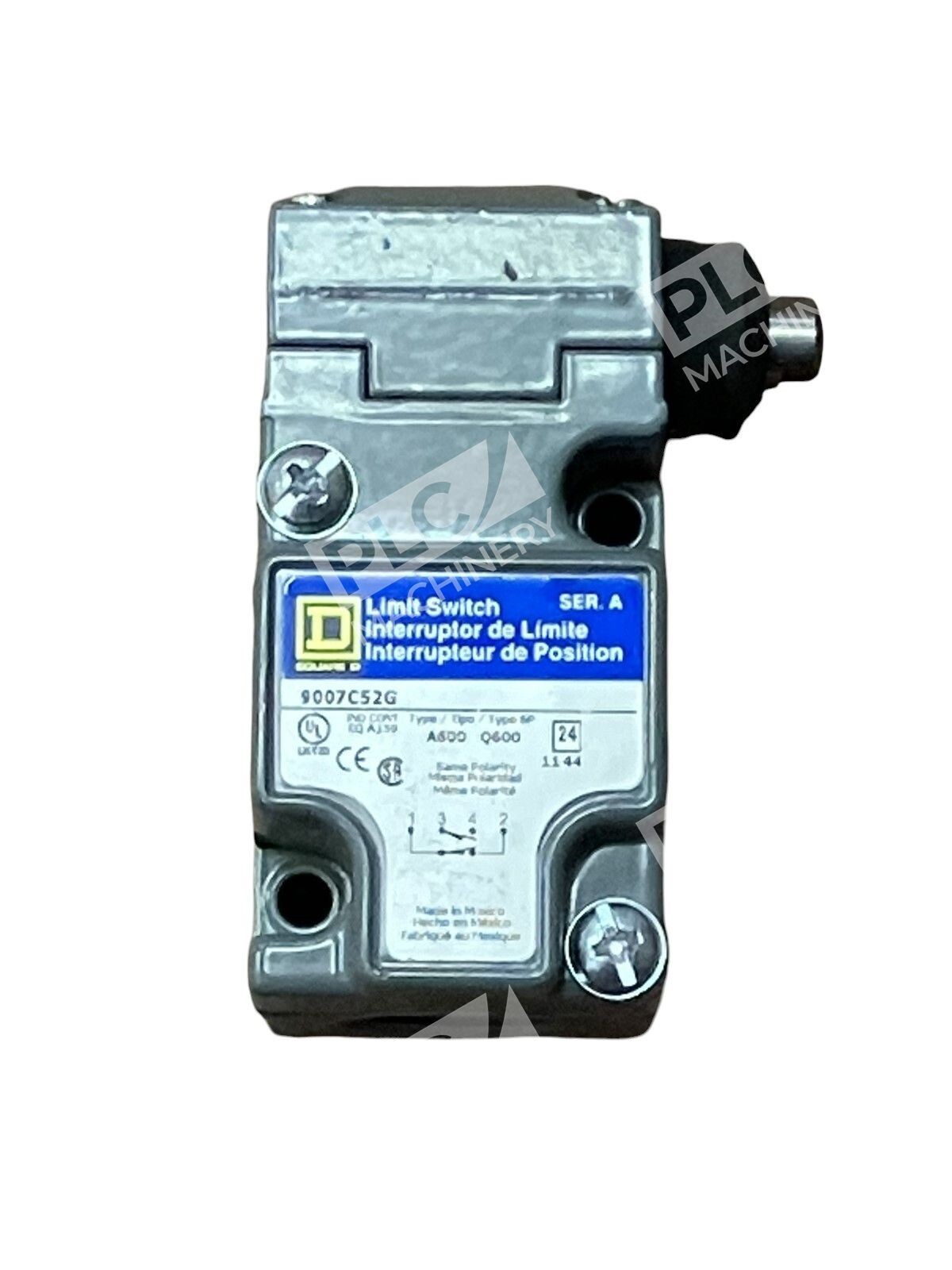

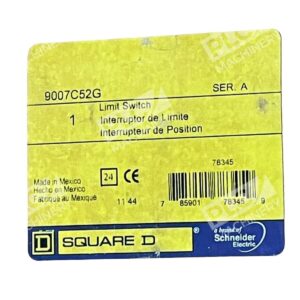

Square D 9007C52G Limit Switch

Square D 9007C52G Limit Switch

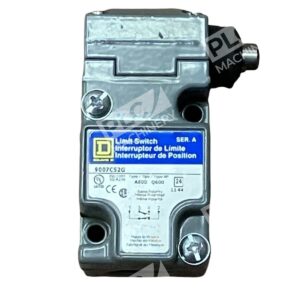

The Square D 9007C52G is a heavy-duty, compact limit switch designed to perform reliably in demanding industrial environments. Its robust construction and versatile features make it suitable for a wide range of applications.

Key Features

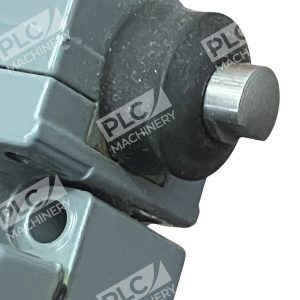

• Actuator Type: Side push rod plunger with spring return mechanism.

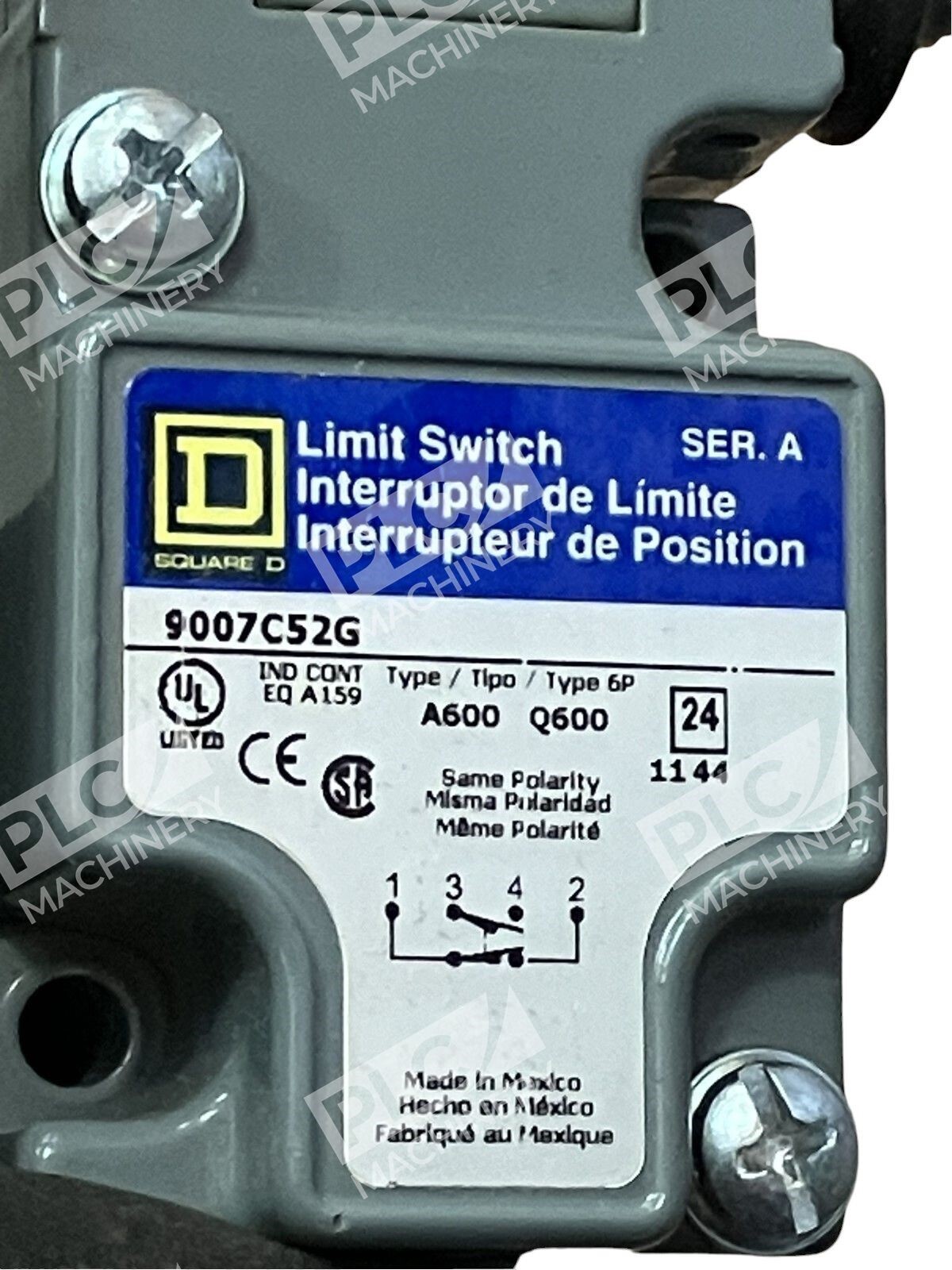

• Contact Configuration: Single-pole, double-throw (SPDT) with one normally open (NO) and one normally closed (NC) contact.

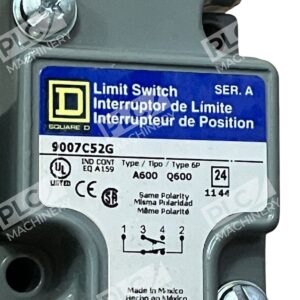

• Electrical Ratings: Rated for 10A at 600V AC and 2.5A at 600V DC.
• Enclosure Ratings: Complies with NEMA 1, 2, 4, 6, 6P, 12, and 13 standards, as well as IP67, ensuring protection against dust and water ingress.
• Operating Force: Requires 4 pounds of force to actuate.

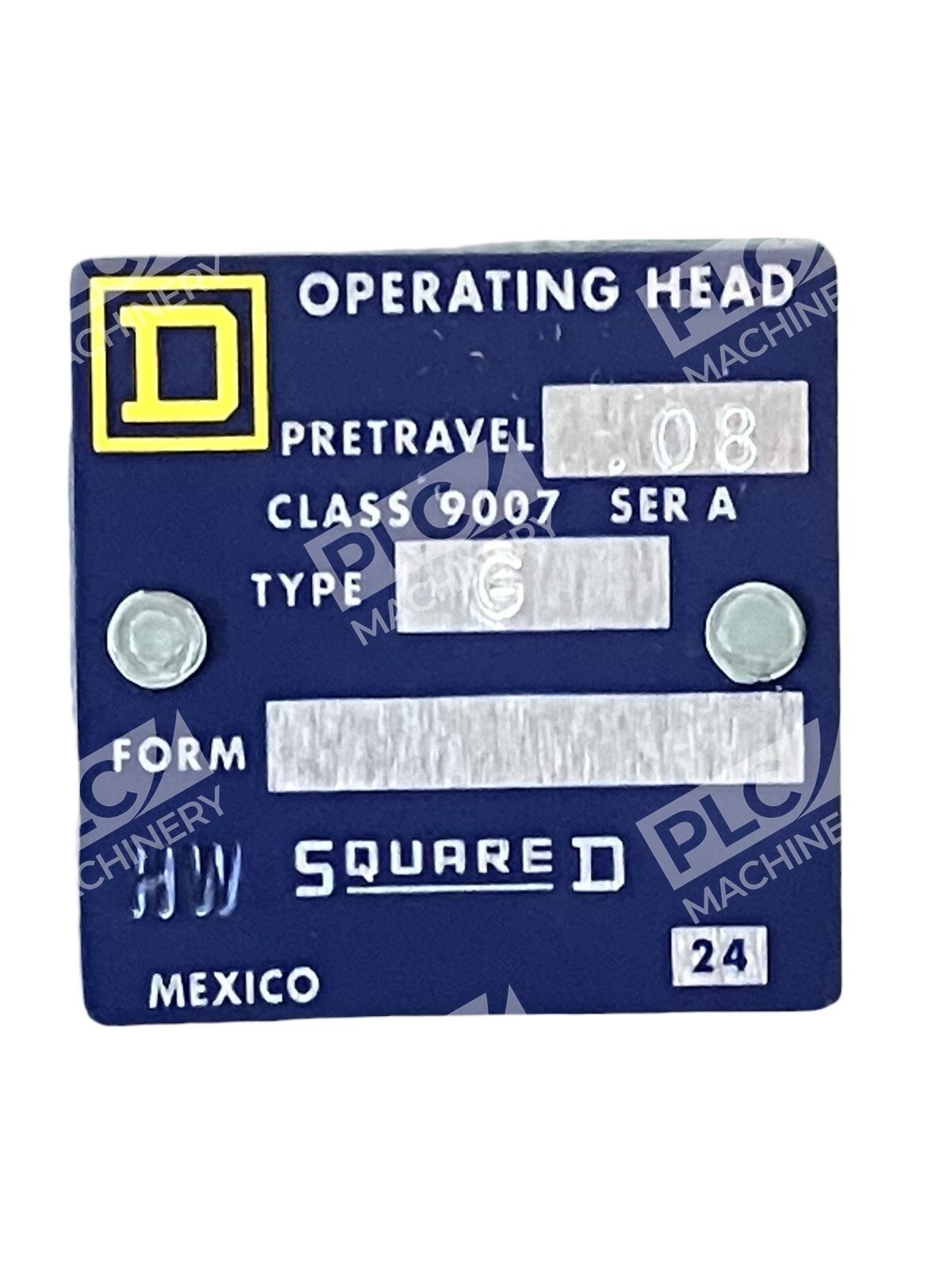

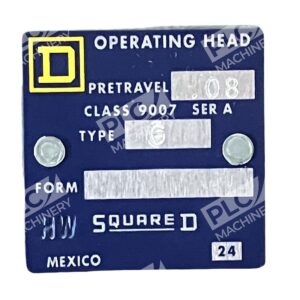

• Travel Specifications: Pretravel of 0.08 inches, differential travel of 0.03 inches, and total travel of 0.25 inches.

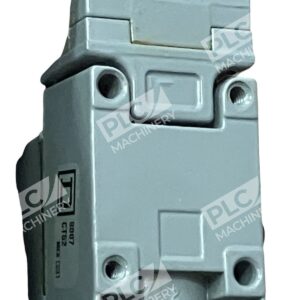

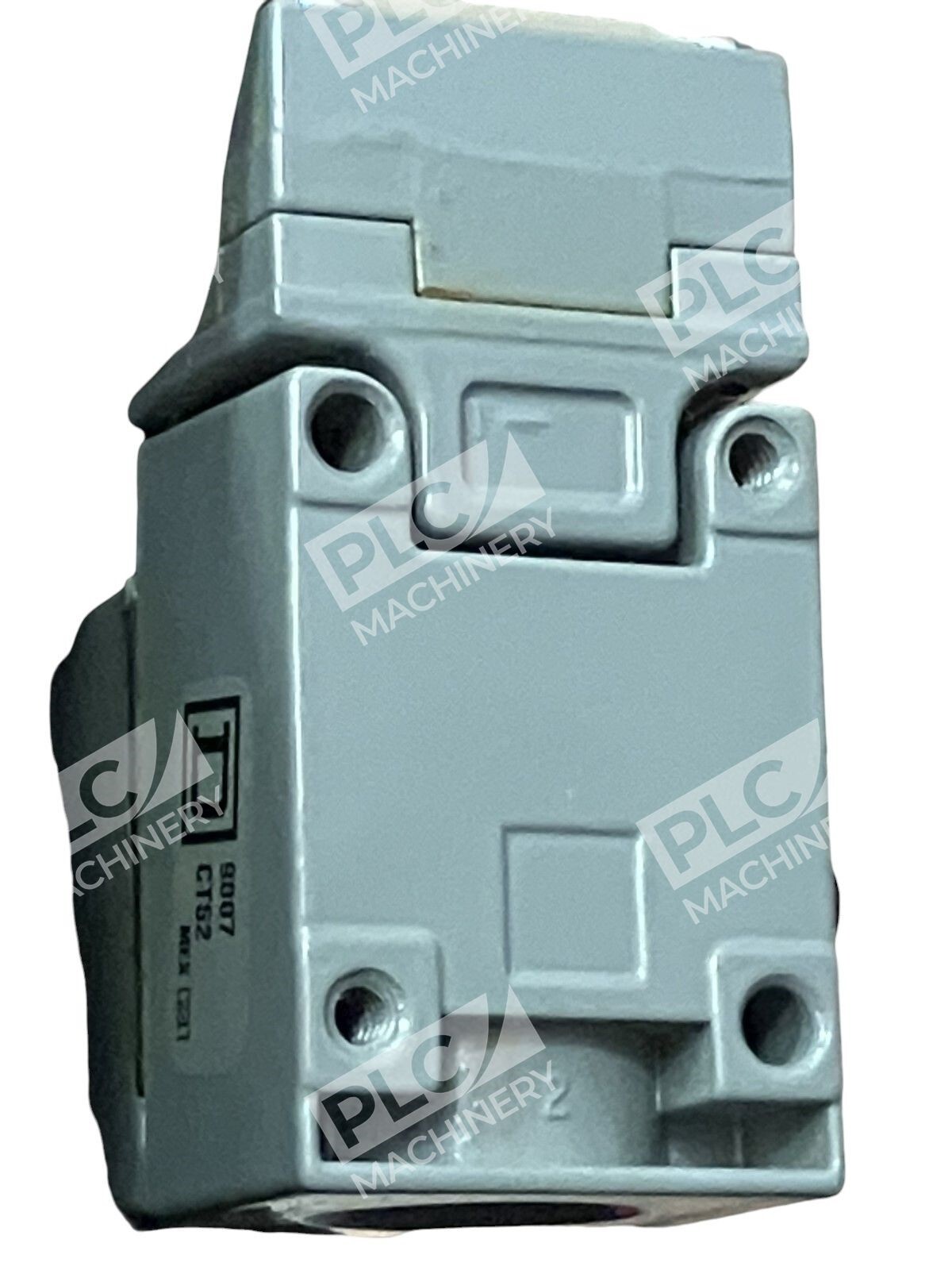

• Construction: Durable die-cast zinc alloy body with a 1/2-inch NPT conduit entry.
• Temperature Range: Operates effectively between 0°F and 185°F.
• Certifications: UL listed and CSA certified, ensuring compliance with industry standards.

Applications

The 9007C52G limit switch is ideal for use in material handling systems, machine tools, packaging equipment, and other industrial machinery where precise and reliable position detection is essential.

Dimensions

• Height: 3.14 inches
• Width: 1.55 inches
• Depth: 2.16 inches

With its compact design and robust performance, the Square D 9007C52G limit switch offers a dependable solution for various industrial automation needs.
