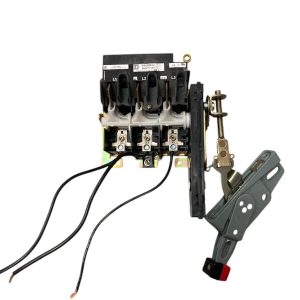

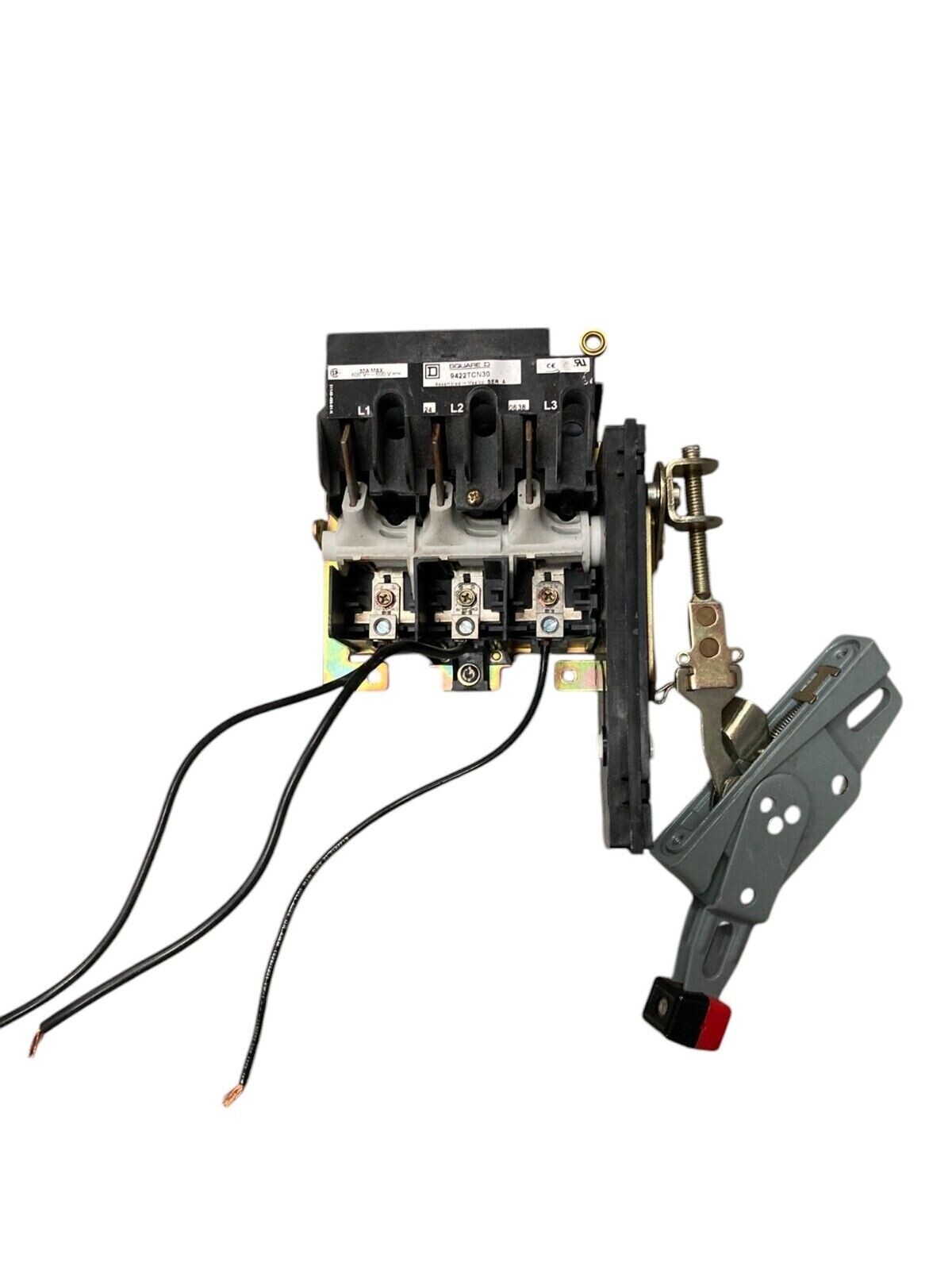

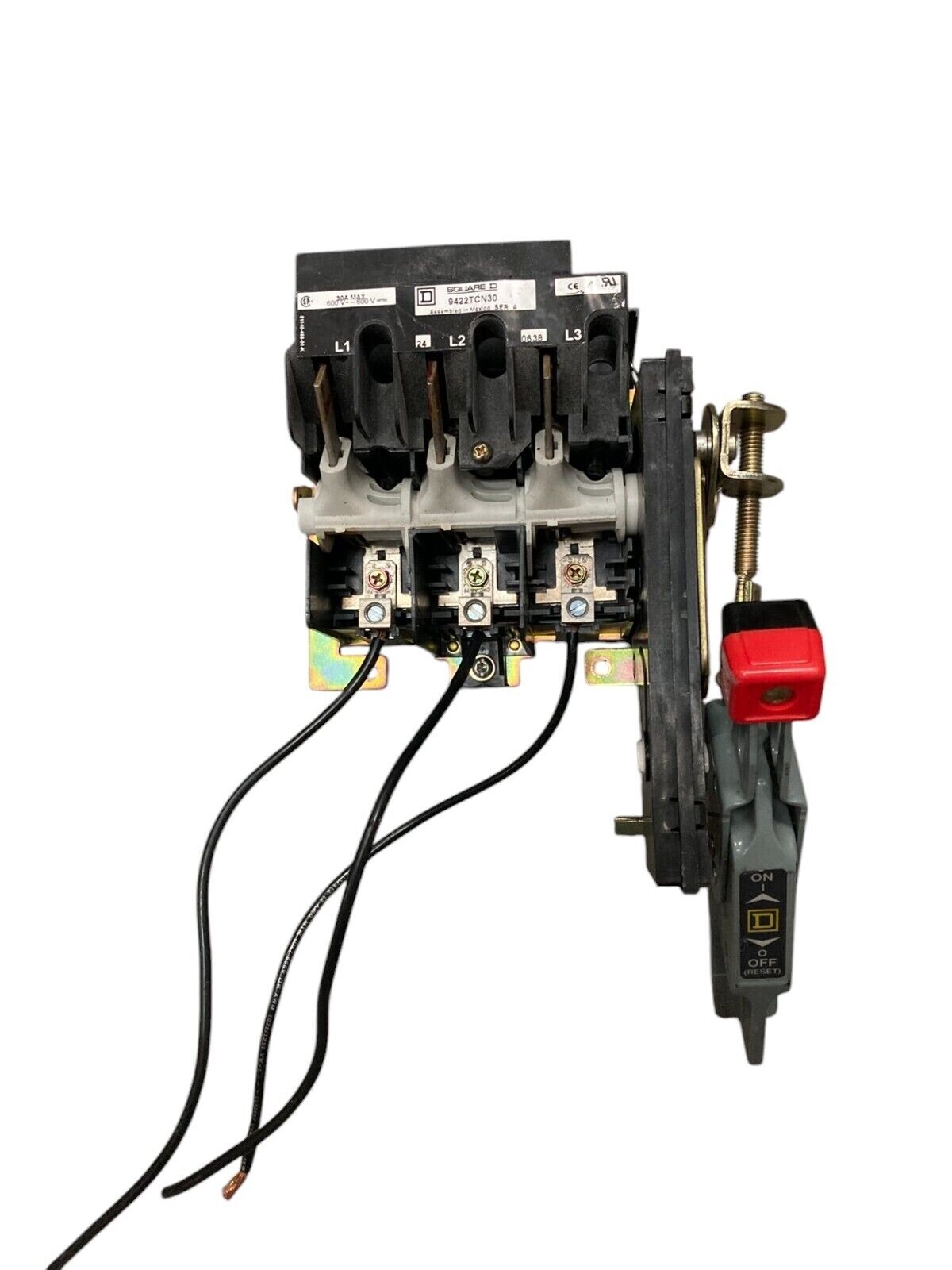

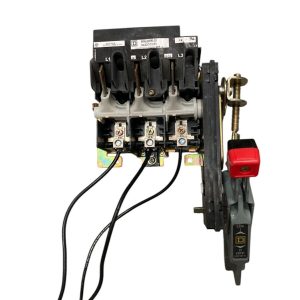

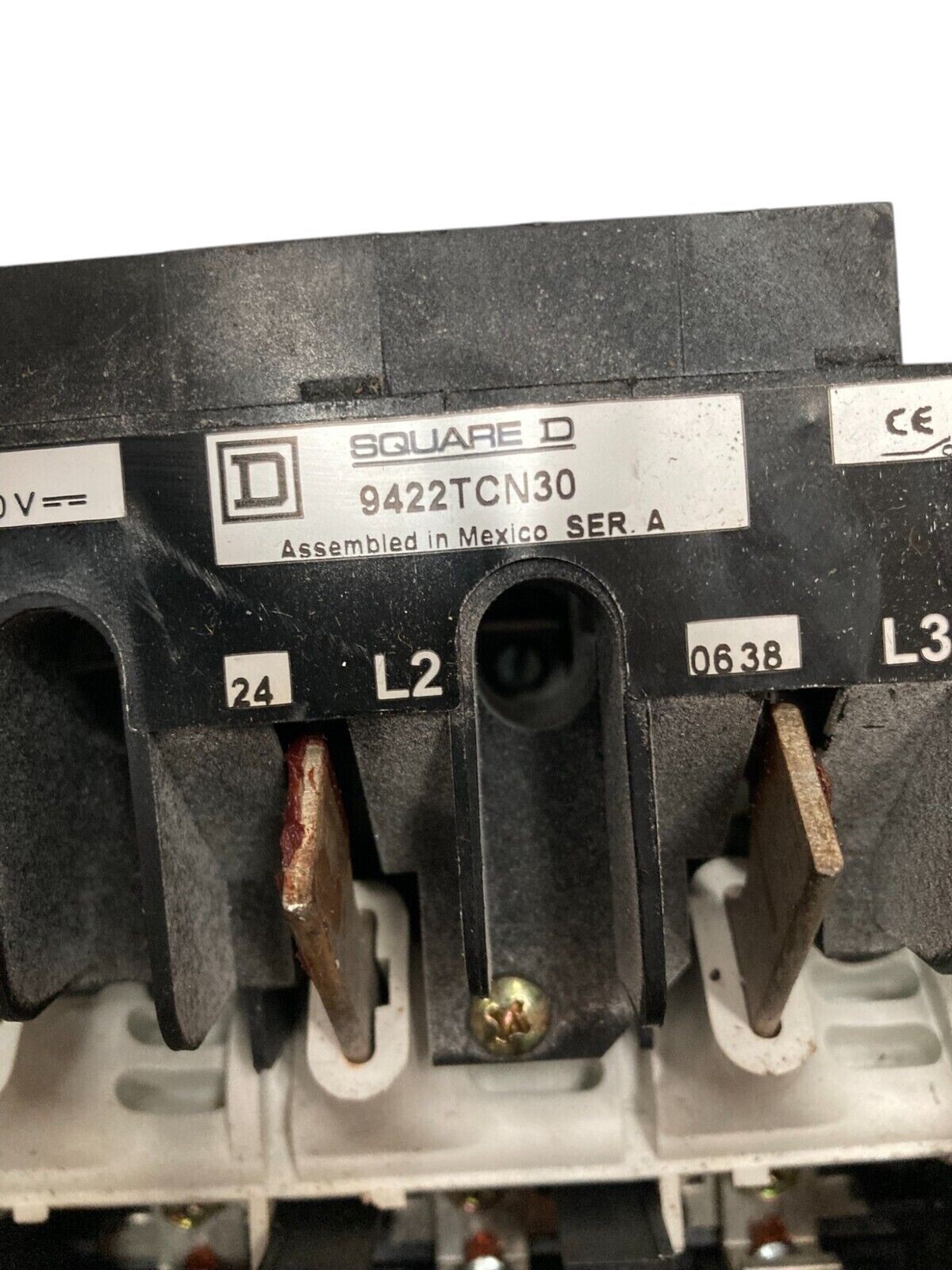

Square D 30A 600VAC Disconnect Switch 9422TCN30 /A

The Square D 30A 600VAC Disconnect Switch, model 9422TCN30, is a non-fusible, flange-mounted operating mechanism designed for control panel installations. It offers a variable depth mounting range from 6.63 to 18 inches, providing flexibility for various applications.

**Key Features:**

– **Amperage and Voltage Ratings:** Rated for 30 amperes and suitable for up to 600 volts AC/DC.

– **Mounting Flexibility:** Flange-mounted with a variable depth range of 6.63 to 18 inches, accommodating different enclosure sizes.

– **Horsepower Ratings:**
– 7.5 HP at 208/240 VAC
– 15 HP at 480 VAC
– 20 HP at 600 VAC
– 5 HP at 250 VDC
– 15 HP at 600 VDC (using two poles)

– **Compatibility:** Designed for use with 9422A handle operators and 9423 door closing mechanisms.

– **Conductor Accommodation:** Accepts copper conductors ranging from #14 to #2 AWG and aluminum conductors from #10 to #2 AWG.

– **Certifications:** UL Component Recognized and CSA certified, ensuring compliance with industry standards.

This disconnect switch is ideal for applications requiring reliable and flexible control panel installations, offering robust performance and compatibility with various components.
