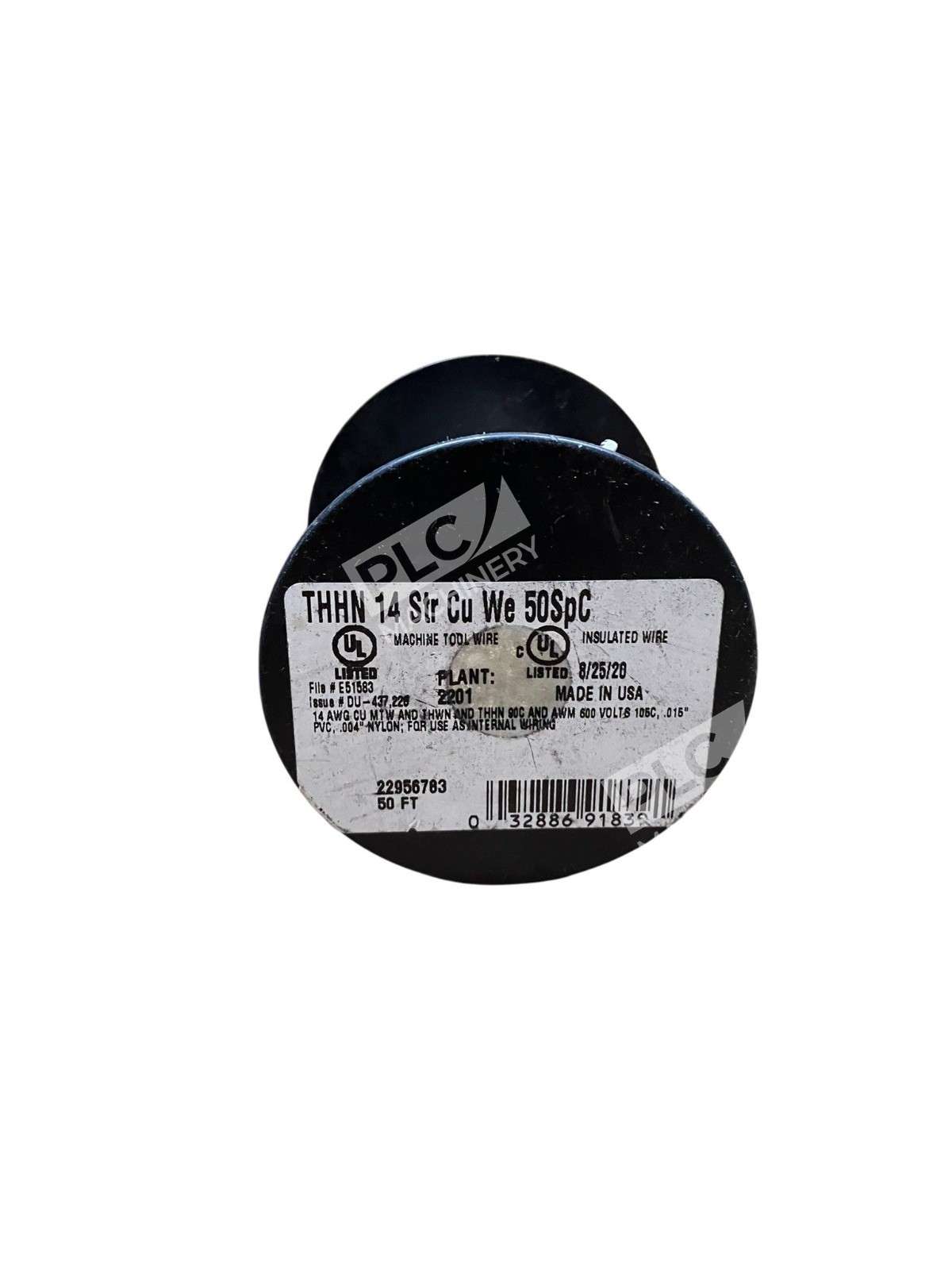

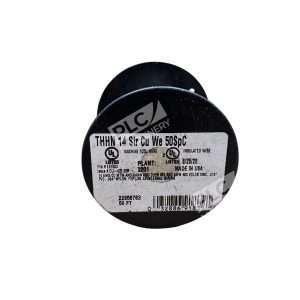

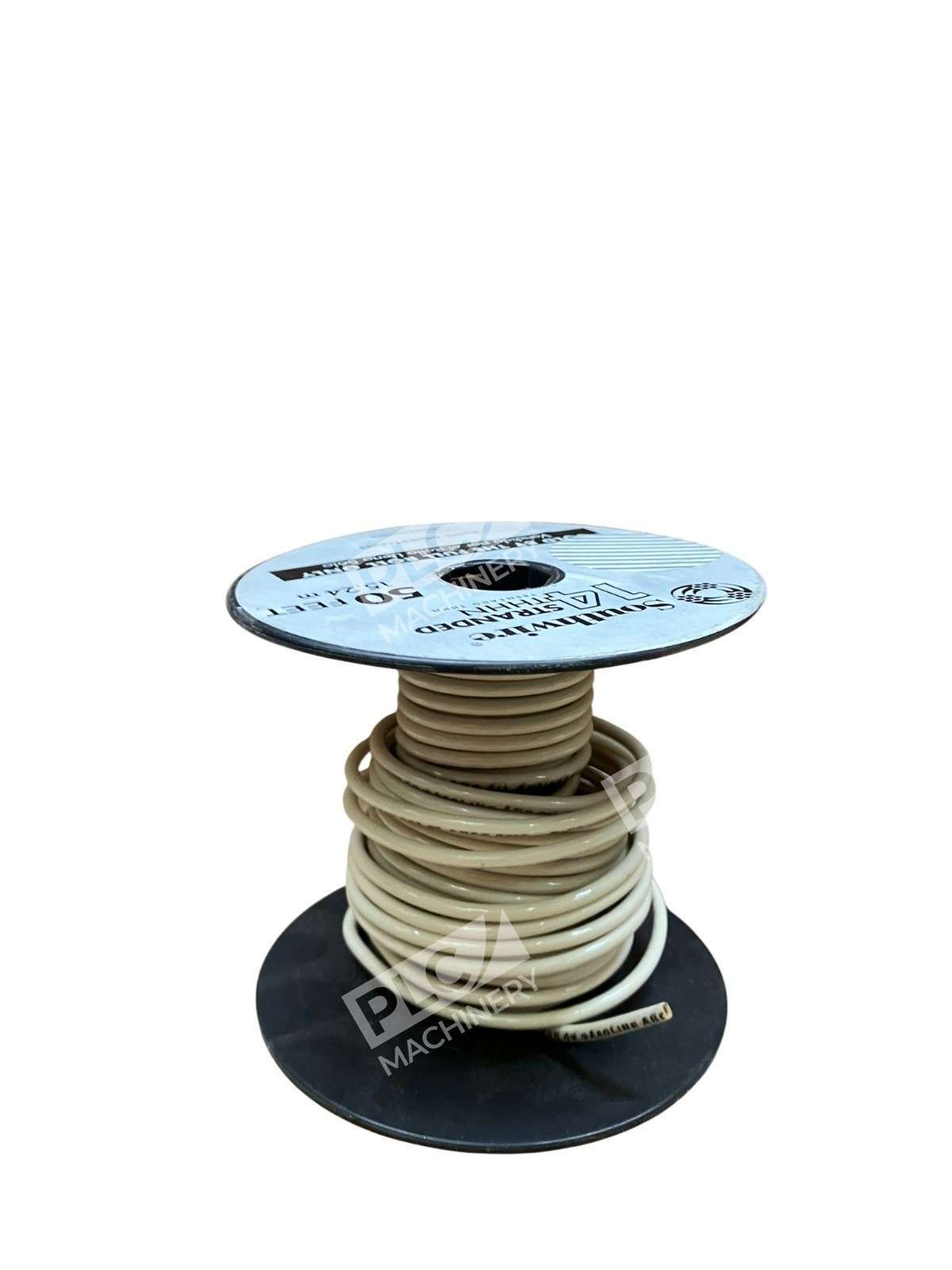

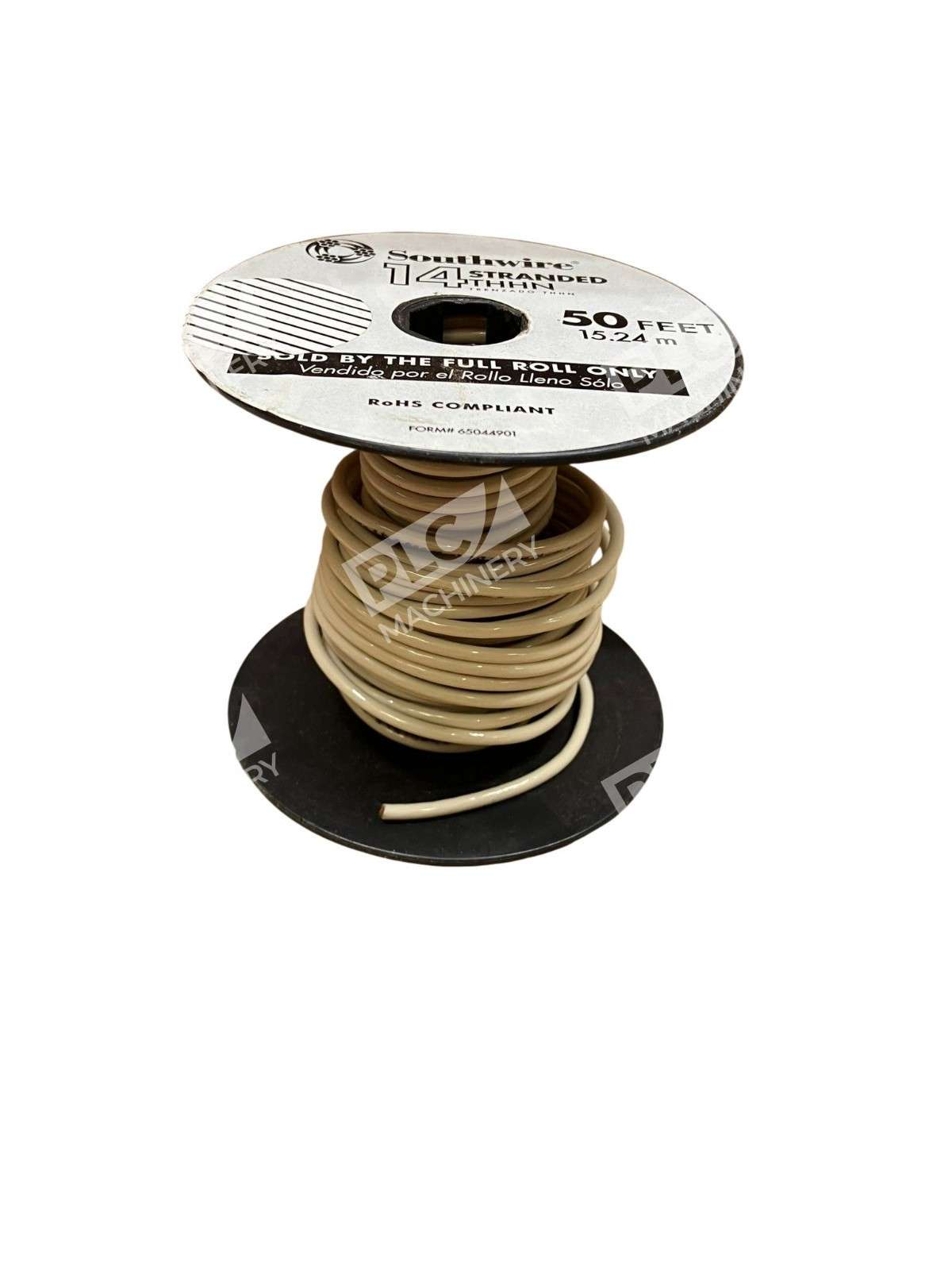

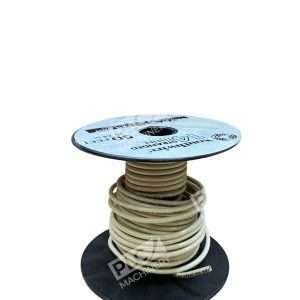

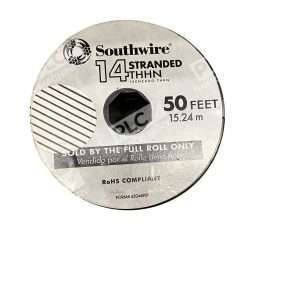

Southwire 14 AWG Stranded Copper THHN Wire – 50 ft.

The Southwire 14 AWG Stranded Copper THHN Wire is a versatile and reliable solution for various electrical wiring applications. This 50-foot length of white, stranded copper wire is designed to meet the demands of both commercial and industrial environments.

Key Features

• Conductor Material: Soft drawn annealed bare copper, ensuring excellent conductivity and flexibility.
• Insulation: Heat and moisture-resistant polyvinyl chloride (PVC) with a nylon sheath, providing durability and protection against environmental factors.
• Voltage Rating: Suitable for applications up to 600 volts, making it ideal for a wide range of electrical installations.
• Temperature Ratings:
  • THHN or T90 Nylon: Dry locations up to 90°C.
  • THWN: Wet locations up to 75°C; dry locations up to 90°C; oil exposure up to 75°C.
  • MTW: Wet locations or oil exposure up to 60°C; dry locations up to 90°C (with ampacity limited to 75°C per NFPA 79).
  • AWM: Dry locations up to 105°C when used as appliance wiring material.
• Compliance: Meets or exceeds standards such as ASTM B3, ASTM B787, UL 83, UL 758, UL 1063, CSA C22.2 No. 75, and ICEA S-95-658.
• Additional Features: Gasoline and oil-resistant (Type II), VW-1 flame test compliant for sizes 14 through 10 AWG, and RoHS compliant.

Applications

This wire is primarily used in conduit for branch circuits in commercial or industrial applications as specified in the National Electrical Code®. Its versatility makes it suitable for various installations, including:

• Conduit and cable trays for services, feeders, and branch circuits.
• Dry and wet locations, with appropriate temperature considerations.
• Environments exposed to oil and gasoline, thanks to its resistance properties.

Specifications

• Conductor Size: 14 AWG
• Conductor Strands: 19 strands
• Insulation Thickness: 16 mils (0.41 mm)
• Jacket Thickness: 5 mils (0.13 mm)
• Approximate Outside Diameter: 0.113 inches (0.29 cm)
• Copper Weight: 12 lbs/1000 ft (18 kgs/km)
• Approximate Total Weight: 18 lbs/1000 ft (27 kgs/km)

The Southwire 14 AWG Stranded Copper THHN Wire combines durability, flexibility, and compliance with industry standards, making it an excellent choice for a wide range of electrical wiring projects.
