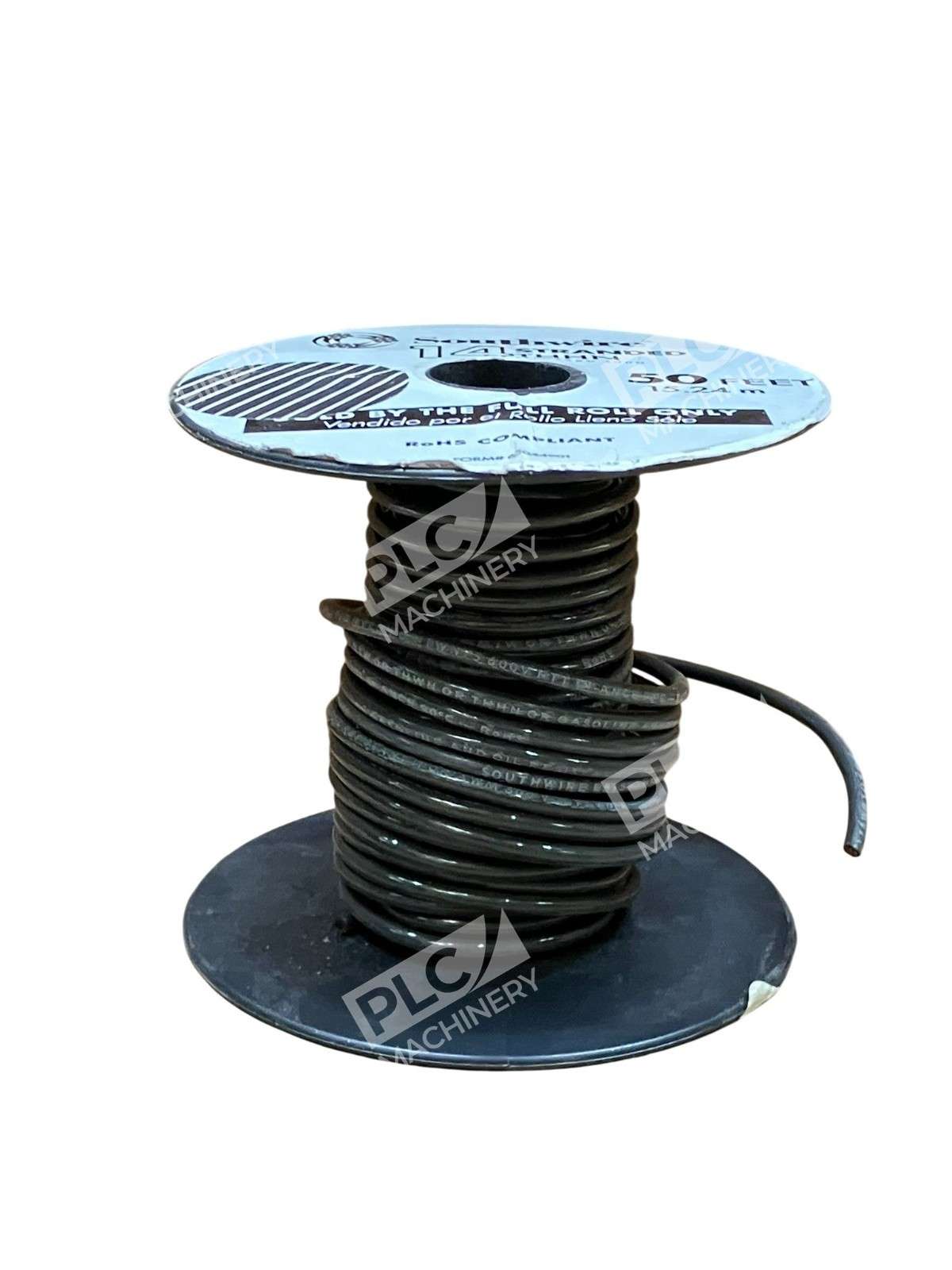

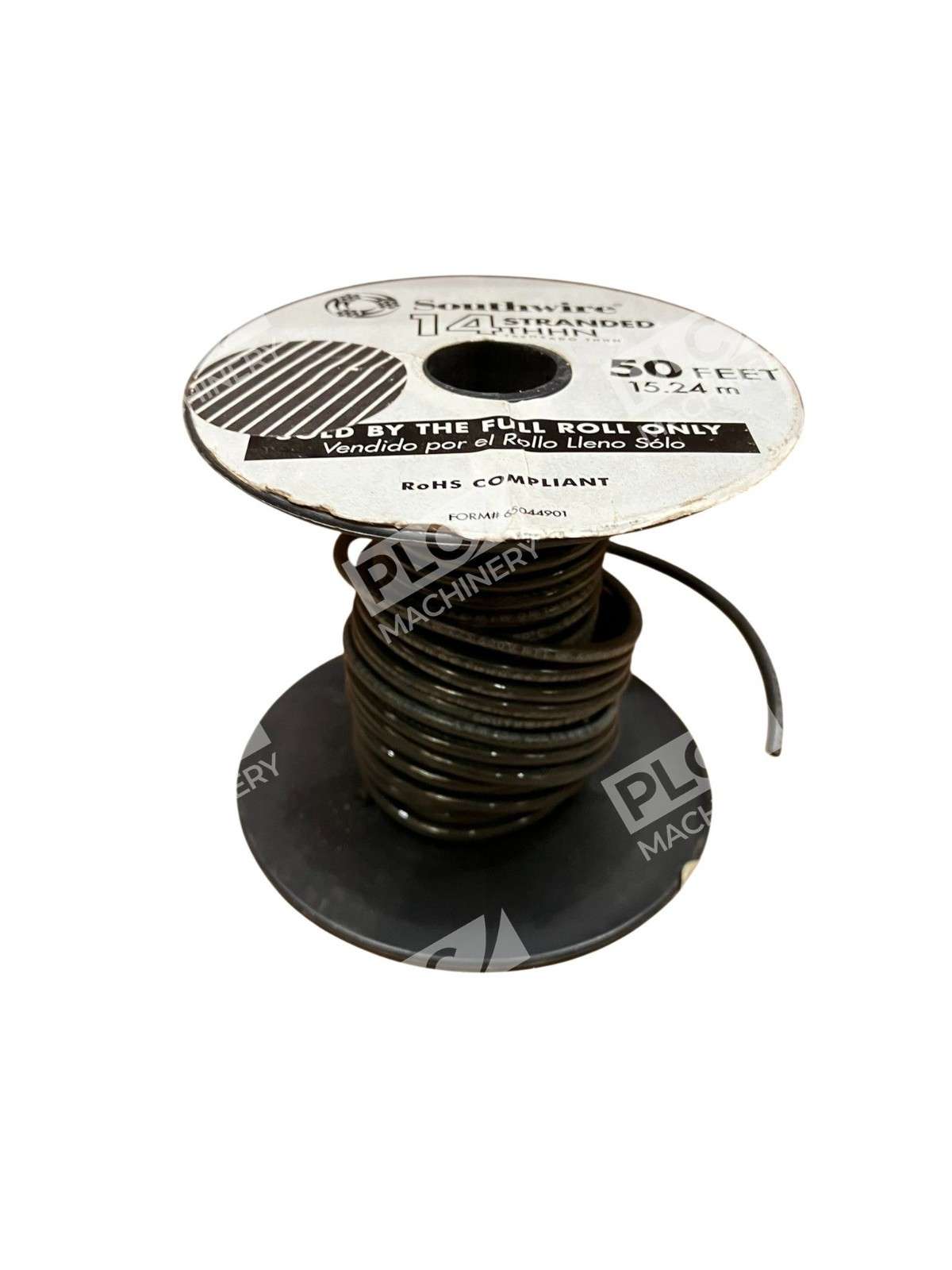

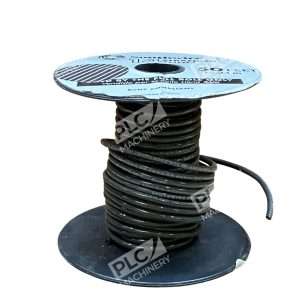

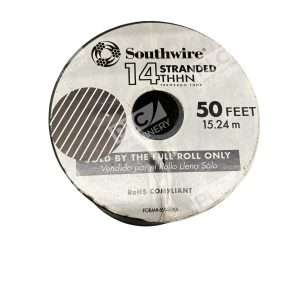

Southwire 14 AWG Stranded Copper THHN Wire – 50 ft.

The Southwire 14 AWG Stranded Copper THHN Wire is a versatile and reliable solution for various electrical wiring applications. This 50-foot length of black, stranded copper wire is designed to meet the demands of both commercial and industrial environments.

Key Features

• Conductor Material: High-quality stranded copper ensures excellent conductivity and flexibility.
• Insulation: Durable PVC insulation provides resistance to heat and moisture, enhancing safety and longevity.
• Sheath: A robust nylon sheath offers additional protection against abrasion and chemicals.
• Voltage Rating: Rated for up to 600 volts, suitable for a wide range of electrical applications.
• Temperature Rating: Capable of operating in dry locations up to 90°C and in wet locations up to 75°C.
• Length: 50 feet, ideal for projects requiring moderate wiring lengths.
• Color: Black, allowing for easy identification and organization within electrical systems.

Applications

This THHN wire is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial settings. Its stranded design offers enhanced flexibility, making it easier to install in complex wiring configurations.

Compliance and Standards

The Southwire 14 AWG Stranded Copper THHN Wire complies with the following standards:

• ASTM B3 and B8 for copper conductors.
• UL 83 for thermoplastic insulated wires and cables.
• UL 758 for appliance wiring material.
• UL 1063 for machine tool wiring (MTW).
• CSA C22.2 No. 75 for thermoplastic insulated wires and cables.
• ICEA S-95-658 (NEMA WC70) for power cables rated 2000 volts or less.
• Federal Specification A-A-59544.
• NMX-J-010-ANCE for thermoplastic insulated wires and cables.
• NOM-063-SCFI for electrical products – conductors – safety requirements.

This wire is also RoHS compliant, ensuring it meets environmental and safety standards.

Specifications

• Conductor Size: 14 AWG
• Number of Conductors: 1
• Conductor Strands: 19
• Insulation Thickness: 15 mils (0.38 mm)
• Jacket Thickness: 5 mils (0.13 mm)
• Approximate Outside Diameter: 0.113 inches (0.29 cm)
• Copper Weight: 12 lbs per 1000 ft (18 kg/km)
• Approximate Total Weight: 16 lbs per 1000 ft (24 kg/km)

The Southwire 14 AWG Stranded Copper THHN Wire is a dependable choice for professionals seeking quality and performance in their electrical wiring projects.
