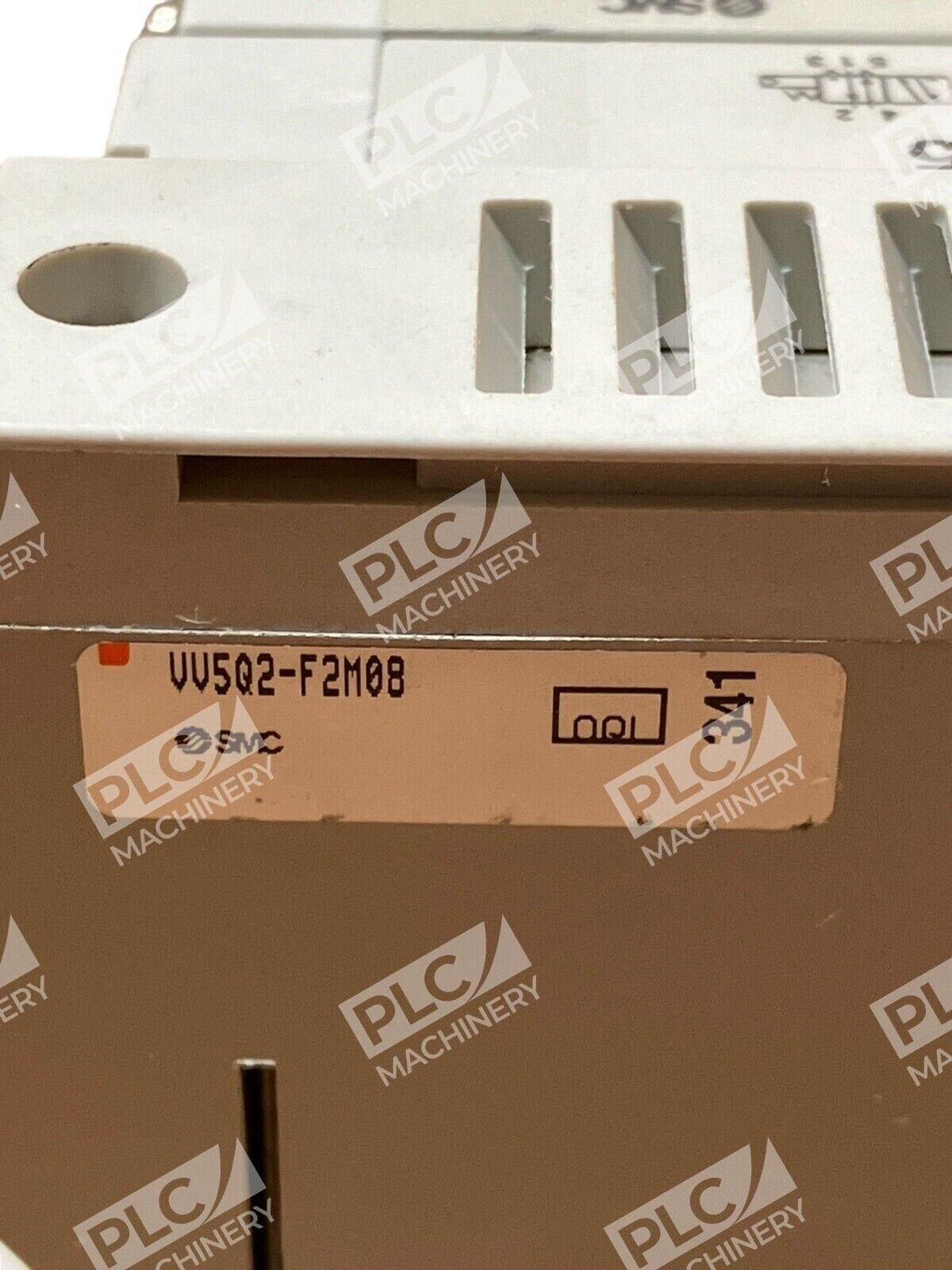

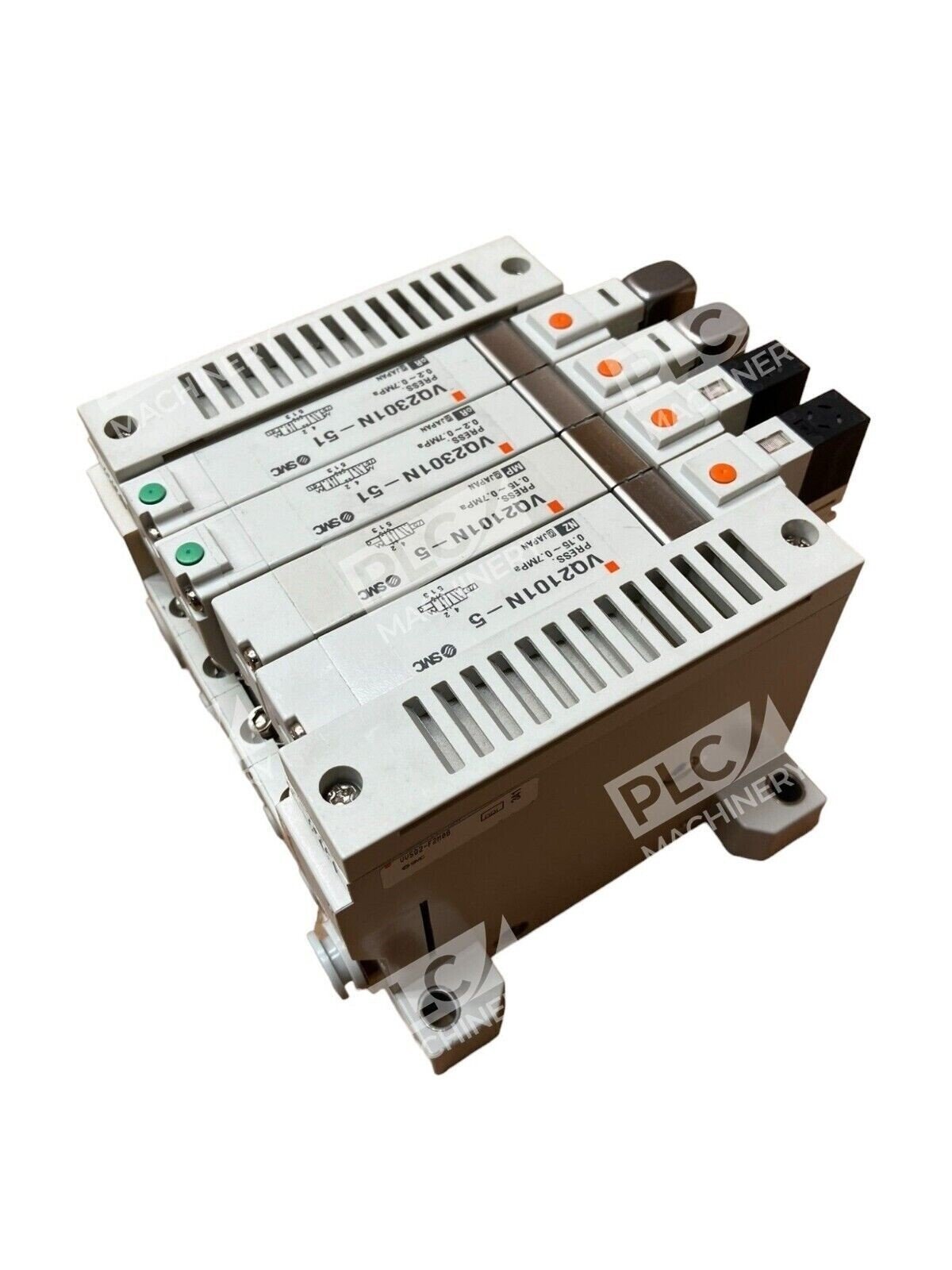

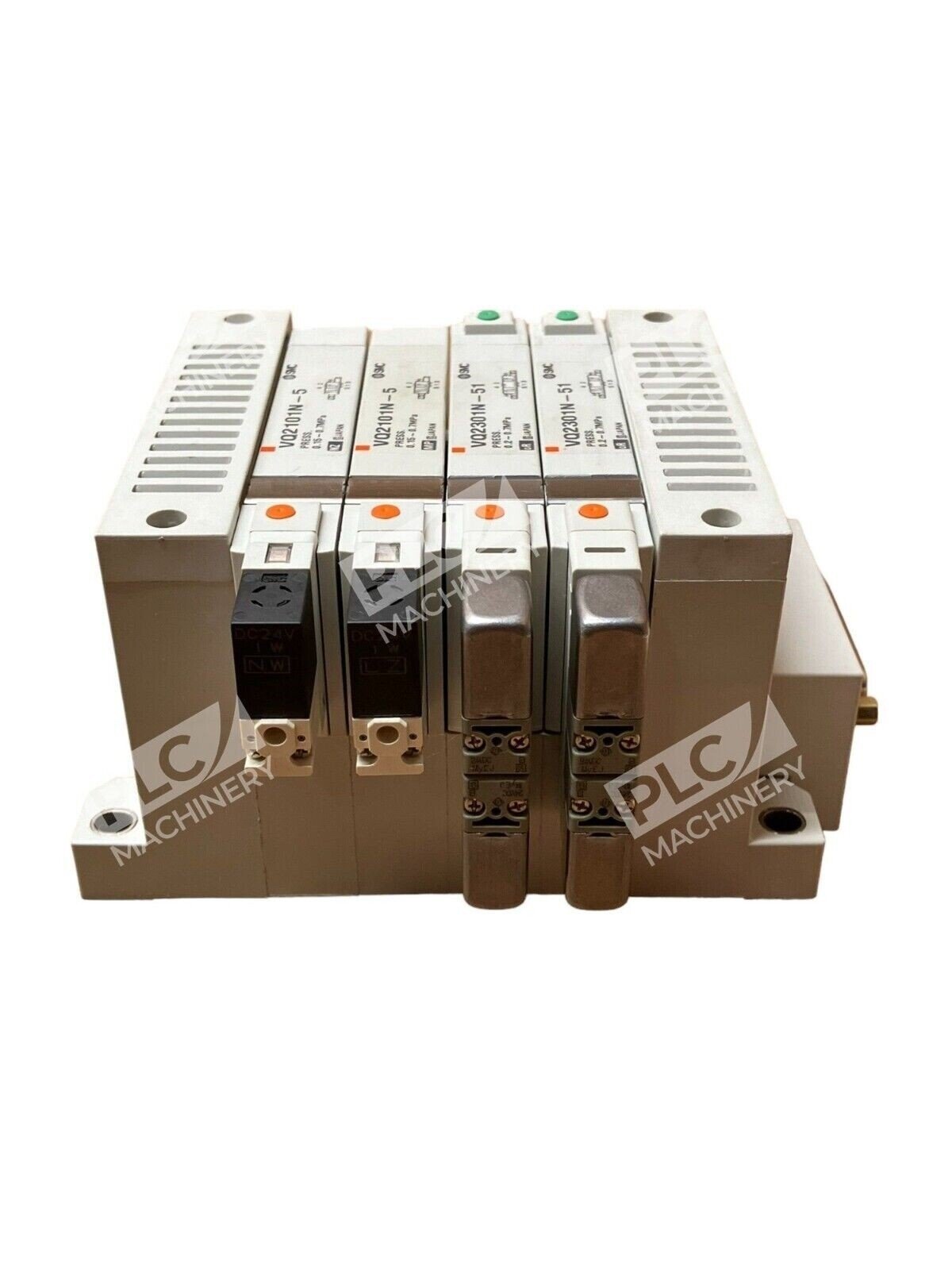

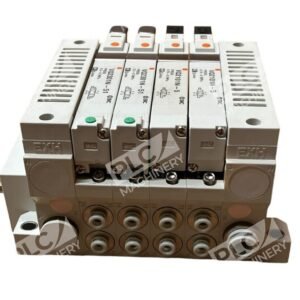

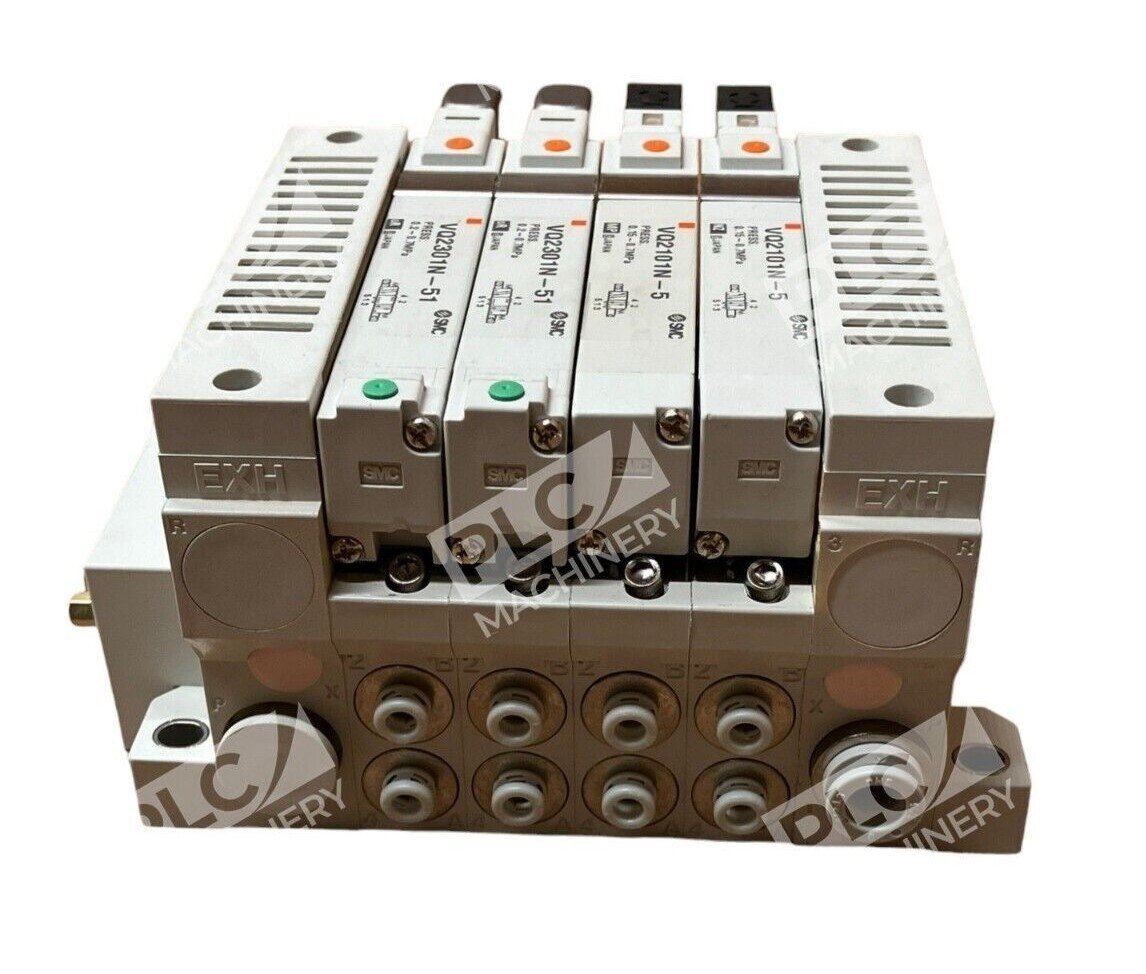

SMC VV5Q2-F2M08 4 Station Manifold W/ 2x VQ2101N-5 2x VQ2301N-51

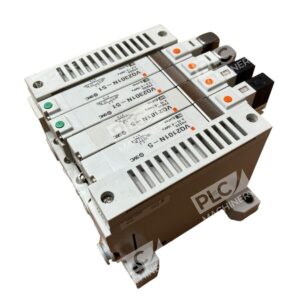

SMC VV5Q2-F2M08 4 Station Manifold with VQ2101N-5 and VQ2301N-51 Solenoid Valves

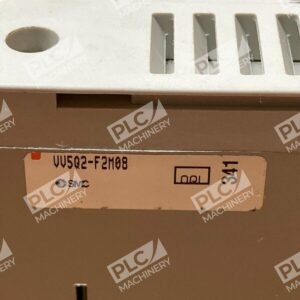

The SMC VV5Q2-F2M08 is a 4-station manifold designed to accommodate high-speed, frequent operations with stable response times and extended service life. This manifold is equipped with two VQ2101N-5 and two VQ2301N-51 solenoid valves, offering a versatile solution for various pneumatic applications.

Key Features

• Compact Design: The manifold’s space-saving configuration allows for efficient use of space in complex pneumatic systems.
• Easy Maintenance: Innovative mounting methods enable valve replacements without the need to disassemble the entire manifold, reducing downtime and maintenance efforts.
• Built-in One-Touch Fittings: Integrated fittings simplify the piping process, saving time and labor during installation.

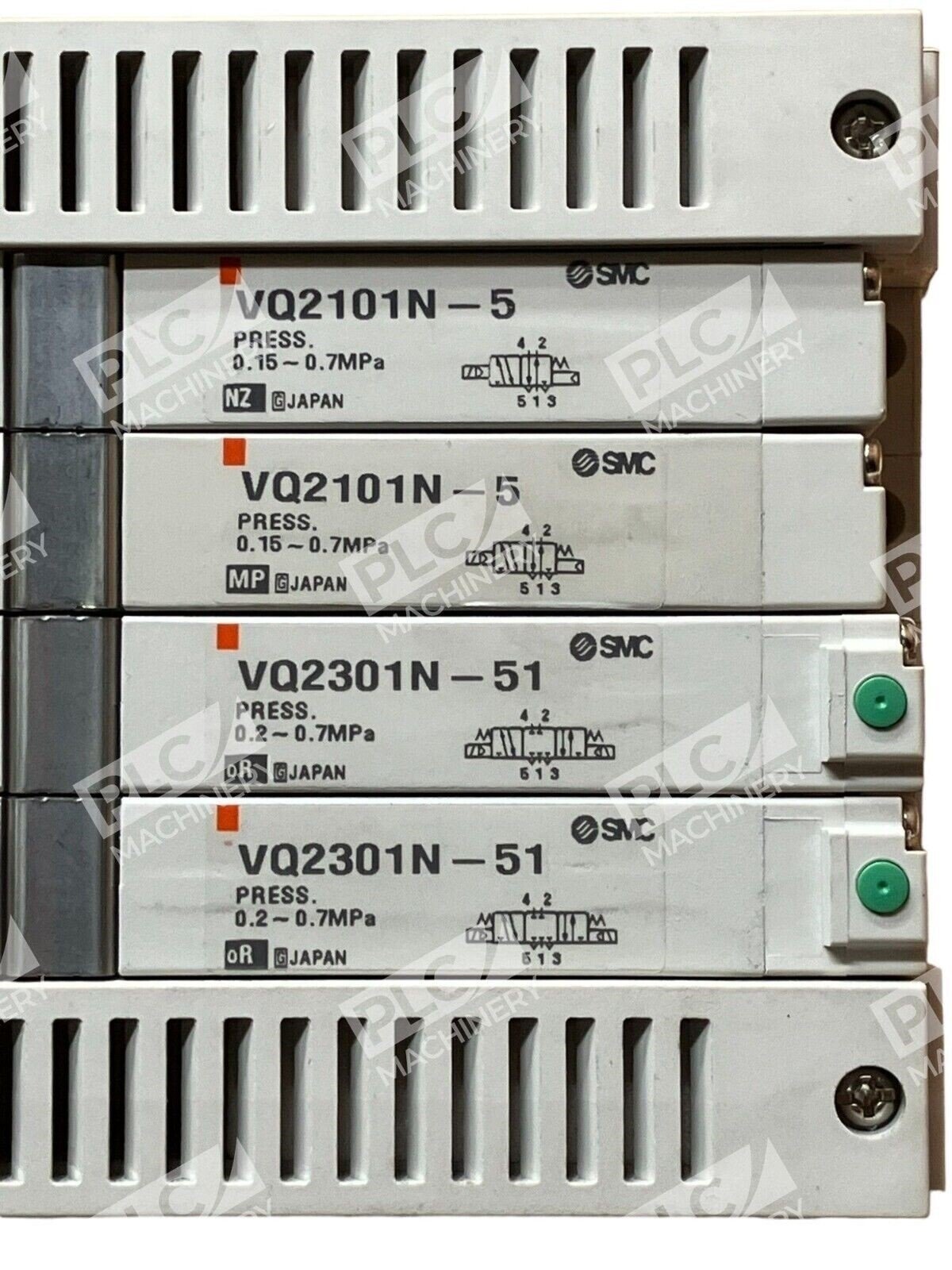

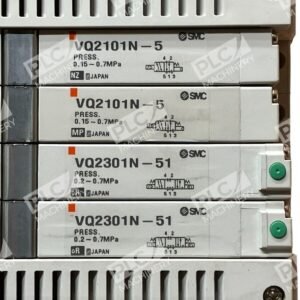

VQ2101N-5 Solenoid Valves

The VQ2101N-5 valves are 4/5 port solenoid valves known for their high-speed operation and reliability. Key specifications include:

• Actuation: 2-position single
• Operating Pressure Range: 0.1 – 0.7 MPa
• Coil Voltage: 24 VDC
• Manual Override: Non-locking push type (tool required)
• Enclosure: Dust-protected

VQ2301N-51 Solenoid Valves

The VQ2301N-51 valves are designed for applications requiring high-speed and frequent operation. Notable features include:

• Actuation: 3-position closed center
• Operating Pressure Range: 0.1 – 0.7 MPa
• Coil Voltage: 24 VDC
• Manual Override: Non-locking push type (tool required)
• Enclosure: Dust-protected

Applications

The SMC VV5Q2-F2M08 manifold, combined with VQ2101N-5 and VQ2301N-51 solenoid valves, is ideal for various industrial applications, including:

• Automated assembly lines
• Material handling systems
• Pneumatic control systems requiring precise and reliable valve operation

Its modular design and high-performance components make it a valuable addition to any pneumatic system seeking efficiency and reliability.
