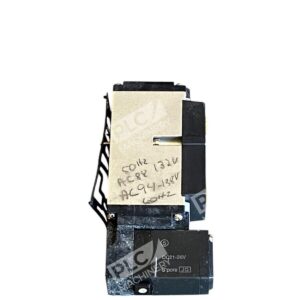

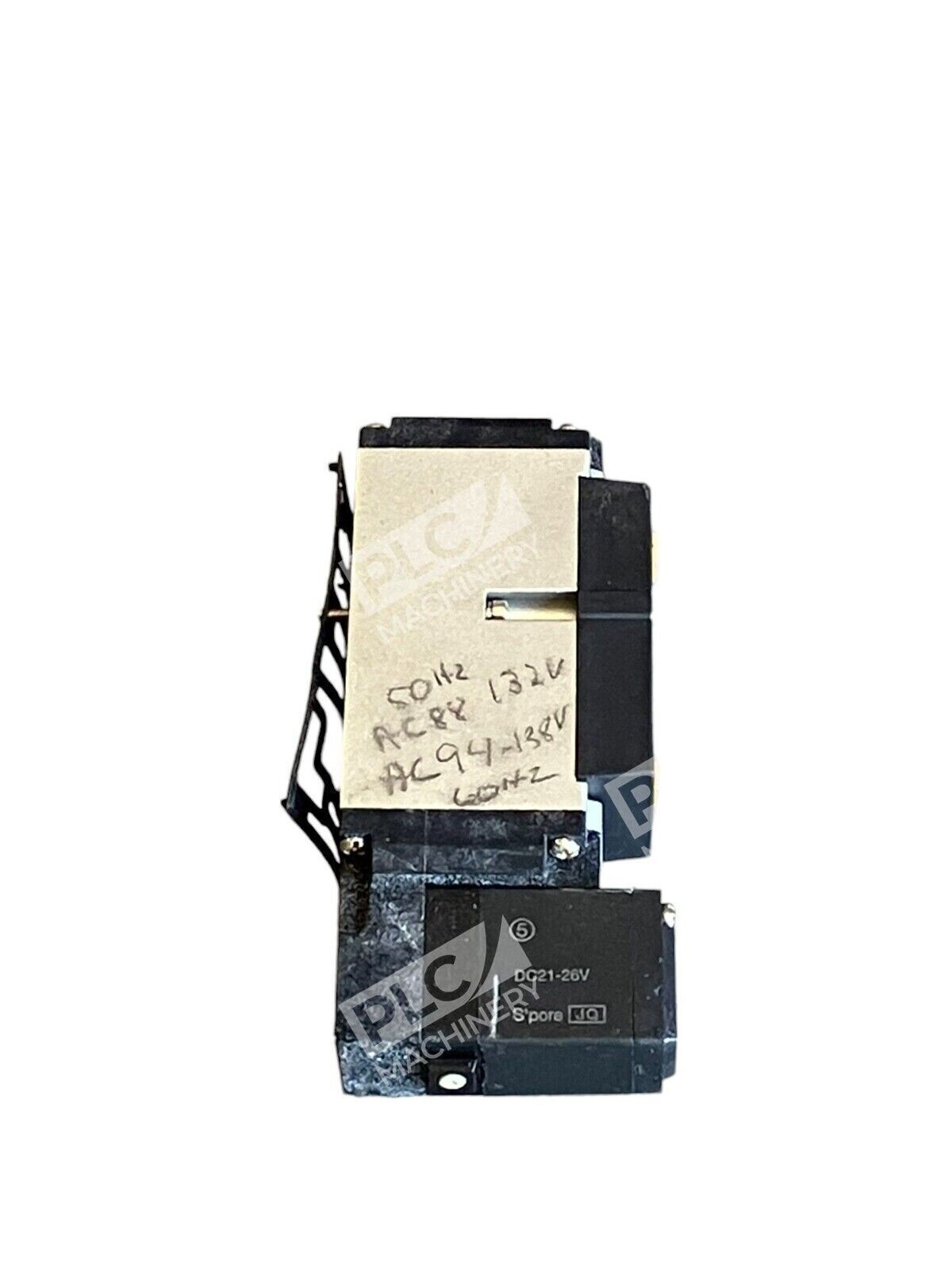

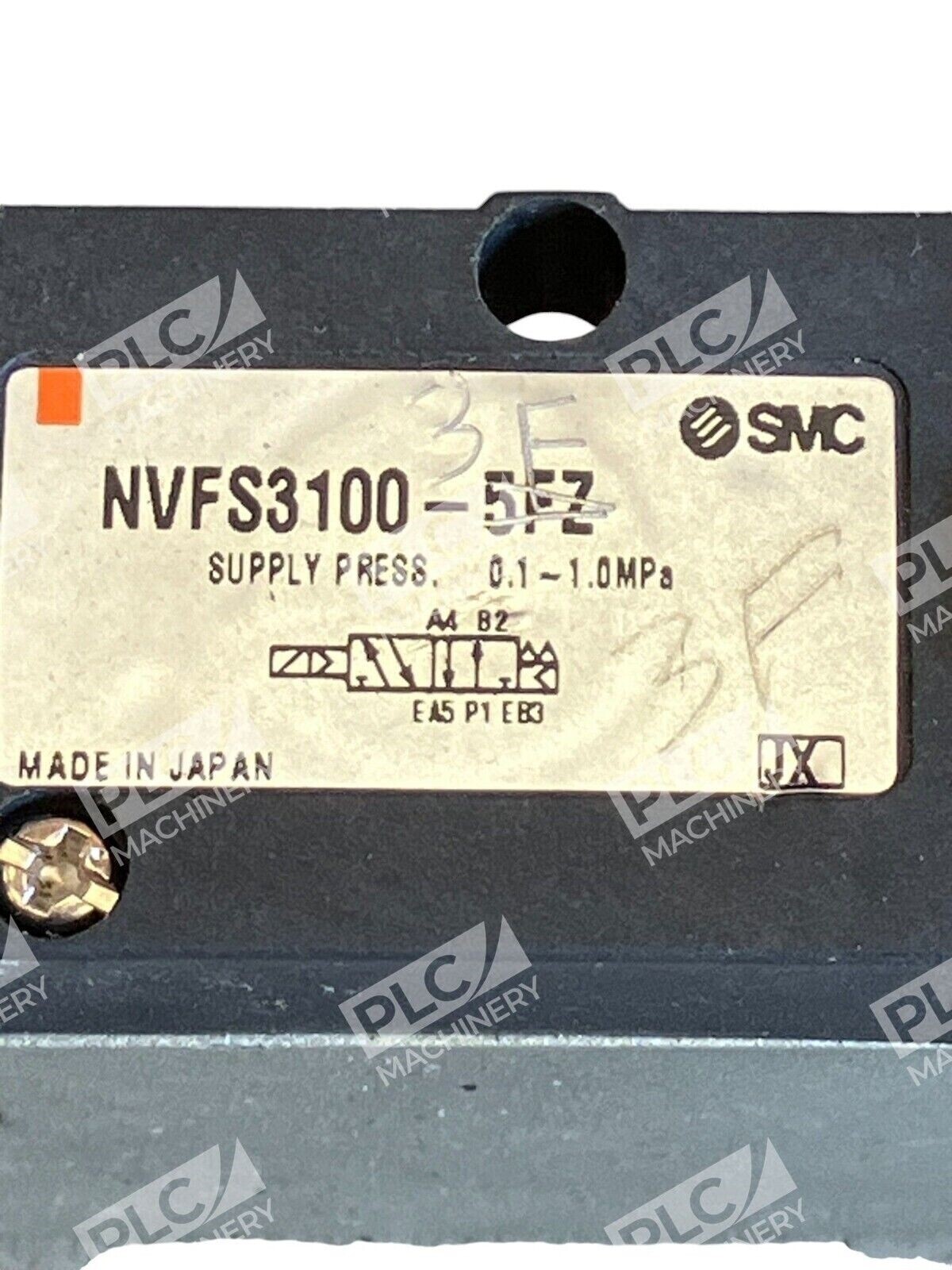

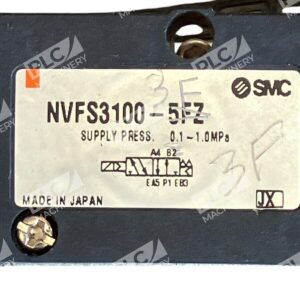

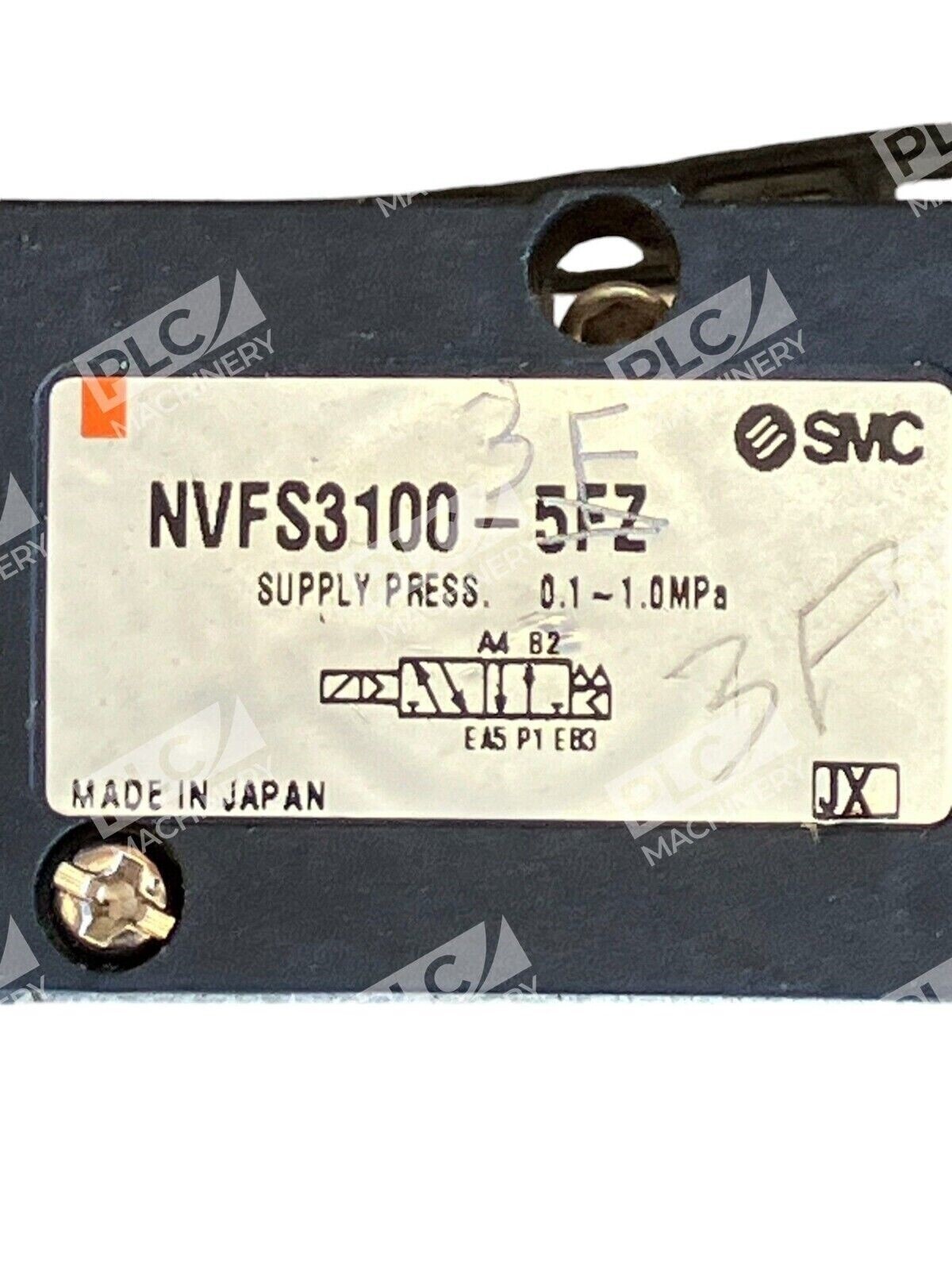

SMC Solenoid Valve NVFS3100-5FZ

SMC Solenoid Valve NVFS3100-5FZ

The SMC NVFS3100-5FZ is a high-performance 5-port pilot-operated solenoid valve designed for efficient control of air and inert gas in various industrial applications. Its robust construction and advanced features make it suitable for driving medium to large cylinders.

Key Features

• Metal Seal Construction: Ensures durability and a long operational lifespan.
• High Flow Capacity: Capable of handling substantial flow rates, making it ideal for demanding applications.
• Low Power Consumption: Operates efficiently with a solenoid power consumption of 2.04 W.
• Easy Maintenance: Designed for straightforward upkeep, reducing downtime.
• Manual Override: Features a non-locking push-type manual override for immediate manual control when necessary.

Specifications

• Actuation: Piloted Solenoid
• Number of Solenoids: Single
• Solenoid Supply Voltage: 24 V DC
• Solenoid Electrical Entry: Plug-in Conduit Terminal
• Operating Medium: Air, Inert Gas
• Maximum Operating Pressure: 145 psi (1 MPa)
• Minimum Operating Pressure: 15 psi (0.1 MPa)
• Ambient and Fluid Temperature Range: 14°F to 140°F (-10°C to 60°C)
• Response Time: 20 ms
• Body Material: Aluminum
• Seal Material: Metal
• Overall Dimensions: Height: 93 mm, Length: 136 mm, Width: 50 mm

Applications

The NVFS3100-5FZ is suitable for a wide range of industrial applications, including:

• Automated manufacturing systems
• Pneumatic control systems
• Material handling equipment
• Packaging machinery

Its reliable performance and versatile design make it a valuable component in any system requiring precise control of air or inert gas flow.
