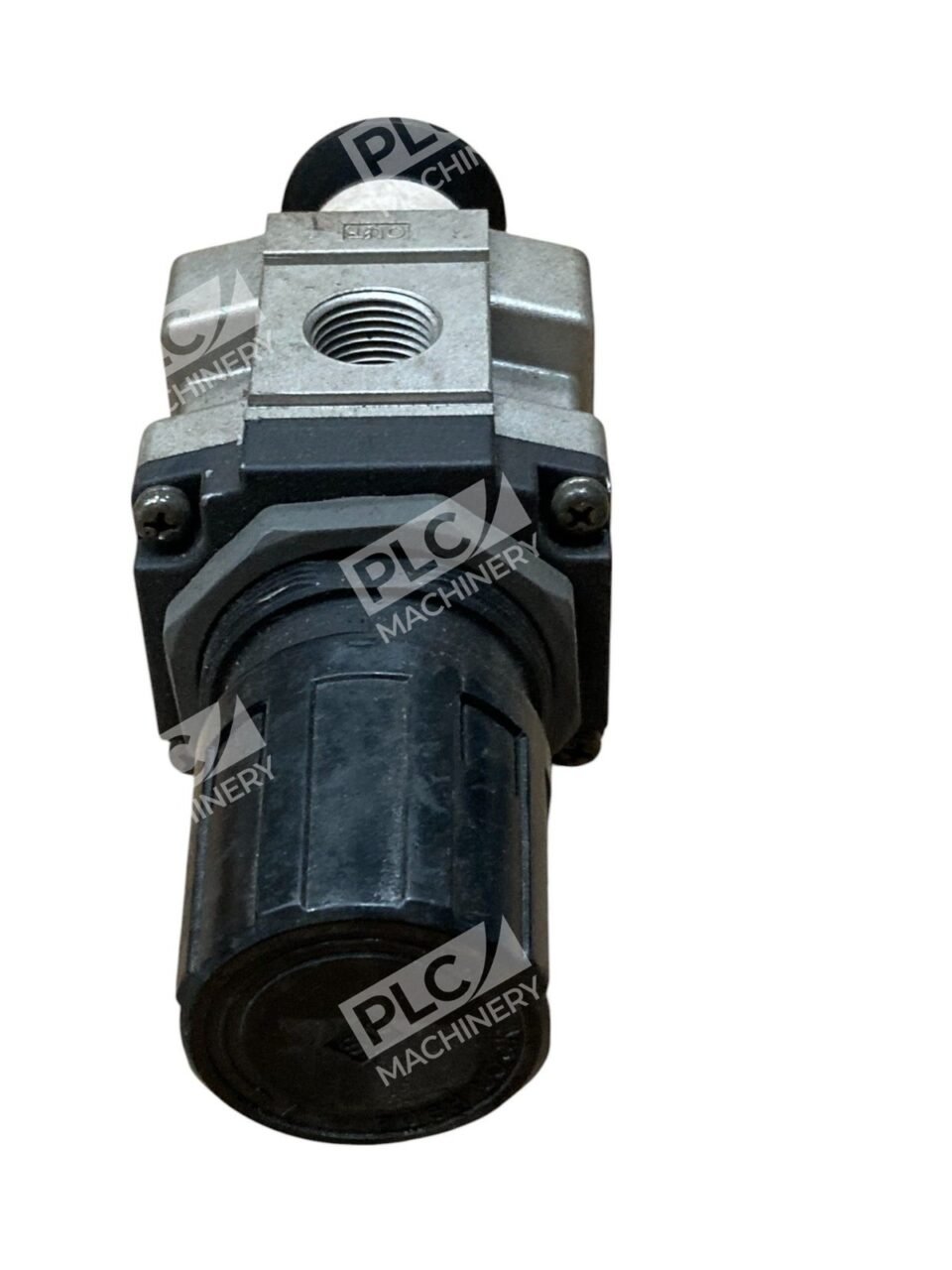

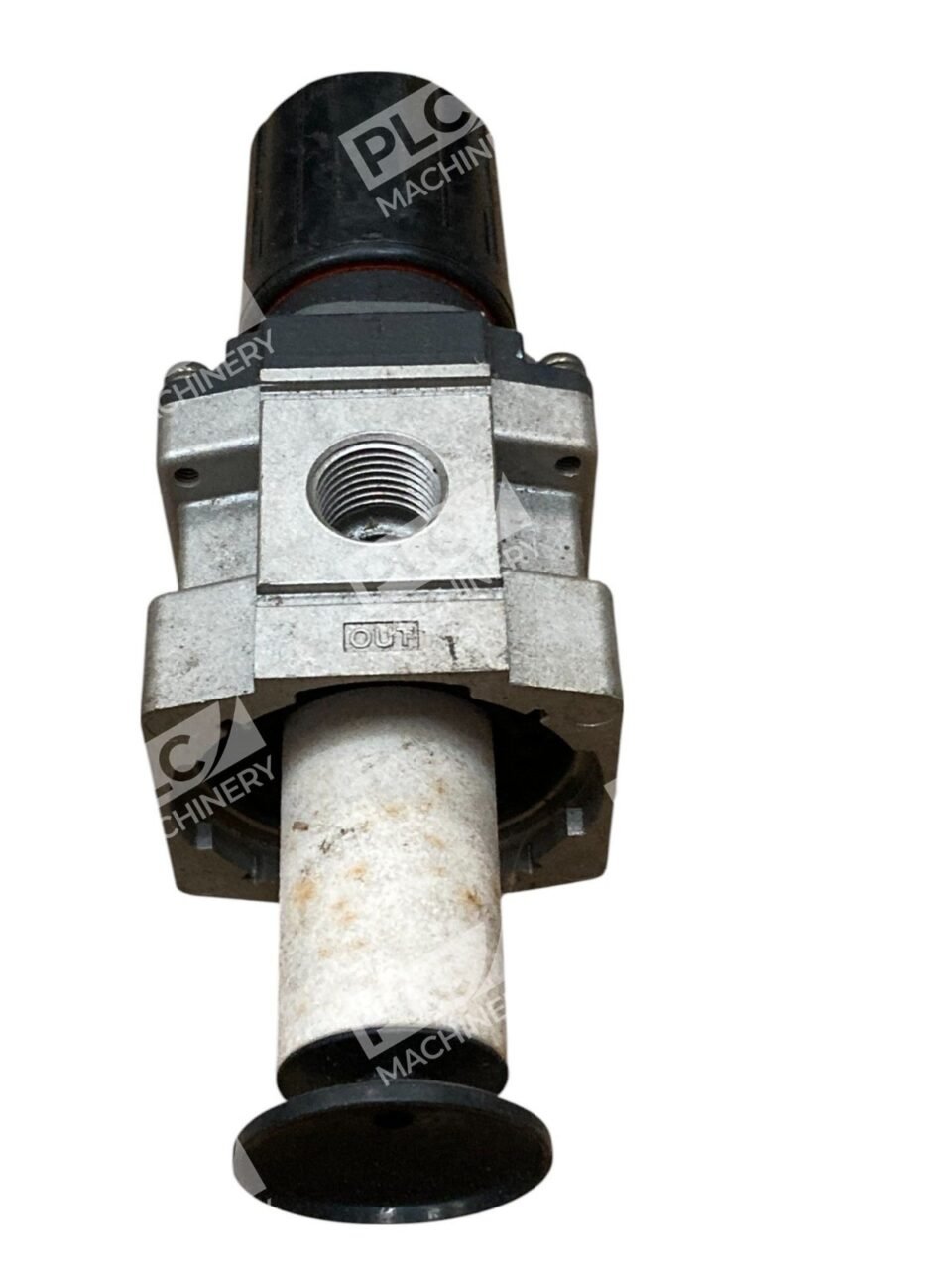

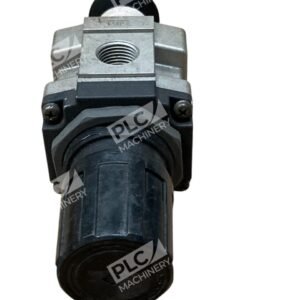

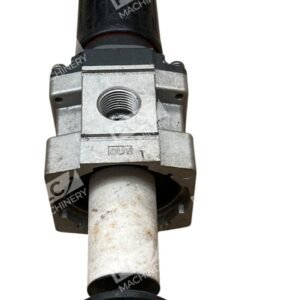

SMC NAW4000-N04 Modular Filter Regulator
The SMC NAW4000-N04 is a modular filter regulator designed to ensure optimal air quality and pressure control in pneumatic systems. This unit combines filtration and regulation functions, providing a compact and efficient solution for various industrial applications.
Key Features
- Port Size: 1/2″ NPT
- Set Pressure Range: 0.05 to 0.85 MPa
- Filtration Rating: 5 µm
- Construction: Durable aluminum die-cast housing with a polycarbonate bowl
- Drain Type: Manual drain with optional auto drain feature
Applications
The NAW4000-N04 is suitable for a wide range of applications, including:
- Industrial production
- Automation equipment
- Mechanical equipment
- Food industry
- Medical and healthcare
- Electronic industry
- Textile machinery
- Packaging machinery
Specifications
| Parameter | Value |
|---|---|
| Port Size | 1/2″ NPT |
| Set Pressure Range | 0.05 to 0.85 MPa |
| Filtration Rating | 5 µm |
| Max Operating Pressure | 1.0 MPa |
| Operating Temperature Range | 5 to 60°C |
| Filter Bowl Capacity | 45 cm³ |
| Weight | Approximately 1.26 kg |
For more detailed information or specific configurations, please refer to the manufacturer’s documentation or contact an authorized distributor.
