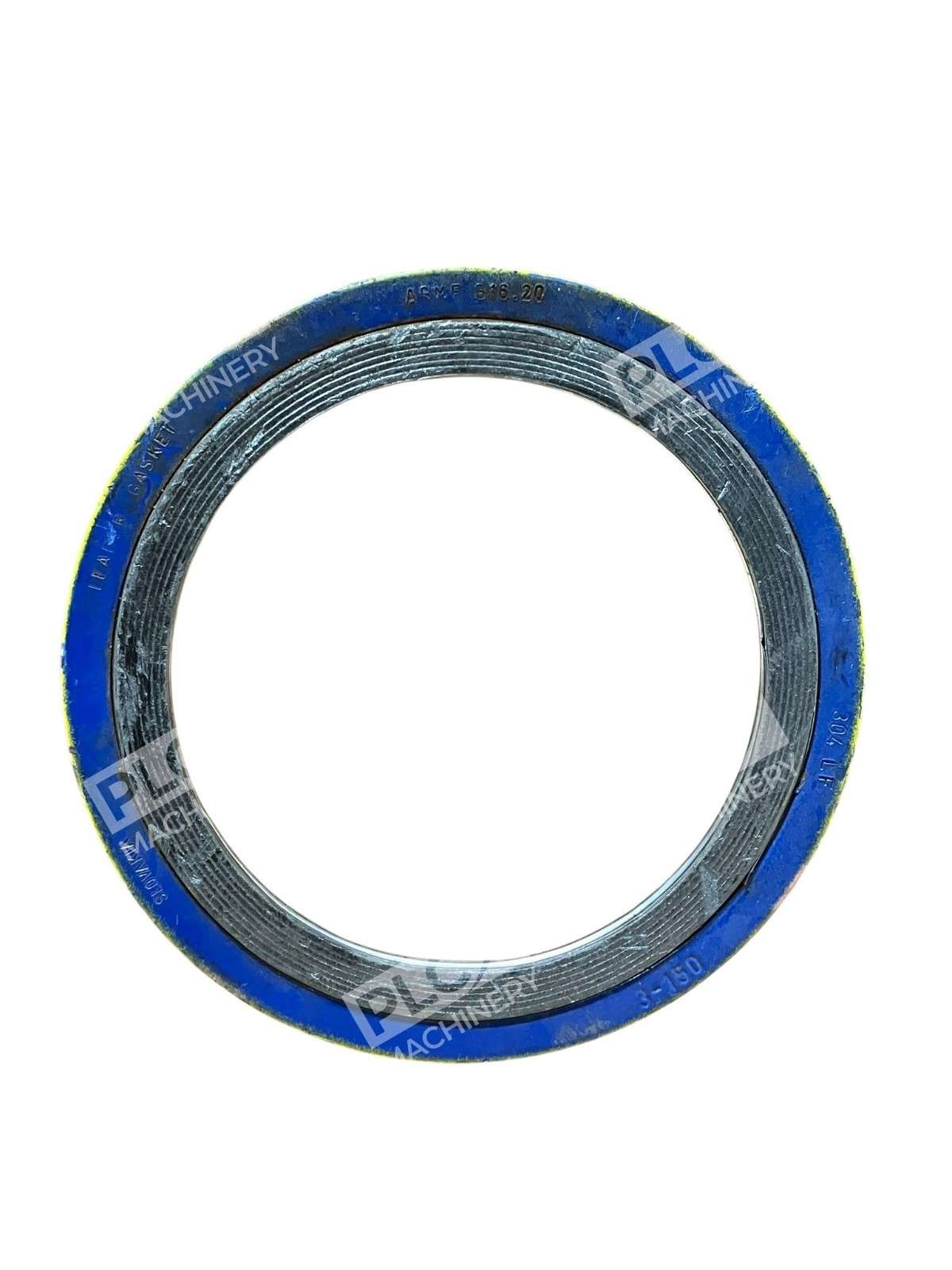

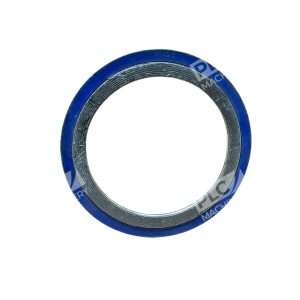

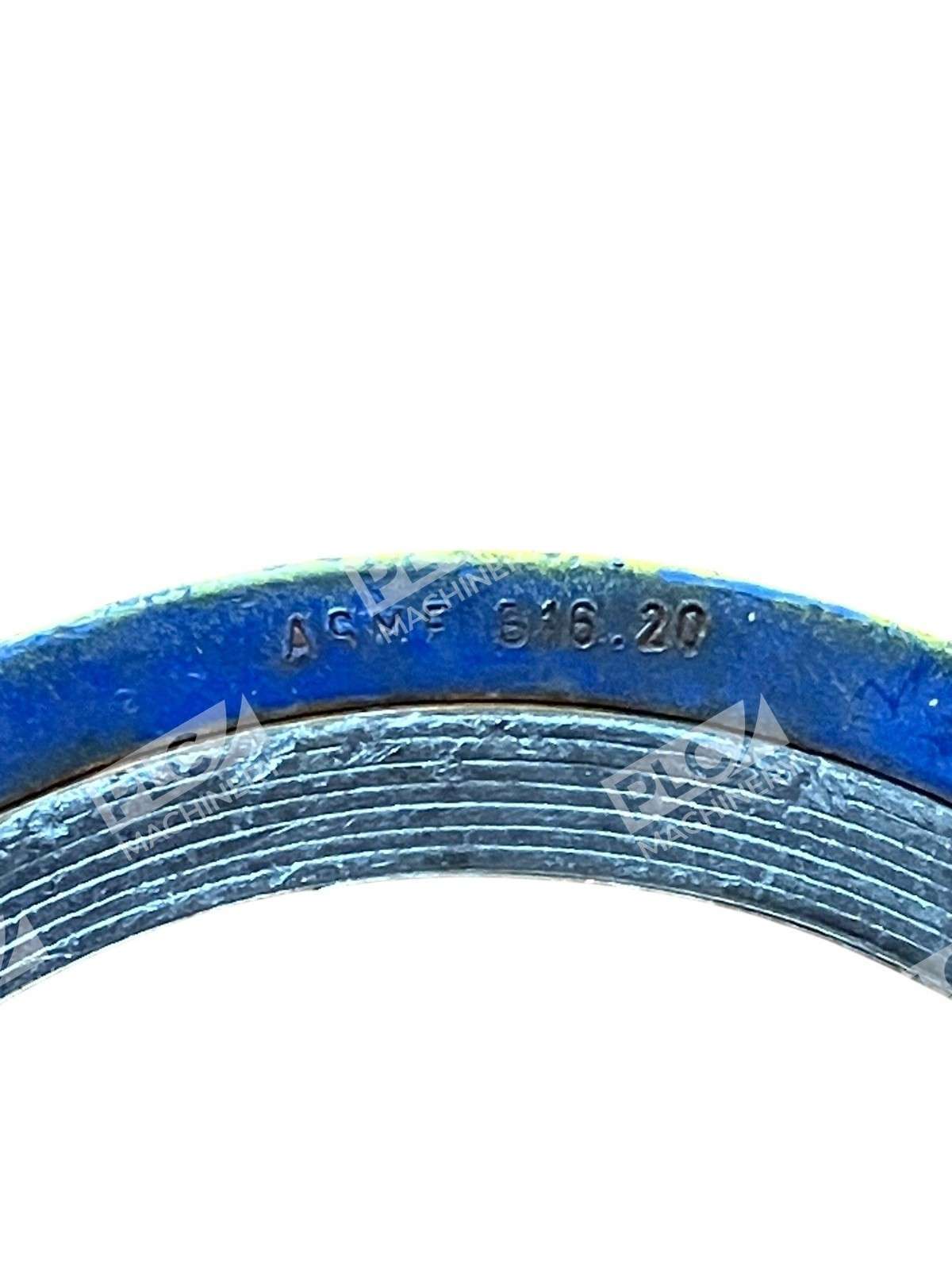

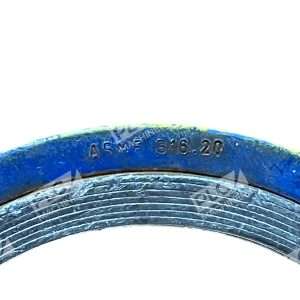

Slovakia Leader Spiral Wound Gasket 304LF Stainless Steel Graphite CG/SR 3-150
The Slovakia Leader Spiral Wound Gasket 304LF Stainless Steel Graphite CG/SR 3-150 is a high-integrity sealing solution designed for demanding industrial applications. This gasket combines the resilience of spiral wound construction with the durability of 304LF stainless steel and the superior sealing properties of graphite filler.
Key Features
- Material Composition: Constructed with 304LF stainless steel windings, offering excellent corrosion resistance and mechanical strength. The graphite filler enhances the gasket’s ability to withstand high temperatures and provides a reliable seal.
- Design: The CG/SR configuration includes an outer guide ring, ensuring precise centering on the flange face and preventing blowouts. This design is suitable for ASME B16.5 raised face flanges up to 600 lbs and EN/DIN flanges up to PN40.
- Temperature and Pressure Range: Capable of operating in a wide range of temperatures, from -450°F up to 850°F, and handling pressures up to ASME B16.5 2500 Class.
- Chemical Compatibility: Suitable for use across a broad pH range (0-14), making it versatile for various media in the petrochemical industry, steam applications, on- and offshore exploration, pipeline systems, pressure vessels, and exchangers.
- Sealing Characteristics: Offers low leak rates, fire safety, and is designed to accommodate fluctuating temperatures and pressures. The gasket provides broad chemical resistance, a wide seating stress range, and is blowout safe.
Applications
This gasket is ideal for use in the petrochemical industry, steam systems, on- and offshore exploration, pipeline systems, pressure vessels, and heat exchangers. Its robust design and material composition make it suitable for environments requiring high integrity and sustainable sealing solutions.
Certifications
- EN10.204 3.1
For more detailed information or specific inquiries, please contact the manufacturer directly.
