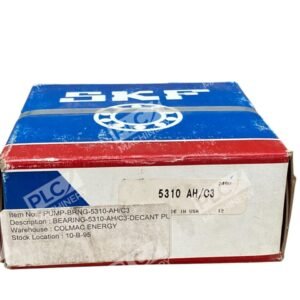

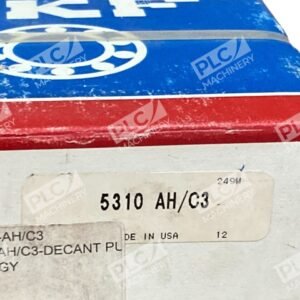

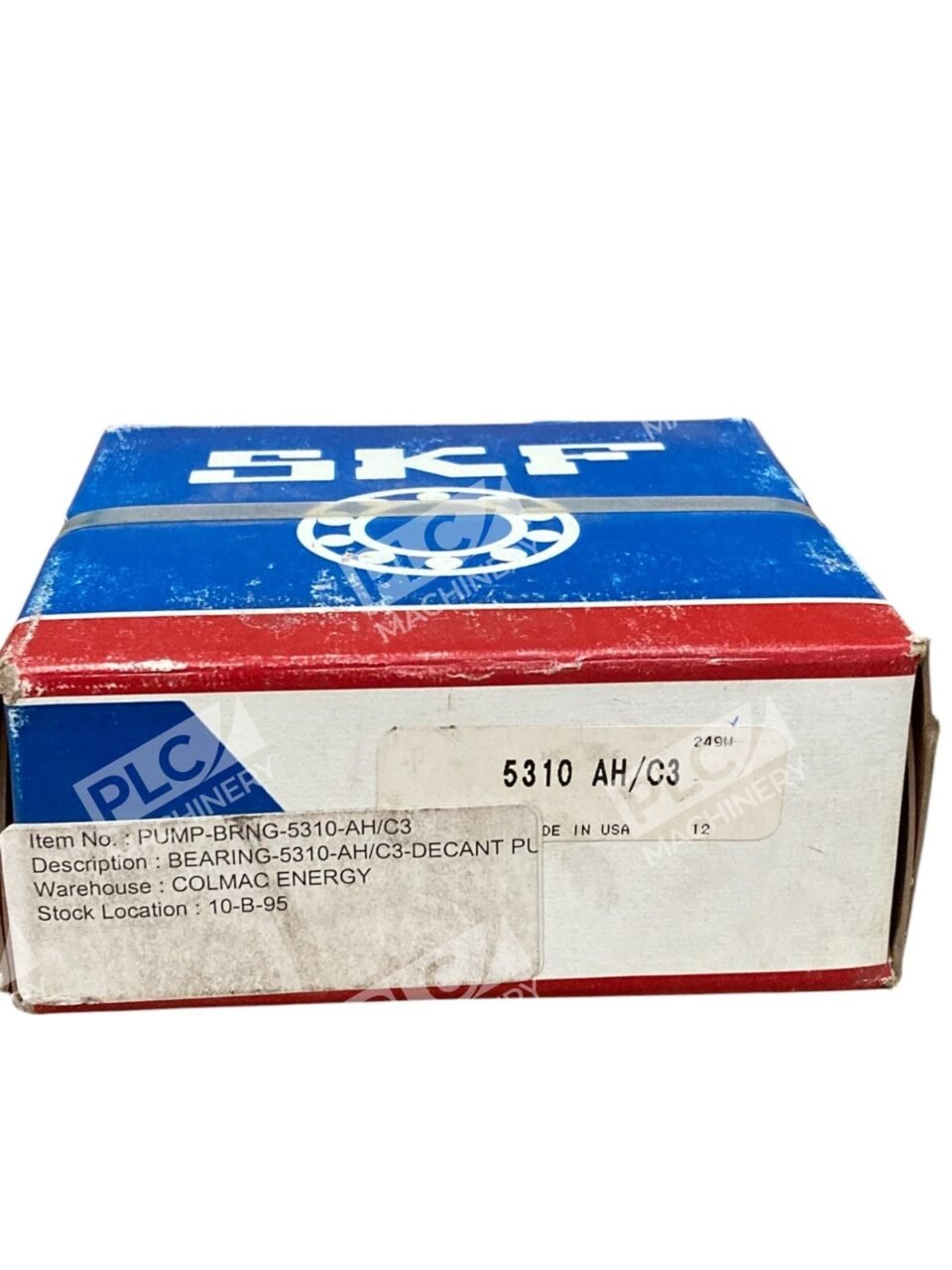

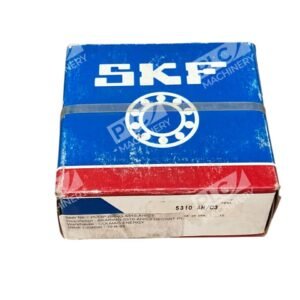

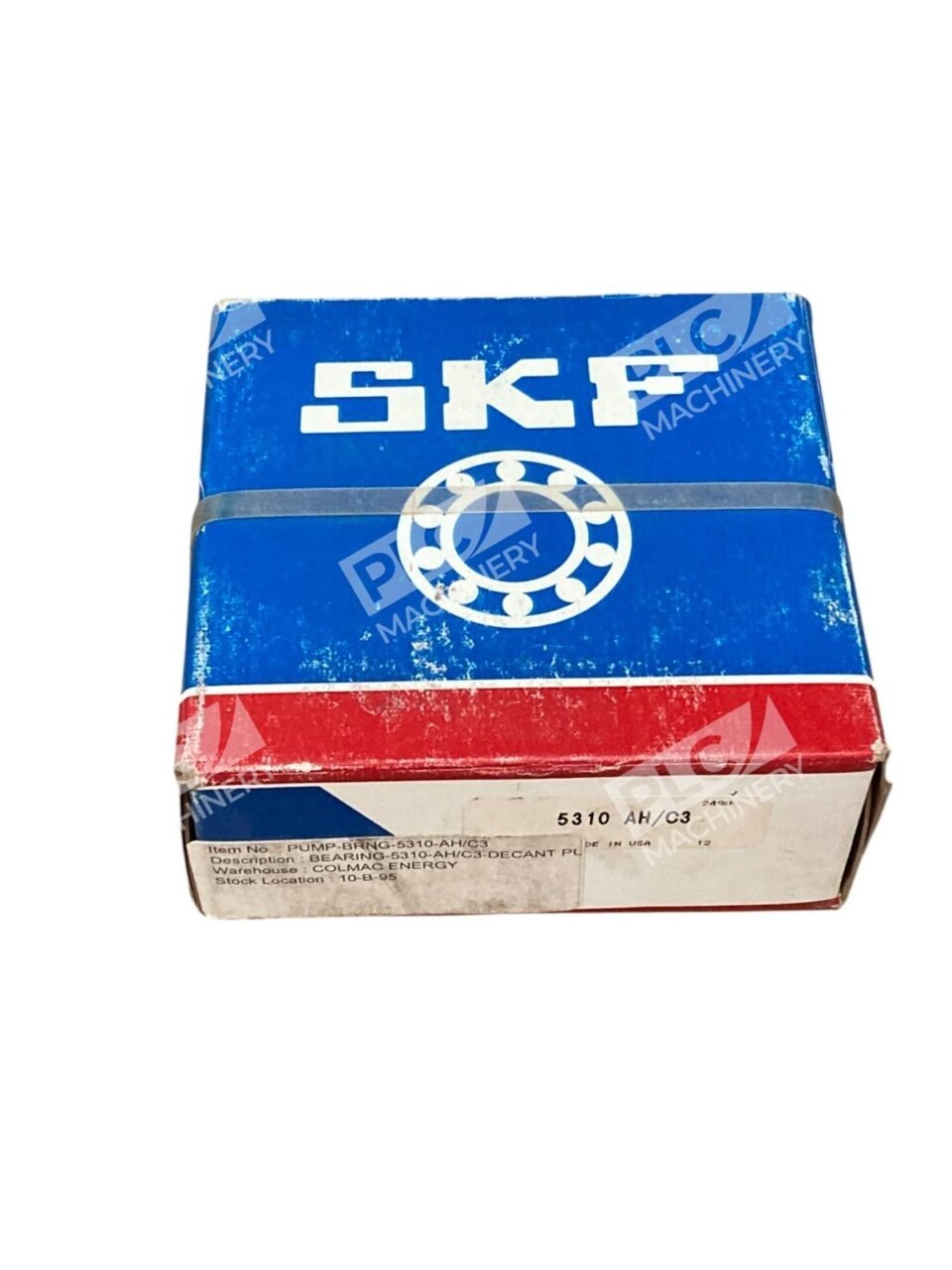

SKF 5310 AH/C3 Double Row Angular Contact Ball Bearing

SKF 5310 AH/C3 Double Row Angular Contact Ball Bearing

The SKF 5310 AH/C3 is a double-row angular contact ball bearing engineered to handle both radial and axial loads efficiently. Its design integrates two single-row angular contact ball bearings in an O-arrangement, providing enhanced load-bearing capacity within a compact structure.

Key Features

• Dimensions: Bore diameter of 50 mm, outer diameter of 110 mm, and a width of 44.4 mm.
• Contact Angle: 30 degrees, optimizing the bearing’s ability to manage axial loads.
• Internal Clearance: C3 classification, indicating a greater internal clearance than standard, suitable for applications with higher thermal expansion or misalignment.
• Cage Material: Constructed with a pressed steel cage, ensuring durability and consistent performance.
• Load Capacity: Designed to support high radial forces and axial forces in both directions, making it versatile for various industrial applications.

Applications

This bearing is ideal for use in machinery where combined loads are present, such as in gearboxes, pumps, and electric motors. Its robust design and high load capacity make it suitable for demanding environments requiring reliable performance.

Additional Information

The SKF 5310 AH/C3 bearing is part of SKF’s comprehensive range of angular contact ball bearings, known for their quality and reliability. The “AH” suffix denotes a heavy-duty design with a 30° contact angle, while “C3” indicates the internal clearance level.
