Siemens Texas Instruments MD22A31266 C PWB2586393-0001 ASM2586397-0002 505-4216

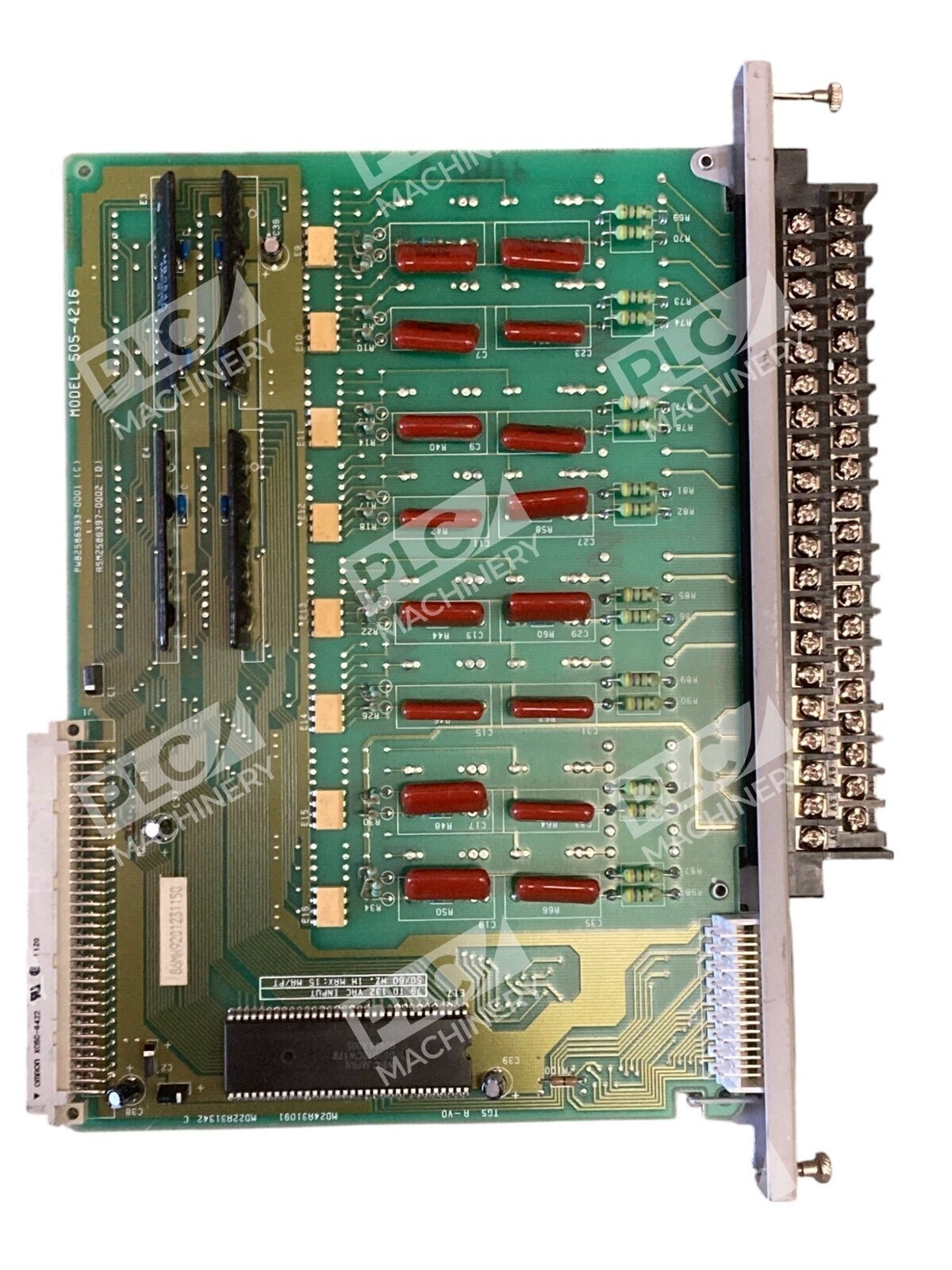

Siemens 505-4216 Digital Input Module

The Siemens 505-4216 Digital Input Module is a reliable component designed for the SIMATIC TI 505 Series, offering efficient digital input capabilities for industrial automation systems.

Key Features

• Input Voltage Range: 79-132 VAC
• Frequency Compatibility: 50/60 Hz
• Current Consumption: Maximum 15 mA per point
• Connectivity: Equipped with a 64-pin connector and 40 screw terminals for secure and flexible wiring

Part Numbers and Identifiers

• Part Number: 505-4216

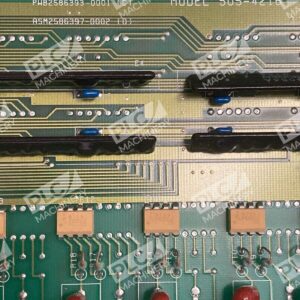

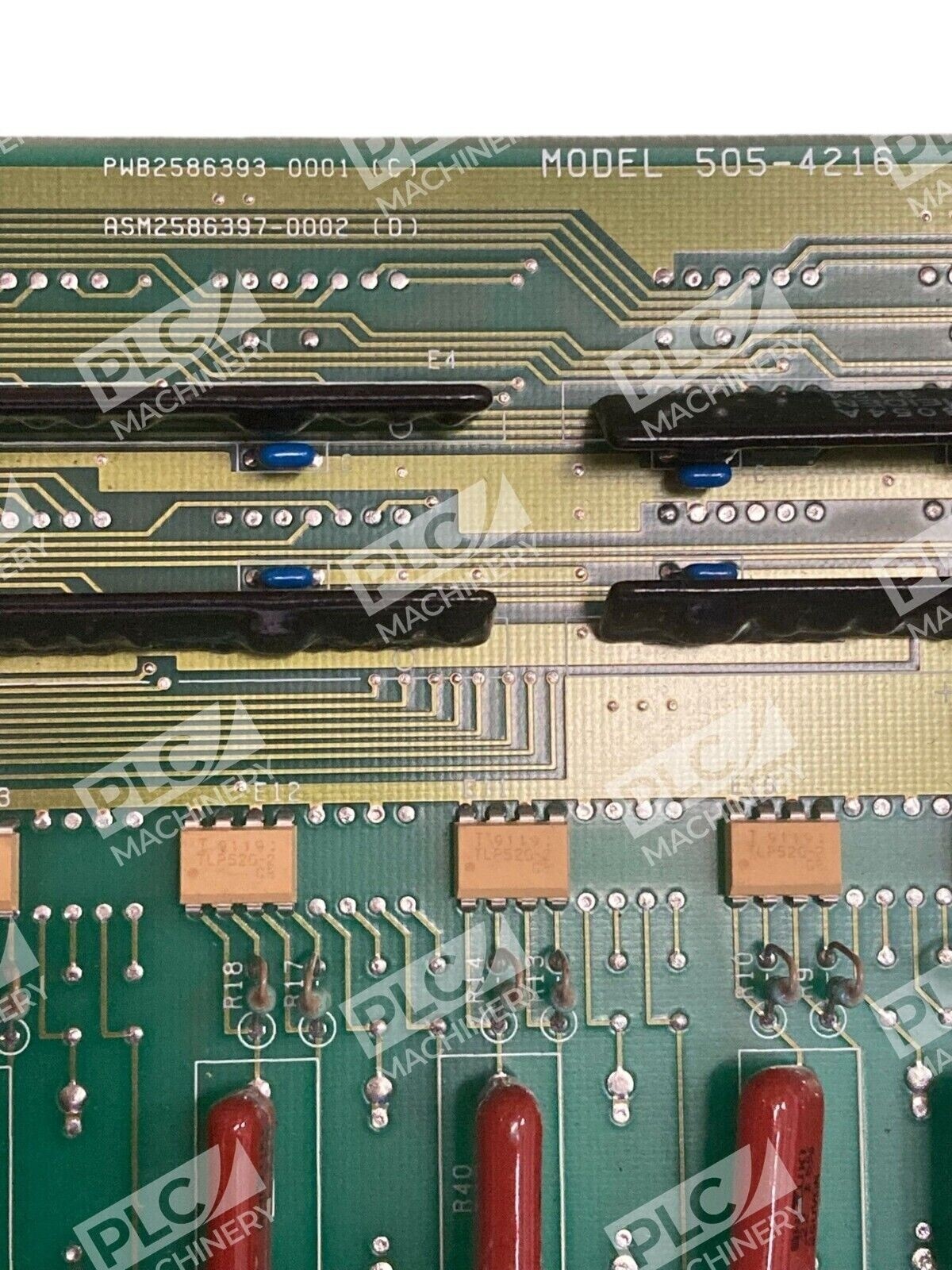

• Printed Wiring Board (PWB): PWB2586393-0001
• Assembly Number (ASM): ASM2586397-0002

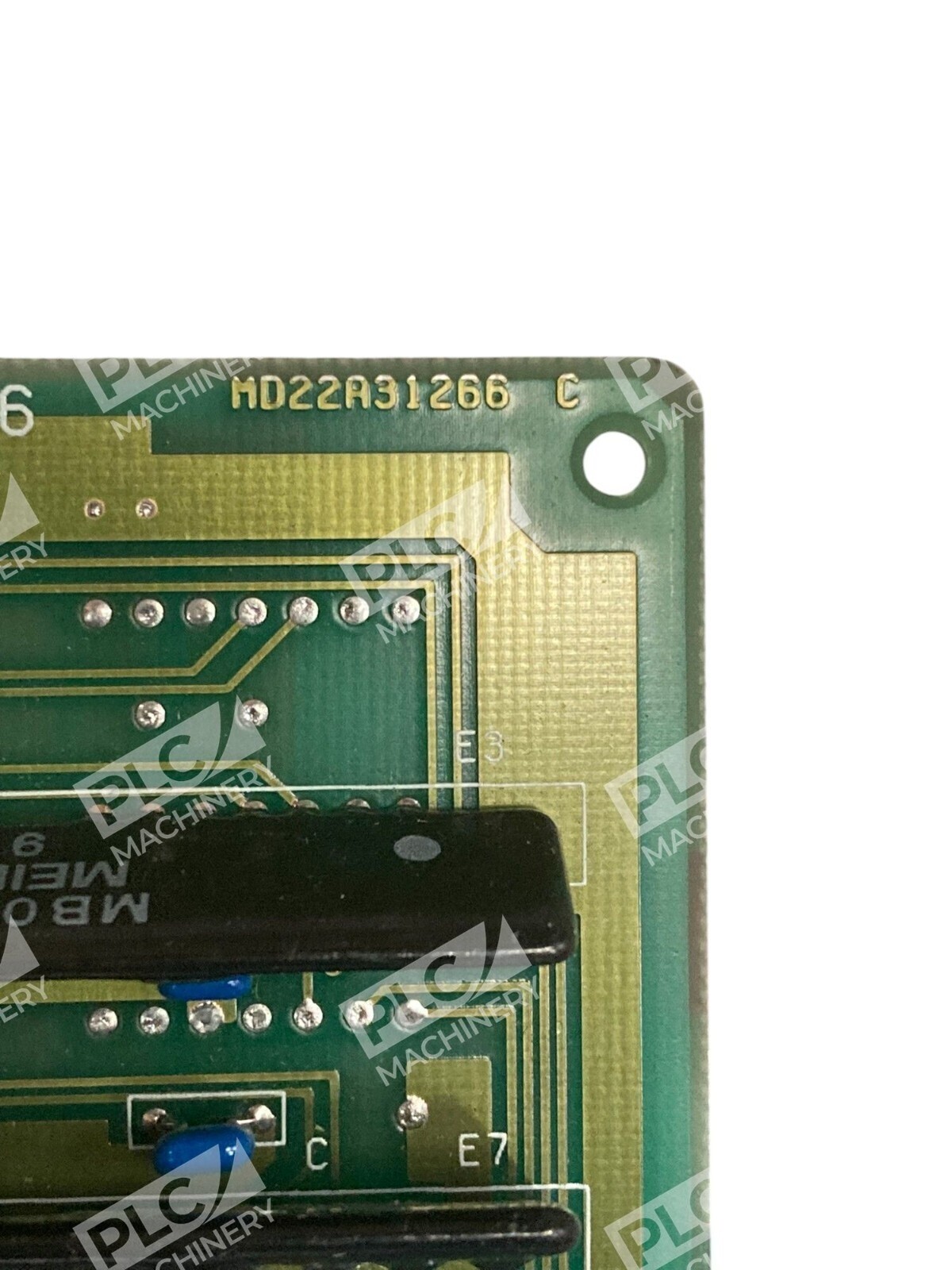

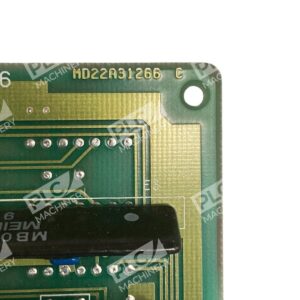

• Module Designations: MD22A31266 C, MD24A31091, MD22A31342

Applications

This module is ideal for integrating into existing SIMATIC TI 505 systems, providing reliable digital input functionality essential for monitoring and controlling various industrial processes.

Additional Information

For installation and operational guidelines, refer to the official Siemens documentation or consult with a certified Siemens distributor to ensure proper integration and performance within your automation setup.
