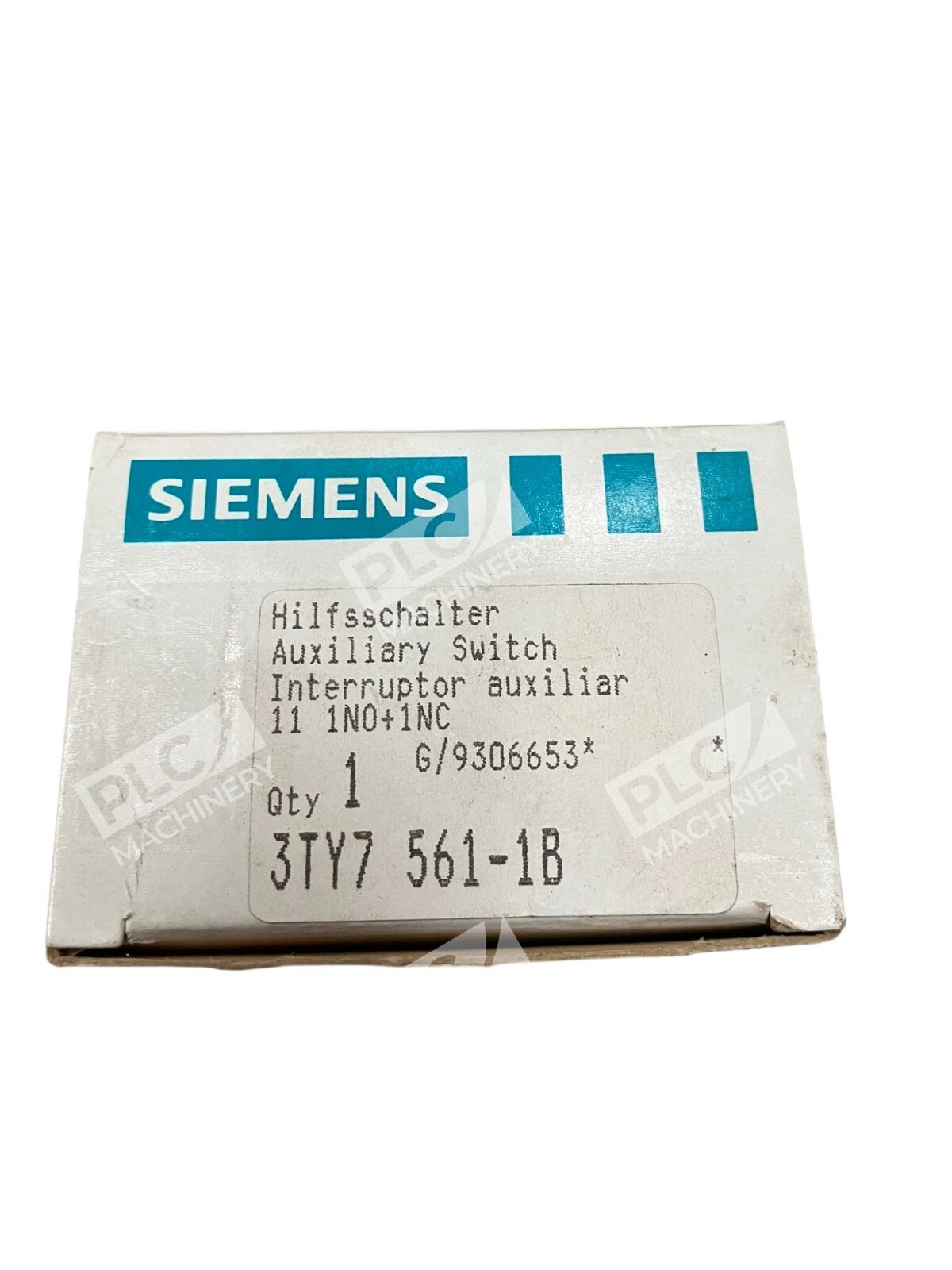

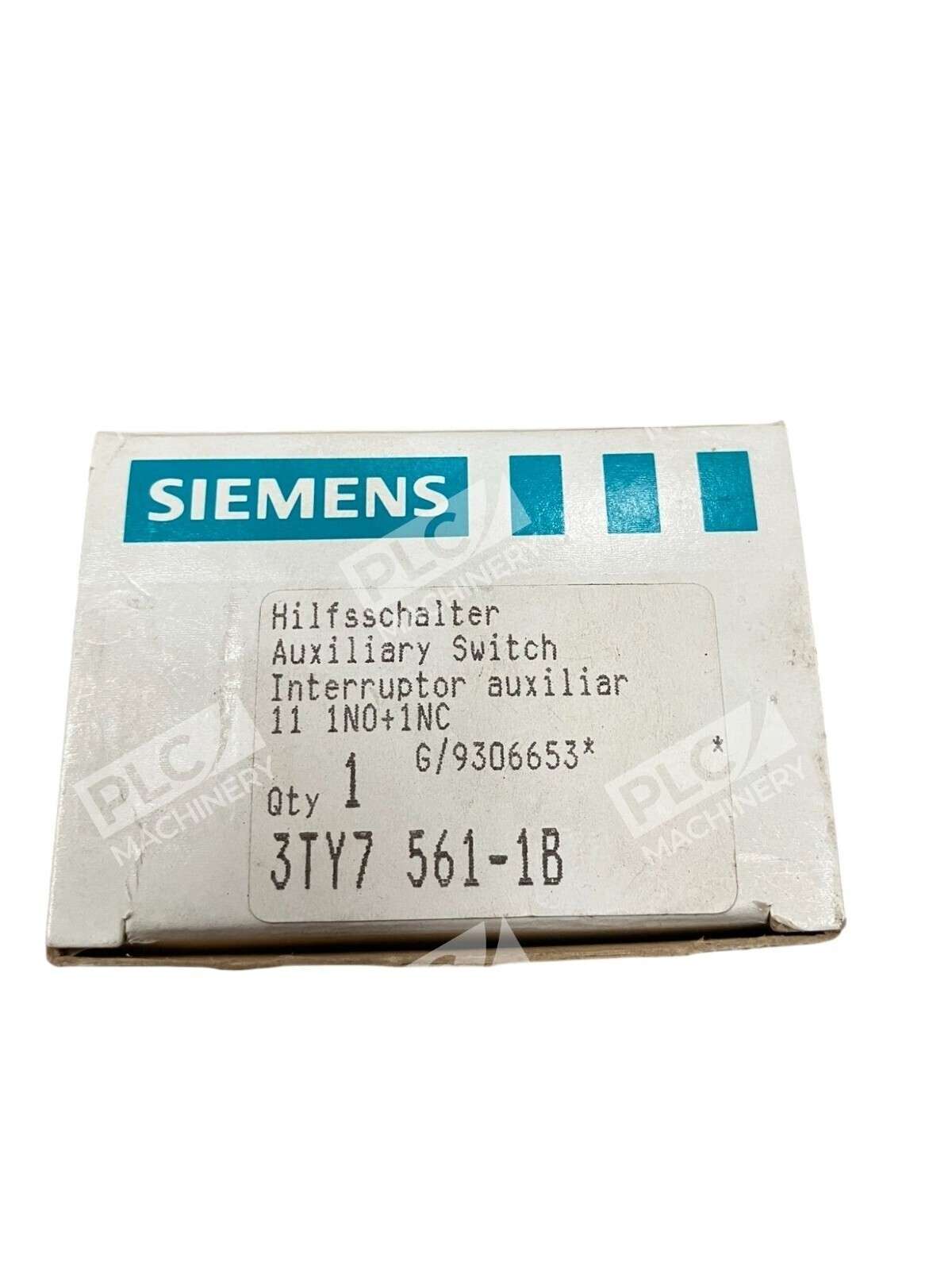

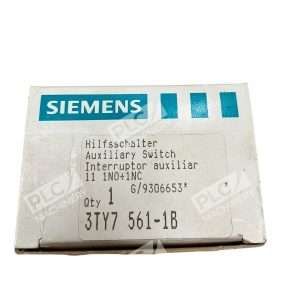

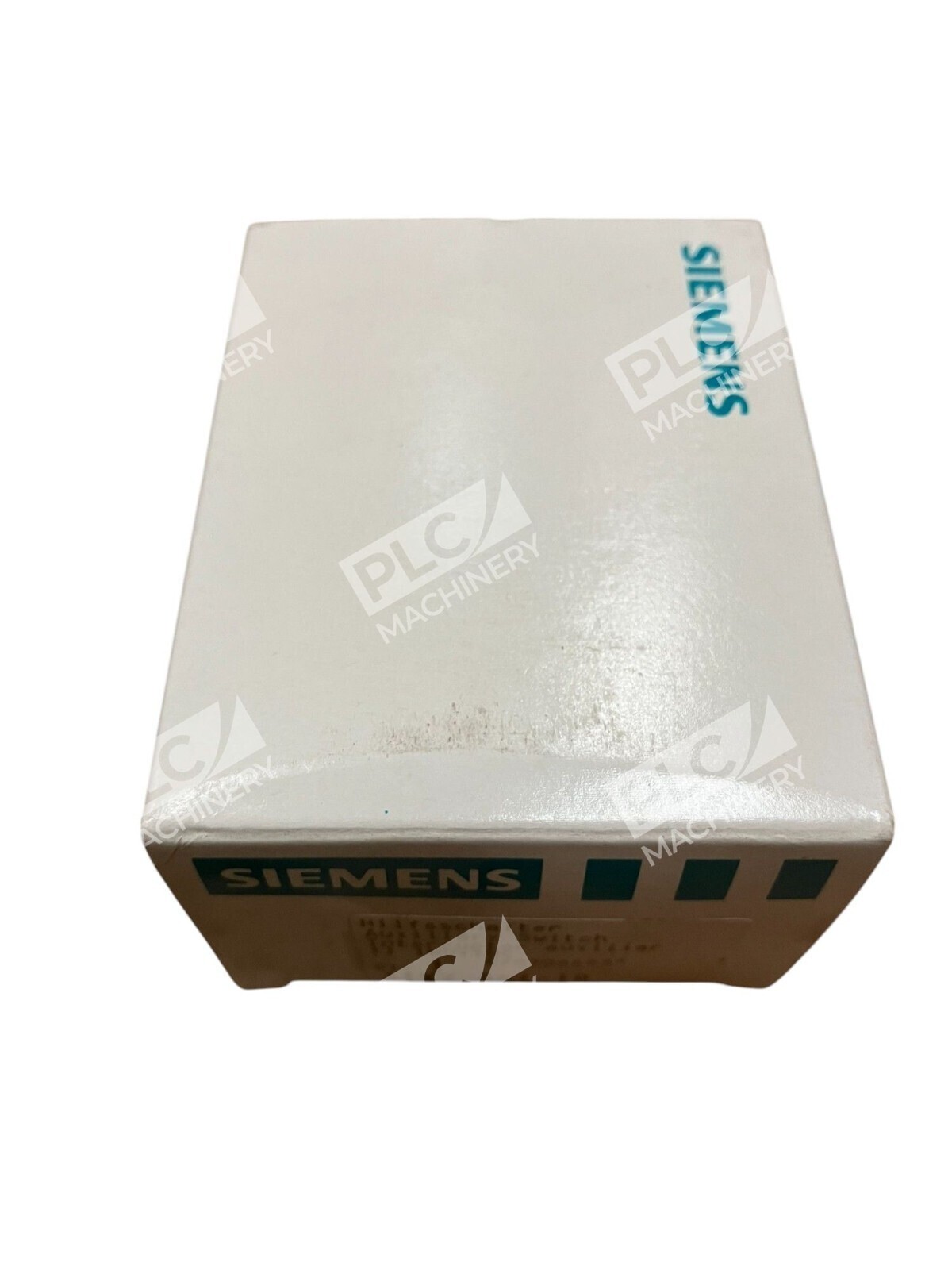

Siemens G/9306653 Auxiliary Switch 3TY7 561-1B

Siemens G/9306653 Auxiliary Switch 3TY7 561-1B

The Siemens G/9306653 Auxiliary Switch, model 3TY7 561-1B, is a high-quality auxiliary contact block designed to enhance the functionality of Siemens contactors. This component is engineered to provide reliable auxiliary switching capabilities, ensuring seamless integration into various industrial applications.

Key Features

• Compatibility: Specifically designed for use with Siemens contactor series 3TB52 to 3TB56 and 3TC52 to 3TC56, ensuring a perfect fit and optimal performance.
• Contact Configuration: Equipped with one normally open (1NO) and one normally closed (1NC) contact, offering versatile switching options for diverse control requirements.
• Mounting Position: Intended for right-side mounting, facilitating straightforward installation and integration into existing systems.
• Electrical Ratings: Supports a rated operational current of 5.6A at AC-15, 230V, making it suitable for a wide range of industrial control applications.
• Durability: Designed to withstand up to 10 million operating cycles, ensuring long-term reliability and reduced maintenance needs.
• Environmental Tolerance: Operates effectively within a temperature range of -25°C to 55°C, accommodating various industrial environments.
• Compact Dimensions: Measures 14 mm in width, 72.5 mm in depth, and 81 mm in height, allowing for efficient use of panel space.

Applications

The Siemens 3TY7 561-1B Auxiliary Switch is ideal for enhancing the control capabilities of Siemens contactors in motor control centers, automation systems, and other industrial control panels. Its robust design and reliable performance make it a valuable component in ensuring efficient and safe operation of electrical systems.

Installation and Maintenance

Featuring a snap-on mounting design, the auxiliary switch block allows for quick and secure attachment to compatible contactors. Its durable construction minimizes maintenance requirements, contributing to reduced downtime and operational costs.

Incorporating the Siemens G/9306653 Auxiliary Switch 3TY7 561-1B into your control systems ensures enhanced functionality, reliability, and adaptability to meet the demands of modern industrial applications.
