Siemens 40A G/9526H21 Circuit Breaker 3VU1300-1MJ00

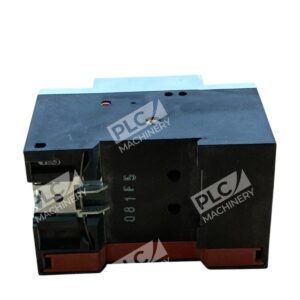

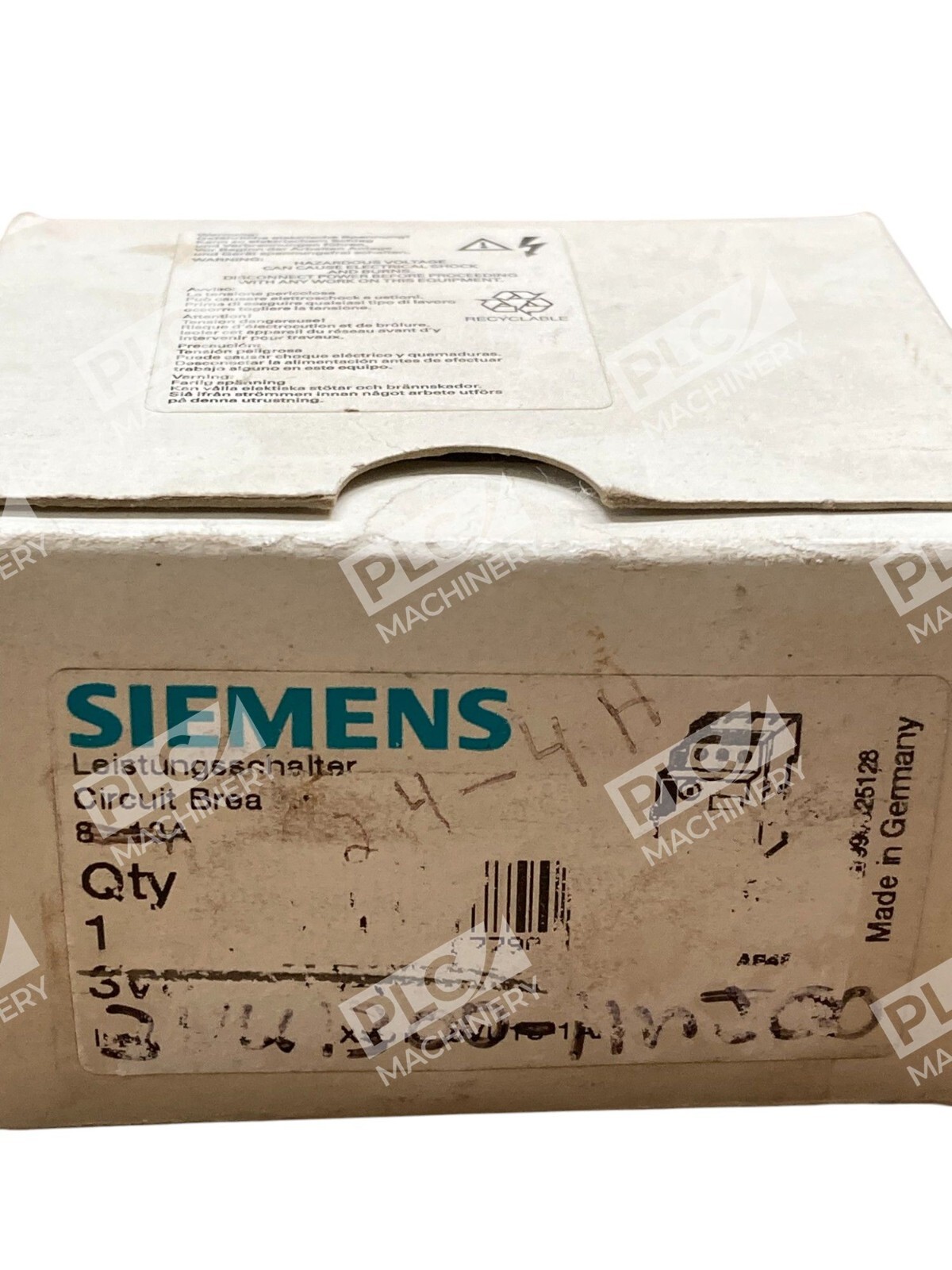

Siemens 3VU1300-1MJ00 Circuit Breaker

The Siemens 3VU1300-1MJ00 is a motor protection circuit breaker designed to safeguard motors with a current rating up to 25A. It features both thermal and magnetic trip mechanisms to provide comprehensive protection against overloads and short circuits.

Key Features

• Adjustable Thermal Release (A-Release): 2.4 to 4A, allowing precise setting according to motor requirements.
• Fixed Magnetic Release (N-Release): 48A, ensuring rapid response to short-circuit conditions.
• Auxiliary Contacts: Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) contact for enhanced control and monitoring capabilities.
• Connection Type: Screw terminals for secure and reliable wiring connections.
• Compact Design: Space-saving form factor suitable for various industrial applications.

Specifications

• Current Rating: Up to 25A
• Thermal Release Range: 2.4 to 4A
• Magnetic Release Setting: 48A
• Auxiliary Contacts: 1 NO + 1 NC
• Terminal Type: Screw terminals
• Weight: Approximately 0.325 kg

This circuit breaker is engineered to provide reliable motor protection, ensuring operational safety and efficiency in industrial environments.
