Siemens 10A Contactor Relay 3TH2022-0BB4

Siemens 10A Contactor Relay 3TH2022-0BB4

The Siemens 3TH2022-0BB4 is a compact and reliable contactor relay designed for efficient control in industrial applications. It features a 24 VDC coil voltage and a 2NO-2NC contact configuration, making it suitable for various control tasks.

Key Features

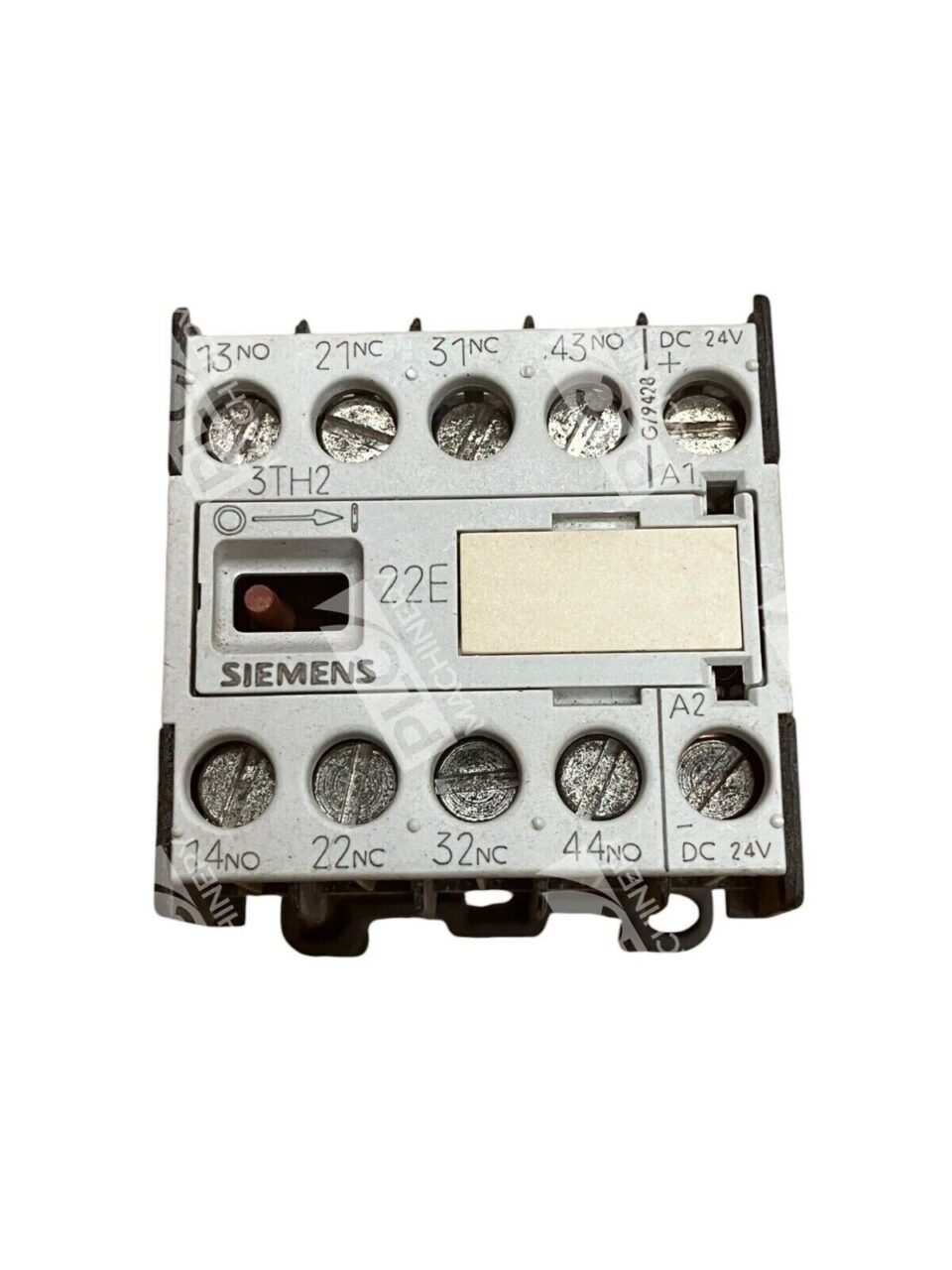

• Contact Configuration: 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
• Coil Voltage: Operates at 24 VDC, ensuring compatibility with standard control systems.
• Current Rating: Capable of handling up to 10A at 240V AC, providing robust performance for demanding applications.
• Mounting Options: Versatile mounting capabilities, including DIN rail, snap-on, and threaded options, facilitating easy integration into various setups.
• Terminal Type: Equipped with screw terminals for secure and straightforward wiring connections.
• Dimensions: Compact design with dimensions of 48 mm in height, 45 mm in width, and 68 mm in depth, allowing for space-efficient installation.
• Operating Temperature Range: Designed to function reliably within a temperature range of -25°C to 55°C, suitable for diverse environmental conditions.
• Protection Rating: Rated at IP20, offering protection against solid objects larger than 12.5 mm.

Applications

The Siemens 3TH2022-0BB4 contactor relay is ideal for controlling auxiliary circuits, signal switching, and interfacing with other control devices in industrial automation systems. Its robust design and reliable performance make it a preferred choice for engineers and technicians seeking efficient control solutions.

Compliance and Standards

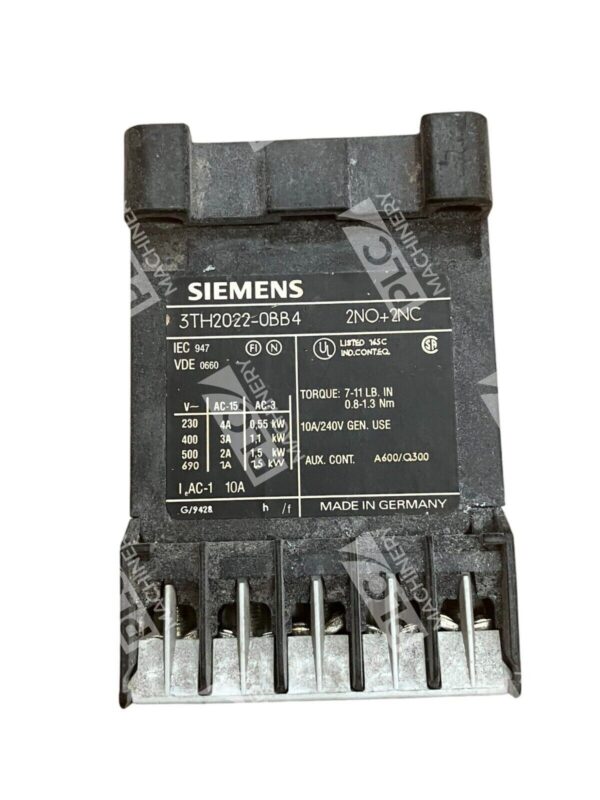

This contactor relay complies with international standards, including IEC 947 and VDE 0660, ensuring high-quality performance and safety in industrial applications.

For more detailed specifications and installation guidelines, please refer to the product datasheet or contact Siemens support.
