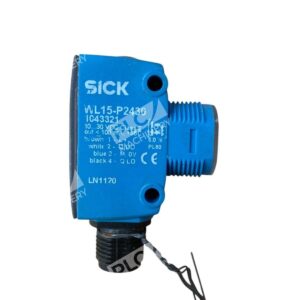

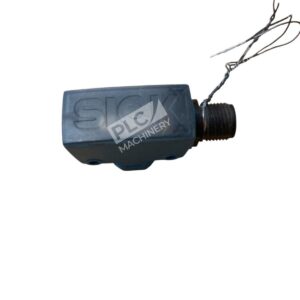

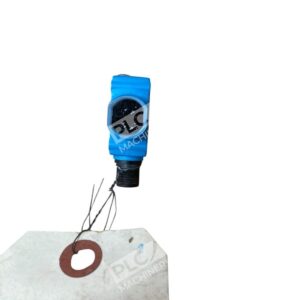

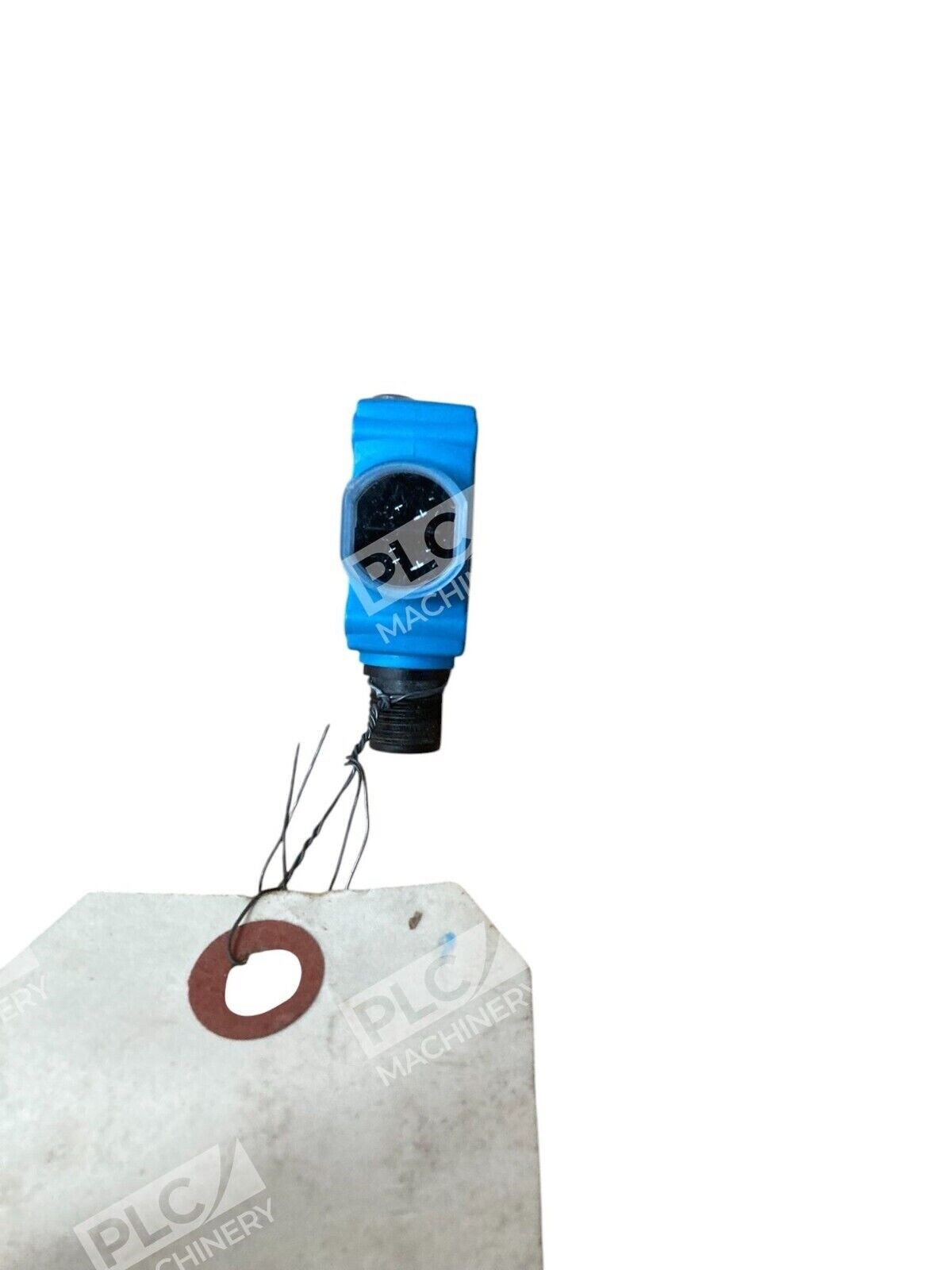

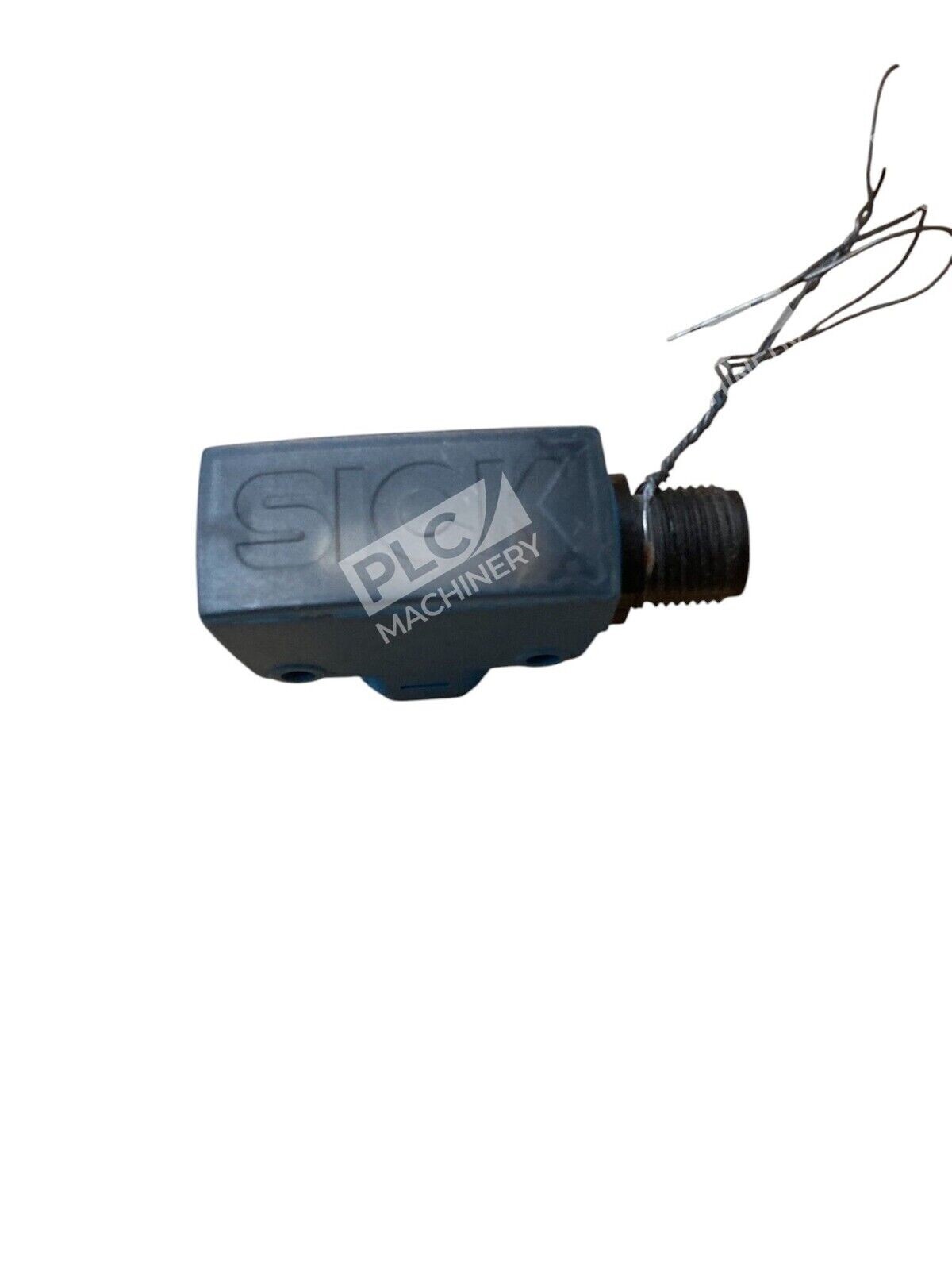

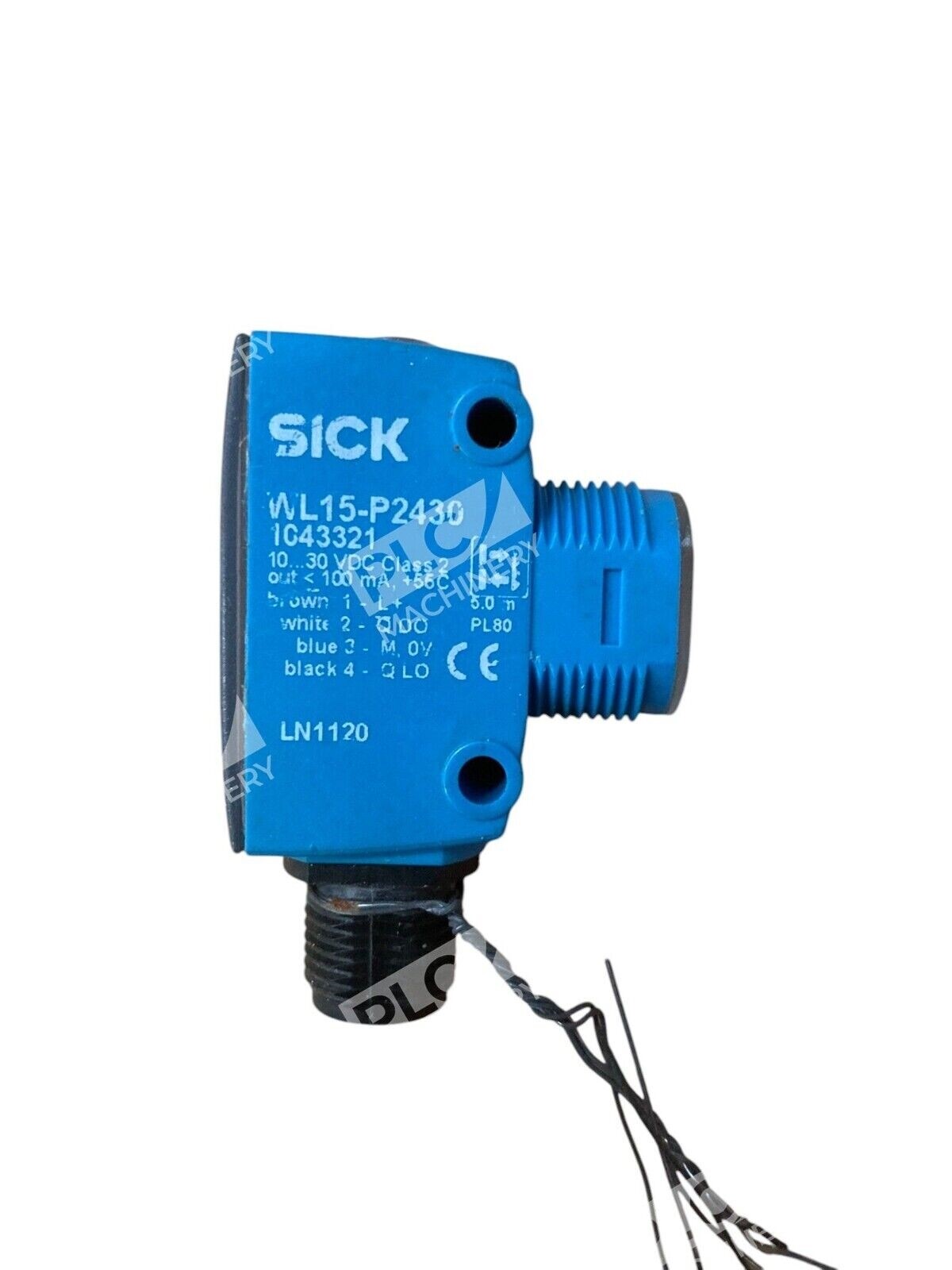

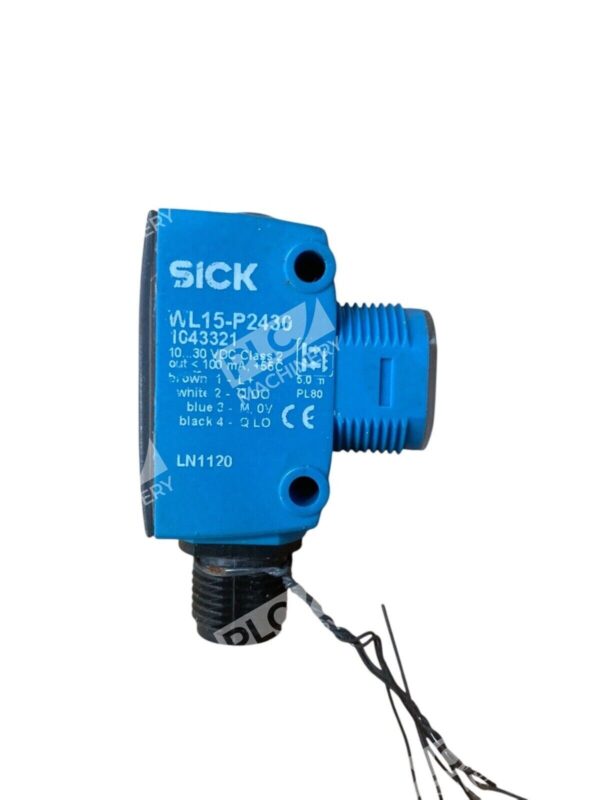

SICK WL15-P2430 Photoelectric Sensor
The SICK WL15-P2430 is a photoelectric retro-reflective sensor designed for reliable object detection in industrial automation applications. Its compact and versatile design makes it suitable for various mounting configurations.
Key Features
- Detection Principle: Utilizes a dual-lens system for enhanced detection accuracy.
- Sensing Range: Capable of detecting objects at distances ranging from 0.035 meters up to 5 meters.
- Light Source: Equipped with a visible red LED operating at a wavelength of 650 nm, ensuring clear and precise detection.
- Output Type: Provides a PNP switching output with complementary functions, supporting both light and dark switching modes.
- Response Time: Offers a swift response time of ≤ 1.25 ms, facilitating high-speed operations.
- Housing Design: Features a hybrid housing with an M18 x 1 threaded design, allowing for flexible mounting options, including front mounting using a plastic nut or snap ring, and side assembly with 24.1 mm through holes.
- Connection Type: Utilizes a 4-pin M12 male connector for secure and straightforward electrical connections.
- Power Supply: Operates within a supply voltage range of 10 V DC to 30 V DC, accommodating various industrial power systems.
- Environmental Protection: Boasts an IP67 enclosure rating, ensuring robust protection against dust and water ingress.
- Operating Temperature: Designed to function effectively in ambient temperatures ranging from -25 °C to +55 °C.
Applications
The WL15-P2430 sensor is ideal for a wide range of industrial applications, including:
- Conveyor belt monitoring
- Packaging systems
- Material handling
- Automated assembly lines
Its reliable performance and flexible mounting options make it a valuable component in enhancing automation efficiency and accuracy.
