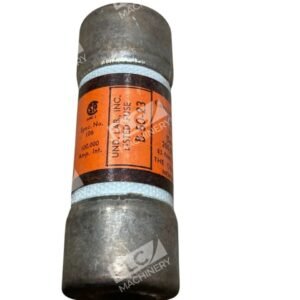

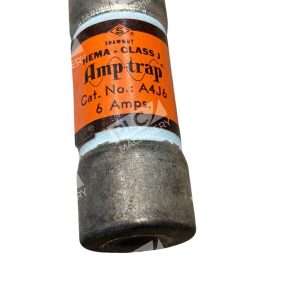

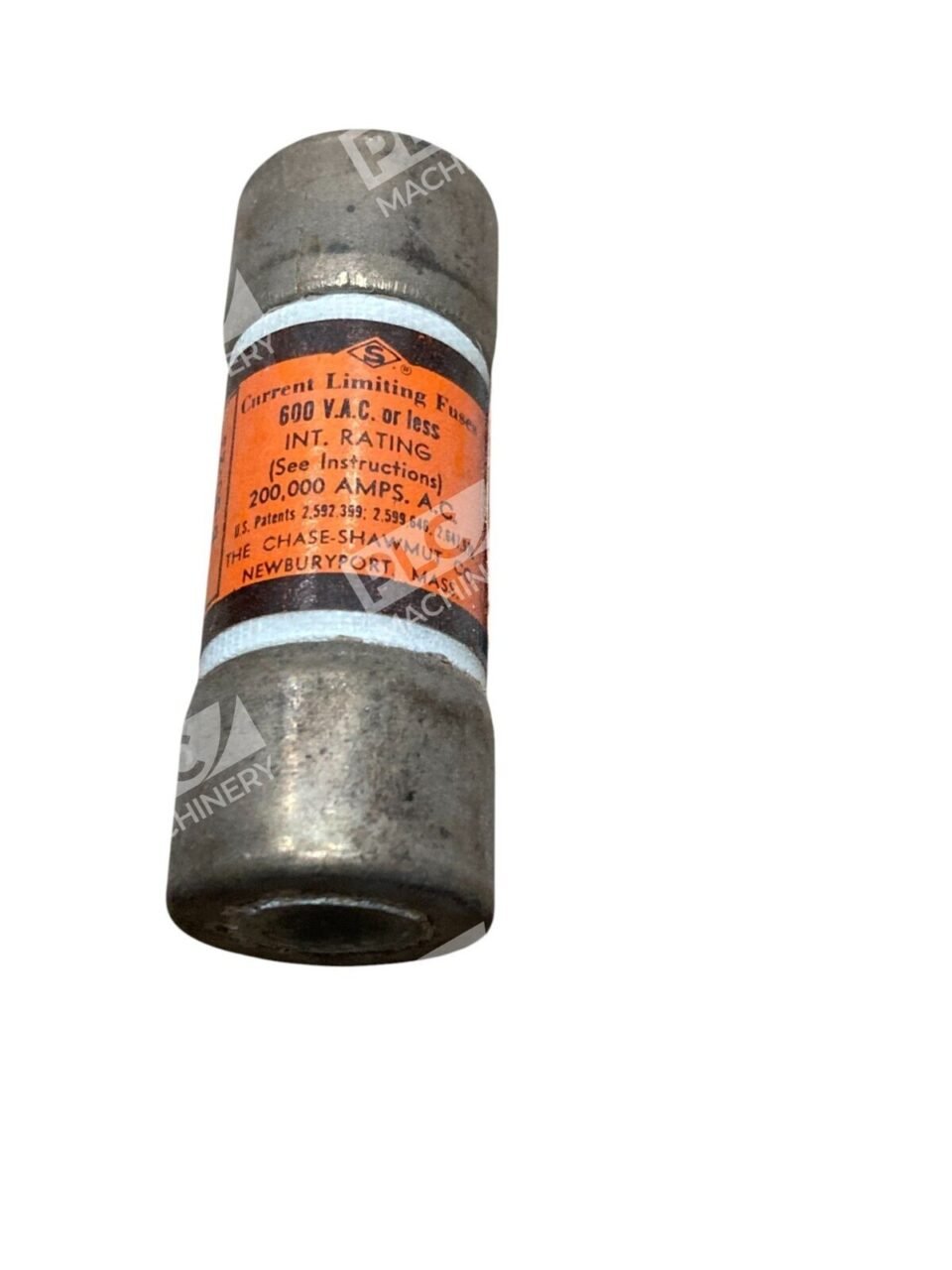

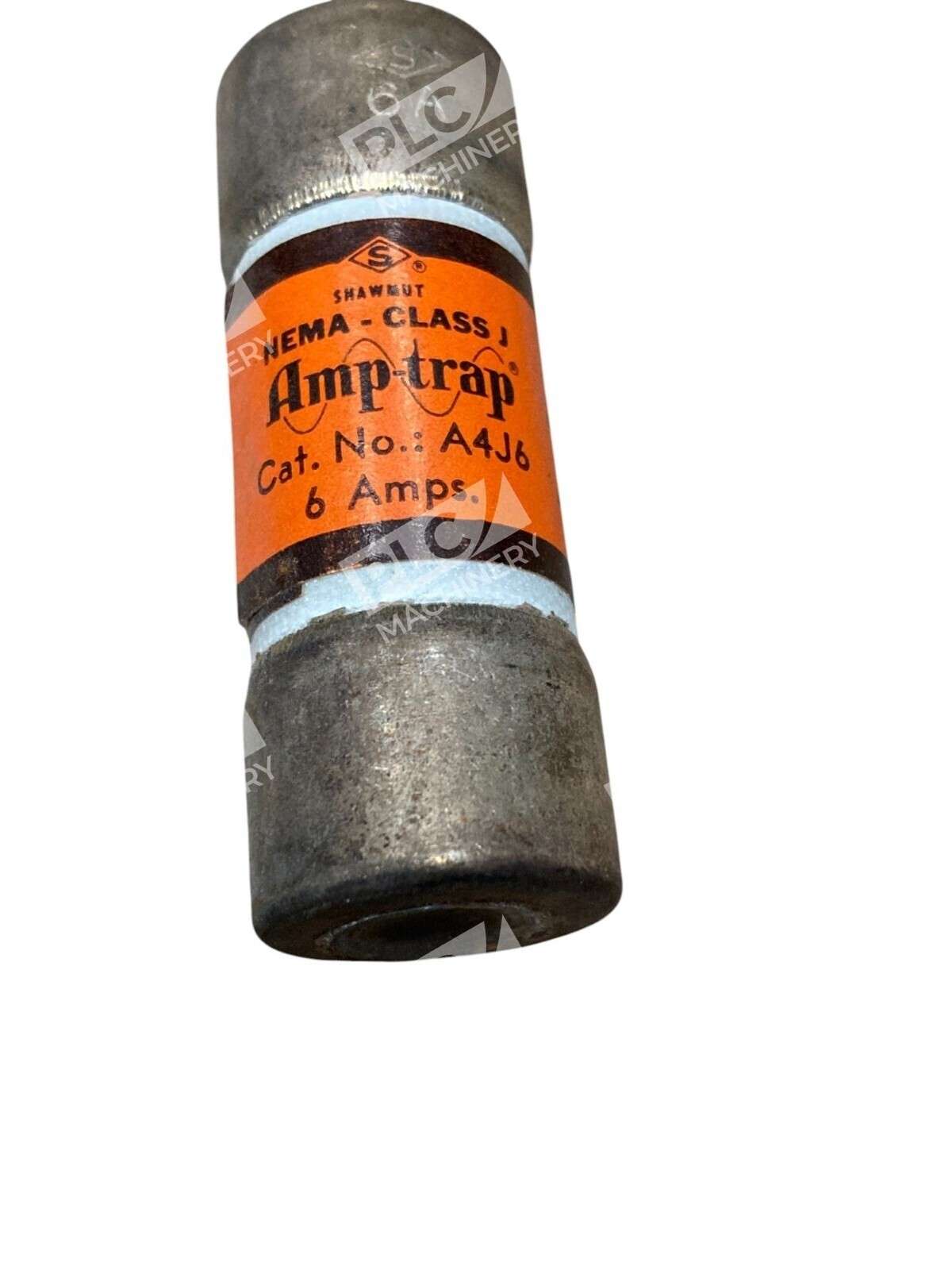

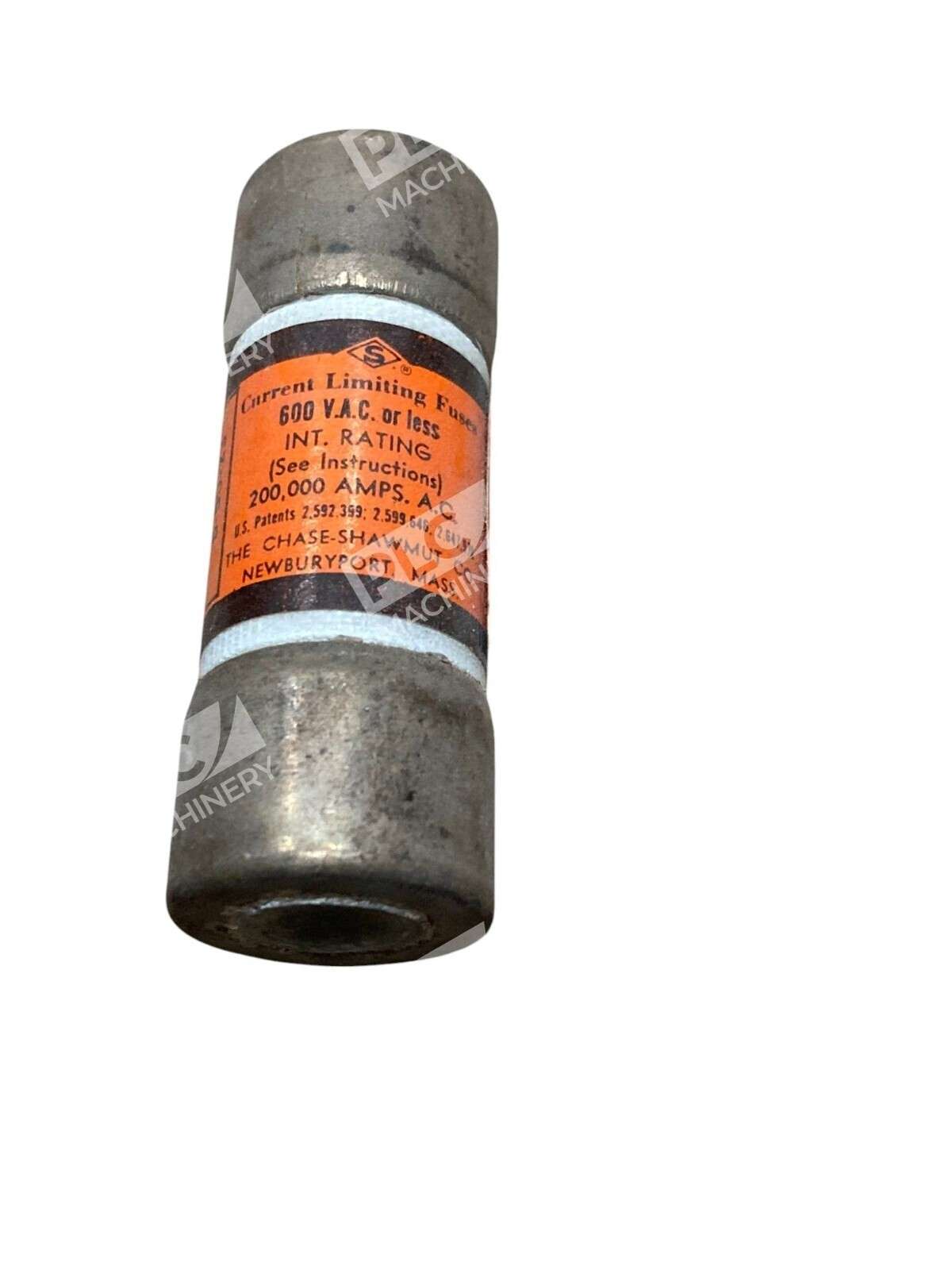

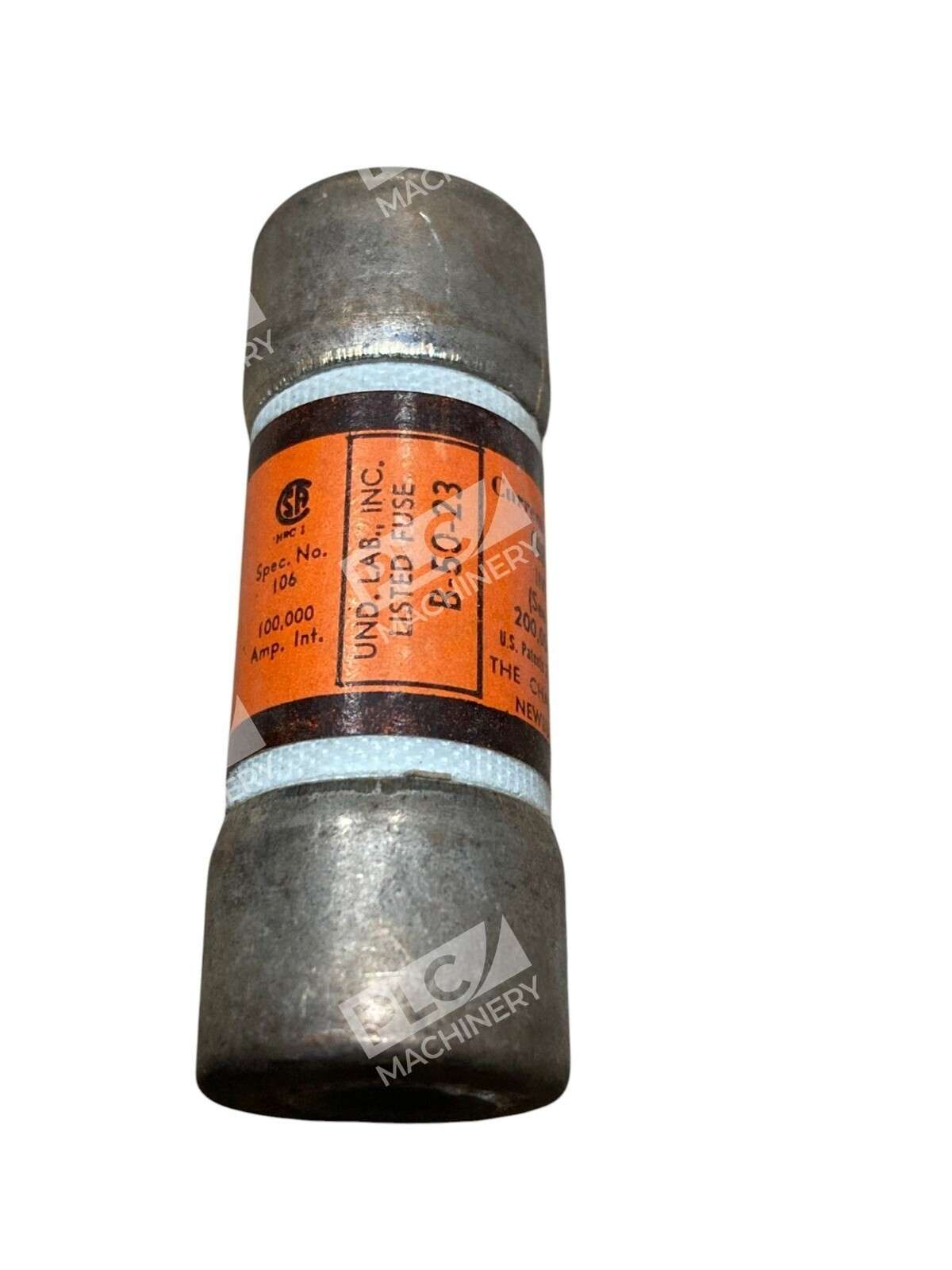

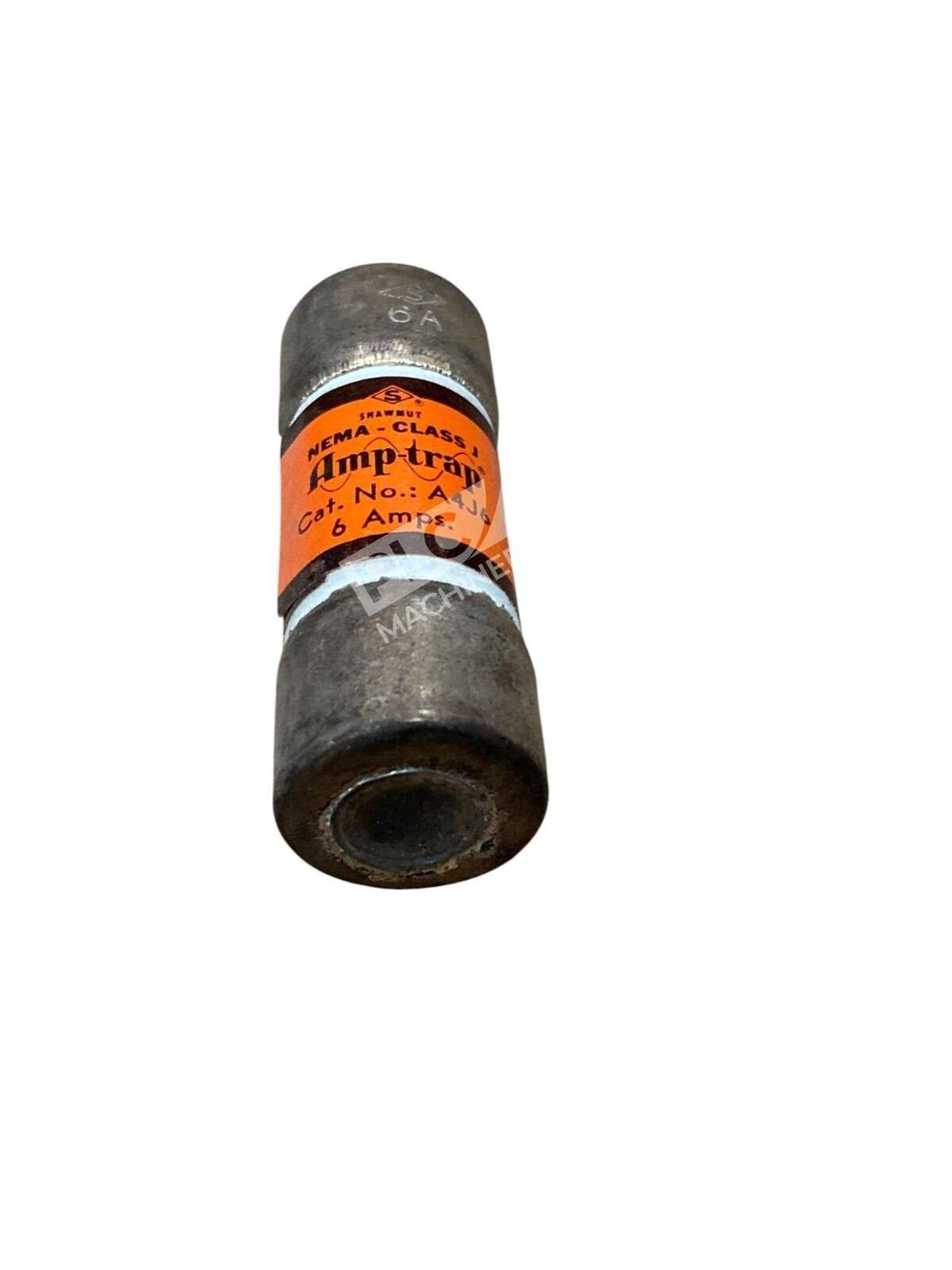

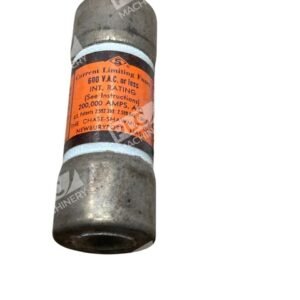

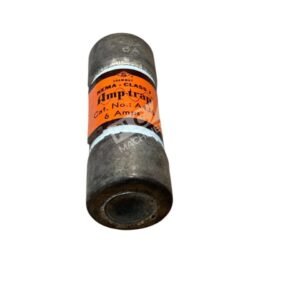

Shawmut A4J6 Time-Delay Fuse 6A 600VAC Class CC 200kA Interrupting Rating

Shawmut A4J6 Time-Delay Fuse 6A 600VAC Class J 200kA Interrupting Rating

The Shawmut A4J6 is a fast-acting Class J fuse designed to provide exceptional current-limiting protection across various applications. Its unique dimensions ensure compatibility and prevent the substitution of fuses with lower voltage ratings or interrupting capabilities.

Key Features

• Current Rating: 6 Amperes
• Voltage Rating: 600V AC / 300V DC
• Interrupting Rating: 200kA at 600V AC
• Fuse Class: J
• Body Style: Cylindrical
• Terminal Type: Ferrule
• Body Material: Melamine
• Frequency: 50/60 Hz

Applications

The A4J6 fuse is suitable for a wide range of industrial and commercial applications, including:

• Motor circuits
• Transformers
• Lighting circuits
• Control panels
• General-purpose circuits requiring fast-acting protection

Compliance and Standards

The Shawmut A4J6 fuse complies with the following standards:

• UL Listed to Standard 248-8
• CSA Certified to Standard C22.2 No. 248.8
• IEC 60269-2-1

Its robust design and high interrupting capacity make it a reliable choice for protecting electrical systems from overcurrent conditions.
