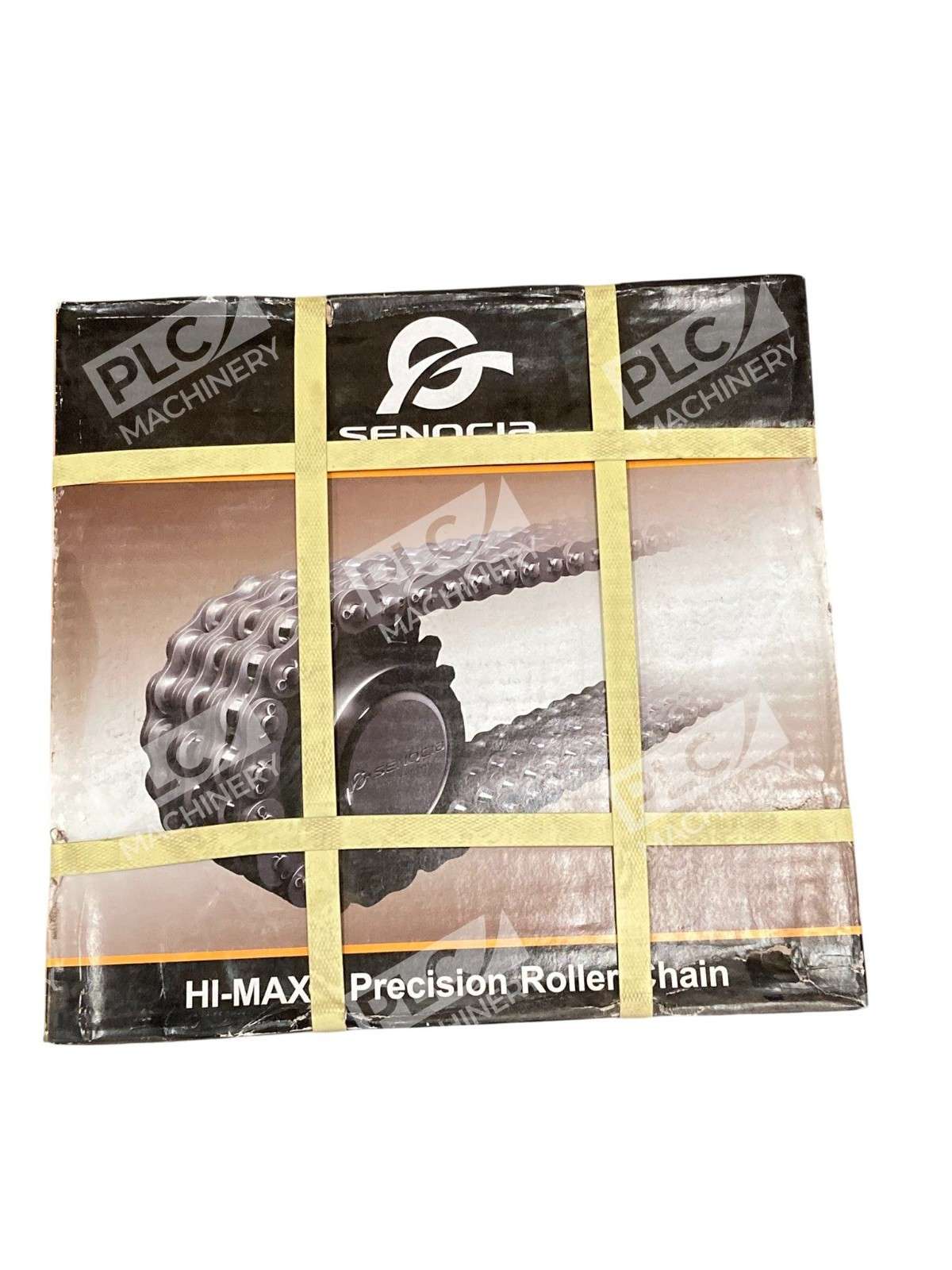

Senqcia 100H RIV HI-MAX Precision Roller Chain 10FT Heavy Duty
The Senqcia 100H RIV HI-MAX Precision Roller Chain is a robust and reliable solution designed for demanding industrial applications. This heavy-duty roller chain adheres to the ASME/ANSI B29.1 American roller chain standard, ensuring compatibility and performance across various machinery and equipment.
Key Features
- Enhanced Strength: The heavy series design incorporates link plates that are one size thicker than standard roller chains, providing additional strength for heavy-duty applications.
- Solid Construction: Manufactured with solid cold-forged bushings and rollers, this chain offers superior wear resistance and extended service life.
- Pre-Lubricated: Each chain is pre-lubricated with high-quality wax-type grease, reducing initial wear and ensuring smooth operation from the start.

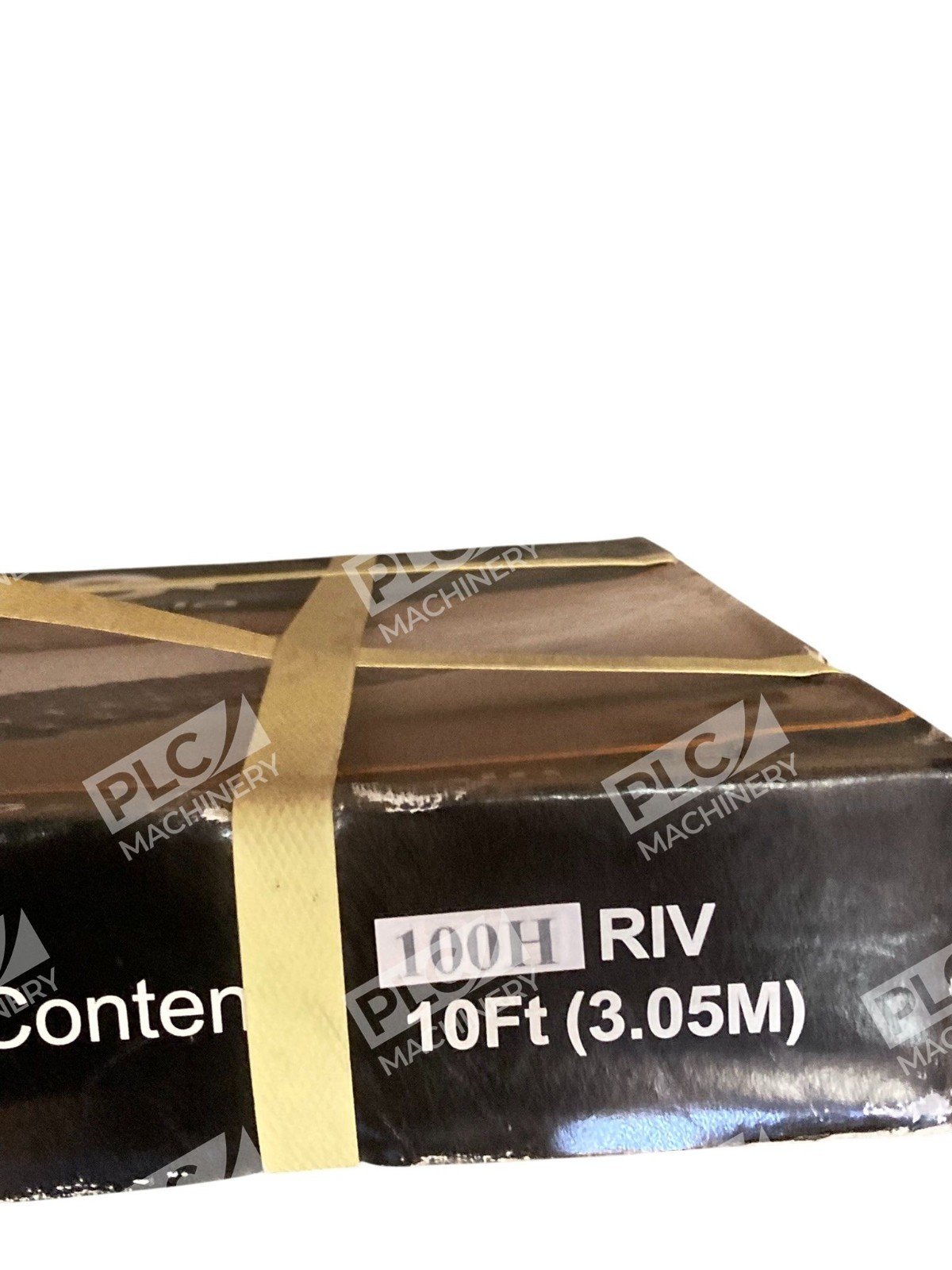

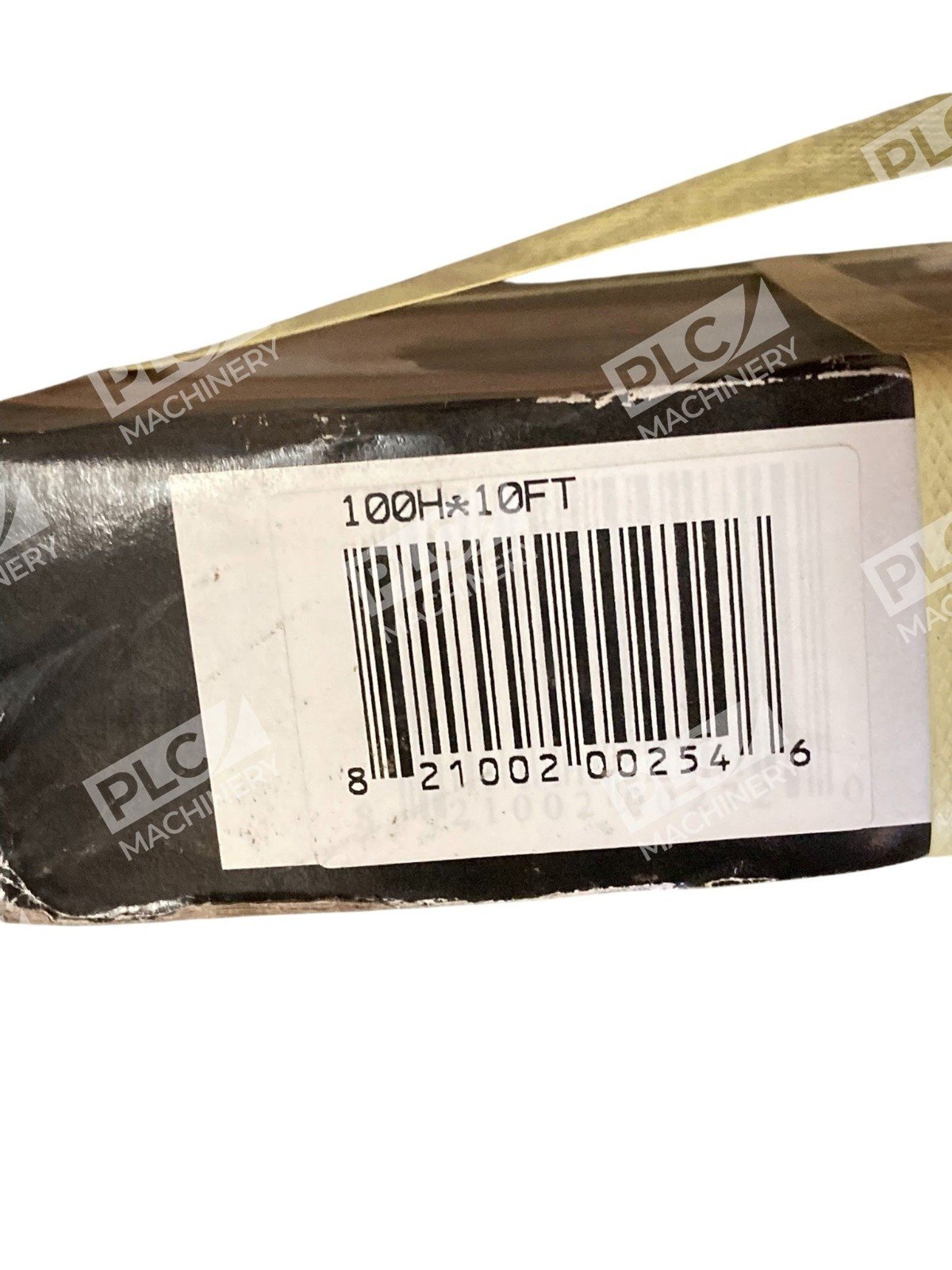

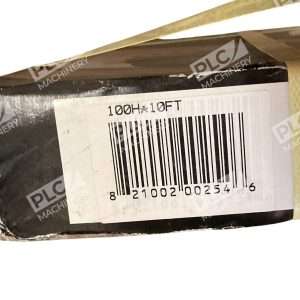

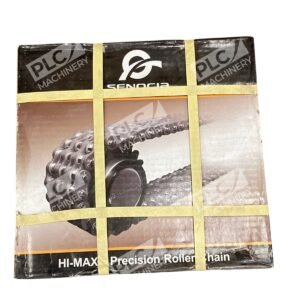

- Convenient Packaging: Packaged in a 10-foot box, the chain includes a connecting link for easy installation. Offset links are available separately for precise length adjustments.
Specifications
- Chain Size & Pitch: #100 / 1-1/4 inch
- Overall Length: 10 feet
- Inside Width: 0.750 inch
- Roller Diameter: 0.750 inch
- Link Plate Height: 1.185 inch
- Link Plate Thickness: 0.187 inch
- Pin Diameter: 0.375 inch
- Material: Carbon Steel
- Tensile Strength: 26,460 lbs
- Working Load Capacity: 5,510 lbs
- Standards Met: ASME B29
The Senqcia 100H RIV HI-MAX Precision Roller Chain is engineered to deliver exceptional performance and durability, making it an ideal choice for heavy-duty industrial applications requiring reliable power transmission.
