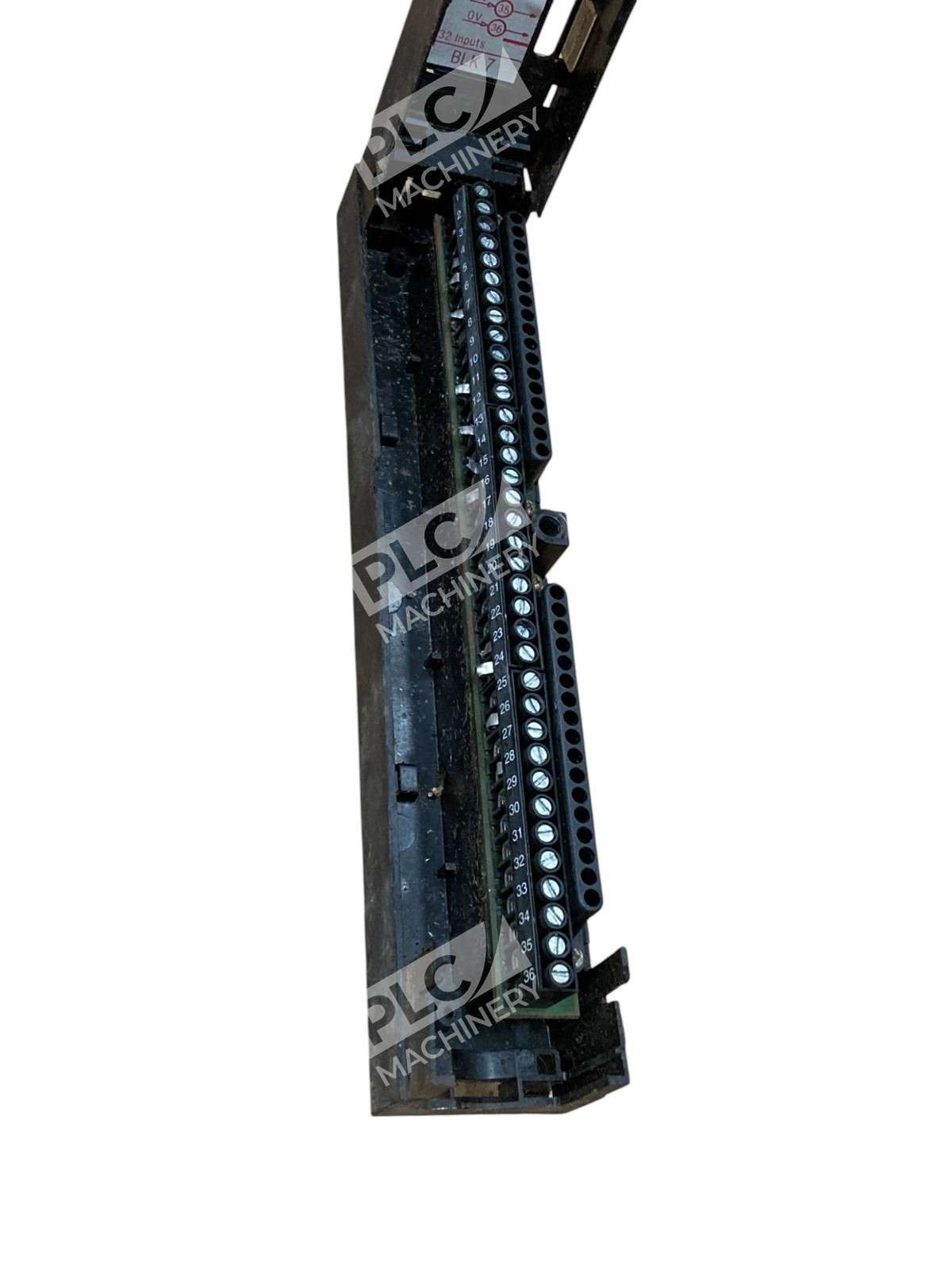

Schneider Electric TSXBLK7 32 Inputs Terminal Block
The Schneider Electric TSXBLK7 is a terminal block designed to facilitate the connection of 32 input channels within industrial automation systems. It serves as a critical interface between field devices and programmable logic controllers (PLCs), ensuring reliable signal transmission and system integrity.
Key Features
- Input Capacity: Accommodates up to 32 discrete input channels, enabling efficient management of multiple signals.

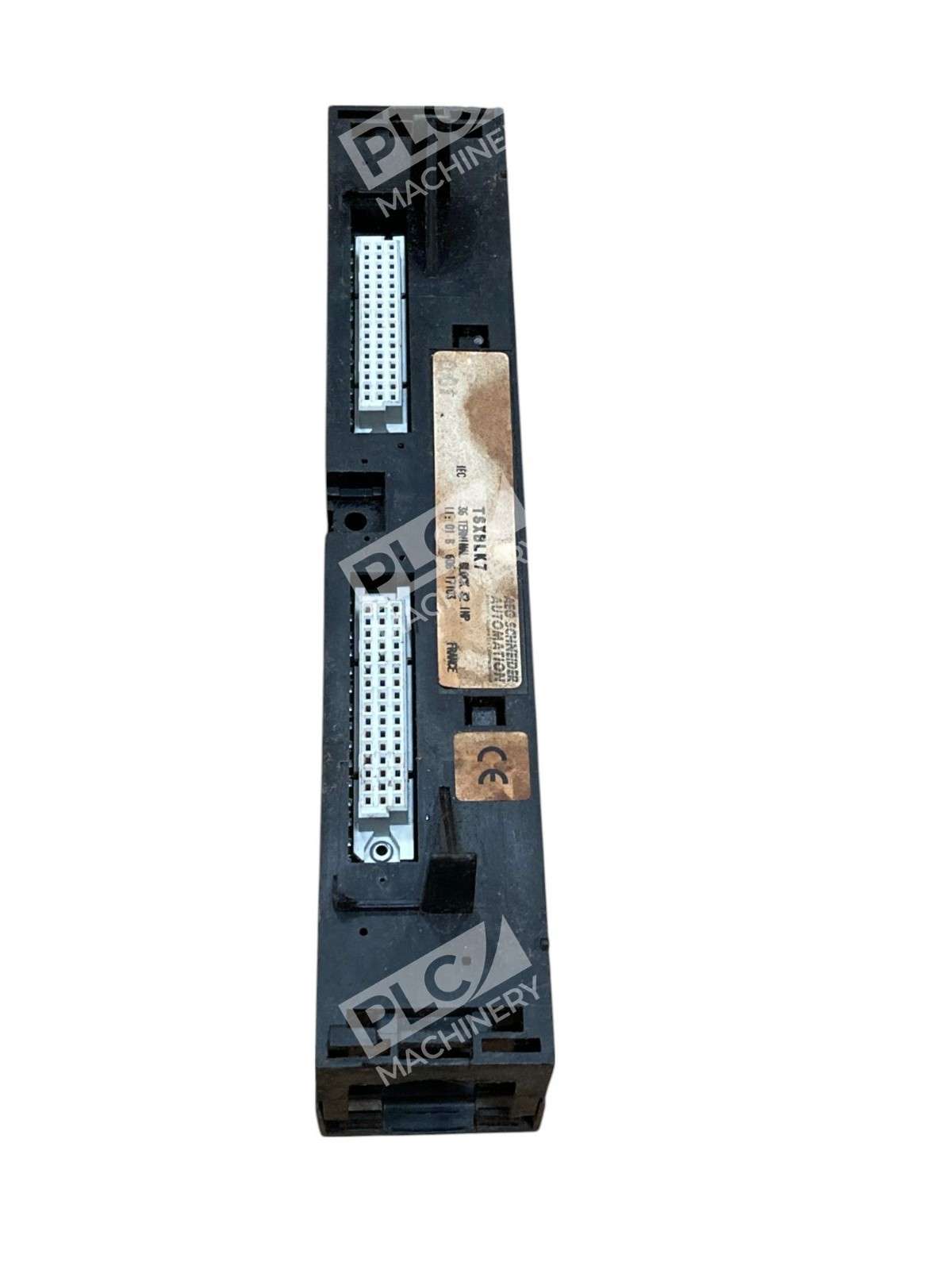

- Connector Type: Equipped with two 20-way male HE10 connectors, providing secure and standardized connections for input modules.
- Compatibility: Specifically designed for integration with Telemecanique TSX series PLCs, including models such as TSX47, TSX67, TSX87, and TSX107, ensuring seamless system integration.
- Compact Design: Features a 36-point terminal configuration, optimizing space within control panels while maintaining organized wiring.
- Durability: Constructed with high-quality materials to withstand the demands of industrial environments, ensuring long-term reliability.
Applications
The TSXBLK7 terminal block is ideal for various industrial applications, including:
- Material handling systems
- Packaging machinery
- Textile manufacturing equipment
- Other automated processes requiring efficient input signal management
Installation and Integration
Integrating the TSXBLK7 into your automation system is straightforward. It is designed to be mounted adjacent to other PLC modules within the TSX rack, such as CPU boards, power supply units, and output modules. This arrangement facilitates organized wiring and efficient signal routing, contributing to overall system performance.
By incorporating the Schneider Electric TSXBLK7 32 Inputs Terminal Block into your control system, you enhance the reliability and efficiency of your industrial automation processes, ensuring precise input signal management and streamlined operations.
