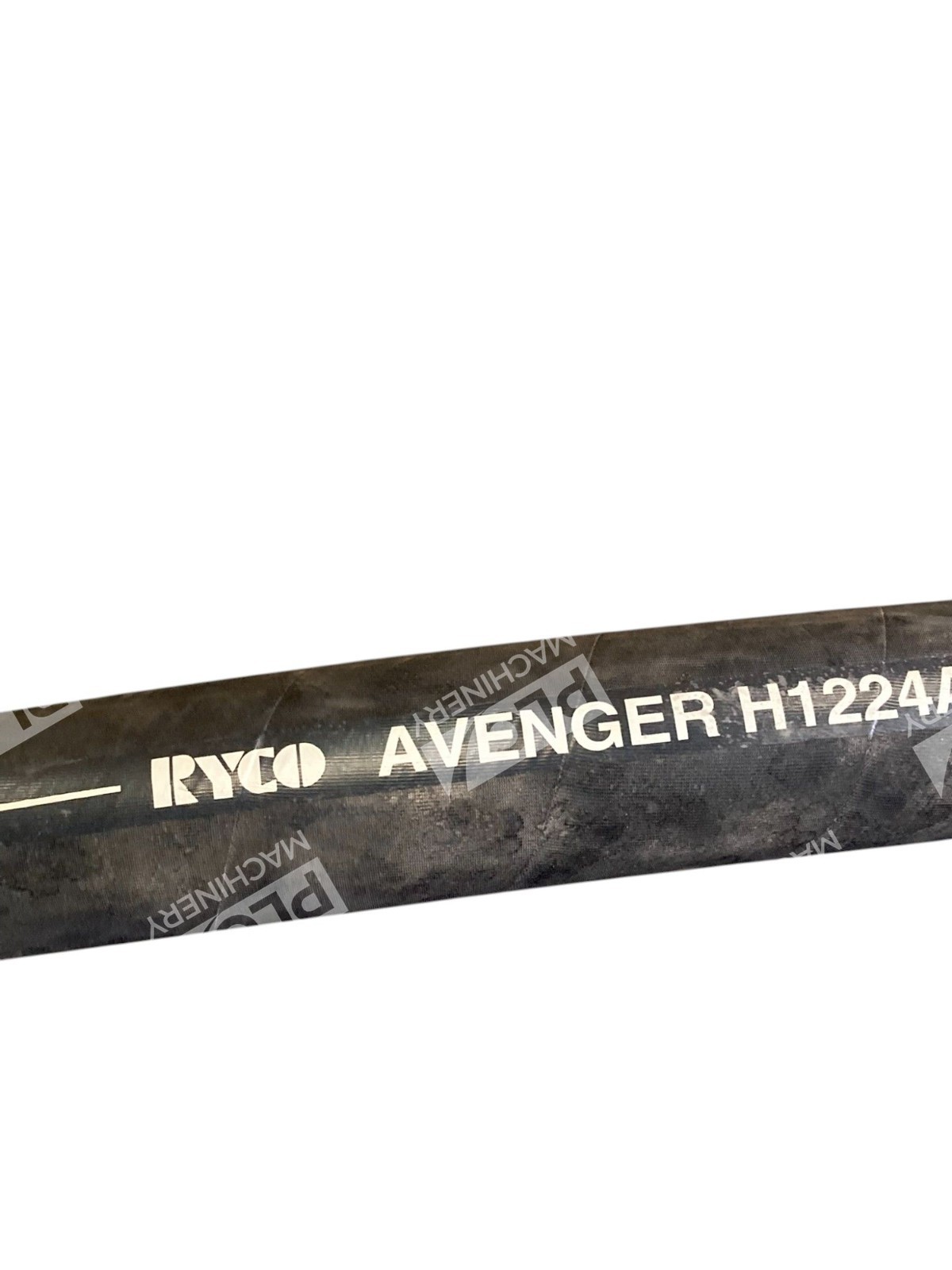

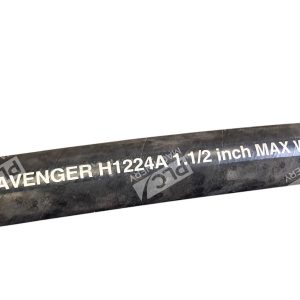

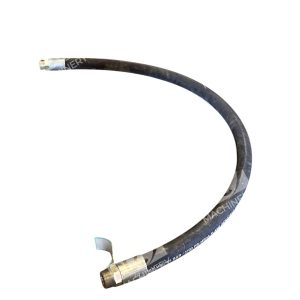

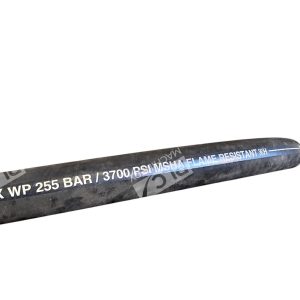

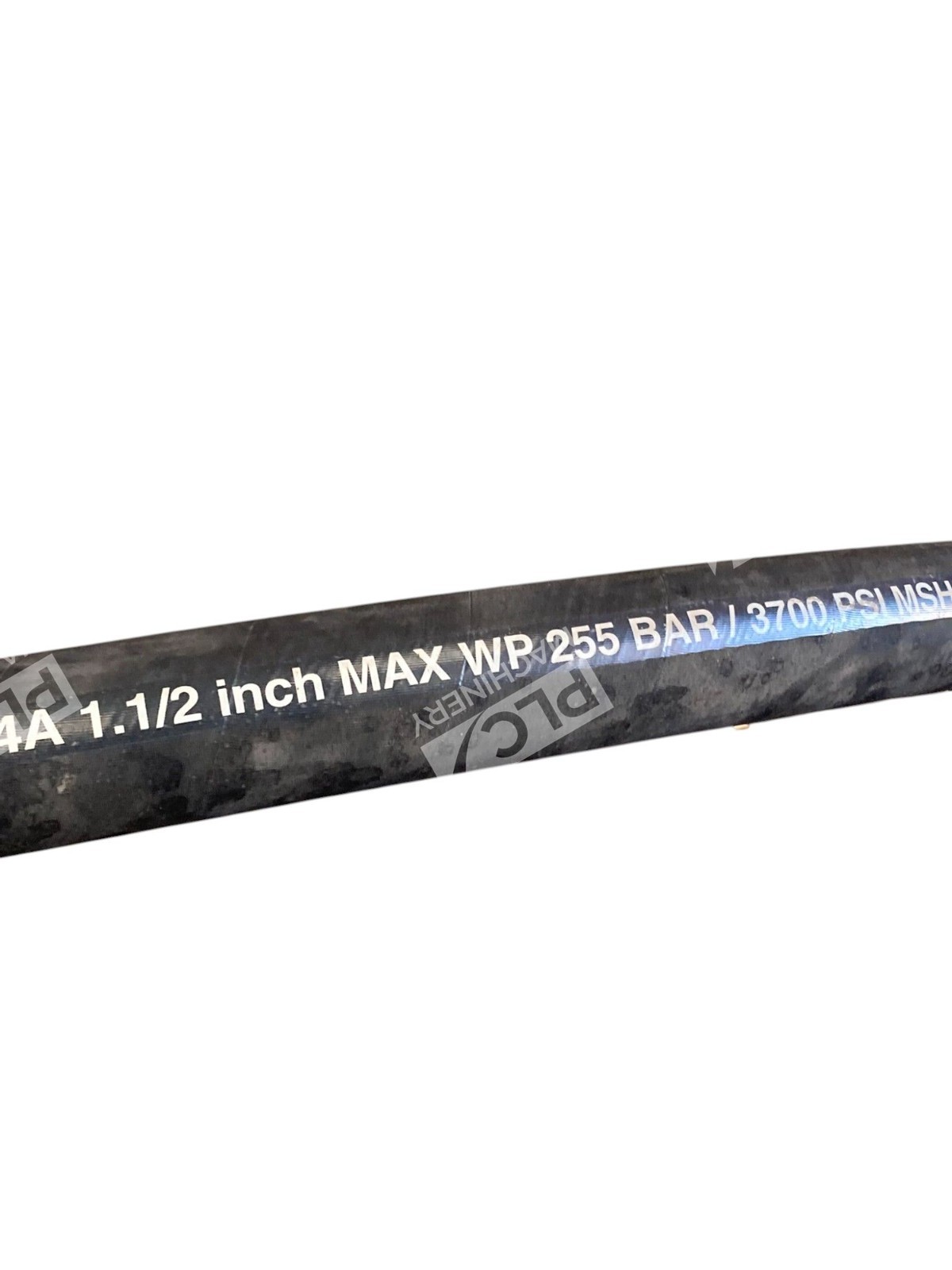

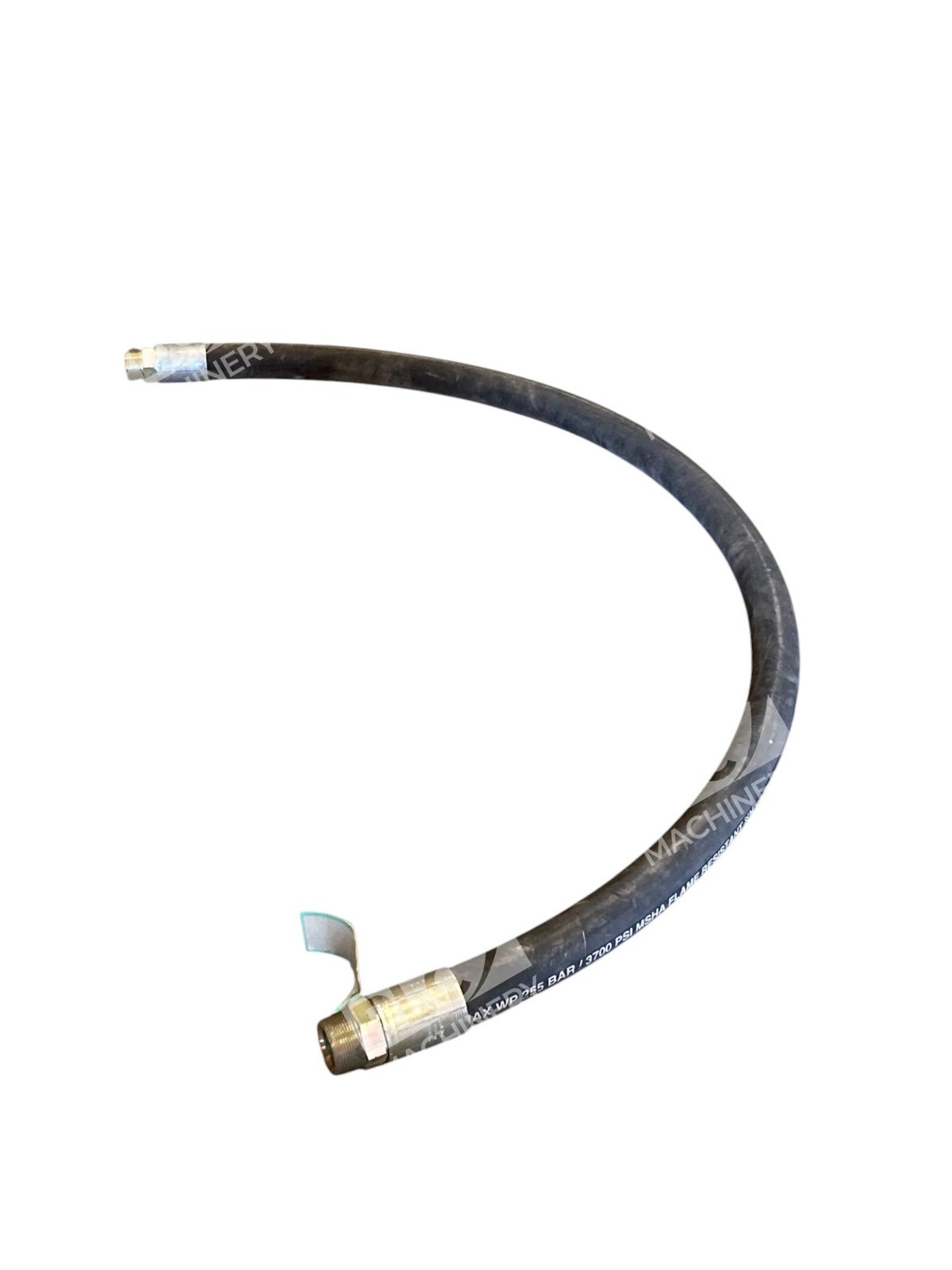

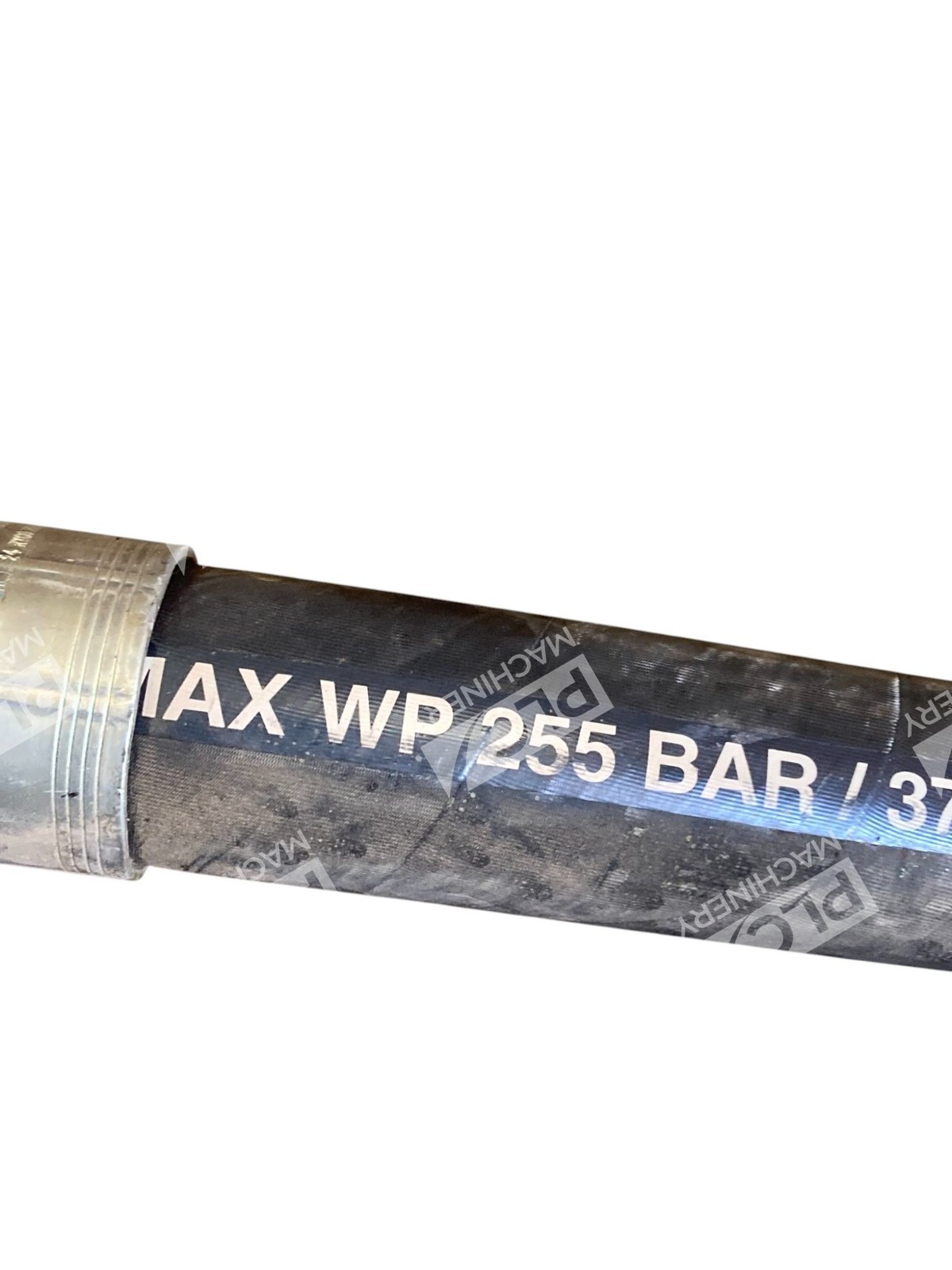

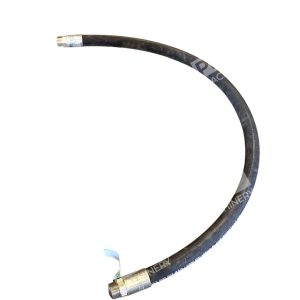

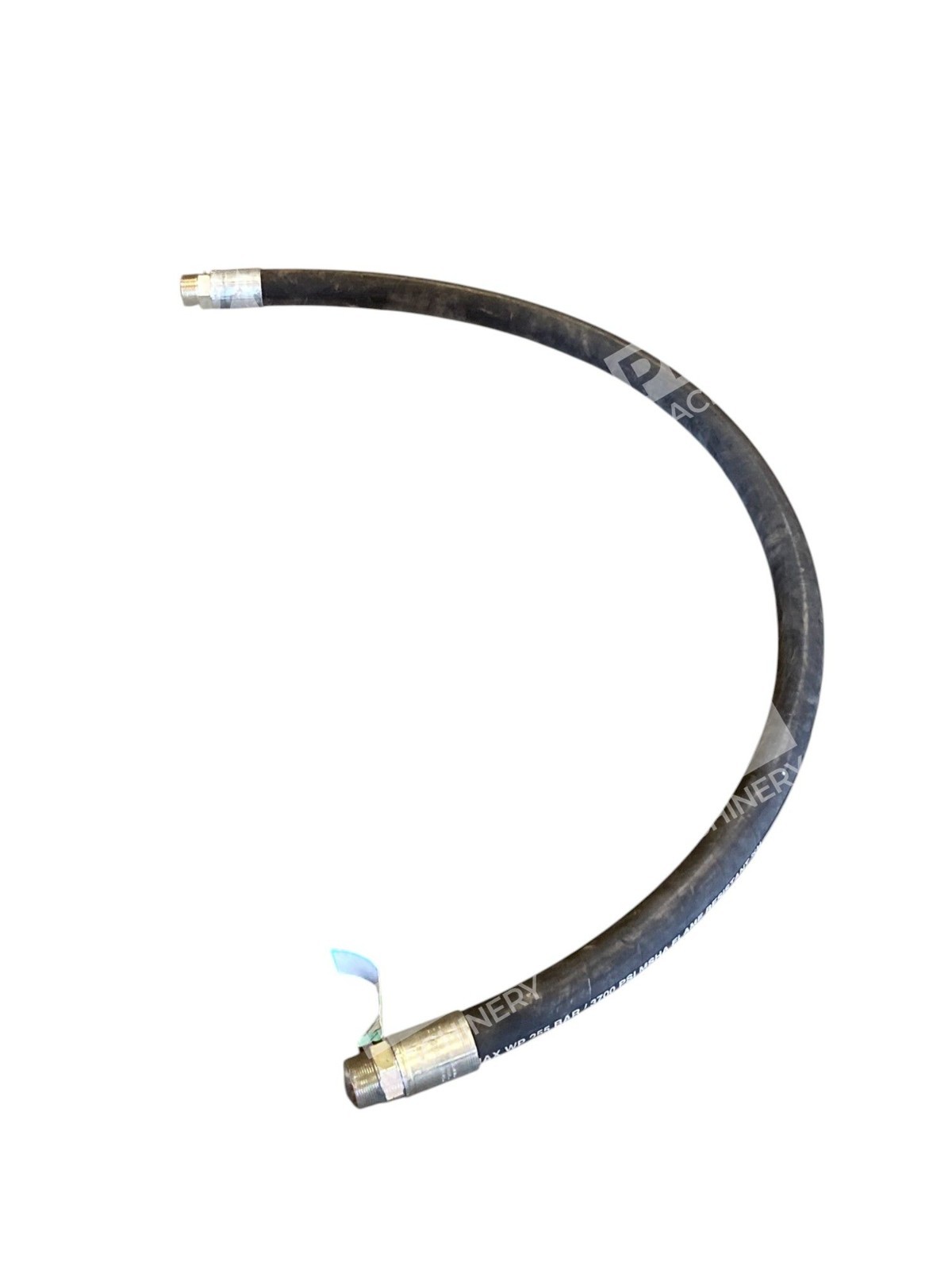

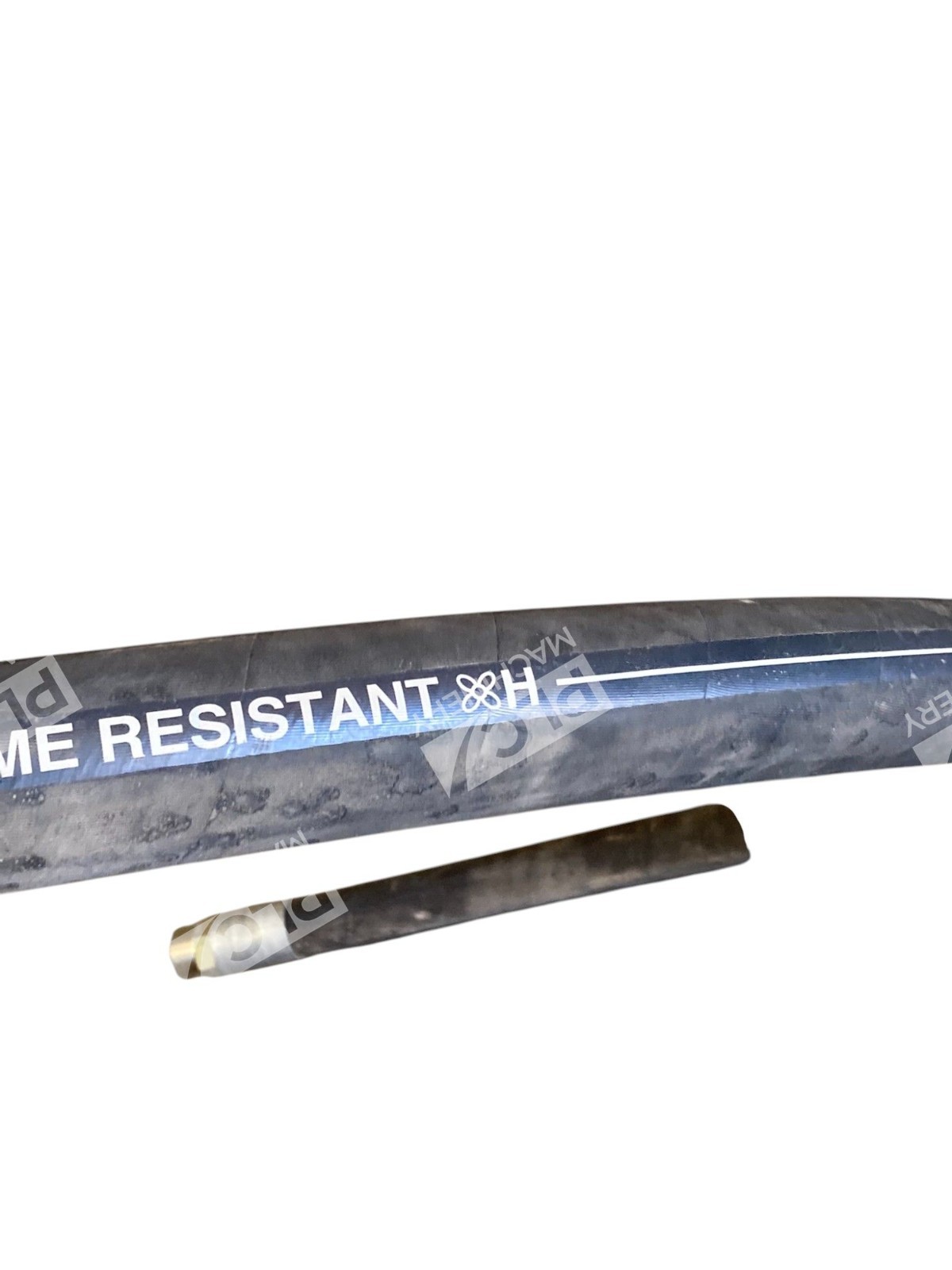

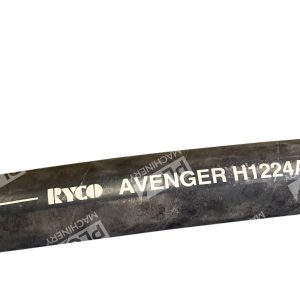

The Ryco Avenger H1224A is a high-performance hydraulic hose designed for very high-pressure oil lines, ensuring durability and reliability in demanding applications.
Key Features

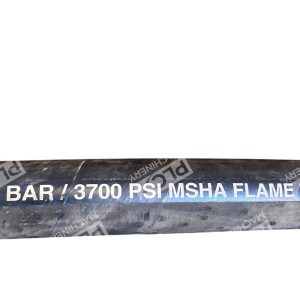

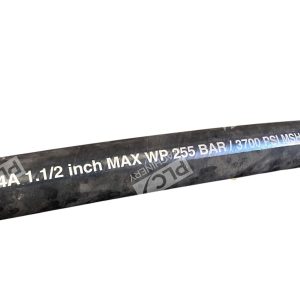

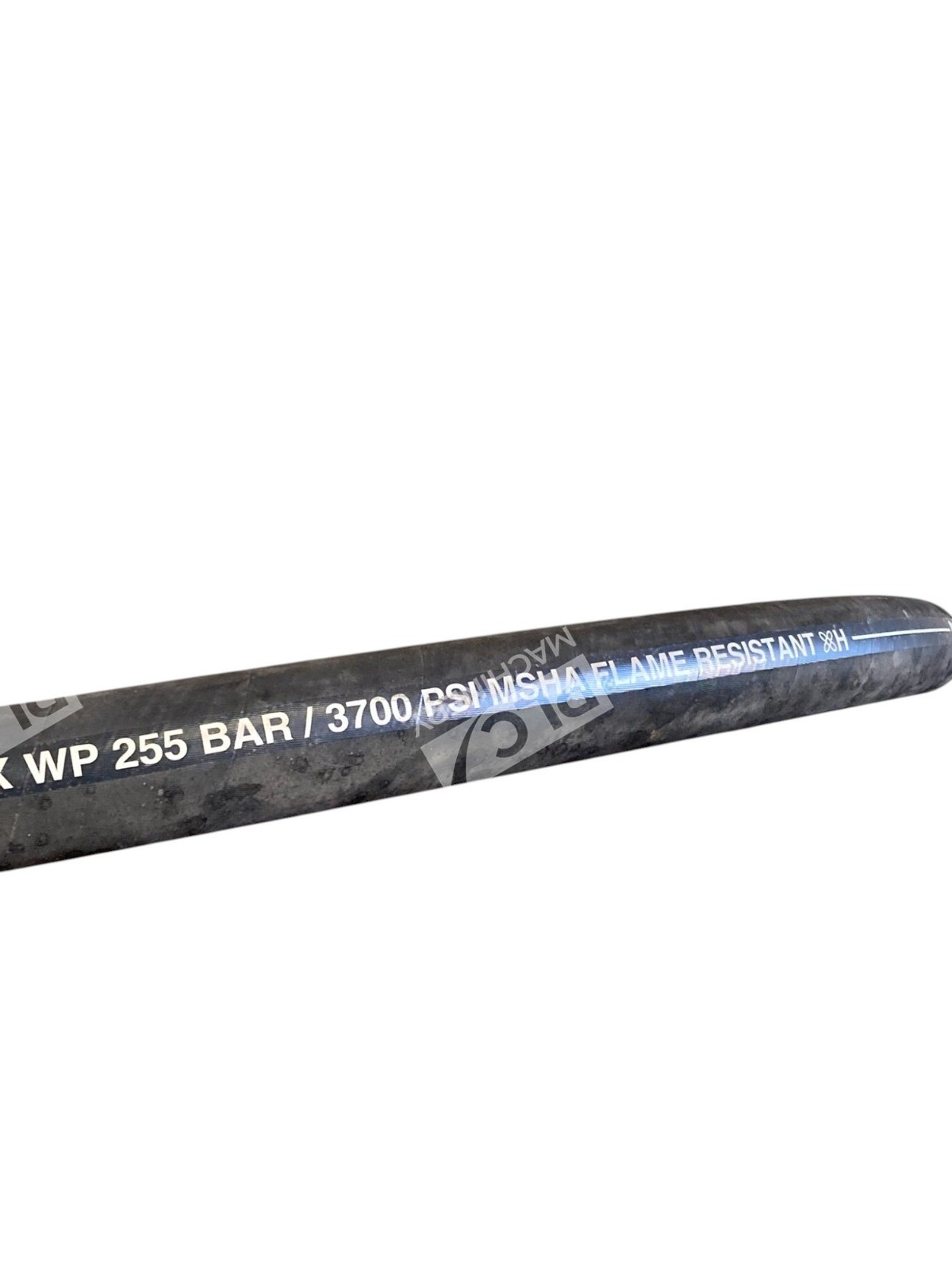

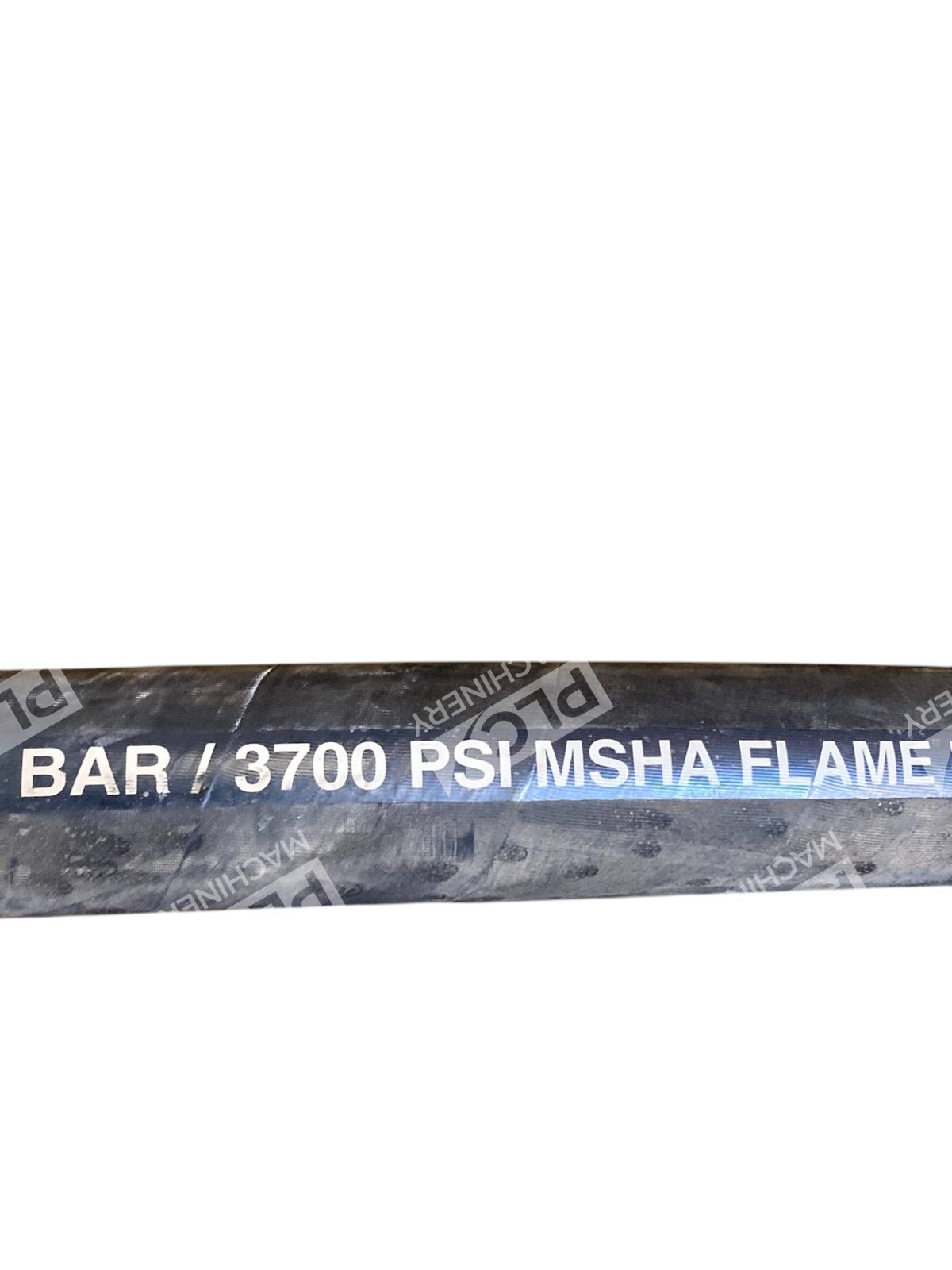

- High-Pressure Capability: With a maximum working pressure of 255 bar (3700 psi), the H1224A hose is suitable for applications requiring robust pressure handling.
- Durable Construction: The hose features a black, oil-resistant synthetic rubber tube, reinforced with four alternating layers of spiraled high tensile steel wire, providing exceptional strength and longevity.

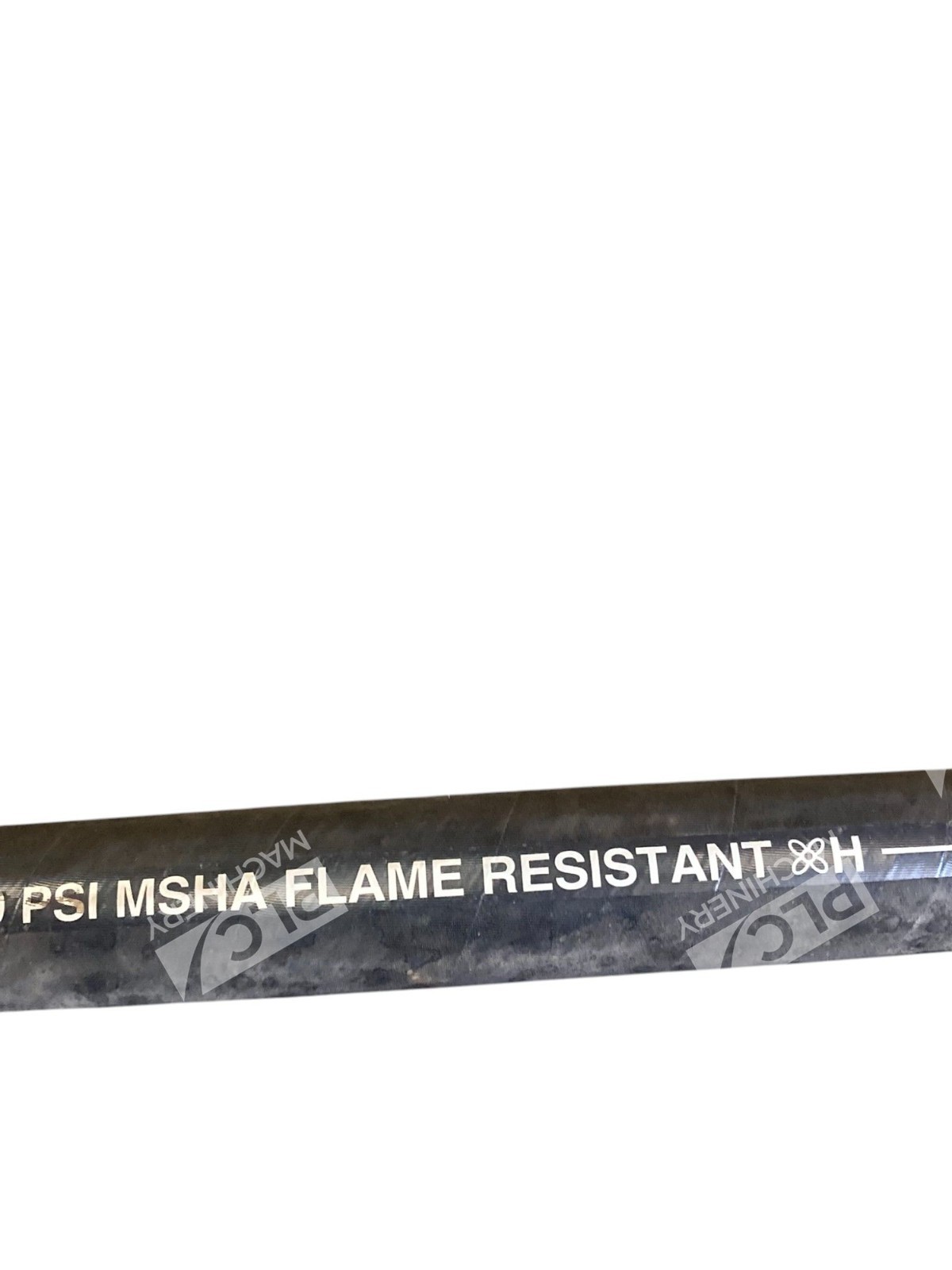

- Protective Cover: Its black, oil and abrasion-resistant synthetic rubber cover ensures resilience against harsh environmental conditions and mechanical wear.
- Temperature Range: Operates efficiently within a temperature range of -40°C to +121°C (-40°F to +250°F), accommodating various industrial environments.
- Compliance and Approvals: Meets or exceeds performance requirements of SAE 100R12, AS 3791 100R12, EN 856 Type R12, EN 856 Type 4SP (-12 and above), and ISO 3862 Type R12. Additionally, it holds third-party approvals from ABS, DNV, GL, LR, MED, and USCG.
Specifications

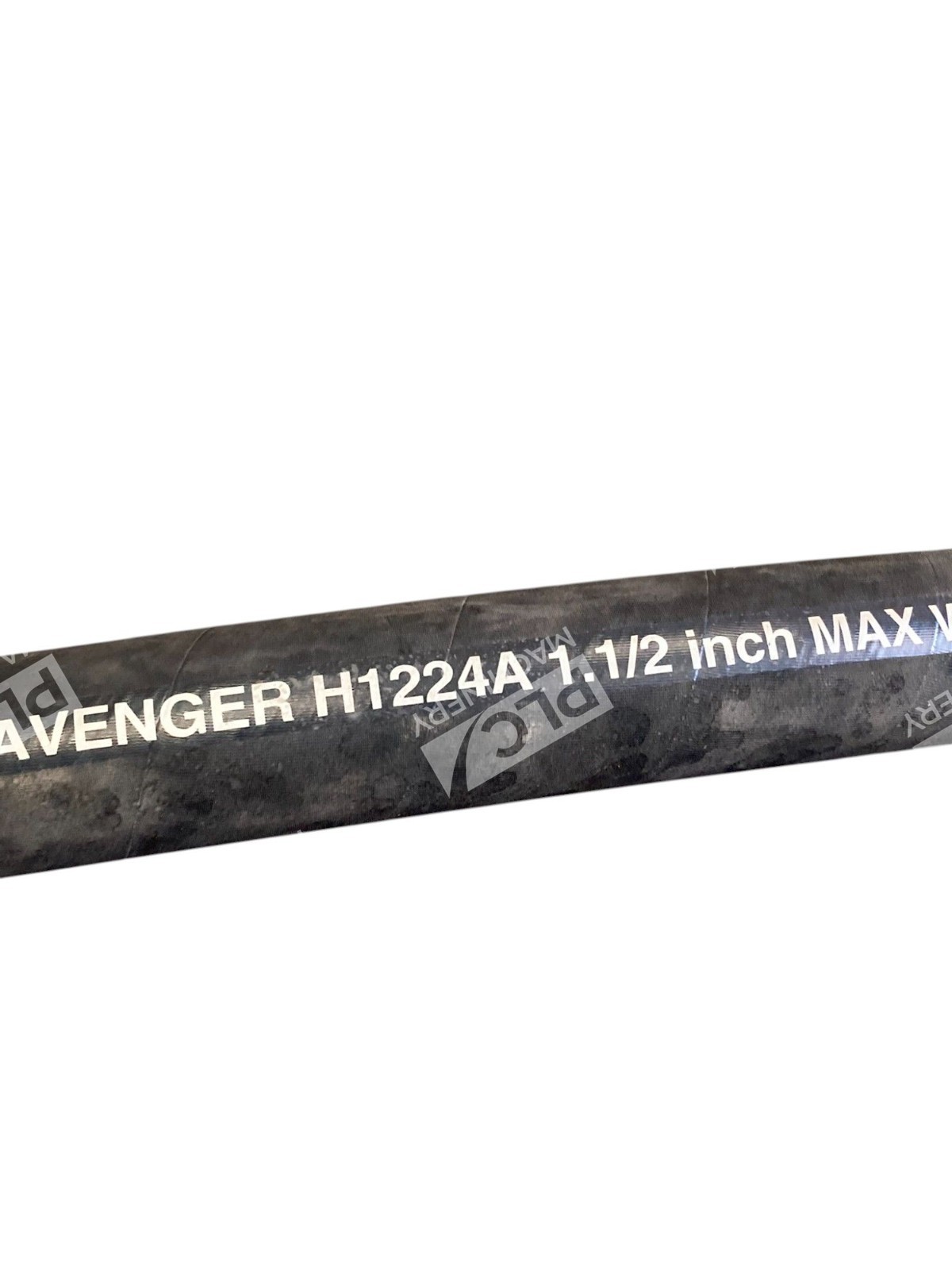

- Inside Diameter: 1.5 inches (38.1 mm)
- Outside Diameter: 2.09 inches (53.0 mm)
- Minimum Bend Radius: 19.7 inches (500 mm)
- Weight: Approximately 2.04 lbs per foot (3.04 kg/m)
Applications
The Ryco Avenger H1224A is ideal for very high-pressure hydraulic oil lines, offering enhanced service life and reduced equipment downtime due to its superior construction and compliance with rigorous industry standards.
