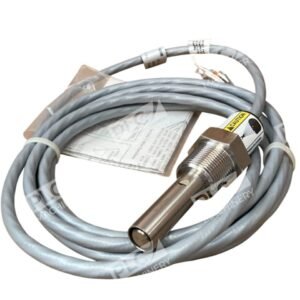

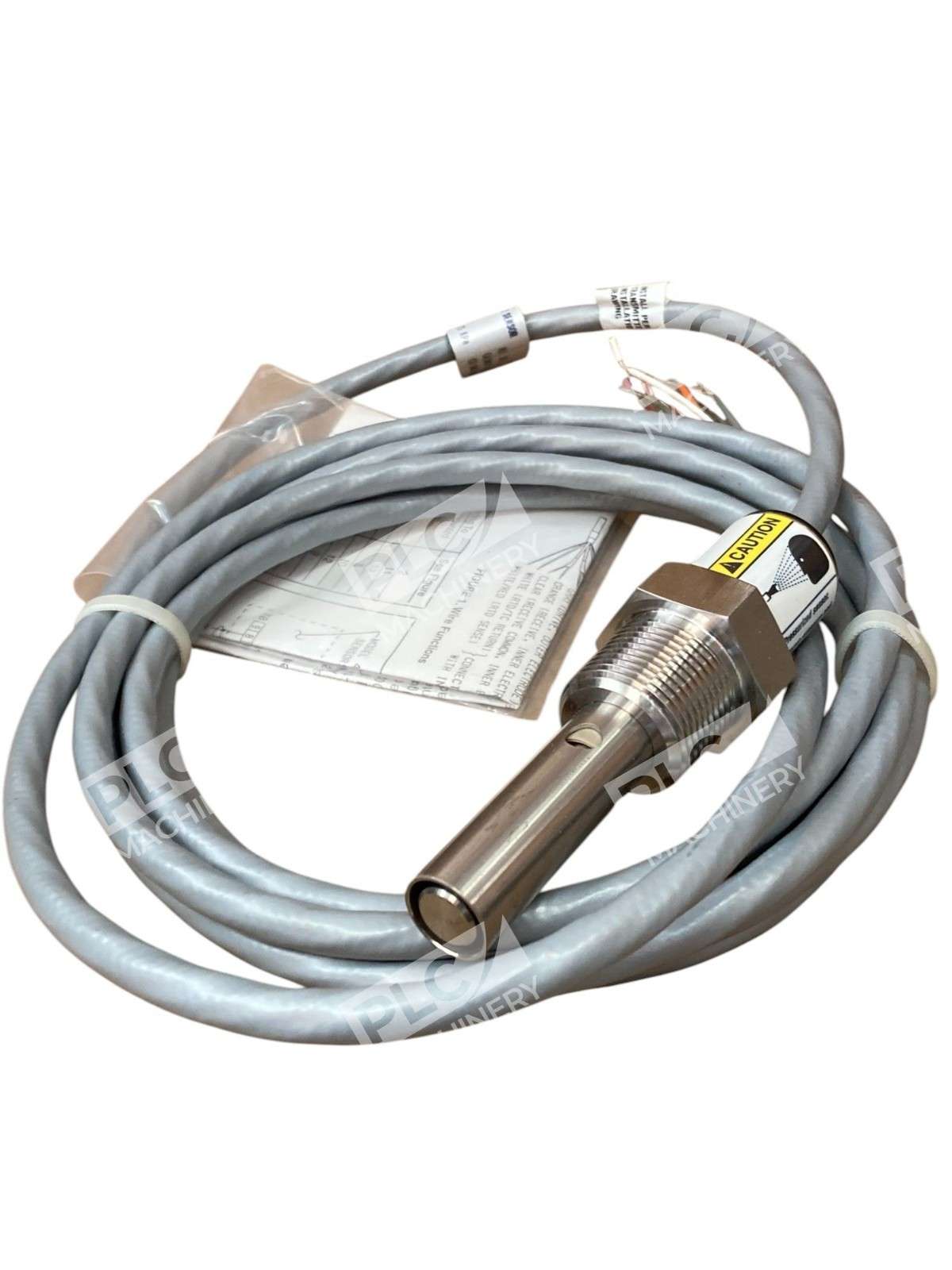

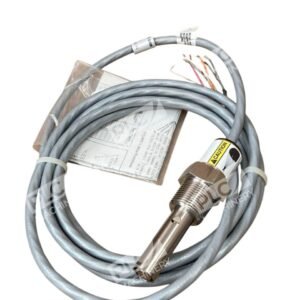

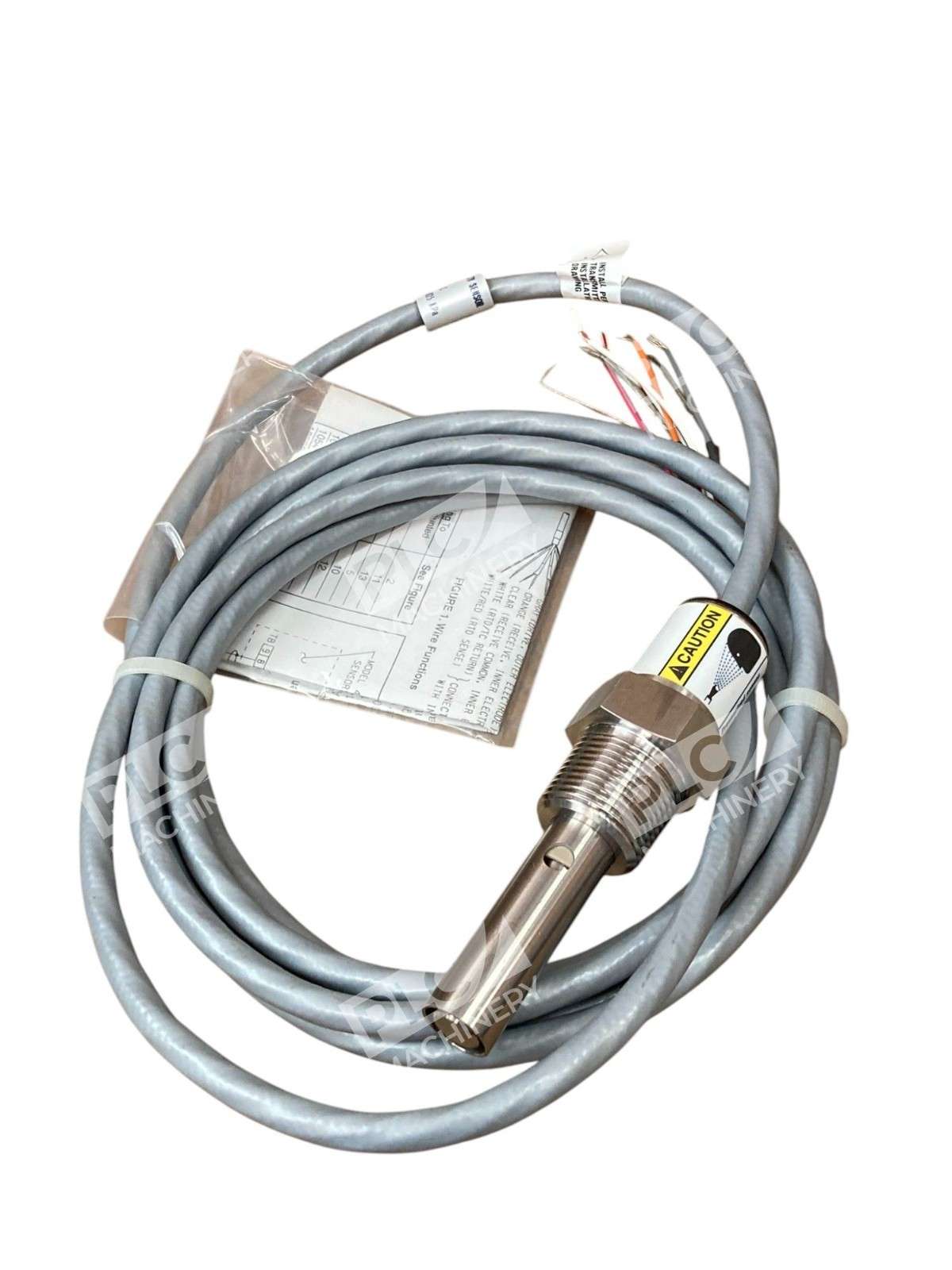

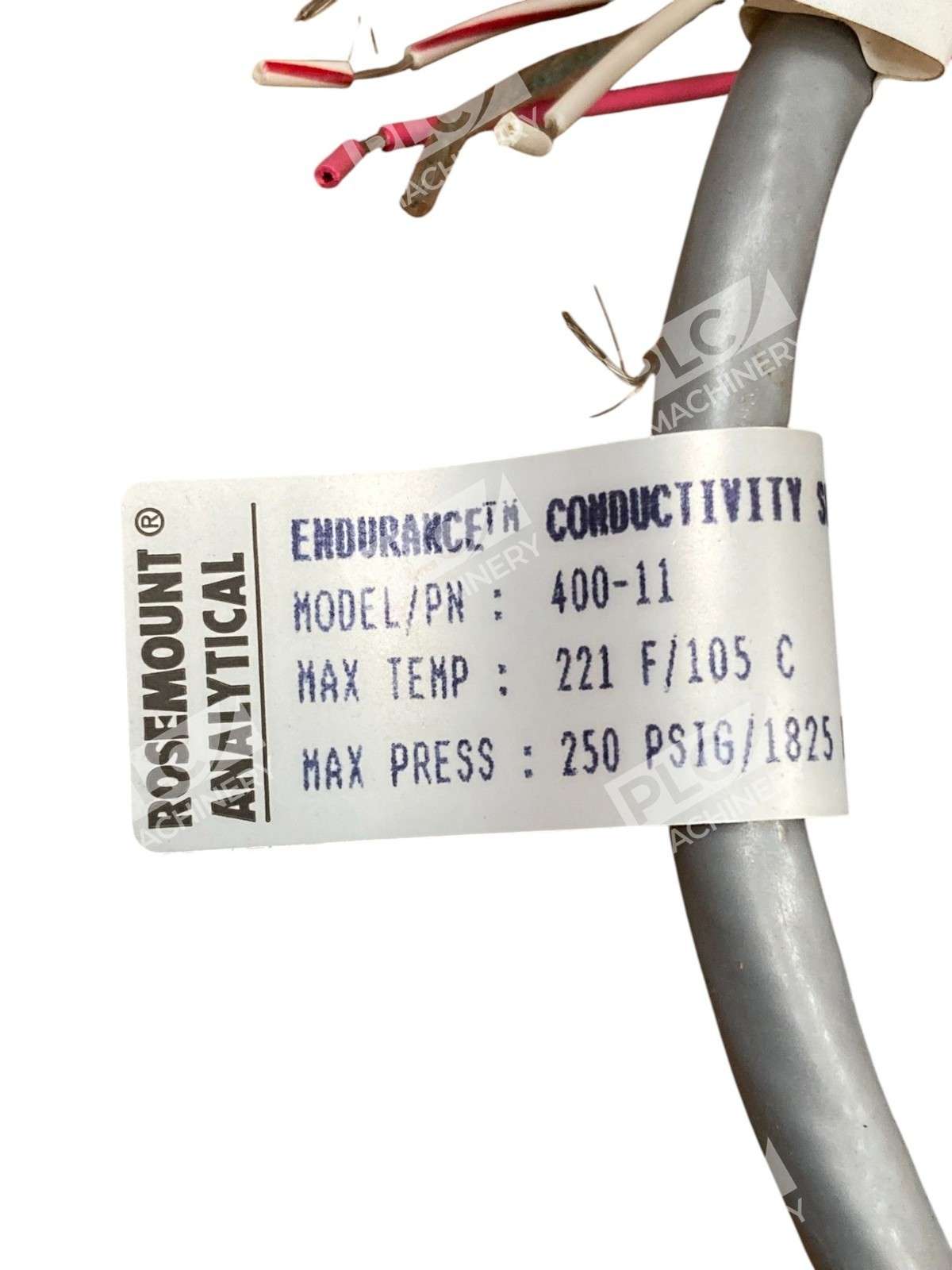

Rosemount Analytical 400-11 Endurance Contacting Conductivity Sensor
The Rosemount Analytical 400-11 Endurance Contacting Conductivity Sensor is engineered for precise measurement of electrolytic conductivity in clean, non-corrosive liquids with conductivity levels up to 20,000 µS/cm. This sensor is particularly suitable for applications such as high-purity water and clean cooling water systems.
Key Features

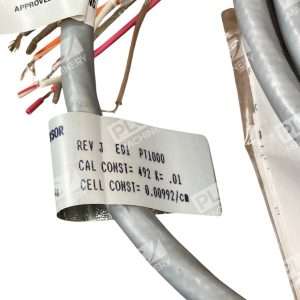

- Cell Constant: 0.01/cm, ideal for low conductivity measurements ranging from 0.0 to 200 μS/cm.

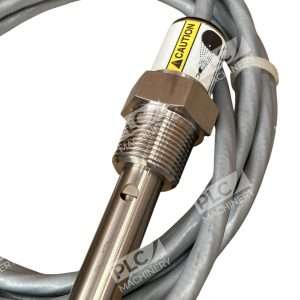

- Process Connection: ¾ inch MNPT fitting for direct screw-in insertion into process piping.

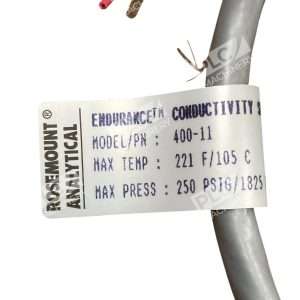

- Temperature Range: Operates effectively between 32°F and 221°F (0°C to 105°C).
- Pressure Rating: Maximum pressure capacity of 250 psig (1825 kPa abs).

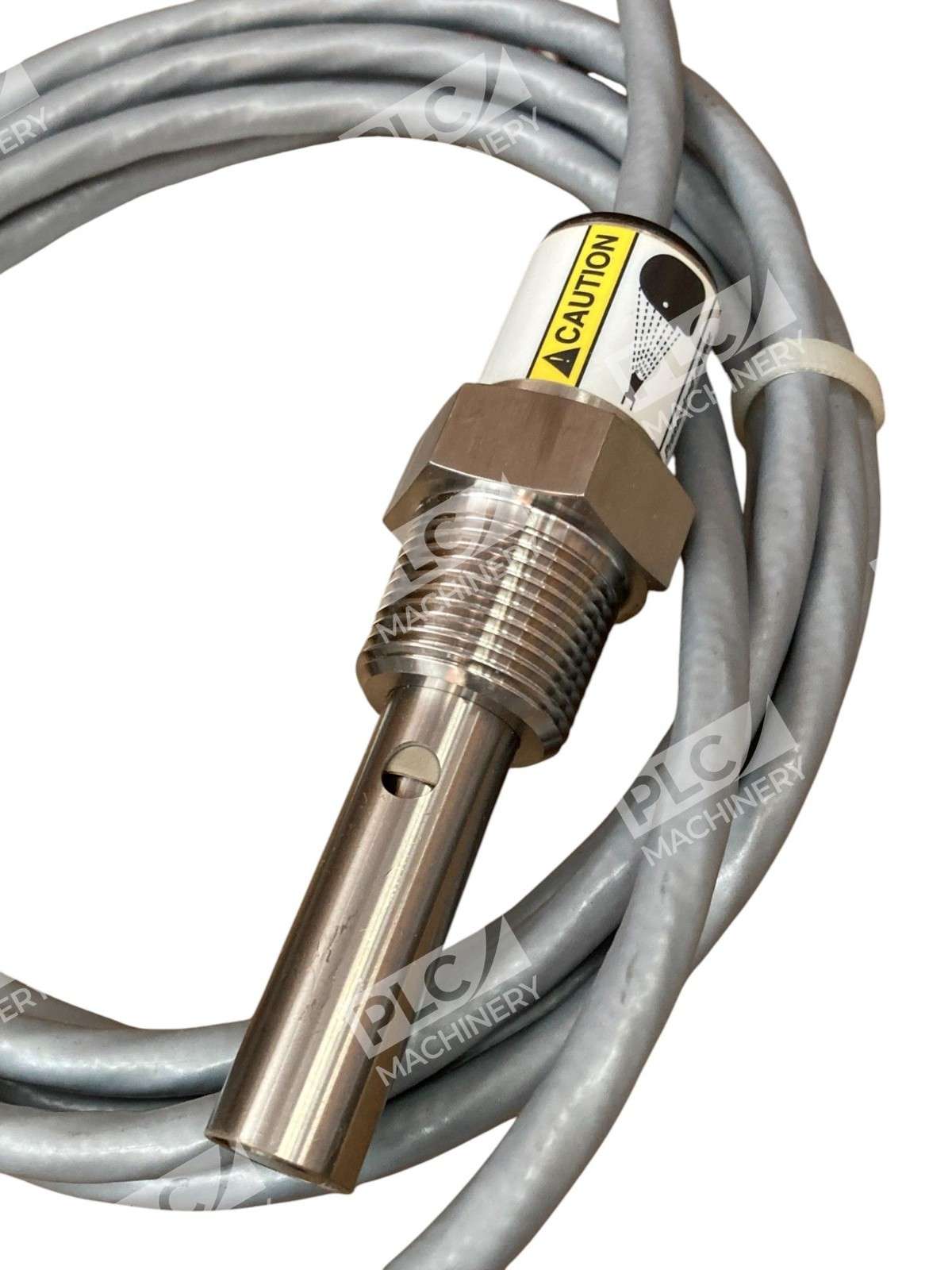

- Construction Materials: Features concentric titanium electrodes separated by a PEEK insulator, with EPDM O-rings ensuring a secure seal against process liquids.

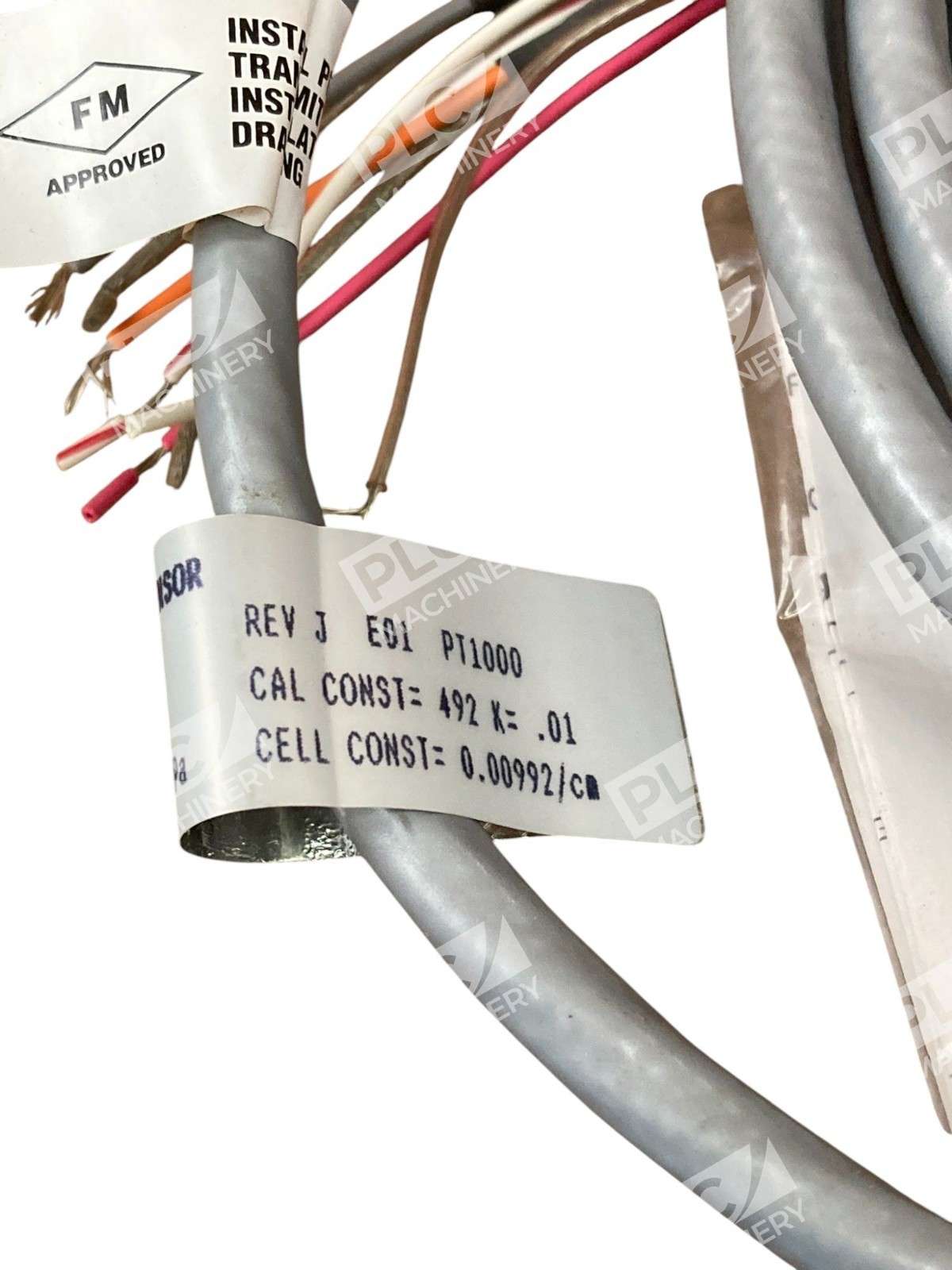

- Calibration: Factory-measured cell constant ensures out-of-the-box accuracy, eliminating the need for initial calibration.
Applications
The 400-11 sensor is designed for use in clean, non-corrosive liquids, making it ideal for industries requiring precise conductivity measurements, such as water treatment facilities, pharmaceutical manufacturing, and food and beverage processing.
Installation and Compatibility
Designed for direct insertion into process piping using its ¾ inch MNPT fitting, the sensor can also be installed in sidestream applications using a pipe tee or flow cell. It is compatible with various Rosemount transmitters, including models 56, 1056, 1057, 1066, 5081, and legacy models 1055, 54C, 54eC, 4081C, 6081-C, and XMT-C.
Additional Options
For applications requiring extended insertion lengths or higher temperature operations up to 392°F (200°C), options such as extended insertion length and integral junction box are available.
The Rosemount Analytical 400-11 Endurance Contacting Conductivity Sensor combines robust construction with precise measurement capabilities, making it a reliable choice for a wide range of industrial applications.
