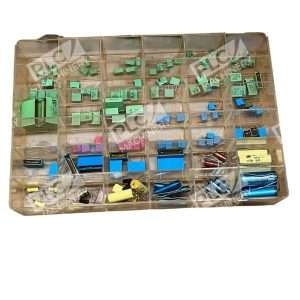

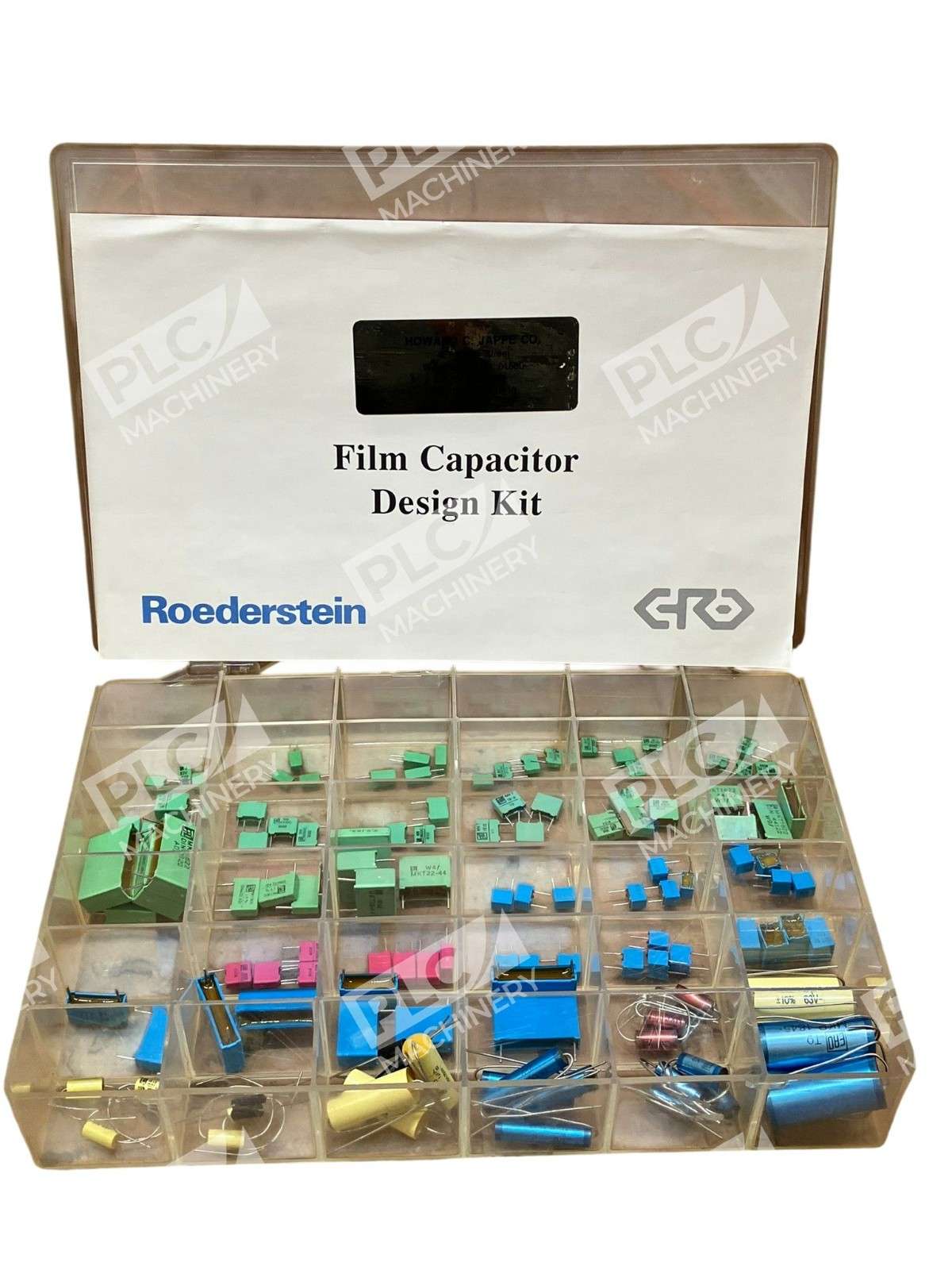

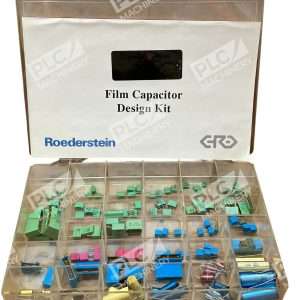

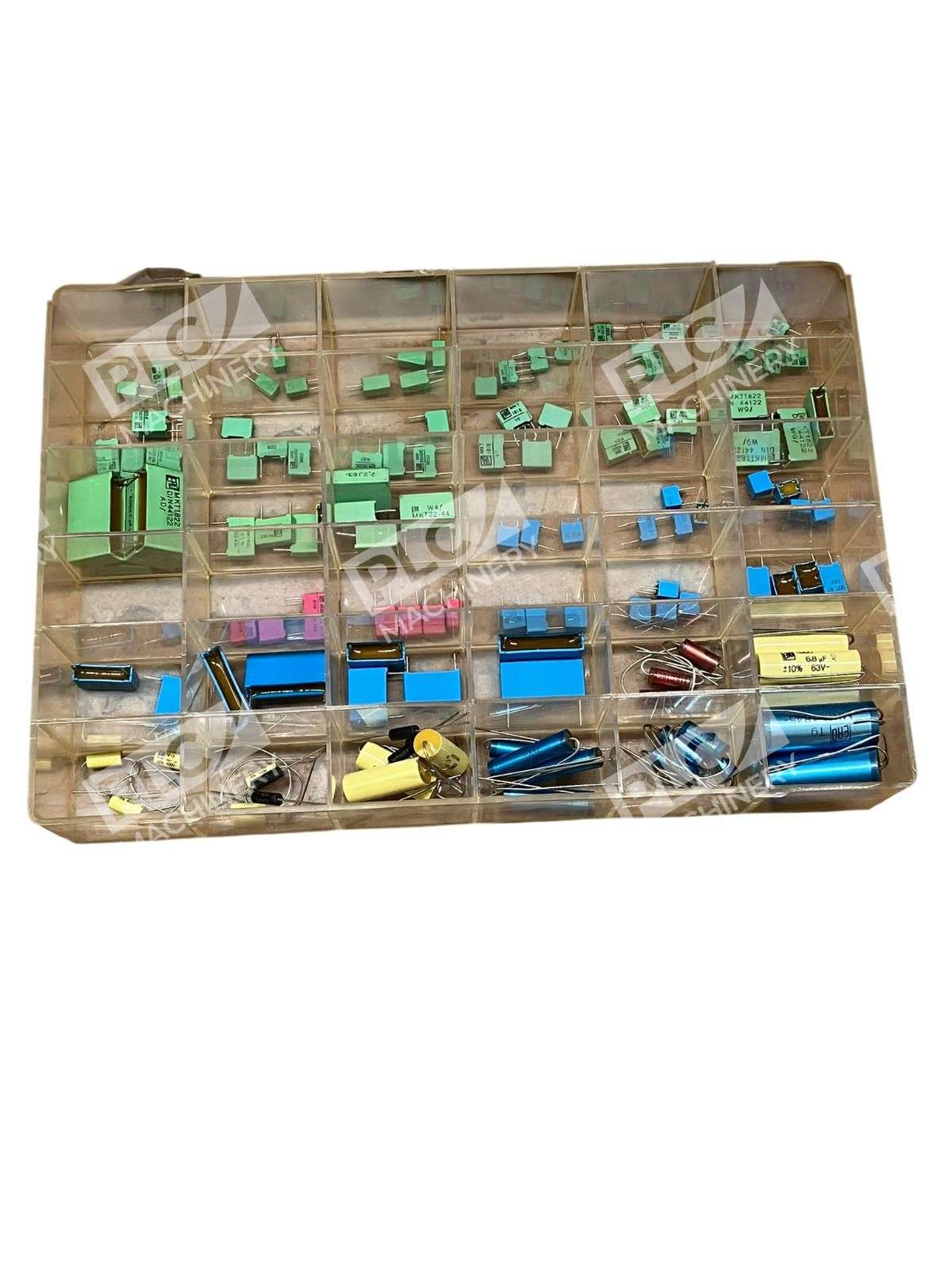

Roederstein Film Capacitor Design Kit – Assorted MKT & MKP Capacitors
The Roederstein Film Capacitor Design Kit offers a comprehensive selection of high-quality MKT (Metallized Polyester) and MKP (Metallized Polypropylene) capacitors, catering to a wide range of electronic design applications. This assortment is ideal for engineers and designers seeking reliable components for various circuit requirements.
Kit Contents

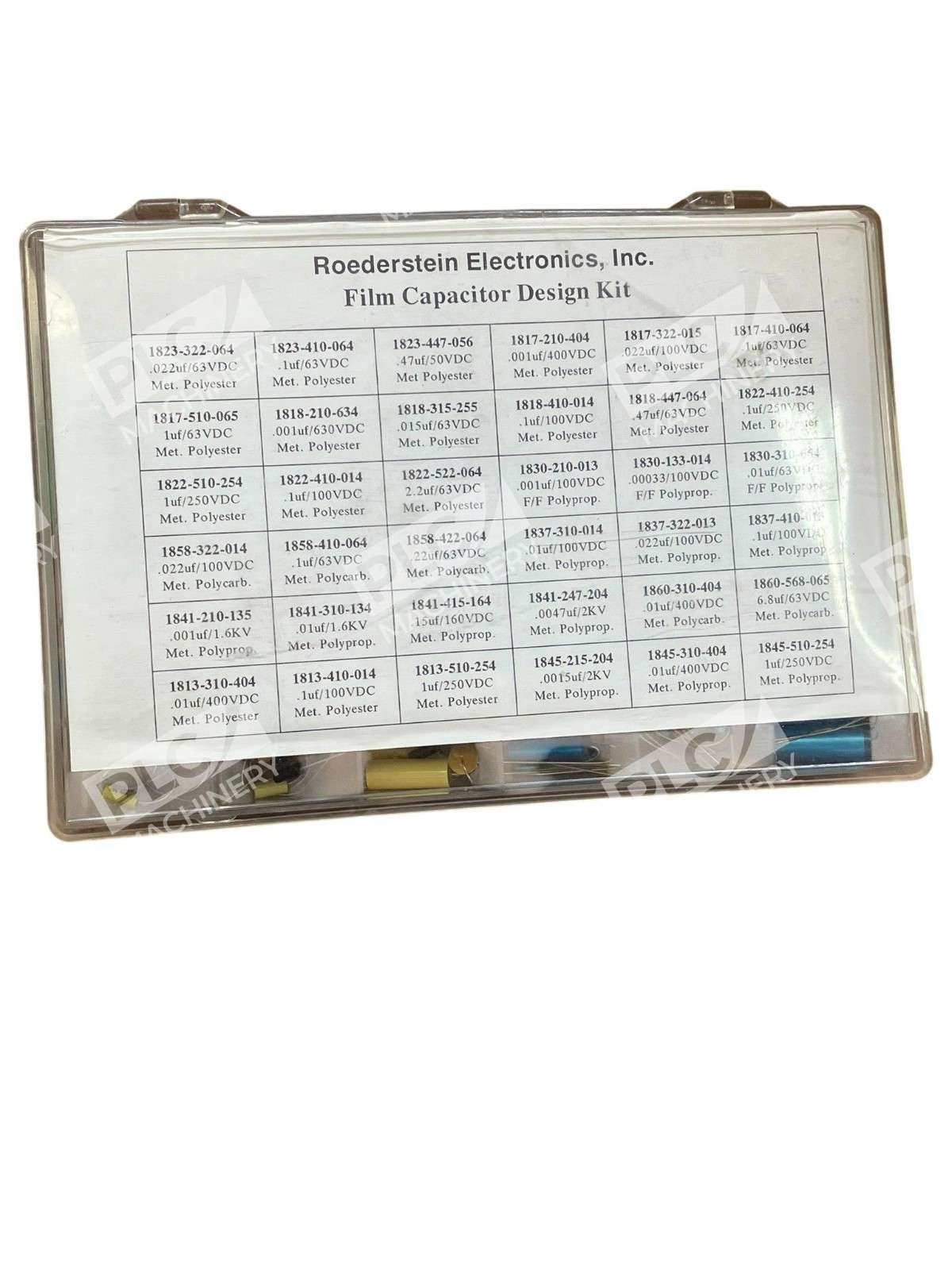

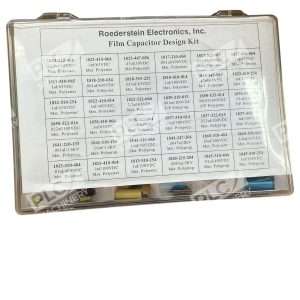

The kit includes a variety of capacitors from the esteemed Roederstein series, such as:
- MKT1813 Series: Axial lead capacitors with capacitance values ranging from 470 pF to 22 µF and voltage ratings between 63 VDC and 1000 VDC. These capacitors are suitable for blocking, bypassing, filtering, timing, coupling, and decoupling applications.
- MKT1818 Series: Radial lead capacitors with capacitance values from 1000 pF to 1.0 µF and voltage ratings up to 630 VDC. They are designed for interference suppression in low voltage applications.
- MKP1837 Series: High-performance capacitors with capacitance values such as 0.022 µF and 0.033 µF, rated at 160 VDC. These are ideal for oscillator, timing, and filter circuits, as well as high-frequency coupling and decoupling.
Key Features
- High Reliability: Operational life exceeding 300,000 hours at 40°C and 0.5 x UR, ensuring long-term performance.
- Flame Retardant Coating: Encased in flame-retardant plastic with epoxy resin sealing, providing enhanced safety and durability.
- Wide Operating Temperature Range: Suitable for environments ranging from -55°C to +100°C, accommodating various application conditions.
- Low Dielectric Absorption: Typical value of 0.05% according to IEC 60384-1, ensuring minimal energy loss.
Applications
This design kit is versatile and can be utilized in numerous applications, including:
- Oscillator and timing circuits
- LC/RC filter circuits
- High-frequency coupling and decoupling
- Sample and hold circuits
- Interference suppression in low voltage applications
By incorporating the Roederstein Film Capacitor Design Kit into your projects, you gain access to a selection of capacitors renowned for their quality and performance, facilitating efficient and reliable electronic designs.
