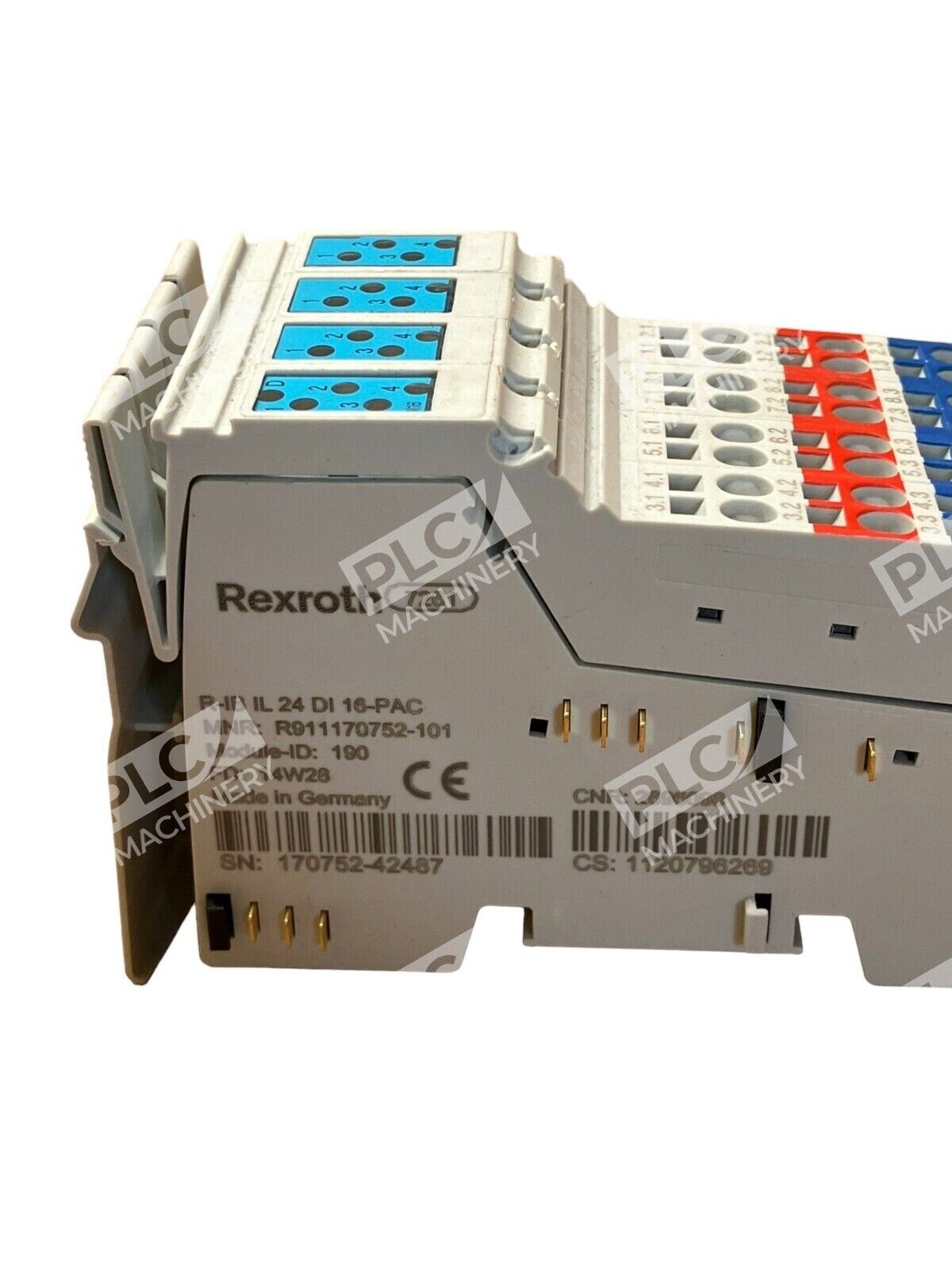

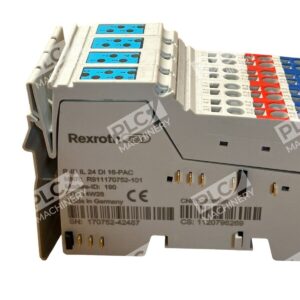

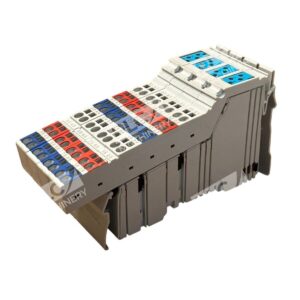

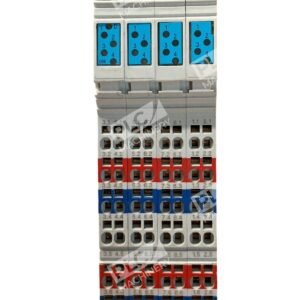

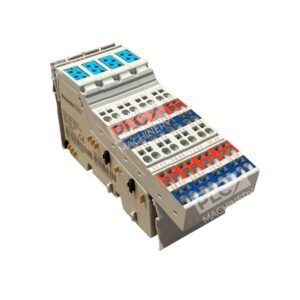

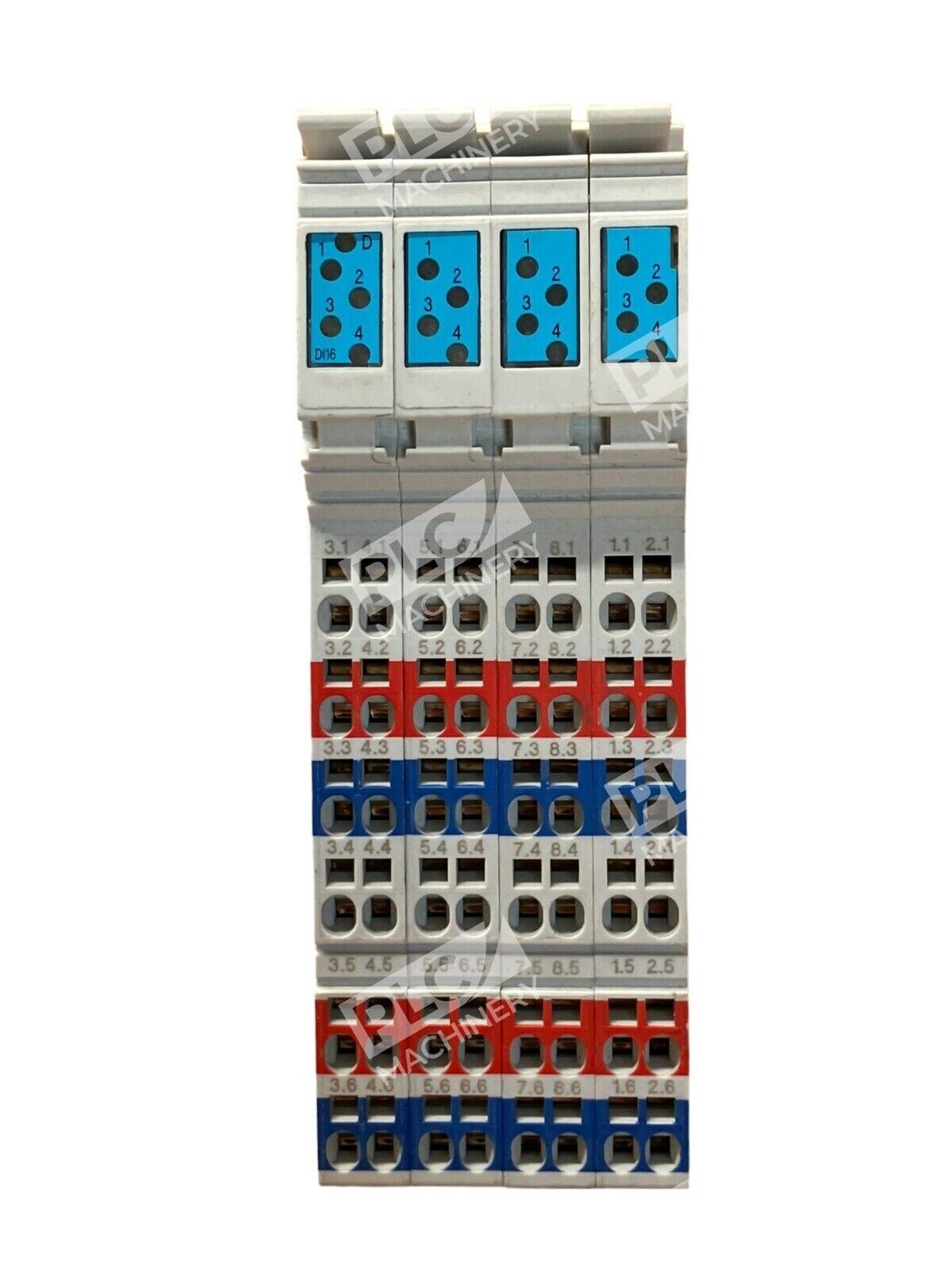

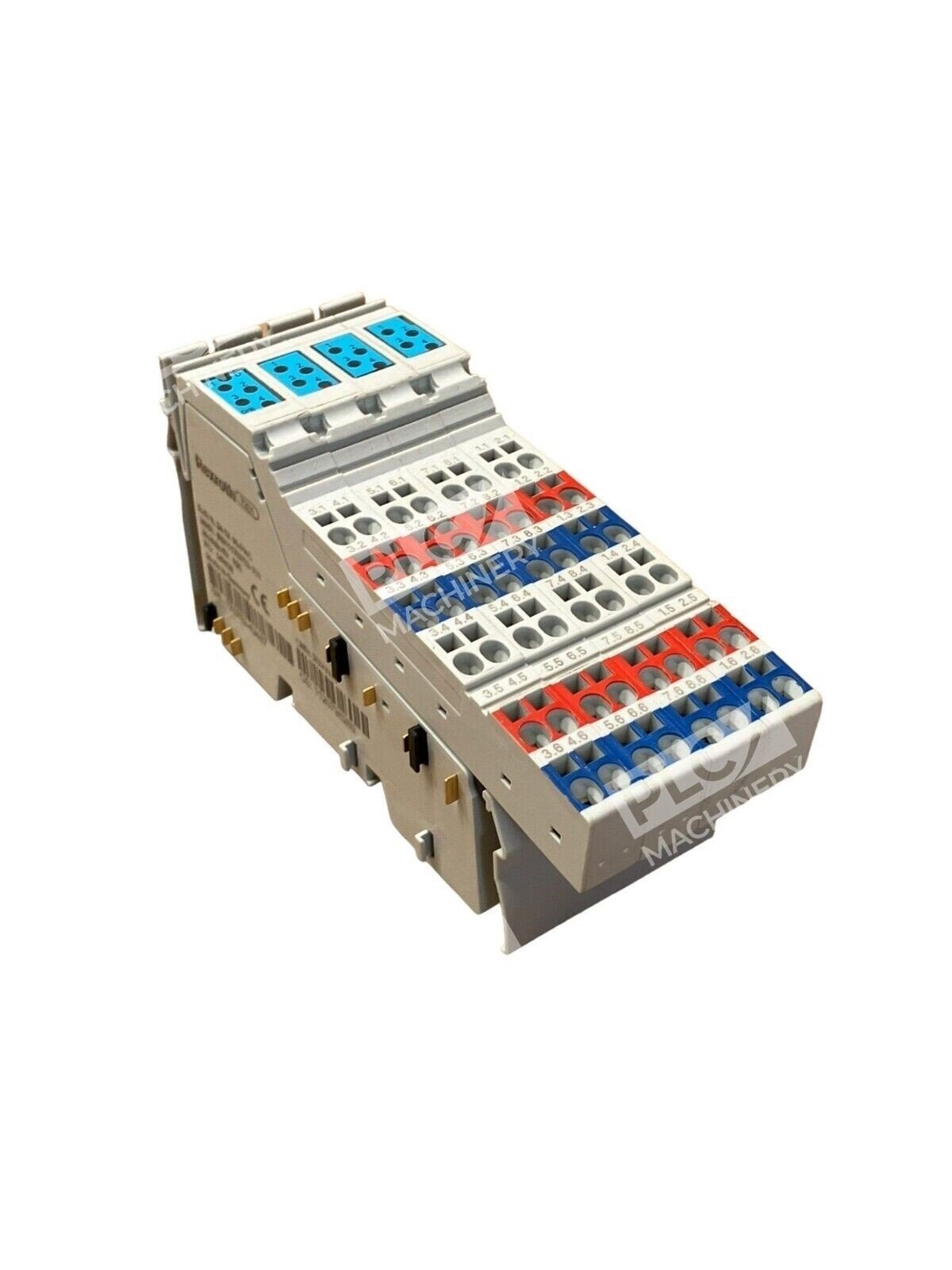

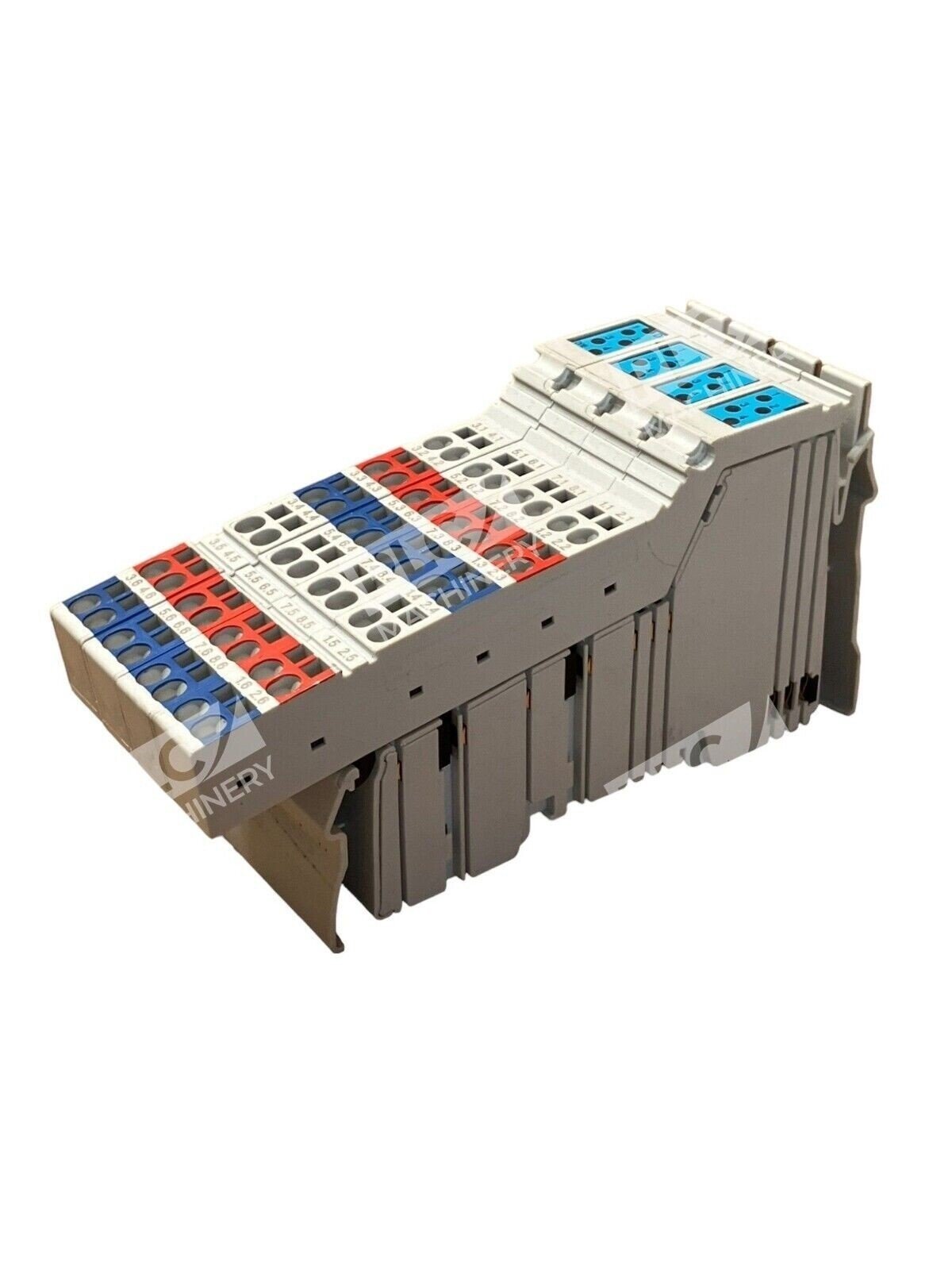

The Bosch Rexroth R911170752-101, also known as the R-IB IL 24 DI 16-PAC, is a digital input module designed for the Inline I/O system. This module provides 16 digital input channels, each operating at a nominal voltage of 24 V DC, making it suitable for connecting various sensors and switches in industrial automation applications.
Key Features
- 16 Digital Inputs: Facilitates the connection of multiple sensors and switches, enhancing system flexibility.
- Nominal Input Voltage: Operates at 24 V DC, aligning with standard industrial power supplies.
- Sensor Connection: Supports both 2-wire and 3-wire connections, accommodating various sensor types.
- Compact Design: With dimensions of 48.8 x 120 x 71.5 mm and a weight of approximately 122 g, it ensures efficient use of control cabinet space.
- Operating Temperature Range: Functions reliably between -25°C and +55°C, suitable for diverse industrial environments.
- Protection Rating: Rated at IP20, providing protection against solid objects larger than 12.5 mm.
- Transmission Speed: Supports data transmission speeds up to 500 kbaud, ensuring swift and accurate data processing.
Technical Specifications
- Design Standard: Complies with EN 61131-2, Type 1.
- Logic Voltage: 7.5 V.
- Permissible Line Length: Up to 30 meters.
- Permissible Nominal Input Voltage Range: -30 V to +30 V DC.
- Switching Thresholds: High level > 15 V; Low level < 5 V.
- Power Consumption from Local Bus: 60 mA.
The R-IB IL 24 DI 16-PAC module is engineered to integrate seamlessly into existing automation systems, offering reliable digital input capabilities essential for modern industrial processes.
