Revere Transducers 9363-B10-750-20T1-R Load Cell

Revere Transducers 9363-B10-750-20T1-R Load Cell

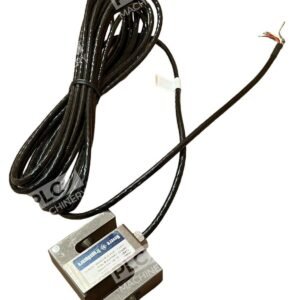

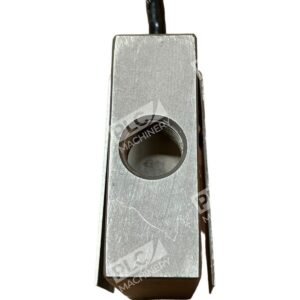

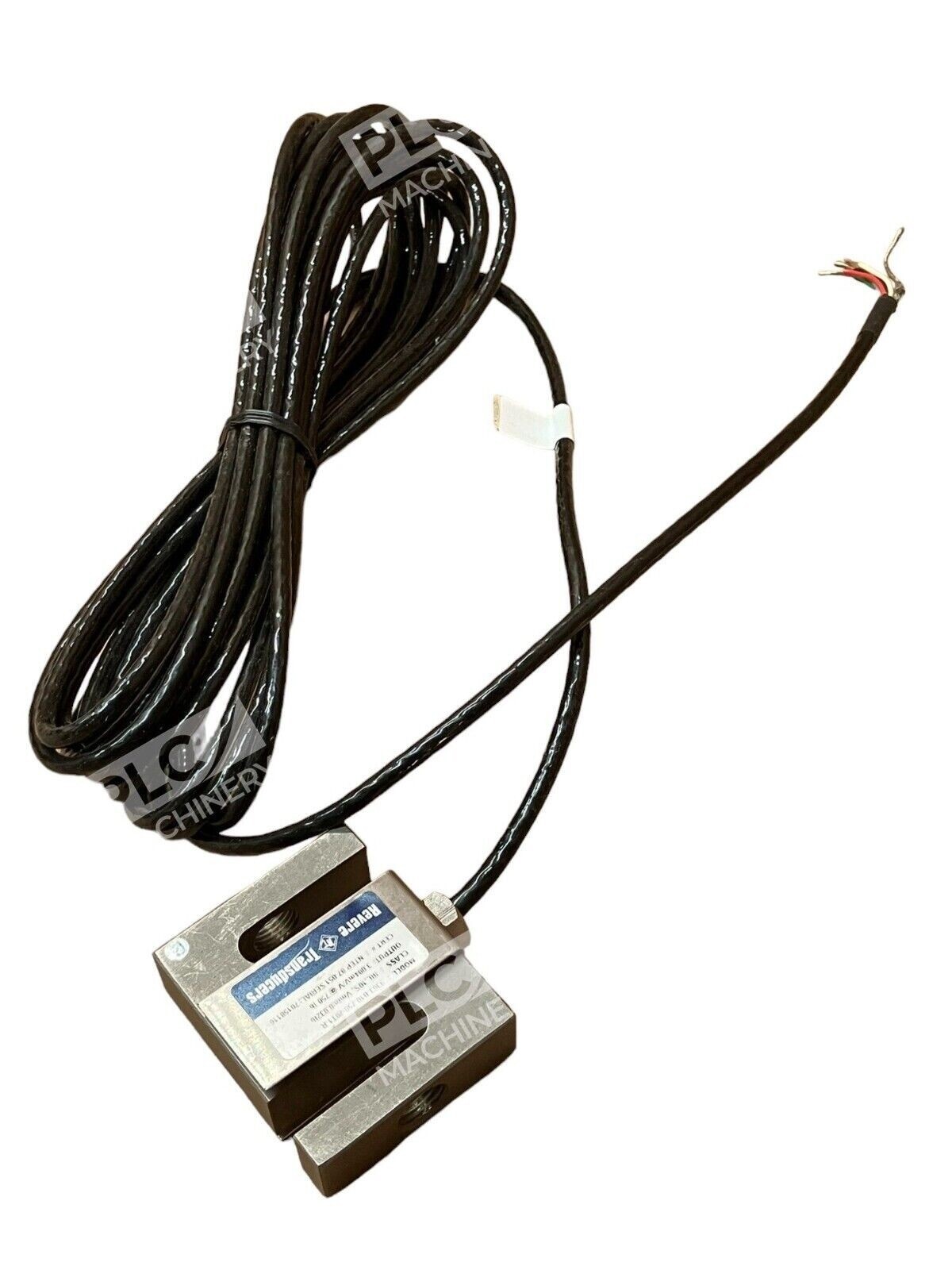

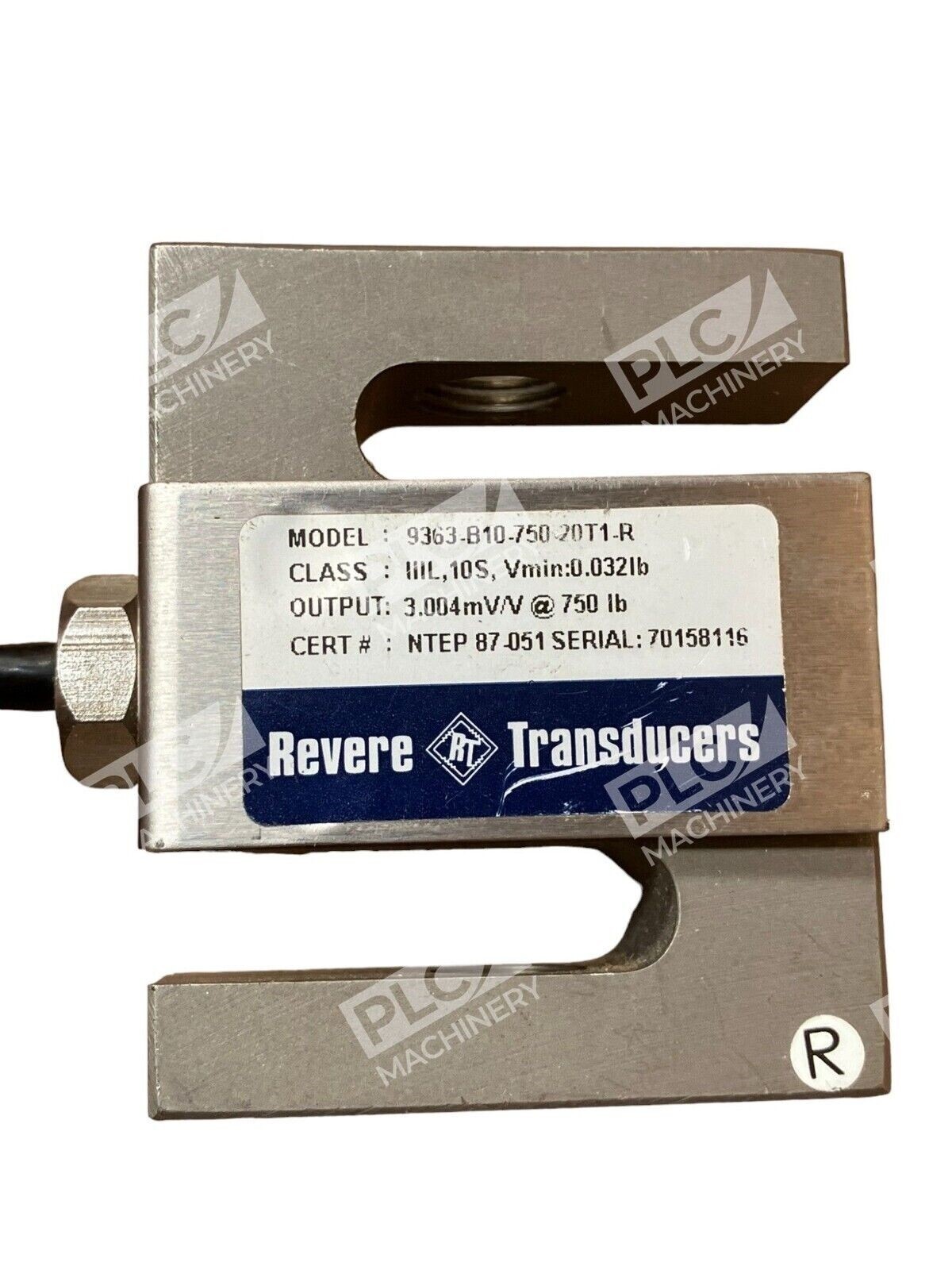

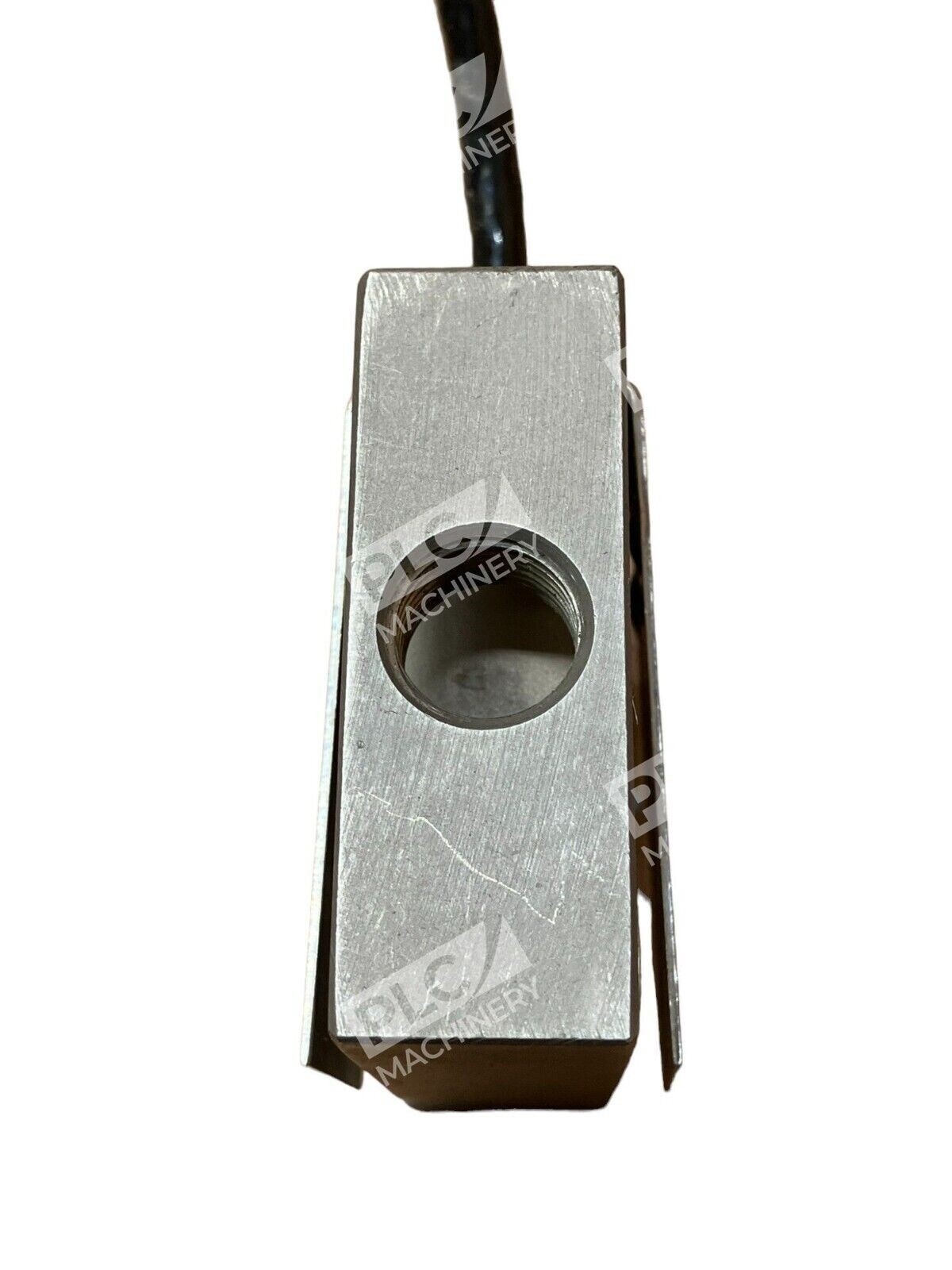

The Revere Transducers 9363-B10-750-20T1-R is a high-quality stainless steel S-type load cell designed for both tension and compression applications. With a capacity of 750 lb (340.2 kg), it is ideal for various weighing and force measurement tasks.

Key Features

• Stainless Steel Construction: Ensures durability and resistance to corrosion, making it suitable for harsh environments.
• High Accuracy: Offers a full-scale output of 3.0 mV/V with a combined error of 0.025% full scale, providing precise measurements.
• Environmental Protection: Rated IP67, indicating it is environmentally sealed and protected against dust and water ingress.
• Safe Overload Capacity: Can withstand up to 150% of its rated capacity without compromising performance.
• Interchangeability: Compatible with other load cells such as Rice Lake RL20001, Coti Global CGSB SS, Celtron STC SS, and Sensortonics 60050, facilitating easy integration into existing systems.

Specifications

• Capacity: 750 lb (340.2 kg)
• Full Scale Output: 3.0 mV/V
• Nonlinearity: 0.03% full scale
• Input Resistance: 390 ± 15 ohms
• Output Resistance: 350 ± 3.5 ohms
• Operating Temperature Range: -40°F to 150°F (-40°C to 65°C)
• Compensated Temperature Range: 14°F to 104°F (-10°C to 40°C)
• Seal Type: Environmentally sealed, IP67
• Safe Overload: 150% full scale

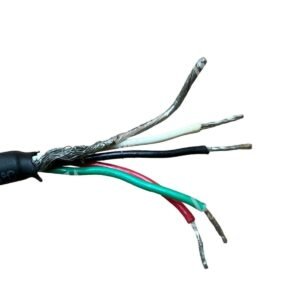

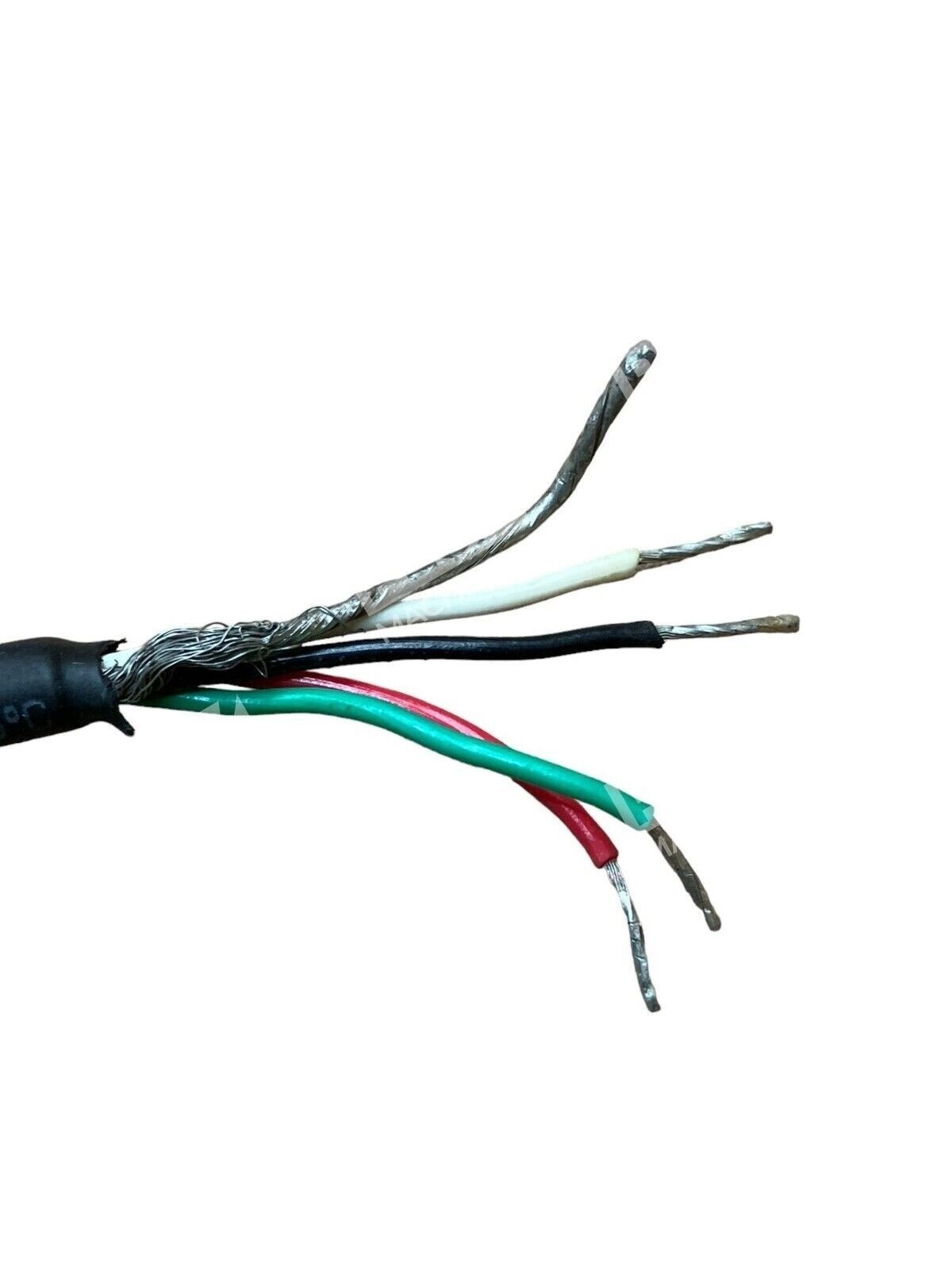

• Cable Length: 20 ft (6.1 m)

Applications

The 9363-B10-750-20T1-R load cell is versatile and can be used in various applications, including:

• OEM (Original Equipment Manufacturer) projects
• Tank scales
• Crane scales
• Process weighing systems
• Belt scales

Its robust design and high accuracy make it a reliable choice for industries requiring precise force measurement solutions.
