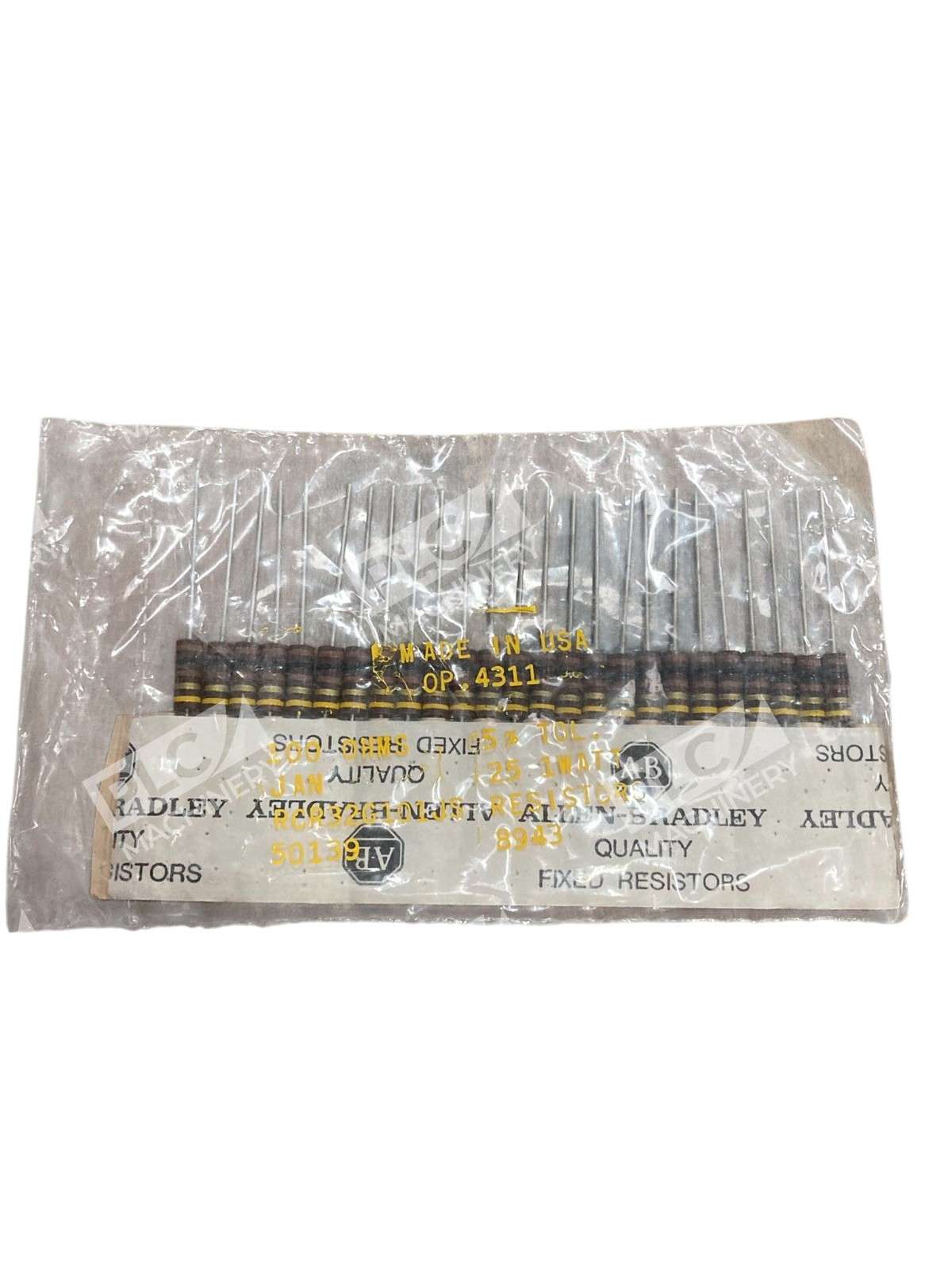

Allen-Bradley RCR32G101JS Carbon Composition Resistor The Allen-Bradley RCR32G101JS is a high-quality carbon composition resistor designed for applications requiring precise resistance and reliable performance. With a resistance value of 100 ohms, a power rating of 1 watt, and a tolerance of ±5%, this resistor is suitable for various electronic circuits. Key Features Resistance Value: 100 ohms Power Rating: 1 watt Tolerance: ±5% Construction: Carbon composition Mounting Type: Through-hole with axial leads Operating Temperature Range: Up to 150°C Compliance: Meets MIL-R-39008 standards Applications Carbon composition resistors like the RCR32G101JS are known for their ability to handle high-energy pulses and their low inductance, making them ideal for: High-frequency applications Pulse circuits General-purpose electronic circuits Dimensions The resistor features an axial leaded design with the following approximate dimensions: Diameter: 0.220 inches Length: 0.580 inches These dimensions facilitate easy integration into various circuit designs. Additional Information Allen-Bradley carbon composition resistors are recognized for their rugged construction and dependable performance. They are suitable for applications requiring high pulse withstanding and stability across a wide range of frequencies. For more detailed specifications and availability, please refer to the manufacturer’s datasheet or contact authorized distributors.
