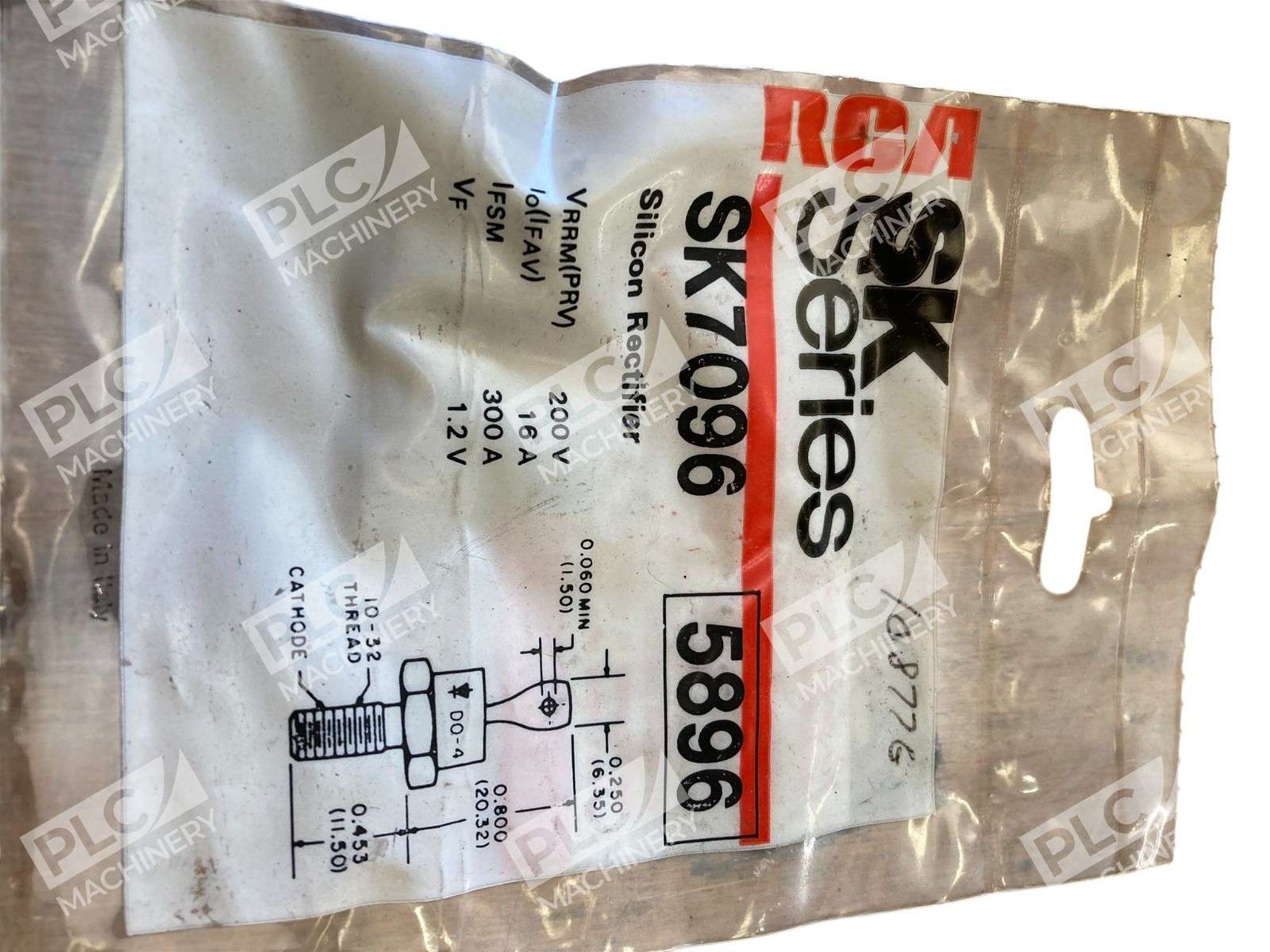

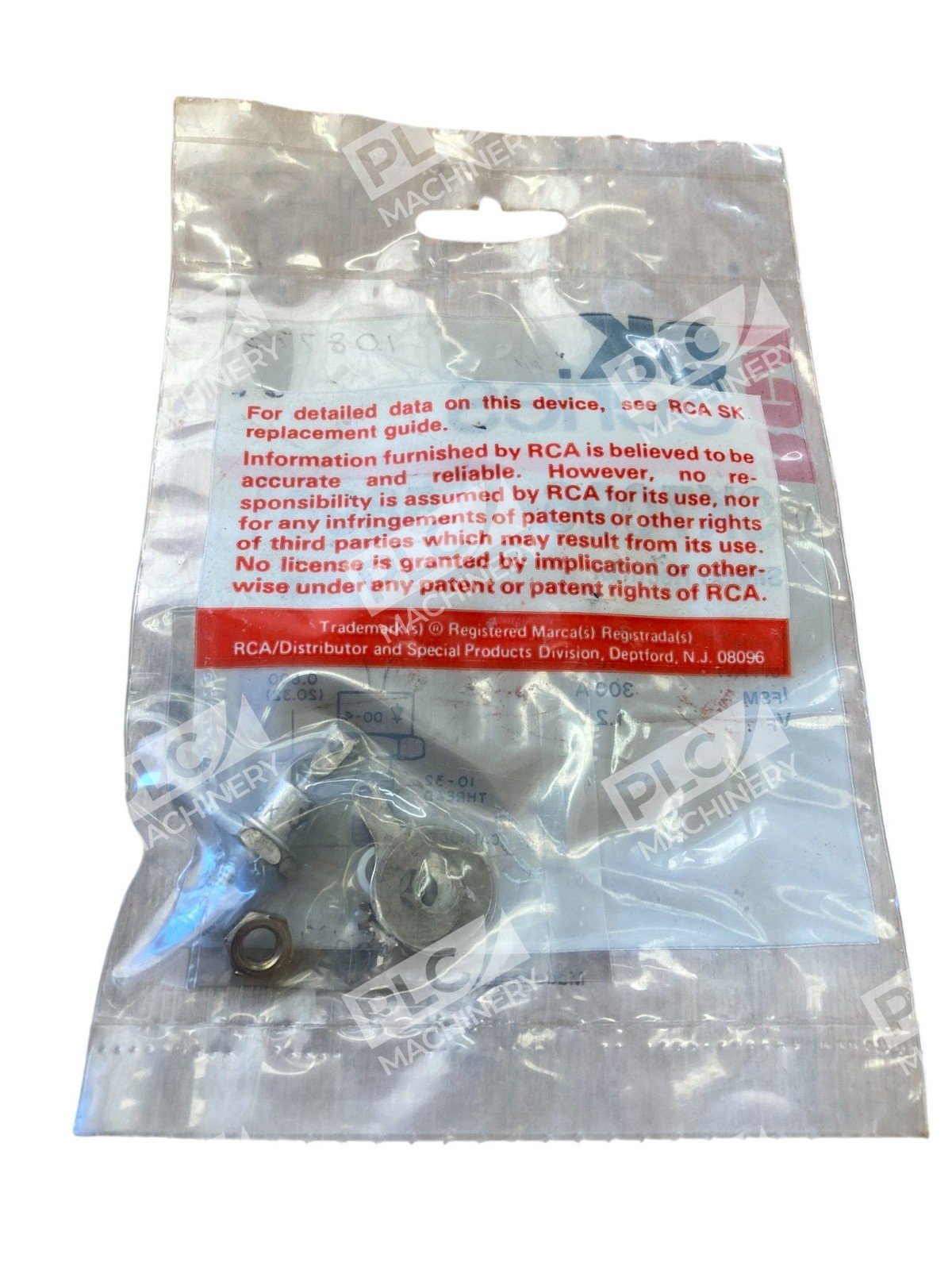

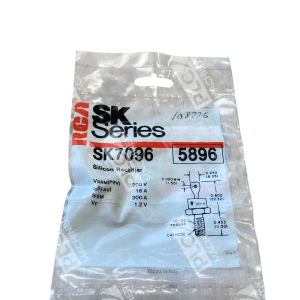

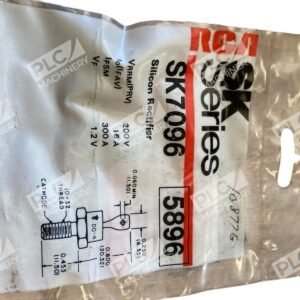

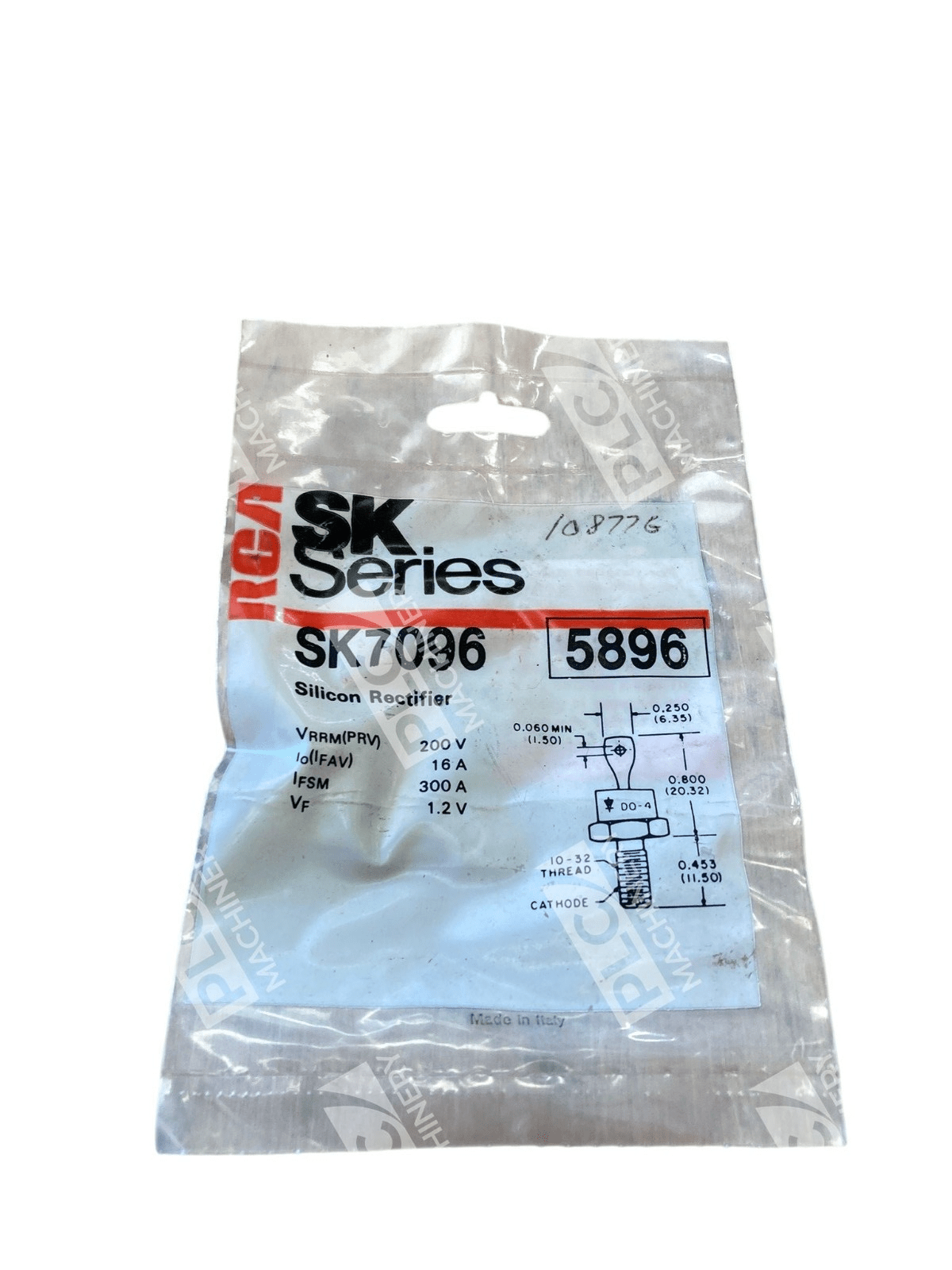

RCA SK Series SK7096 Silicon Stud Rectifier

The RCA SK7096 is a silicon stud rectifier designed for efficient and reliable rectification in various electronic applications. This component is part of RCA’s SK series, known for its high-quality semiconductor devices.

Key Features

• Voltage Rating: 200 V
• Current Rating: 16 A
• Package Type: DO-4

Applications

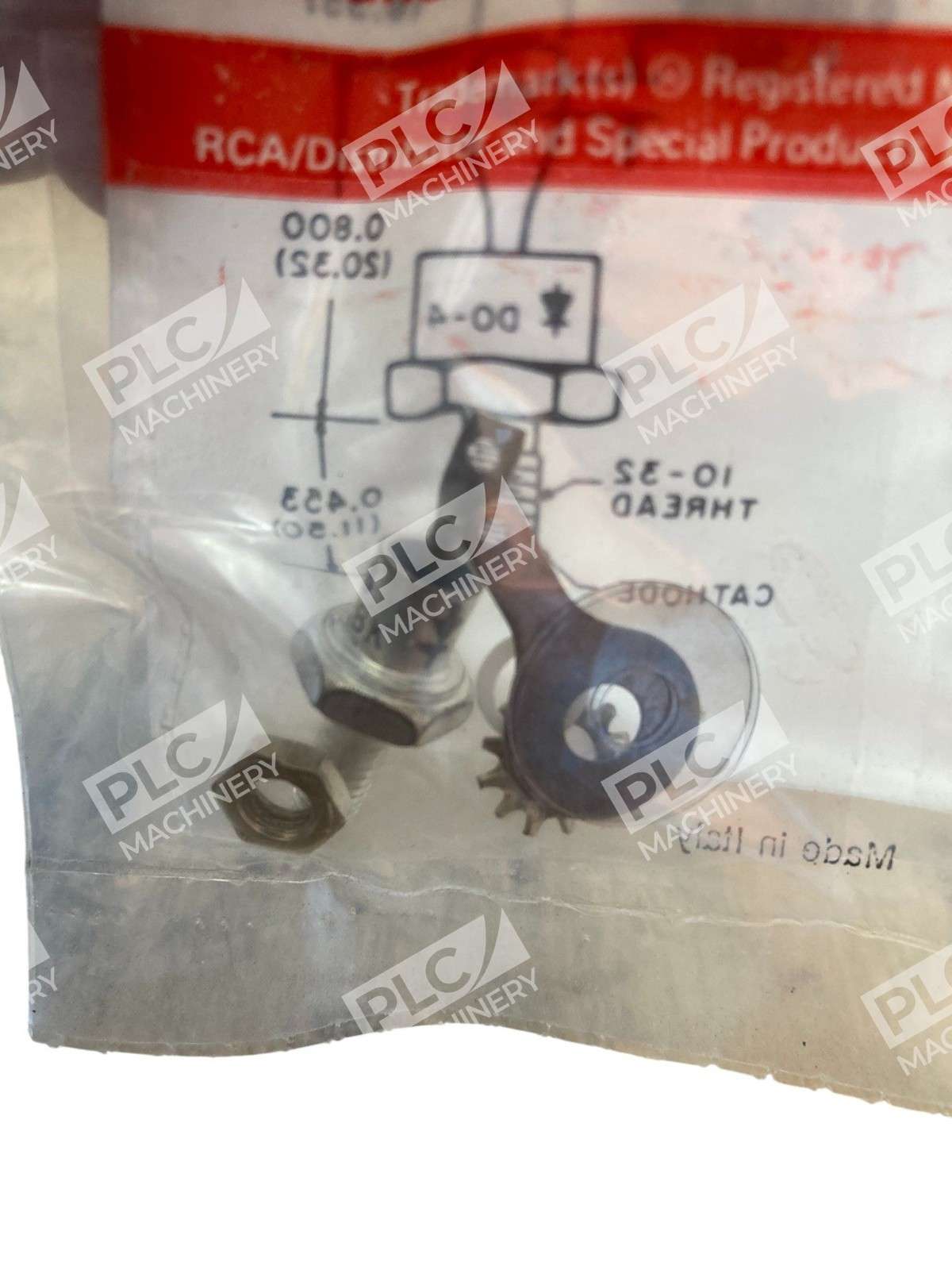

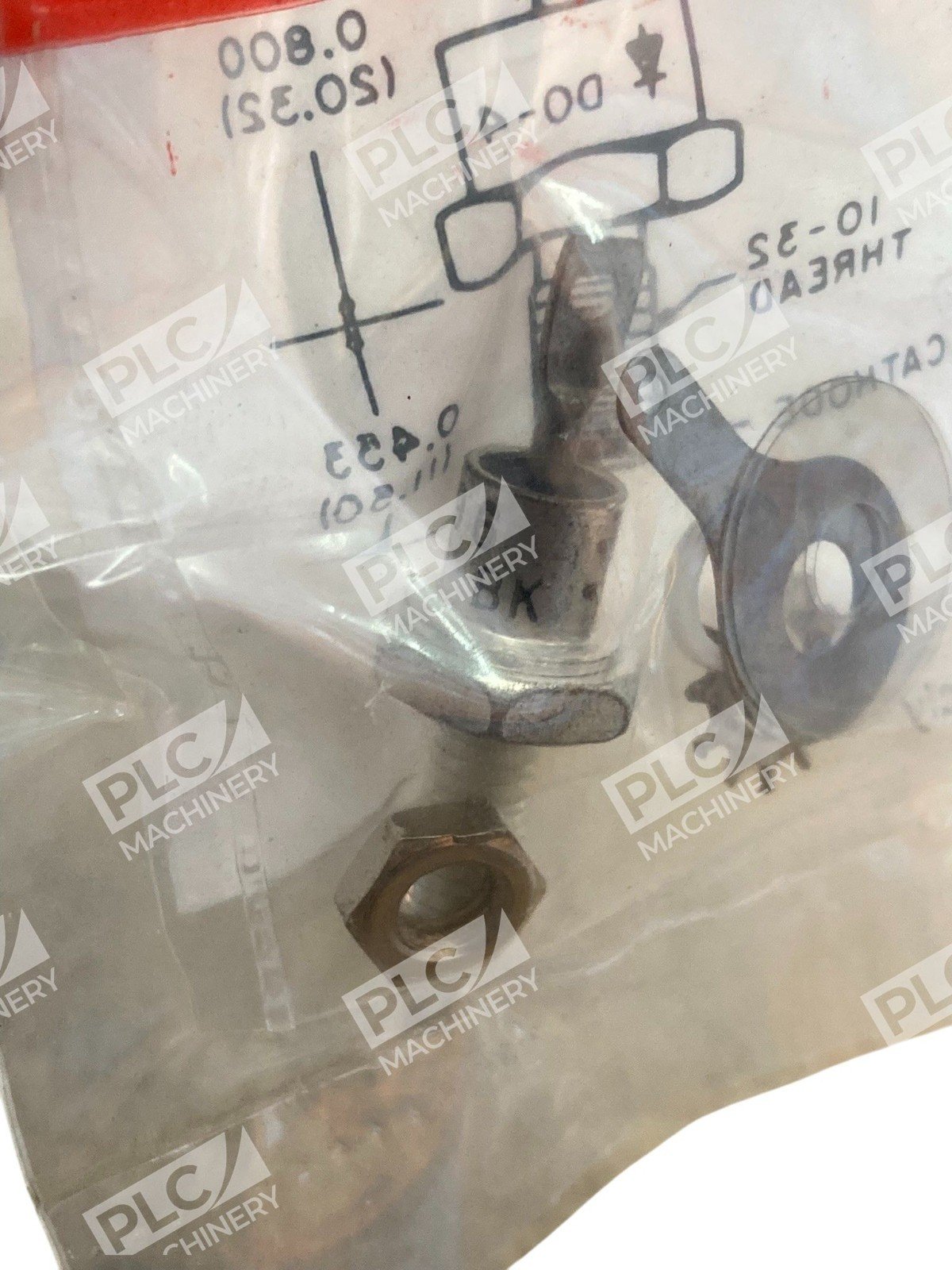

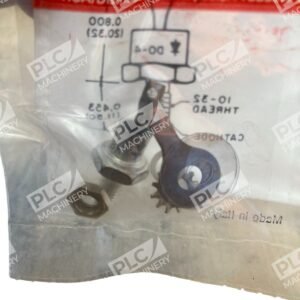

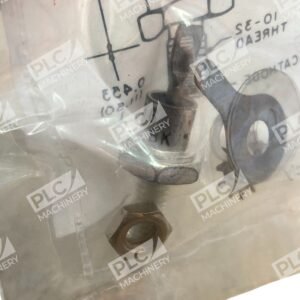

The SK7096 is suitable for use in power supplies, inverters, and other circuits requiring robust rectification capabilities. Its stud mount design facilitates secure installation and effective heat dissipation, making it ideal for high-current applications.

Technical Specifications

• Maximum Repetitive Reverse Voltage (V_RRM): 200 V
• Average Rectified Forward Current (I_O): 16 A
• Peak Forward Surge Current (I_FSM): 400 A
• Operating Temperature Range: -65°C to +175°C

For detailed information on electrical characteristics and thermal performance, please refer to the product datasheet.
