Phoenix Contact CM 175-PS-120AC/24DCU/10

The Phoenix Contact CM 175-PS-120AC/24DCU/10 is a compact process control power supply designed to deliver reliable and efficient performance in industrial applications.

Key Features

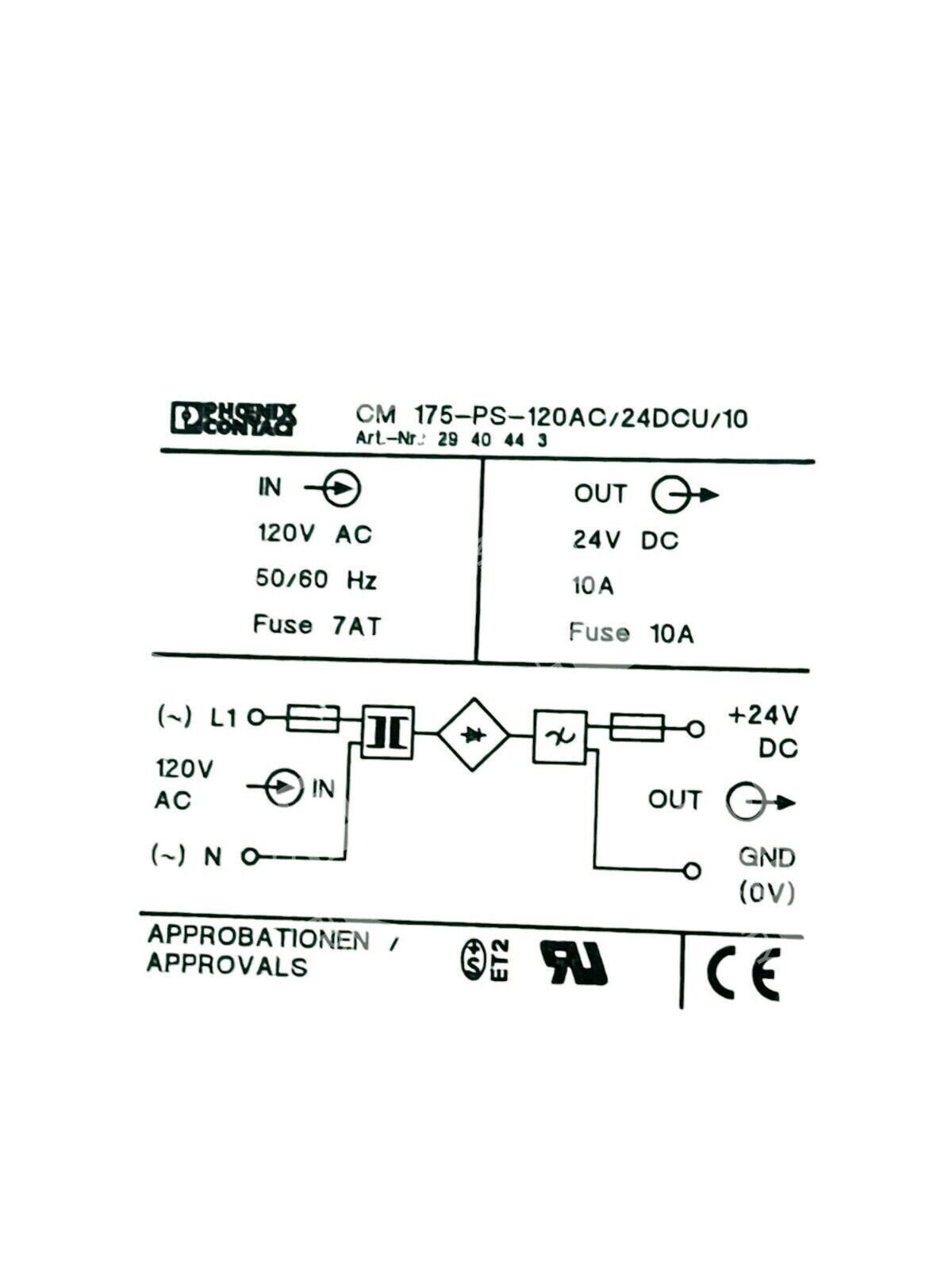

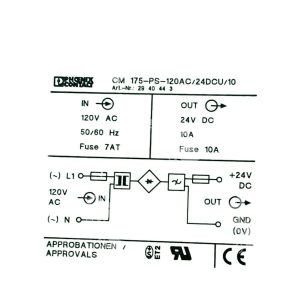

• Output Voltage and Current: Provides a stable 24 V DC output with a maximum current of 10 A, ensuring consistent power delivery for various control systems.
• Input Specifications: Accepts a 120 V AC input at 50/60 Hz, accommodating standard power sources.
• Efficiency: Achieves an efficiency rating of 80% or higher, optimizing energy use and reducing operational costs.
• Inrush Current: Features an inrush current of approximately 3.0 A, minimizing the impact on the electrical system during startup.
• Power Consumption: Consumes approximately 370 VA, balancing performance with energy efficiency.
• Input Fuse: Equipped with a 7 A input fuse, providing protection against overcurrent conditions.
• Low Ripple: Maintains a low ripple of 5%, ensuring clean and stable DC output for sensitive equipment.

Physical Specifications

• Dimensions: Measures 175 mm in width, 155 mm in height, and 183 mm in depth, offering a compact footprint for easy integration into control panels.
• Weight: Weighs approximately 6.6 kg, facilitating straightforward installation and handling.
• Mounting: Designed for DIN-rail mounting, ensuring secure and efficient installation within industrial environments.

The CM 175-PS-120AC/24DCU/10 power supply is engineered to meet the demands of industrial process control systems, offering robust performance, high efficiency, and reliable operation.
