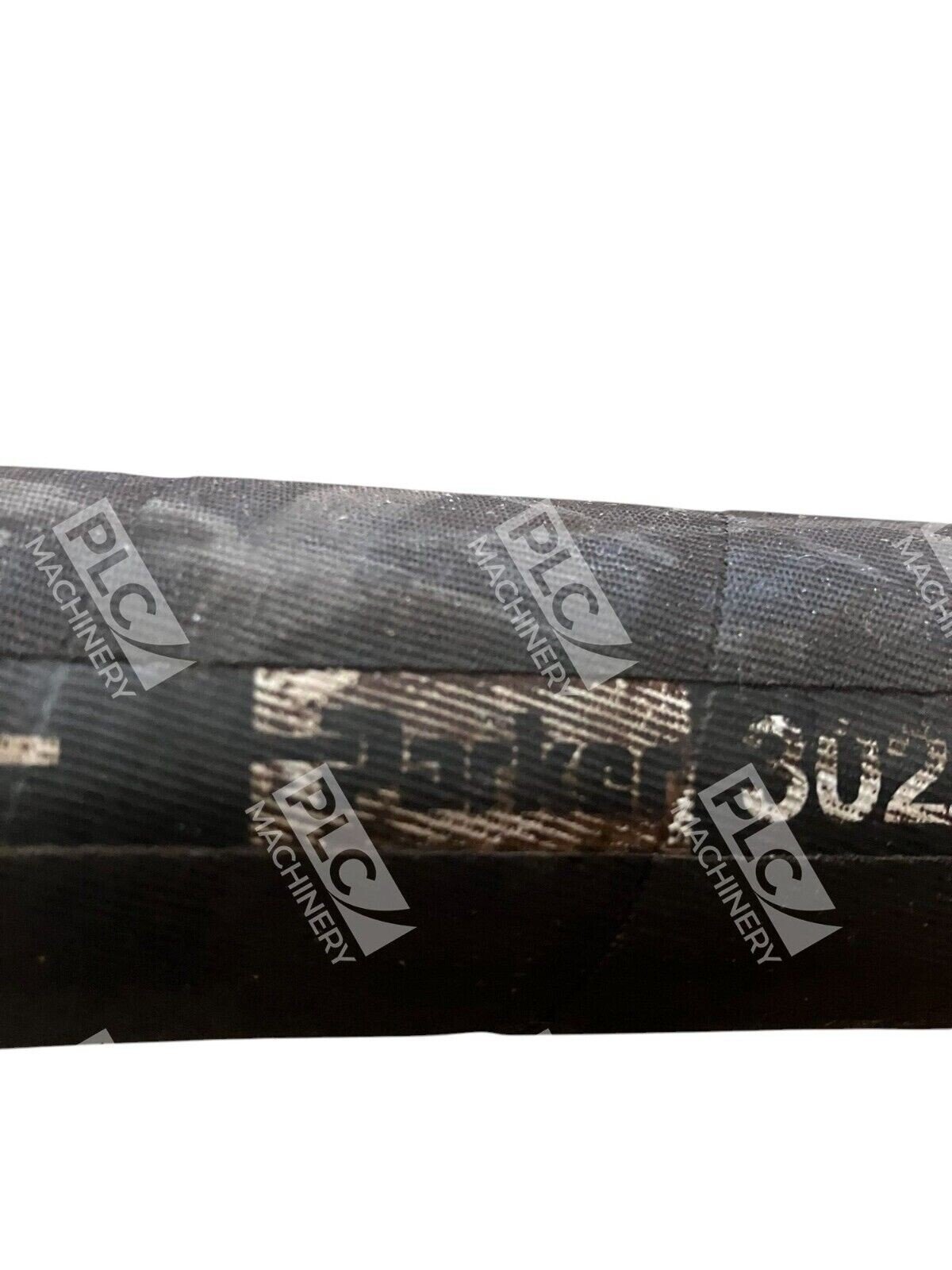

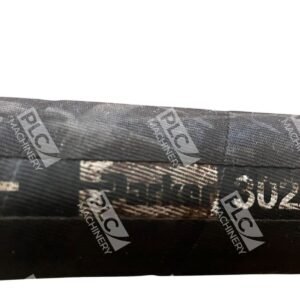

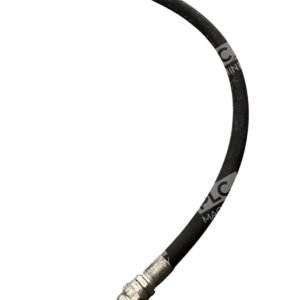

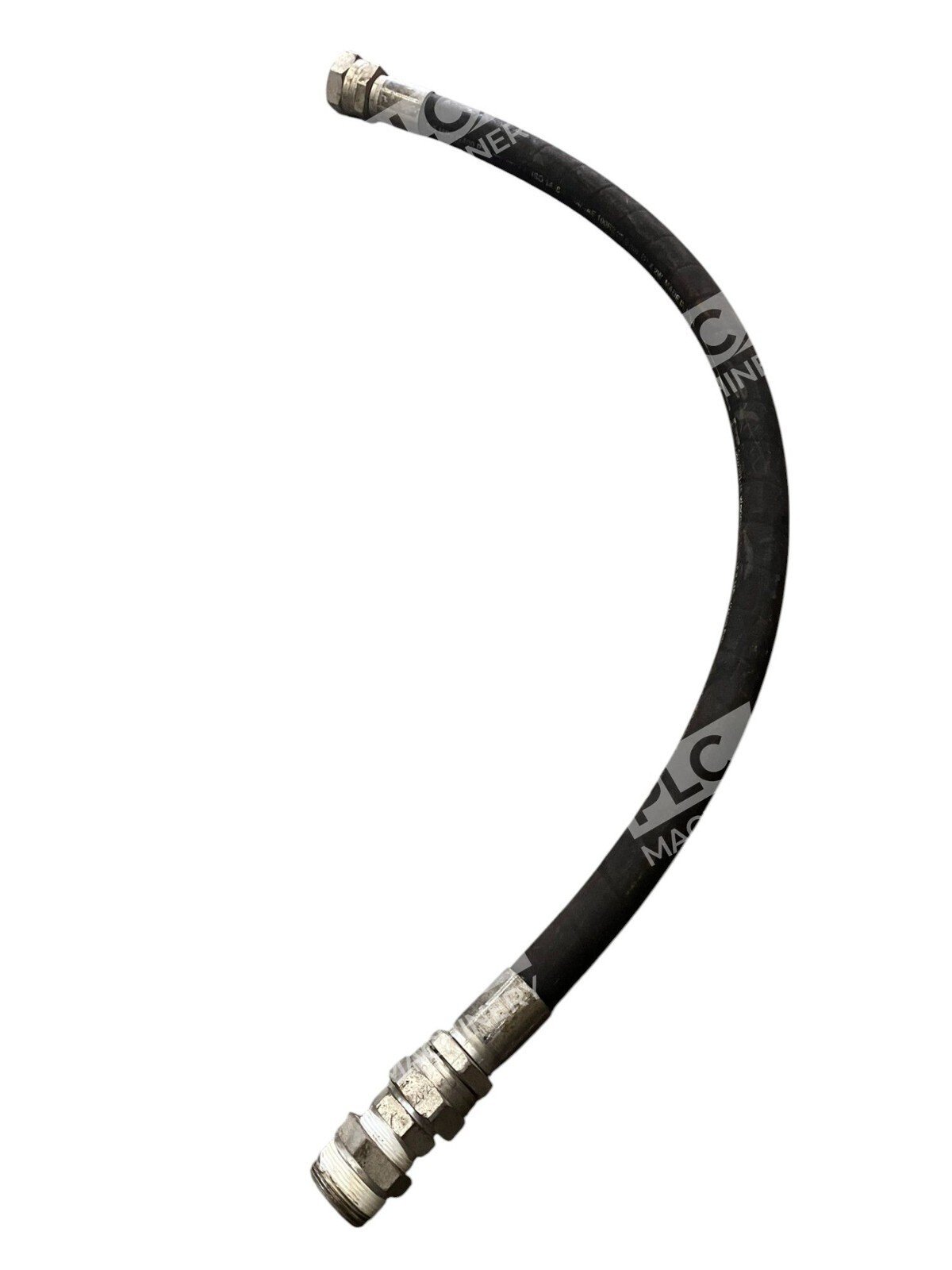

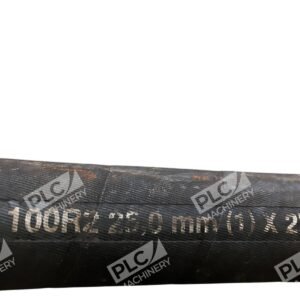

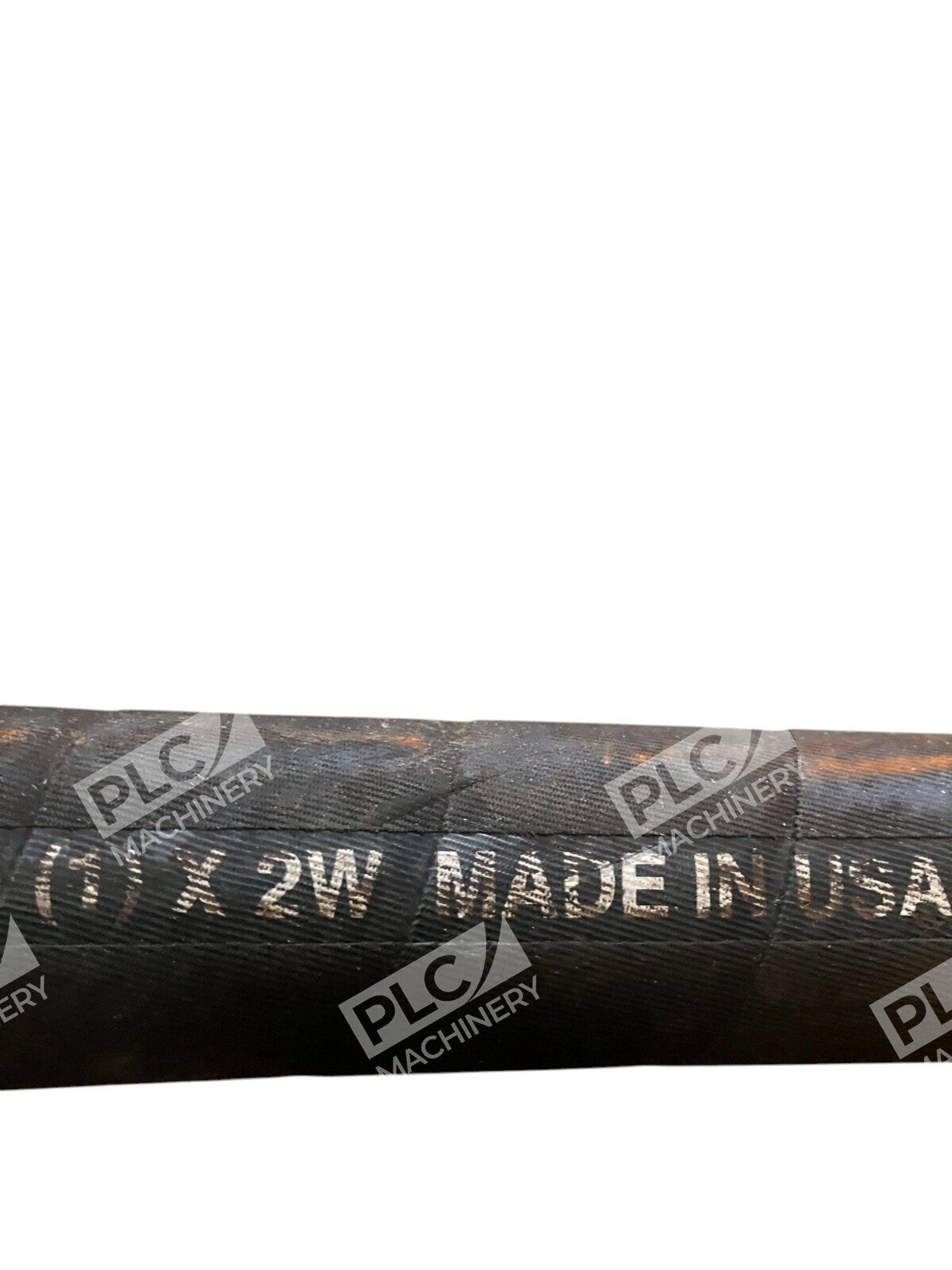

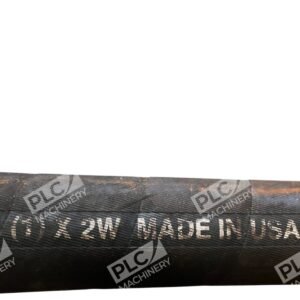

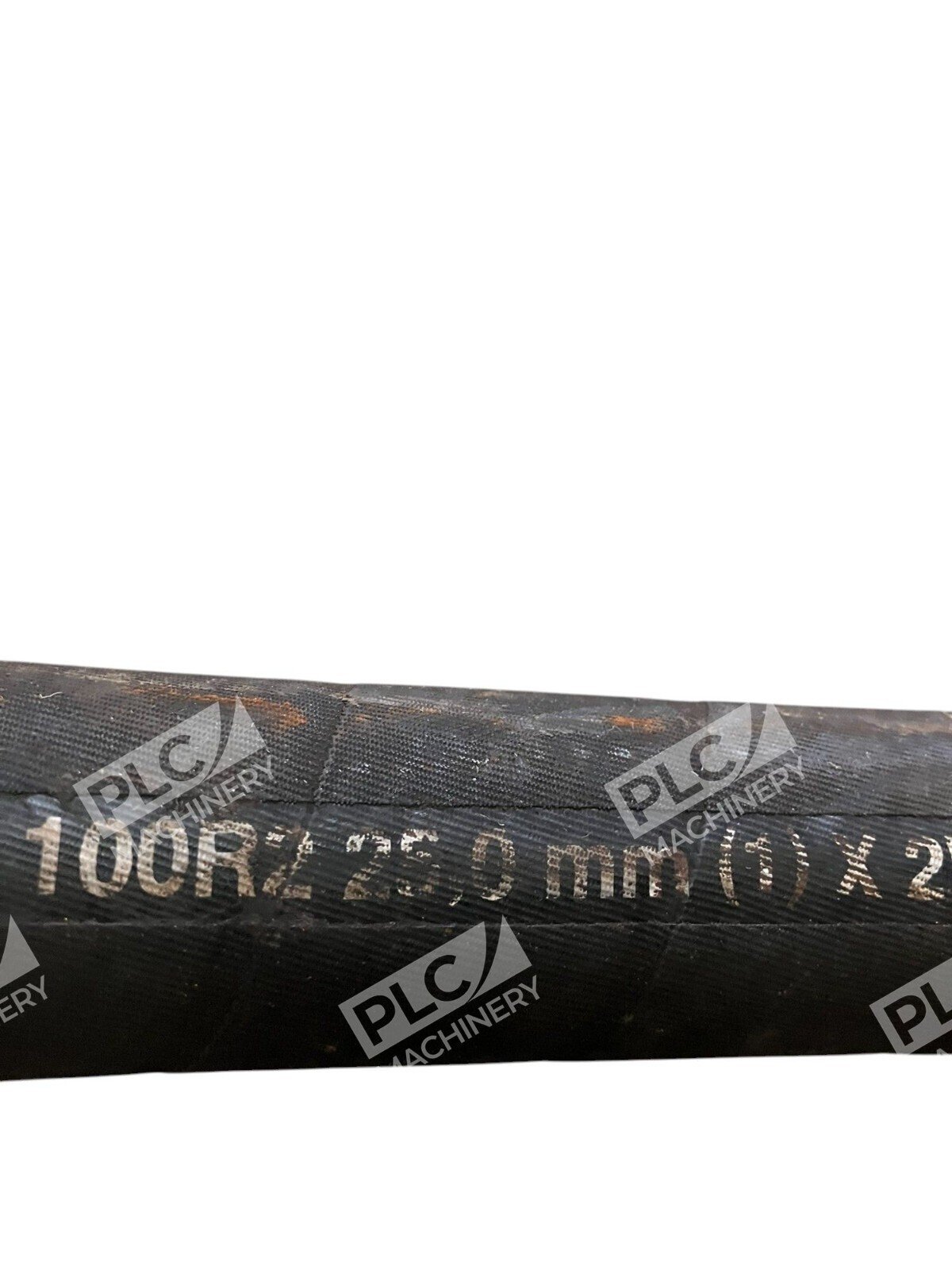

Parker 100R2 25.0mm ISO 16.5MPa 2400PSI Hydraulic Hose 1436-1/2SN/SAE

Parker 100R2 25.0mm ISO 16.5MPa 2400PSI Hydraulic Hose 1436-1/2SN/SAE

The Parker 100R2 hydraulic hose is engineered to meet the rigorous demands of various hydraulic applications, offering exceptional performance and durability. Designed in compliance with international standards, this hose ensures reliability across diverse industries.

Key Features

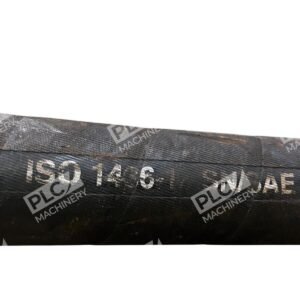

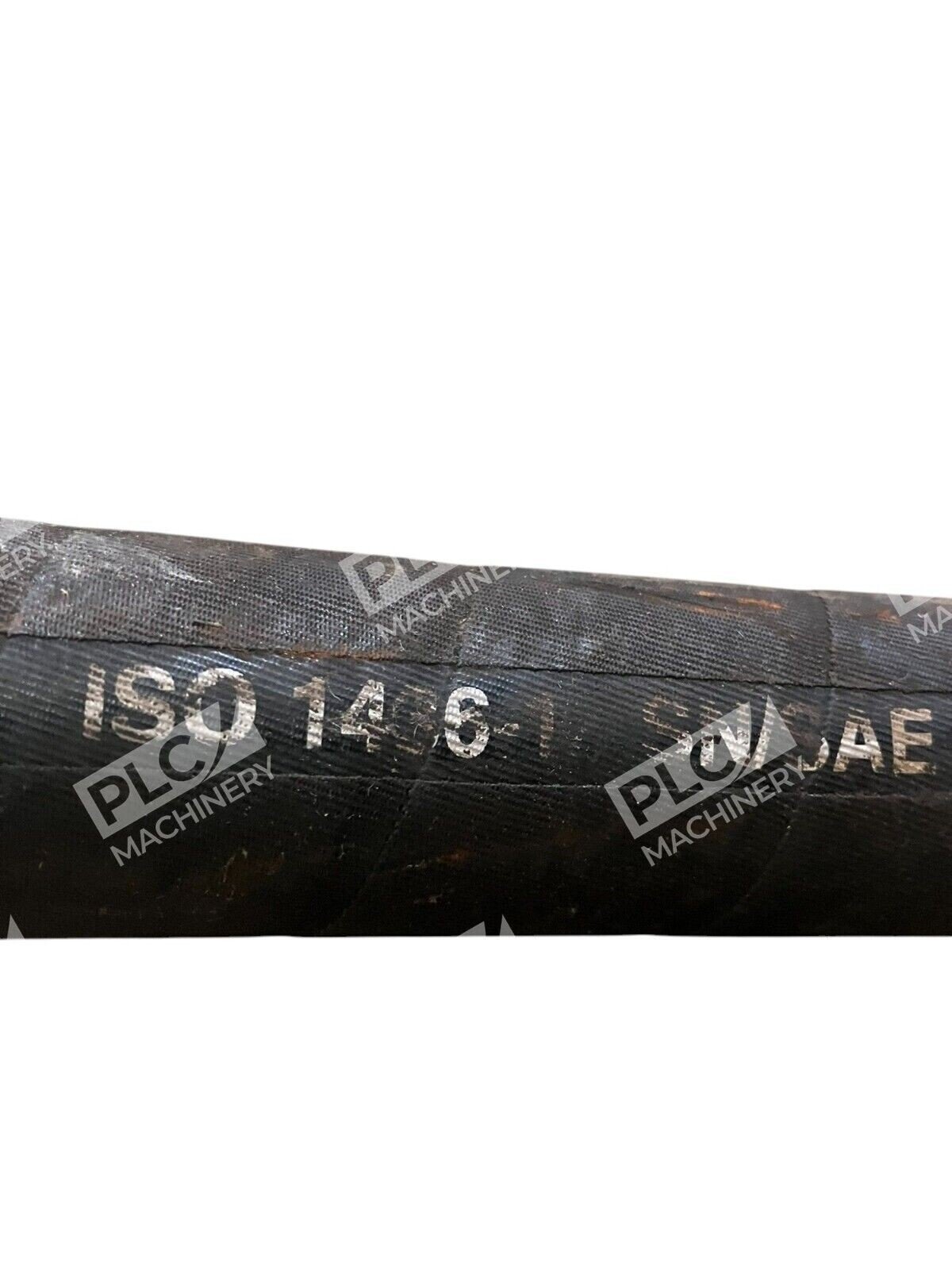

• Universal Two-Wire Design: Manufactured to international specifications, including ISO 1436-1 Type 2SN and SAE 100R2AT, ensuring global compatibility.

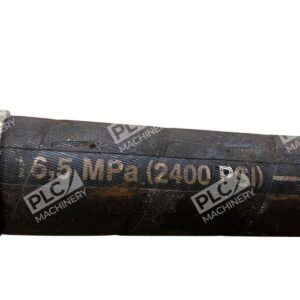

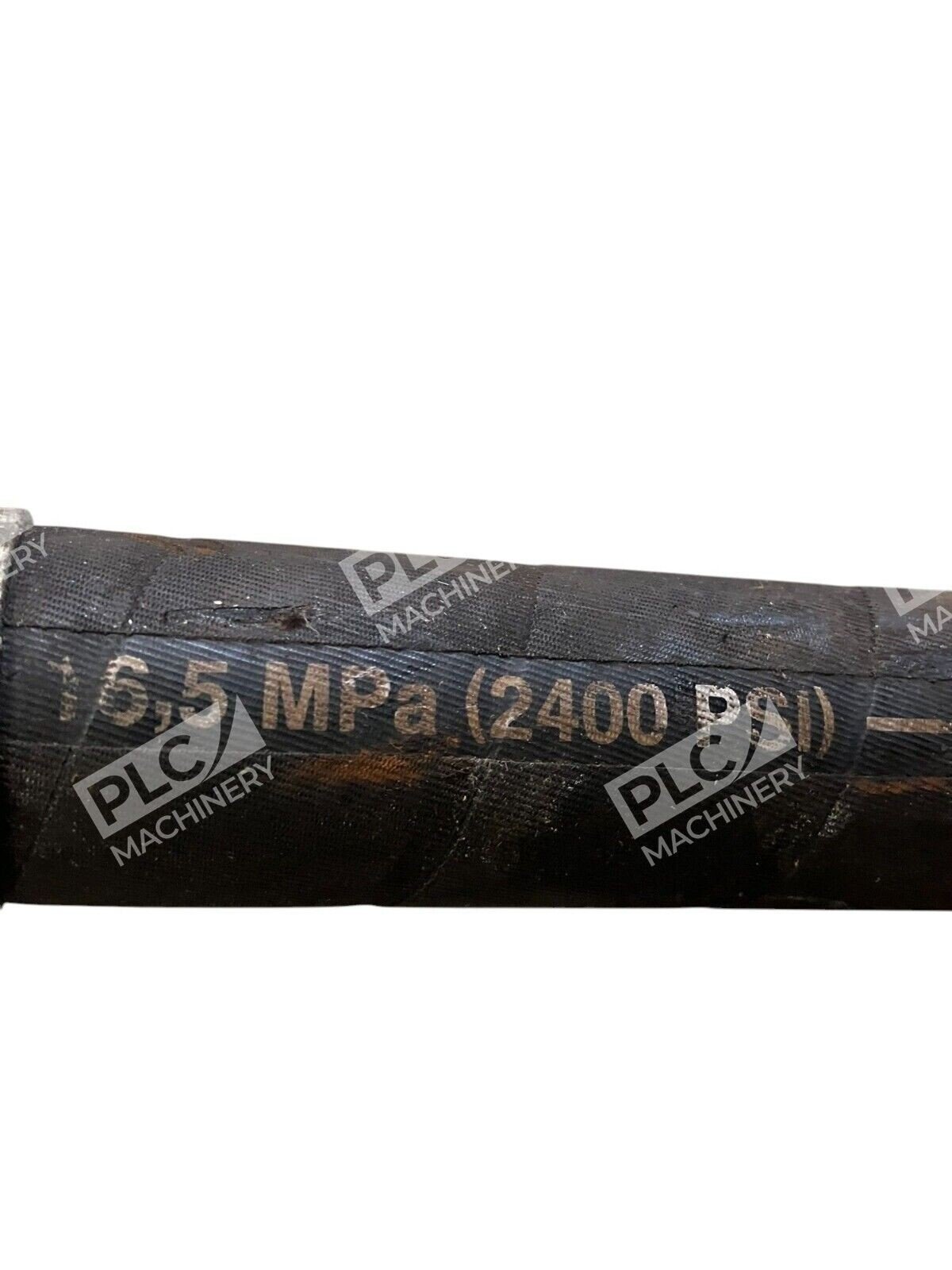

• High Working Pressure: Supports a maximum operating pressure of 2,400 PSI (16.5 MPa), suitable for demanding hydraulic systems.
• Durable Construction: Features a synthetic rubber inner tube for enhanced fluid compatibility and bio-oil resistance, reinforced with two braids of steel wire for added strength.
• Temperature Resilience: Operates efficiently within a temperature range of -40°F to +212°F (-40°C to +100°C), accommodating various environmental conditions.
• Versatile Applications: Ideal for use with petroleum-based hydraulic fluids and lubricating oils, making it suitable for industries such as transportation, construction, agriculture, and material handling.

Technical Specifications

• Inner Diameter: 25.0 mm (1 inch)
• Outer Diameter: 38.1 mm (1.50 inches)
• Minimum Bend Radius: 12 inches (300 mm)
• Weight: 1.00 lb/ft (1.49 kg/m)
• Compatible Fittings: 43 Series and 30 Series

The Parker 100R2 hydraulic hose is a reliable solution for high-pressure hydraulic applications, offering a combination of strength, flexibility, and compatibility to meet the needs of various industrial sectors.
