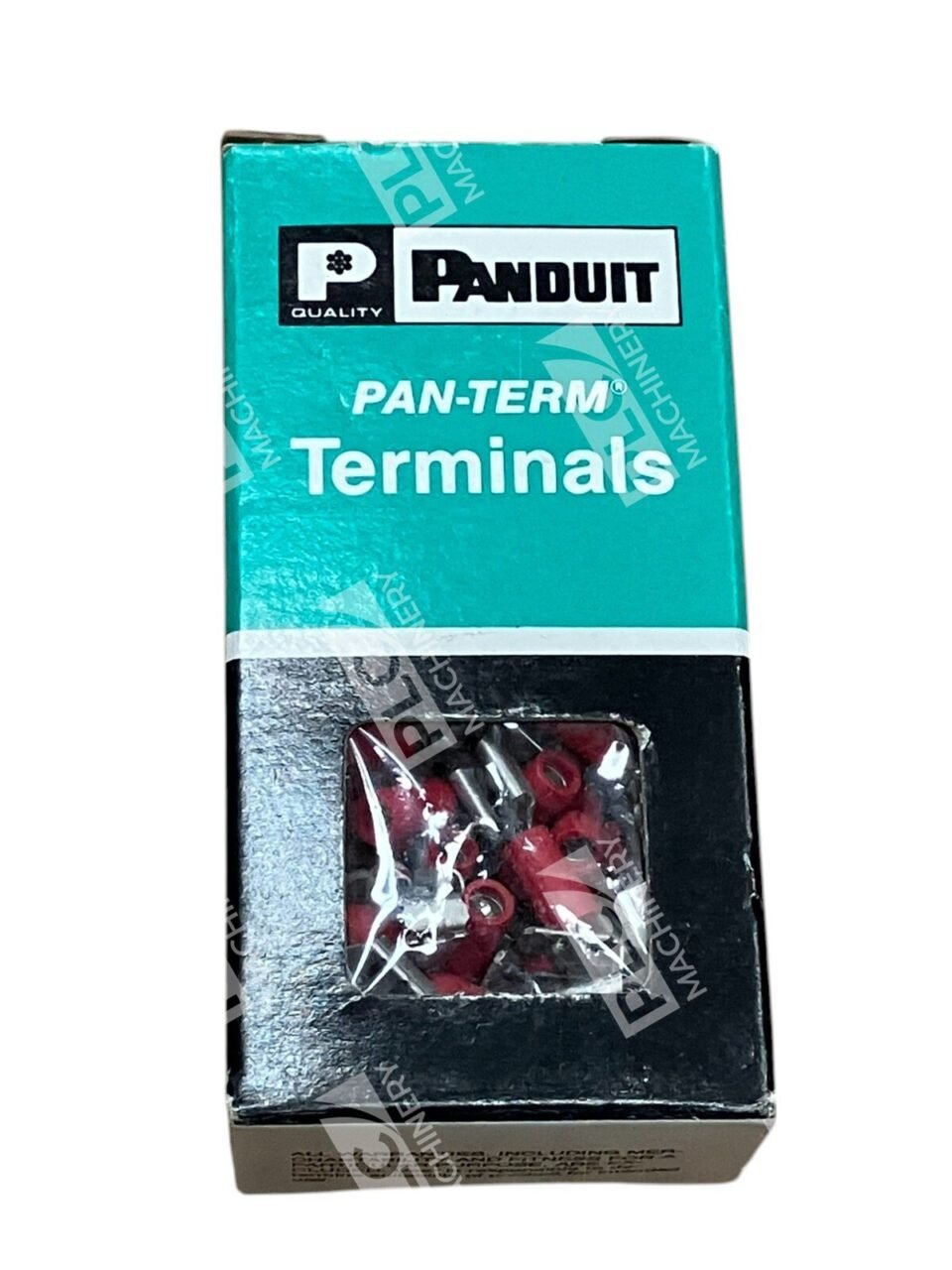

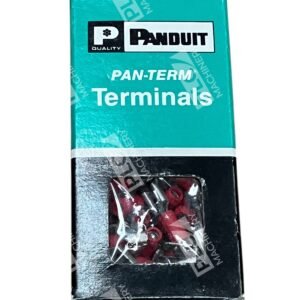

Panduit .250x.032TAB 22-18 Wire Size Pan-Term Terminals DV18-250P-C (Box of 100)

Panduit DV18-250P-C Pan-Term Piggyback Disconnects

The Panduit DV18-250P-C Pan-Term Piggyback Disconnects are designed to provide reliable and versatile electrical connections for wire sizes ranging from 22 to 18 AWG. These terminals feature a unique piggyback design, allowing for multiple connection points without the need for extensive rework, making them ideal for applications requiring additional circuits.

Key Features

• Versatile Connection: The combination of a female disconnect and male tab enables easy insertion and removal without tools, facilitating quick and cost-effective installations.
• Durable Construction: Constructed from tin-plated brass, these terminals offer excellent conductivity and resistance to corrosion, ensuring long-lasting performance.
• Insulation Grip: The metal insulation grip sleeve crimps onto the wire insulation, providing enhanced protection and maintaining a secure connection in high-vibration environments.
• Compact Design: With an overall length of 0.88 inches (22.4 mm) and a width of 0.29 inches (7.4 mm), these terminals are suitable for installations where space is limited.
• Standard Tab Size: Featuring a tab size of 0.250 x 0.032 inches (6.3 x 0.8 mm), they are compatible with standard male tabs, ensuring broad applicability.

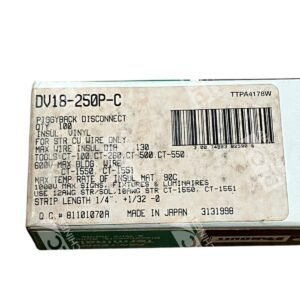

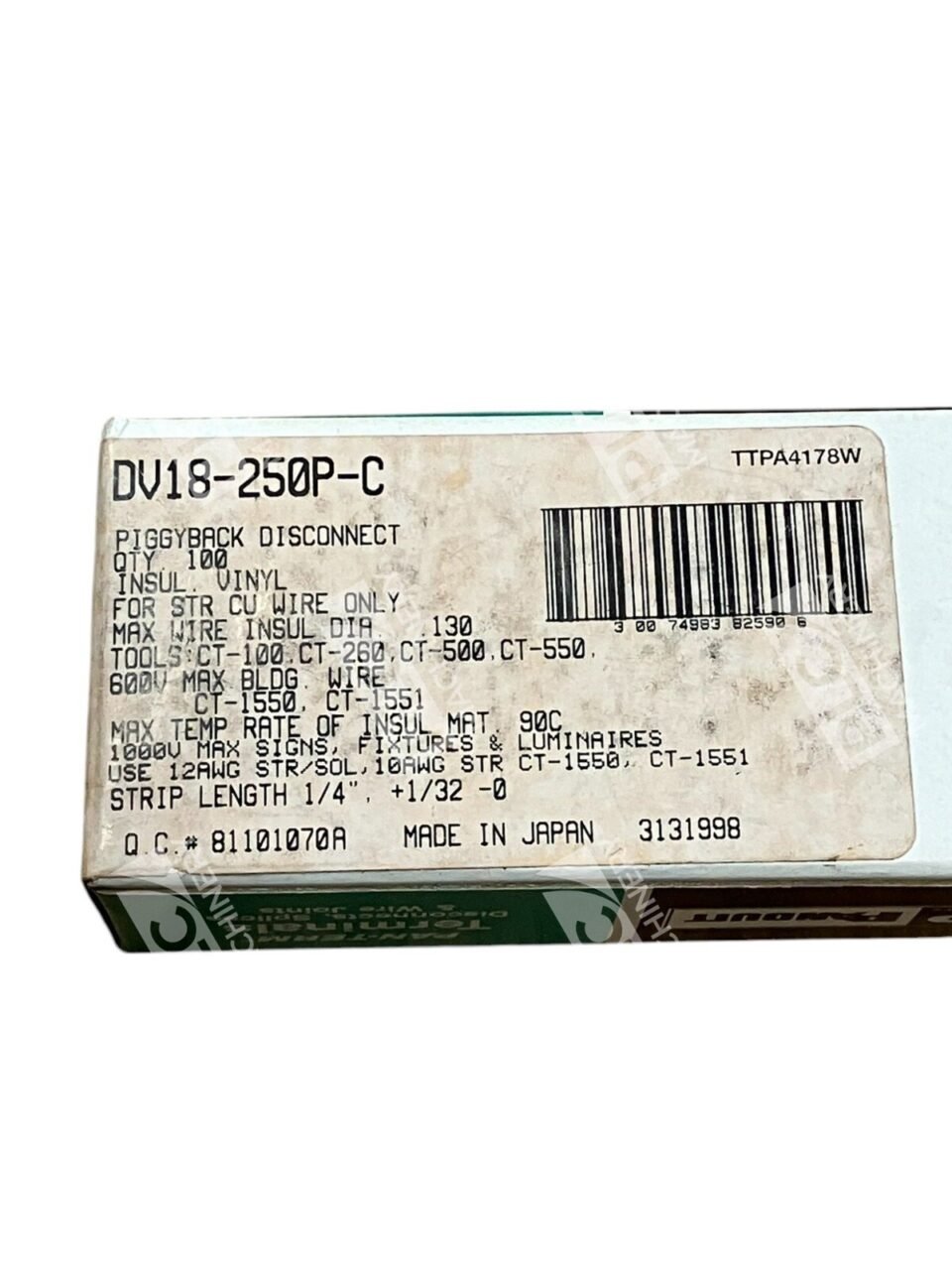

Specifications

• Wire Range: 22–18 AWG (0.5–1.0 mm²)
• Insulation Material: Red vinyl
• Base Material: Brass with tin plating
• Maximum Wire Insulation Diameter: 0.13 inches (3.3 mm)
• Operating Temperature: Up to 194°F (90°C)
• Voltage Rating: Up to 300 V

Applications

These piggyback disconnects are suitable for various applications, including automotive, industrial machinery, and electrical panels, where secure and efficient wire terminations are essential.

Packaging

The DV18-250P-C terminals are available in boxes containing 100 pieces, providing ample supply for both small and large-scale projects.

By incorporating Panduit’s DV18-250P-C Pan-Term Piggyback Disconnects into your electrical systems, you can achieve dependable and flexible connections that meet industry standards.
